SKU:A9119-5-LONG

Size 19 Sheave Car Long

Size 19 Sheave Car Long

Regular price $298.07
Regular price Sale price $298.07
Sale Sold out
Shipping calculated at checkout.

Available on back order(Can be backordered)

Require larger quantities? Contact us

Quantity

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details

Description

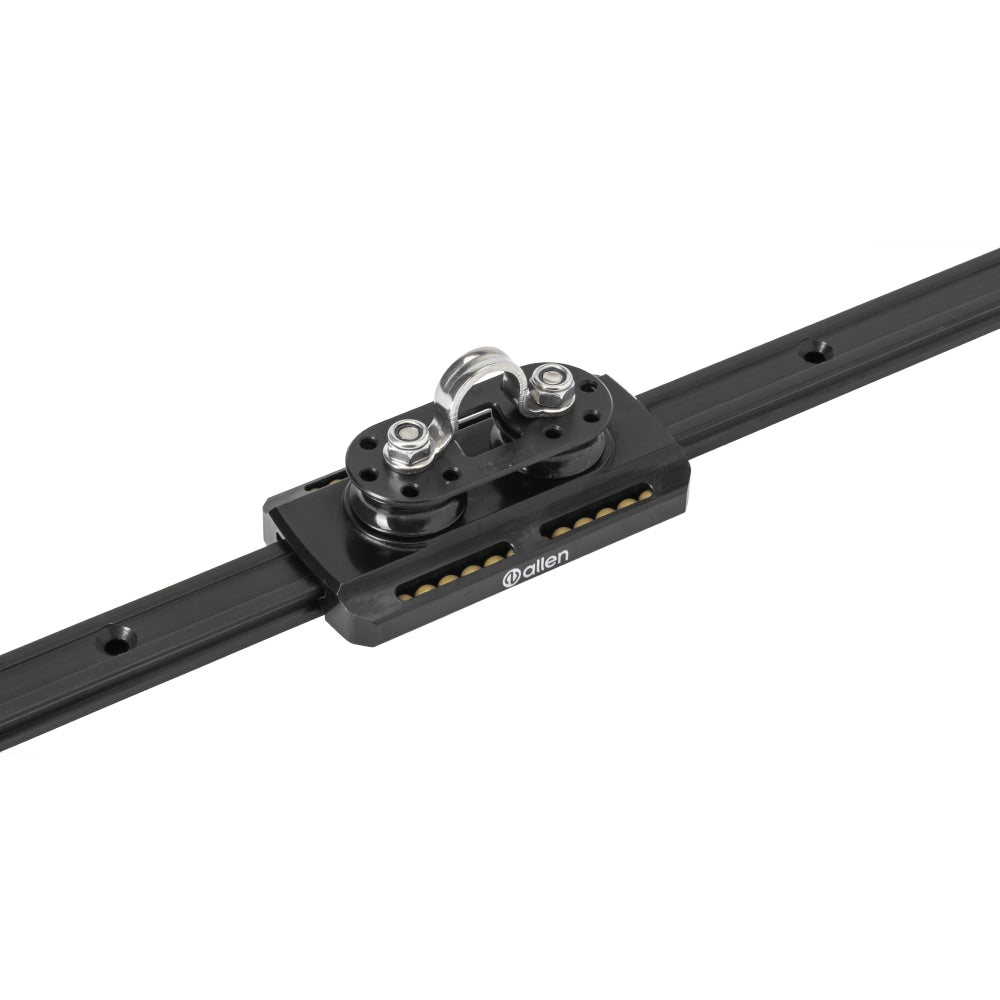

Size 19 Sheave Car Long

Designed for traveller and control systems on dinghies, catamarans, and keelboats up to 28ft, the Size 19 Sheave Car Long combines smooth traveller movement with enhanced load-carrying capability. Its extended body distributes loads across a greater number of recirculating Torlon ball bearings, reducing bearing stress and maintaining efficient, low-friction operation under higher loads. Integrated sheaves and a lacing eye provide a compact solution for a variety of sail control and traveller applications.

Key Features:

  • Recirculating Torlon ball bearings provide smooth, low-friction movement for precise adjustment under load
  • Extended car body distributes loads across more bearings, improving rolling efficiency and reducing bearing stress
  • Twin fixed plain bearing sheaves allow efficient routing of control lines through the traveller system
  • Integrated lacing eye provides a secure attachment point for blocks, control lines, and rigging components
  • Compatible with Allen Size 19 Track (A9019) and Maxi Profile Track (A.819)
  • Ideal for traveller systems, mainsheet controls, and sail handling applications requiring increased load capacity and smooth operation under load
Brand Allen
Breaking load kg 1400
Configuration Car
Height mm 50
Length mm 100
Maximum working load kg 300
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a9119-5-long-ref.pdf
Related collection CollectionDrop
Width mm 50.5
Swipe
SKU Title Accessories Breaking Load Kg Max Working Load Kg Fixing Hole Dia mm Height mm Hole Pitch mm Length mm Width mm Weight (g) Price
A9119

Size 19 Base Car

- 1400 230 - 50 - 70 50.5 77
Regular price $169.01
Regular price Sale price $169.01
A9119-LOADER

Size 19 Car Loader

- - - - - - - - -
Regular price $9.01
Regular price Sale price $9.01
A9119-4

Size 19 Cat Car

A..76-496 1400 230 - 70 - 70 106 376
Regular price $340.52
Regular price Sale price $340.52
A9119-2

Size 19 Cheek Block Car

A2036 1400 230 - 50 - 153 50.5 145
Regular price $204.88
Regular price Sale price $204.88
A9219

Size 19 End Stop With Becket

- - - M5 19 - 33 32.5 36
Regular price $34.08
Regular price Sale price $34.08
A9219-1

Size 19 End Stop With Block And Becket

A2036M 400 140 M5 31 50.5 80 52.5 64
Regular price $119.27
Regular price Sale price $119.27
A9219-2

Size 19 End Stop With Double Block And Becket

A2136M 400 280 M5 51 50.5 80 32.5 100
Regular price $143.05
Regular price Sale price $143.05
A9119-Long

Size 19 Long Car

A2036 1600 260 - 50 - 153.4 50 231
Regular price $227.70
Regular price Sale price $227.70
A9119-1

Size 19 P-Clip Car

A4035 1400 230 - 50 - 97 50.5 86
Regular price $172.50
Regular price Sale price $172.50
A9219-PIN

Size 19 Pin Stop

- - - - 25.7 - 30 30 36
Regular price $66.89
Regular price Sale price $66.89
A9219-PIN-1

Size 19 Pin Stop Car With Lacing Eye

- 1000 500 - 34.5 - 68 36 77
Regular price $139.62
Regular price Sale price $139.62
A9219-PIN-2

Size 19 Pin Stop Car With Removable Bar

- 1000 500 - 25.6 - 68 36 36
Regular price $146.57
Regular price Sale price $146.57
A9019-05-P

Size 19 Pin Stop Track

- - - M5 10 100 - 19 -
Regular price From $56.09
Regular price Sale price From $56.09
A9219-PS

Size 19 Plastic End Stop

- - - M5 15 - 27.5 28 5
Regular price $3.26
Regular price Sale price $3.26
A9119-5

Size 19 Sheave Car

- 1400 230 - 50 - 70 50.5 127
Regular price $211.47
Regular price Sale price $211.47
A9119-5-LONG

Size 19 Sheave Car Long

- 1400 300 - 50 - 100 50.5 145
Regular price $298.07
Regular price Sale price $298.07
A9119-Tii-90

Size 19 Tii-On 90 Degree Car

- 1400 230 - 26.6 - 69.3 50.5 50
Regular price $139.62
Regular price Sale price $139.62
A9119-Tii

Size 19 Tii-On Car

- 1400 230 - 26 - 69.3 50.5 54
Regular price $139.62
Regular price Sale price $139.62
A9019-1

Size 19 Track

- - - - - - - - -
Regular price From $68.28
Regular price Sale price From $68.28
