SKU:A9219-1
Size 19 End Stop With Block And Becket
Size 19 End Stop With Block And Becket
Low stock - 2 left(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description

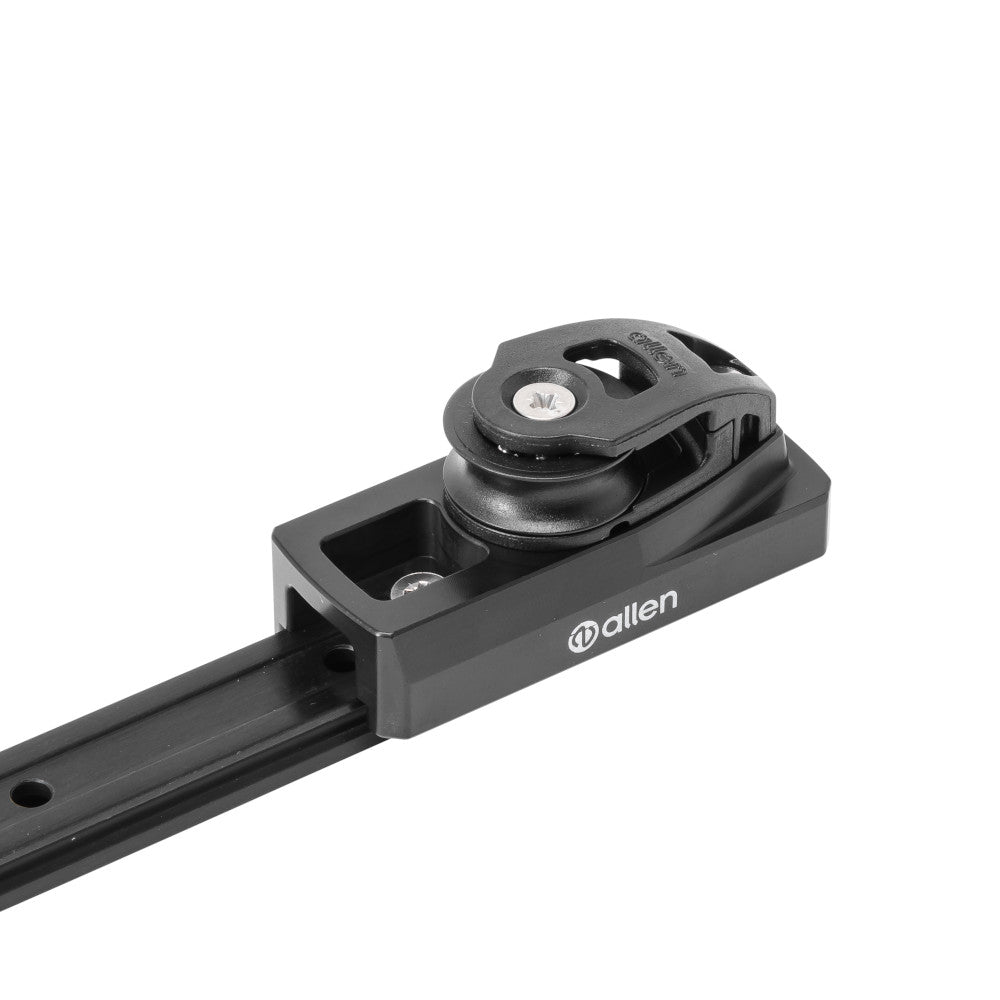

Size 19 End Stop with Block and Becket
Designed to provide a secure termination point for Size 19 traveller systems, the Size 19 End Stop with Block and Becket combines track retention with integrated control line management in a compact, durable assembly. CNC machined from marine-grade aluminium and finished with a black anodised coating, it offers excellent strength, corrosion resistance, and long-term reliability in marine environments. The integrated cheek block and becket help create efficient traveller control systems while maintaining smooth line handling.
Key Features:
- CNC machined from marine-grade aluminium for strength, precision, and durability
- Black anodised finish provides excellent corrosion resistance in marine environments
- Fitted with a pre-installed 30mm Dynamic Cheek Block for efficient traveller car control systems
- Integrated becket features a smooth, rope-friendly profile for tying or splicing control lines
- Supplied with nuts, bolts, and washers for straightforward installation onto the track
- Ideal for traveller systems, control line arrangements, and sail handling applications using Allen Size 19 track systems on dinghies, catamarans, and keelboats up to 28ft
| Accessories | A2036M |
|---|---|
| Brand | Allen |
| Breaking load kg | 400 |
| Configuration | End Stop |
| Fixing hole diameter mm | M5 |
| Height mm | 31 |
| Hole pitch mm | 50.5 |
| Length mm | 80 |
| Maximum working load kg | 140 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a9219-1-ref.pdf |
| Related collection | CollectionDrop |
| Width mm | 52.5 |
| SKU | Title | Accessories | Breaking Load Kg | Max Working Load Kg | Fixing Hole Dia mm | Height mm | Hole Pitch mm | Length mm | Width mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A9119 |
Size 19 Base Car |
- | 1400 | 230 | - | 50 | - | 70 | 50.5 | 77 |
Regular price
$169.01
Regular price
|
| A9119-LOADER |
Size 19 Car Loader |
- | - | - | - | - | - | - | - | - |
Regular price
$9.01
Regular price
|
| A9119-4 |
Size 19 Cat Car |
A..76-496 | 1400 | 230 | - | 70 | - | 70 | 106 | 376 |
Regular price
$340.52
Regular price
|
| A9119-2 |
Size 19 Cheek Block Car |
A2036 | 1400 | 230 | - | 50 | - | 153 | 50.5 | 145 |
Regular price
$204.88
Regular price
|
| A9219 |
Size 19 End Stop With Becket |
- | - | - | M5 | 19 | - | 33 | 32.5 | 36 |
Regular price
$34.08
Regular price
|
| A9219-1 |
Size 19 End Stop With Block And Becket |
A2036M | 400 | 140 | M5 | 31 | 50.5 | 80 | 52.5 | 64 |
Regular price
$119.27
Regular price
|
| A9219-2 |
Size 19 End Stop With Double Block And Becket |
A2136M | 400 | 280 | M5 | 51 | 50.5 | 80 | 32.5 | 100 |
Regular price
$143.05
Regular price
|
| A9119-Long |
Size 19 Long Car |
A2036 | 1600 | 260 | - | 50 | - | 153.4 | 50 | 231 |
Regular price
$227.70
Regular price
|
| A9119-1 |
Size 19 P-Clip Car |
A4035 | 1400 | 230 | - | 50 | - | 97 | 50.5 | 86 |
Regular price
$172.50
Regular price
|
| A9219-PIN |
Size 19 Pin Stop |
- | - | - | - | 25.7 | - | 30 | 30 | 36 |
Regular price
$66.89
Regular price
|
| A9219-PIN-1 |
Size 19 Pin Stop Car With Lacing Eye |
- | 1000 | 500 | - | 34.5 | - | 68 | 36 | 77 |
Regular price
$139.62
Regular price
|
| A9219-PIN-2 |
Size 19 Pin Stop Car With Removable Bar |
- | 1000 | 500 | - | 25.6 | - | 68 | 36 | 36 |
Regular price
$146.57
Regular price
|
| A9019-05-P |
Size 19 Pin Stop Track |
- | - | - | M5 | 10 | 100 | - | 19 | - |
Regular price
From $56.09
Regular price
|
| A9219-PS |
Size 19 Plastic End Stop |
- | - | - | M5 | 15 | - | 27.5 | 28 | 5 |
Regular price
$3.26
Regular price
|
| A9119-5 |
Size 19 Sheave Car |
- | 1400 | 230 | - | 50 | - | 70 | 50.5 | 127 |
Regular price
$211.47
Regular price
|
| A9119-5-LONG |
Size 19 Sheave Car Long |
- | 1400 | 300 | - | 50 | - | 100 | 50.5 | 145 |
Regular price
$298.07
Regular price
|
| A9119-Tii-90 |
Size 19 Tii-On 90 Degree Car |
- | 1400 | 230 | - | 26.6 | - | 69.3 | 50.5 | 50 |
Regular price
$139.62
Regular price
|
| A9119-Tii |
Size 19 Tii-On Car |
- | 1400 | 230 | - | 26 | - | 69.3 | 50.5 | 54 |
Regular price
$139.62
Regular price
|
| A9019-1 |
Size 19 Track |
- | - | - | - | - | - | - | - | - |
Regular price
From $68.28
Regular price
|
