SKU:A9119-2
Size 19 Cheek Block Car
Size 19 Cheek Block Car
Low stock - 3 left(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description

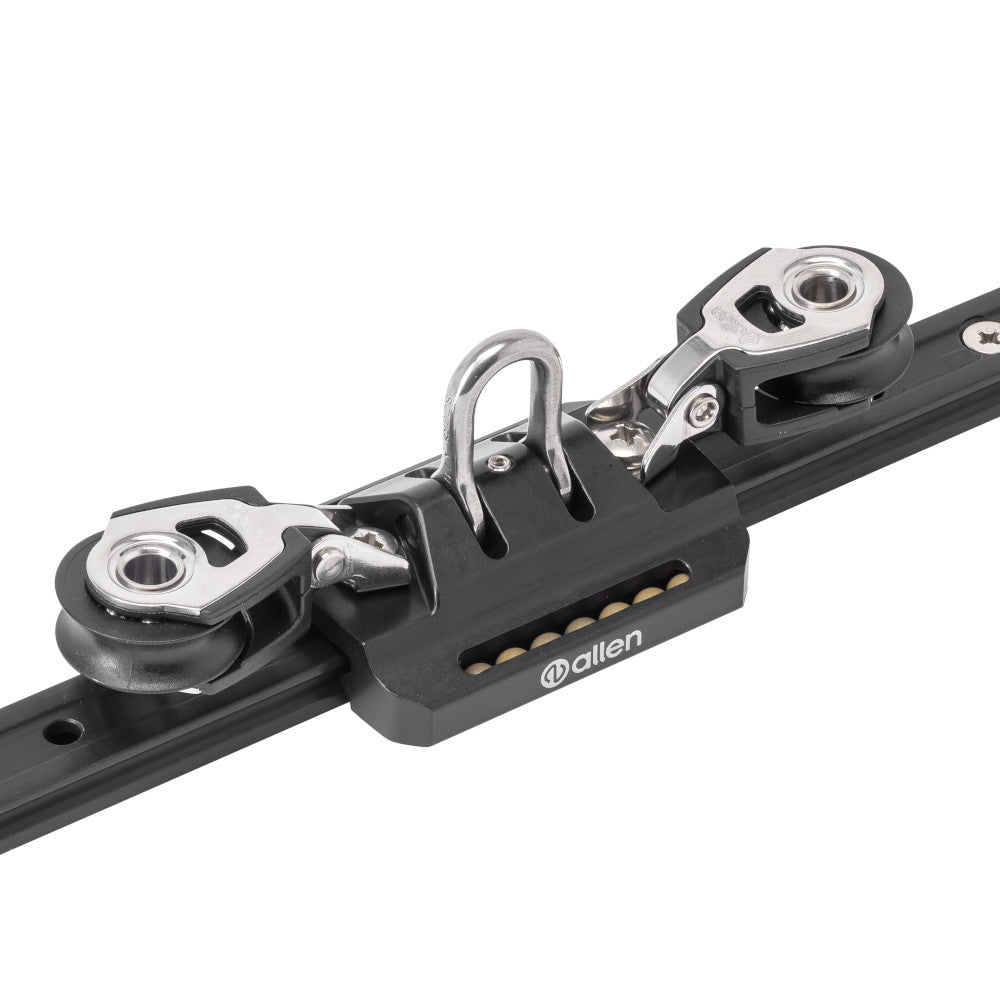

Size 19 Cheek Block Car
Designed for traveller and control systems on dinghies, catamarans, and keelboats up to 28ft, the Size 19 Cheek Block Car provides smooth, reliable adjustment while incorporating the hardware needed for efficient car control systems. The recirculating Torlon ball bearing system delivers low-friction movement along the track, allowing precise positioning and easy adjustment under load. Supplied with integrated cheek blocks, it offers a compact and effective solution for traveller and control line applications.
Key Features:

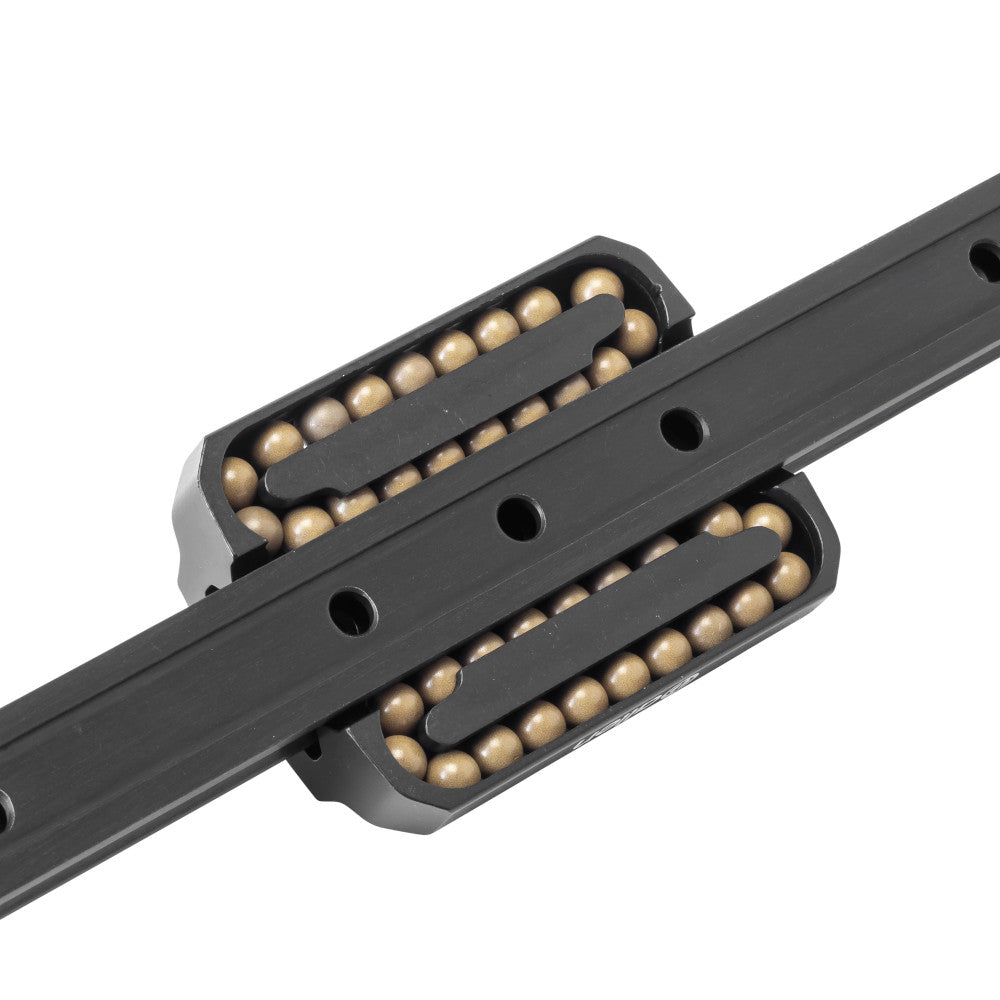

- Recirculating Torlon ball bearings provide smooth, low-friction movement for precise adjustment under load
- Removable flip-flop shackle allows easy attachment of blocks, lines, and traveller system components
- Fitted with two pre-installed 30mm Dynamic Cheek Blocks for creating efficient traveller car control systems
- Robust construction suitable for use on dinghies, catamarans, and keelboats up to 28ft
- Compatible with the Allen A4035 P-Clip, A2036 30mm Cheek Block, A9019 Size 19 Track, and A.819 Maxi Profile Track
- Ideal for traveller systems, adjustable control arrangements, and sail handling applications requiring smooth operation under load
| Accessories | A2036 |
|---|---|
| Brand | Allen |
| Breaking load kg | 1400 |
| Configuration | Car |
| Height mm | 50 |
| Length mm | 153 |
| Maximum working load kg | 230 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a9119-2-ref.pdf |
| Related collection | CollectionDrop |
| Width mm | 50.5 |
| SKU | Title | Accessories | Breaking Load Kg | Max Working Load Kg | Fixing Hole Dia mm | Height mm | Hole Pitch mm | Length mm | Width mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A9119 |
Size 19 Base Car |
- | 1400 | 230 | - | 50 | - | 70 | 50.5 | 77 |
Regular price
$169.01
Regular price
|
| A9119-LOADER |
Size 19 Car Loader |
- | - | - | - | - | - | - | - | - |
Regular price
$9.01
Regular price
|
| A9119-4 |
Size 19 Cat Car |
A..76-496 | 1400 | 230 | - | 70 | - | 70 | 106 | 376 |
Regular price
$340.52
Regular price
|
| A9119-2 |
Size 19 Cheek Block Car |
A2036 | 1400 | 230 | - | 50 | - | 153 | 50.5 | 145 |
Regular price
$204.88
Regular price
|
| A9219 |
Size 19 End Stop With Becket |
- | - | - | M5 | 19 | - | 33 | 32.5 | 36 |
Regular price
$34.08
Regular price
|
| A9219-1 |
Size 19 End Stop With Block And Becket |
A2036M | 400 | 140 | M5 | 31 | 50.5 | 80 | 52.5 | 64 |
Regular price
$119.27
Regular price
|
| A9219-2 |
Size 19 End Stop With Double Block And Becket |
A2136M | 400 | 280 | M5 | 51 | 50.5 | 80 | 32.5 | 100 |
Regular price
$143.05
Regular price
|
| A9119-Long |
Size 19 Long Car |
A2036 | 1600 | 260 | - | 50 | - | 153.4 | 50 | 231 |
Regular price
$227.70
Regular price
|
| A9119-1 |
Size 19 P-Clip Car |
A4035 | 1400 | 230 | - | 50 | - | 97 | 50.5 | 86 |
Regular price
$172.50
Regular price
|
| A9219-PIN |
Size 19 Pin Stop |
- | - | - | - | 25.7 | - | 30 | 30 | 36 |
Regular price
$66.89
Regular price
|
| A9219-PIN-1 |
Size 19 Pin Stop Car With Lacing Eye |
- | 1000 | 500 | - | 34.5 | - | 68 | 36 | 77 |
Regular price
$139.62
Regular price
|
| A9219-PIN-2 |
Size 19 Pin Stop Car With Removable Bar |
- | 1000 | 500 | - | 25.6 | - | 68 | 36 | 36 |
Regular price
$146.57
Regular price
|
| A9019-05-P |
Size 19 Pin Stop Track |
- | - | - | M5 | 10 | 100 | - | 19 | - |
Regular price
From $56.09
Regular price
|
| A9219-PS |
Size 19 Plastic End Stop |
- | - | - | M5 | 15 | - | 27.5 | 28 | 5 |
Regular price
$3.26
Regular price
|
| A9119-5 |
Size 19 Sheave Car |
- | 1400 | 230 | - | 50 | - | 70 | 50.5 | 127 |
Regular price
$211.47
Regular price
|
| A9119-5-LONG |
Size 19 Sheave Car Long |
- | 1400 | 300 | - | 50 | - | 100 | 50.5 | 145 |
Regular price
$298.07
Regular price
|
| A9119-Tii-90 |
Size 19 Tii-On 90 Degree Car |
- | 1400 | 230 | - | 26.6 | - | 69.3 | 50.5 | 50 |
Regular price
$139.62
Regular price
|
| A9119-Tii |
Size 19 Tii-On Car |
- | 1400 | 230 | - | 26 | - | 69.3 | 50.5 | 54 |
Regular price
$139.62
Regular price
|
| A9019-1 |
Size 19 Track |
- | - | - | - | - | - | - | - | - |
Regular price
From $68.28
Regular price
|
