Size 19 End Stop With Double Block And Becket

Size 19 End Stop With Double Block And Becket

Regular price $143.05
Regular price Sale price $143.05
Sale Sold out
Shipping calculated at checkout.

Low stock - 1 left(Can be backordered)

Require larger quantities? Contact us

Quantity

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details

Description

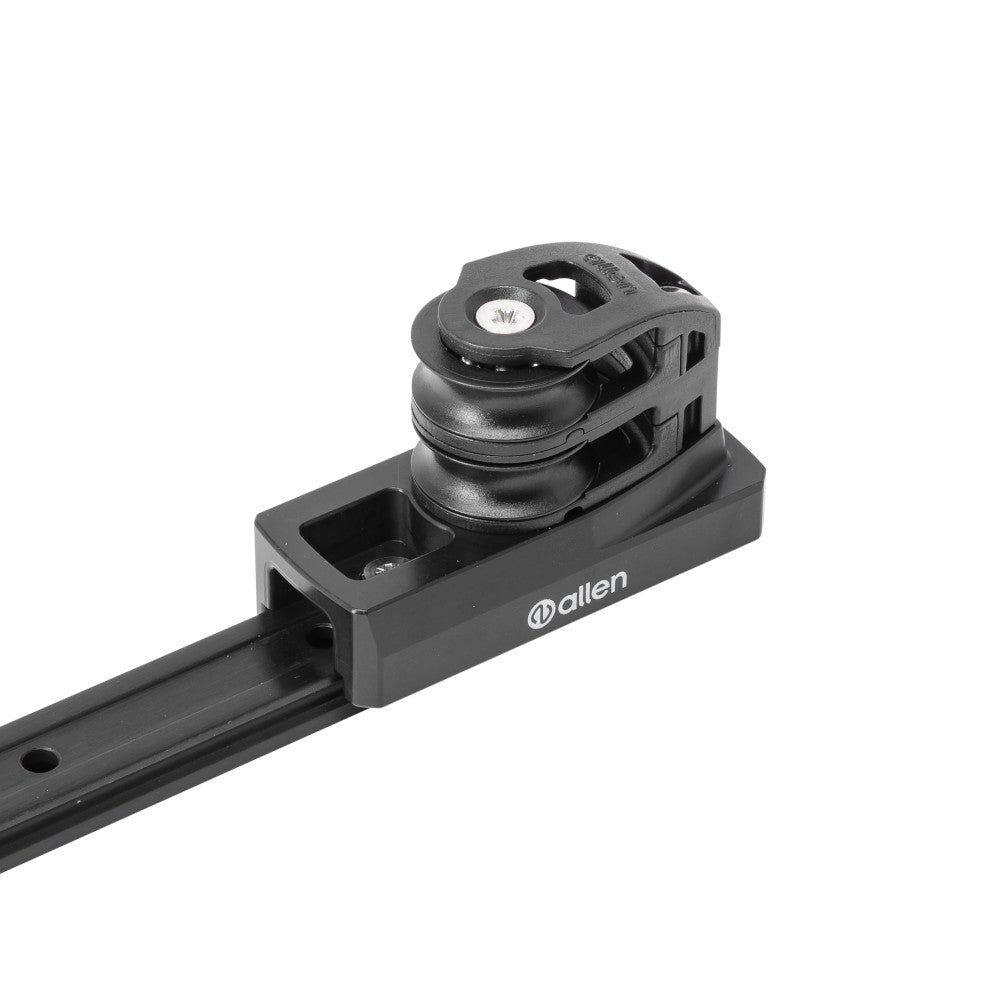

Size 19 End Stop with Double Block and Becket

Designed to provide a secure termination point for Size 19 traveller systems, the Size 19 End Stop with Double Block and Becket combines track retention with integrated control line management in a compact and durable assembly. CNC machined from marine-grade aluminium and finished with a black anodised coating, it offers excellent strength, corrosion resistance, and long-term reliability in demanding marine environments. The integrated double cheek block and becket enable more versatile purchase systems and control line arrangements while maintaining smooth and efficient operation.

Key Features:

  • CNC machined from marine-grade aluminium for strength, precision, and long service life
  • Black anodised finish provides excellent corrosion resistance in marine environments
  • Fitted with a pre-installed 30mm Dynamic Double Cheek Block for creating efficient traveller car control systems with additional purchase options
  • Integrated becket features a smooth, rope-friendly profile for tying or splicing control lines
  • Supplied with nuts, bolts, and washers for straightforward installation onto the track
  • Ideal for traveller systems, control line arrangements, and sail handling applications using Allen Size 19 track systems on dinghies, catamarans, and keelboats up to 28ft
Accessories A2136M
Brand Allen
Breaking load kg 400
Configuration End Stop
Fixing hole diameter mm M5
Height mm 51
Hole pitch mm 50.5
Length mm 80
Maximum working load kg 280
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a9219-2-ref.pdf
Related collection CollectionDrop
Width mm 32.5
Swipe
SKU Title Accessories Breaking Load Kg Max Working Load Kg Fixing Hole Dia mm Height mm Hole Pitch mm Length mm Width mm Weight (g) Price
A9119

Size 19 Base Car

- 1400 230 - 50 - 70 50.5 77
Regular price $169.01
Regular price Sale price $169.01
A9119-LOADER

Size 19 Car Loader

- - - - - - - - -
Regular price $9.01
Regular price Sale price $9.01
A9119-4

Size 19 Cat Car

A..76-496 1400 230 - 70 - 70 106 376
Regular price $340.52
Regular price Sale price $340.52
A9119-2

Size 19 Cheek Block Car

A2036 1400 230 - 50 - 153 50.5 145
Regular price $204.88
Regular price Sale price $204.88
A9219

Size 19 End Stop With Becket

- - - M5 19 - 33 32.5 36
Regular price $34.08
Regular price Sale price $34.08
A9219-1

Size 19 End Stop With Block And Becket

A2036M 400 140 M5 31 50.5 80 52.5 64
Regular price $119.27
Regular price Sale price $119.27
A9219-2

Size 19 End Stop With Double Block And Becket

A2136M 400 280 M5 51 50.5 80 32.5 100
Regular price $143.05
Regular price Sale price $143.05
A9119-Long

Size 19 Long Car

A2036 1600 260 - 50 - 153.4 50 231
Regular price $227.70
Regular price Sale price $227.70
A9119-1

Size 19 P-Clip Car

A4035 1400 230 - 50 - 97 50.5 86
Regular price $172.50
Regular price Sale price $172.50
A9219-PIN

Size 19 Pin Stop

- - - - 25.7 - 30 30 36
Regular price $66.89
Regular price Sale price $66.89
A9219-PIN-1

Size 19 Pin Stop Car With Lacing Eye

- 1000 500 - 34.5 - 68 36 77
Regular price $139.62
Regular price Sale price $139.62
A9219-PIN-2

Size 19 Pin Stop Car With Removable Bar

- 1000 500 - 25.6 - 68 36 36
Regular price $146.57
Regular price Sale price $146.57
A9019-05-P

Size 19 Pin Stop Track

- - - M5 10 100 - 19 -
Regular price From $56.09
Regular price Sale price From $56.09
A9219-PS

Size 19 Plastic End Stop

- - - M5 15 - 27.5 28 5
Regular price $3.26
Regular price Sale price $3.26
A9119-5

Size 19 Sheave Car

- 1400 230 - 50 - 70 50.5 127
Regular price $211.47
Regular price Sale price $211.47
A9119-5-LONG

Size 19 Sheave Car Long

- 1400 300 - 50 - 100 50.5 145
Regular price $298.07
Regular price Sale price $298.07
A9119-Tii-90

Size 19 Tii-On 90 Degree Car

- 1400 230 - 26.6 - 69.3 50.5 50
Regular price $139.62
Regular price Sale price $139.62
A9119-Tii

Size 19 Tii-On Car

- 1400 230 - 26 - 69.3 50.5 54
Regular price $139.62
Regular price Sale price $139.62
A9019-1

Size 19 Track

- - - - - - - - -
Regular price From $68.28
Regular price Sale price From $68.28
