SKU:A..77-497
Ball Bearing Cam Cleat With Mega Pro Lead - Small
Ball Bearing Cam Cleat With Mega Pro Lead - Small
Available on back order(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description

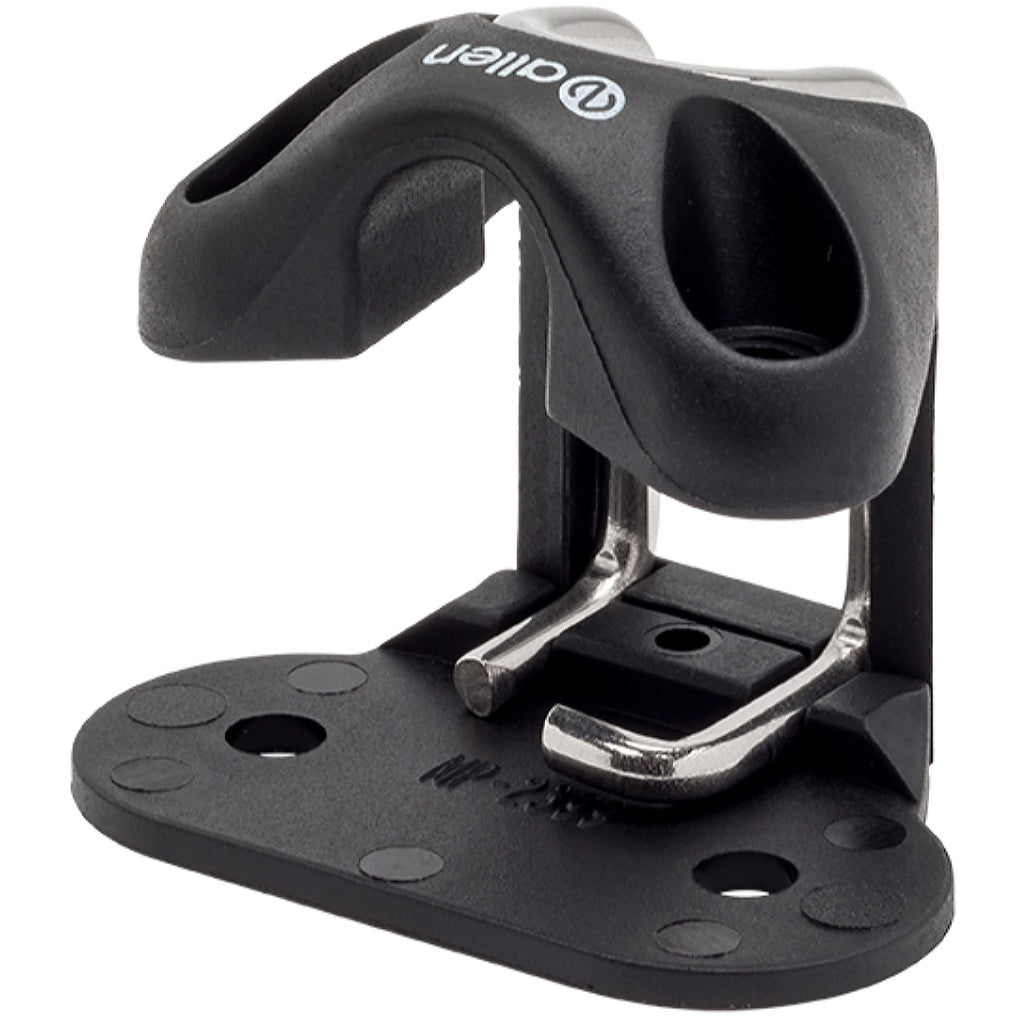

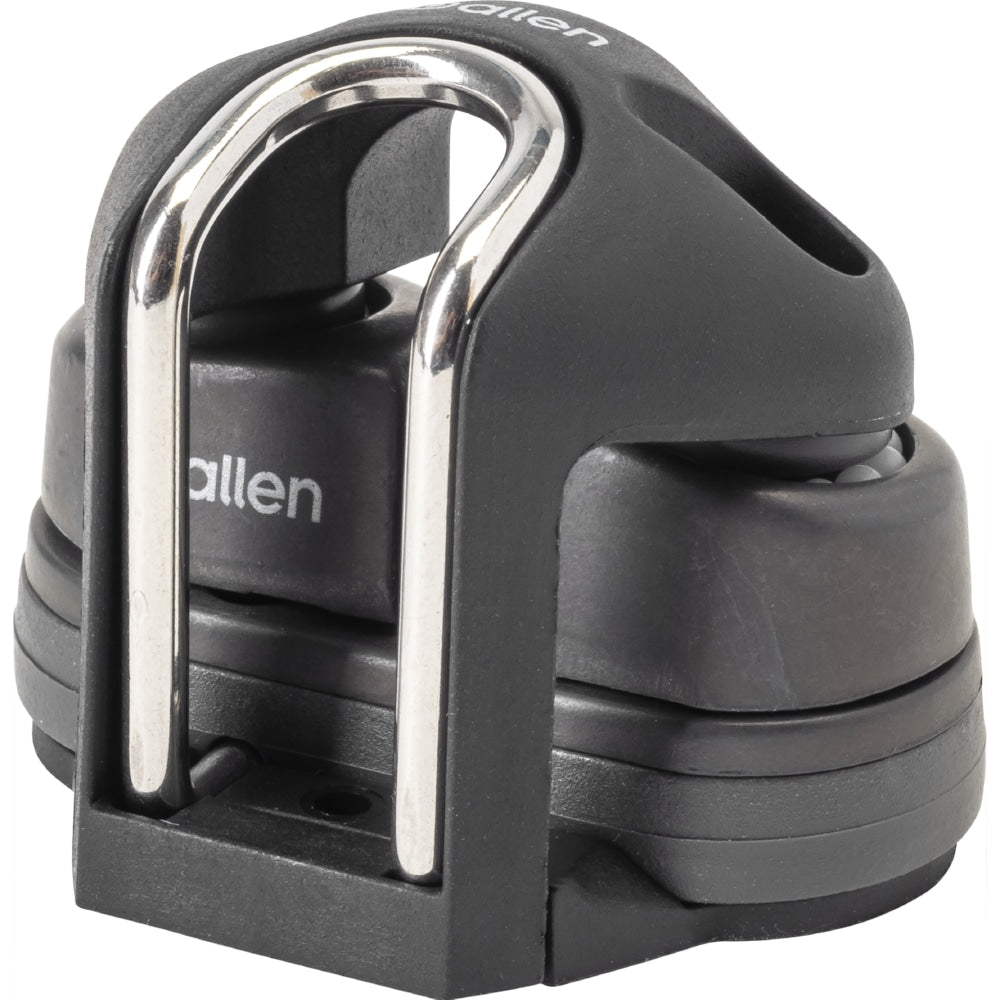

Ball Bearing Cam Cleat with Mega Pro-Lead - Small
Designed for fast-running control lines, this Small Ball Bearing Cam Cleat with Mega Pro-Lead delivers smooth, reliable performance with excellent rope handling. Featuring die-cast aluminium jaws and base, it offers higher working loads and greater durability than Allenite alternatives.
Twin rows of ball bearings and double coil springs provide exceptionally smooth cam action and consistent cleating performance, while the optimised jaw profile reduces rope wear and allows for easy rope entry and release. The Mega Pro-Lead keeps the rope centred in the cleat and enables adjustment from a wide range of angles for maximum control.
Ideal for applications such as spinnaker halyards, mainsheets, and jib sheets, this cam cleat is equally at home on dinghies, yachts, and keelboats.
Key Features:
- Small aluminium ball bearing cam cleat
- Mega Pro-Lead for multi-angle rope entry
- Die-cast aluminium jaws and base
- Twin rows of ball bearings for smooth operation
- Double coil springs for consistent cam action
- Optimised jaw profile reduces rope wear
- High working load and durable construction
- Ideal for fast-running control lines
- Suitable for dinghies, yachts, and keelboats
2025 Update:
- Modern dark grey base and cap design
- Refined jaw spring tension for easier line engagement
- Improved handling, particularly in lighter load conditions
| Bearing type | Ball Bearing |
|---|---|
| Brand | Allen |
| Fixing hole diameter mm | 4 |
| Height mm | 39 |
| Hole pitch mm | 28 |
| Material | Aluminium |
| Maximum line diameter mm | 6 |
| Maximum working load kg | 100 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a--77-497-ref.pdf |
| Related collection | CollectionDrop |
| Short description | Ball Bearing Cam Cleat With Mega Pro Lead - Small |
| Width mm | 48 |
| SKU | Title | Fixing Hole Dia mm | Height mm | Hole Pitch mm | Max Line Dia mm | Max Working Load Kg | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|
| A.676 |
Allenite Cam Cleat - Medium |
5 | 29 | 38 | 10 | 130 | 36 |
Regular price
£26.13 ex VAT
£31.36 inc VAT
Regular price
|
| A.677 |
Allenite Cam Cleat - Small |
4 | 22 | 28 | 6 | 80 | 23 |
Regular price
£20.88 ex VAT
£25.06 inc VAT
Regular price
|
| A.676-496 |
Allenite Cam Cleat With Mega Pro Lead - Medium |
5 | 48 | 38 | 10 | 130 | 73 |
Regular price
£41.14 ex VAT
£49.37 inc VAT
Regular price
|
| A.677-497 |
Allenite Cam Cleat With Mega Pro Lead - Small |
4 | 39 | 28 | 6 | 80 | 45 |
Regular price
£35.32 ex VAT
£42.38 inc VAT
Regular price
|
| A..76 |
Ball Bearing Cam Cleat - Medium |
5 | 29 | 38 | 10 | 150 | 64 |
Regular price
£40.15 ex VAT
£48.18 inc VAT
Regular price
|
| A..77 |
Ball Bearing Cam Cleat - Small |
4 | 22 | 28 | 6 | 100 | 27 |
Regular price
£33.68 ex VAT
£40.42 inc VAT
Regular price
|
| A..76-496 |
Ball Bearing Cam Cleat With Mega Pro Lead - Medium |
5 | 48 | 38 | 10 | 150 | 104 |
Regular price
£50.96 ex VAT
£61.15 inc VAT
Regular price
|
| A..77-497 |
Ball Bearing Cam Cleat With Mega Pro Lead - Small |
4 | 39 | 28 | 6 | 100 | 50 |
Regular price
£47.71 ex VAT
£57.25 inc VAT
Regular price
|
| A5848 |
Laser Control Line Cleats With Base |
5 | 56 | 67 | 6 | 100 | 141 |
Regular price
£94.52 ex VAT
£113.42 inc VAT
Regular price
|
| A5861 |
Laser Lower Vang Unit |
5 | 82 | - | 6 | - | 200 |
Regular price
£149.34 ex VAT
£179.21 inc VAT
Regular price
|
| A4077 |
Stainless Steel Base Cam Cleat - Medium |
5 | 18 | 38 | 12 | 60 | 36 |
Regular price
£19.60 ex VAT
£23.52 inc VAT
Regular price
|
| A4476 |
Stainless Steel Base Cam Cleat - Small |
4 | 10 | 26 | 6 | 40 | 18 |
Regular price
£27.01 ex VAT
£32.41 inc VAT
Regular price
|
