Allenite Cam Cleat With Mega Pro Lead - Small

Allenite Cam Cleat With Mega Pro Lead - Small

£35.32 ex VAT £42.38 inc VAT
ex VAT £0.00 inc VAT £35.32 ex VAT £42.38 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 13 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

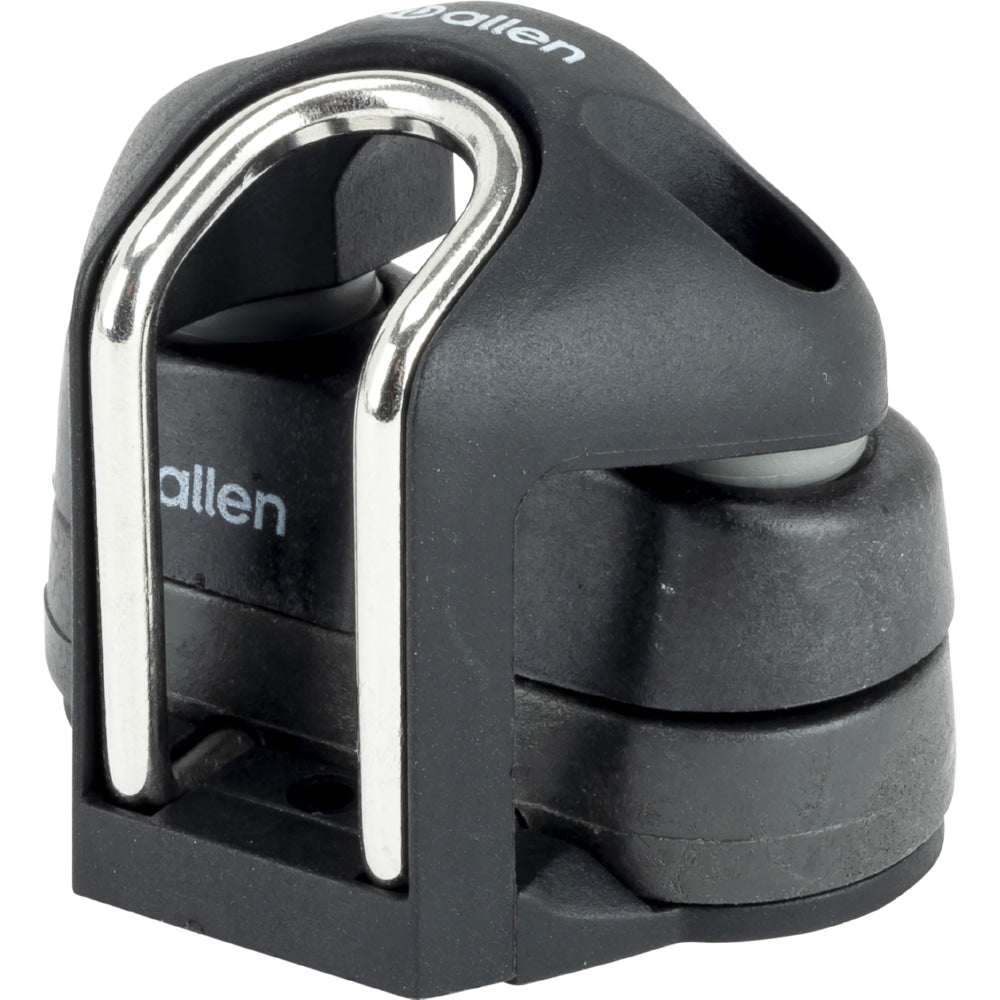

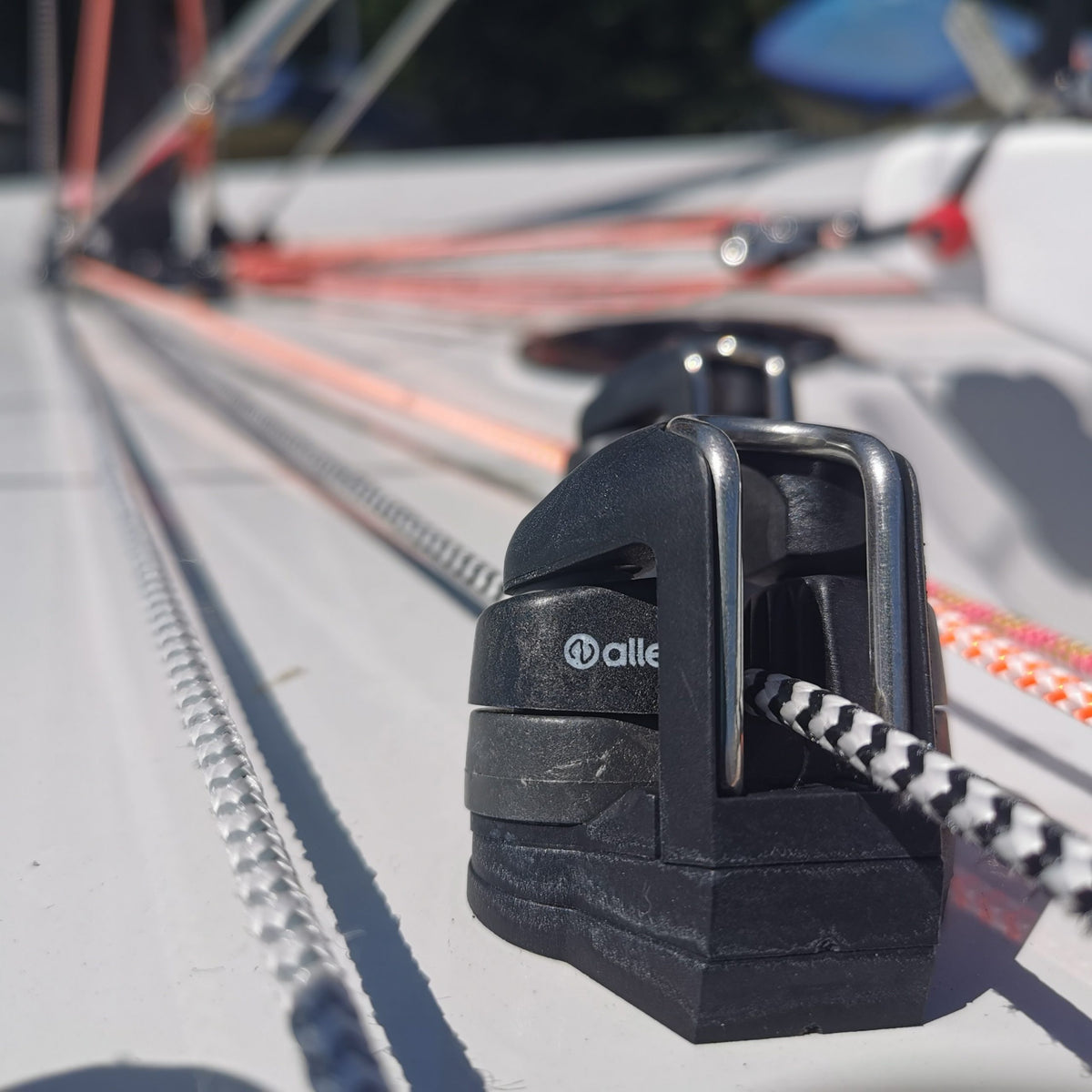

Small Allenite Cam Cleat with Mega Pro-Lead

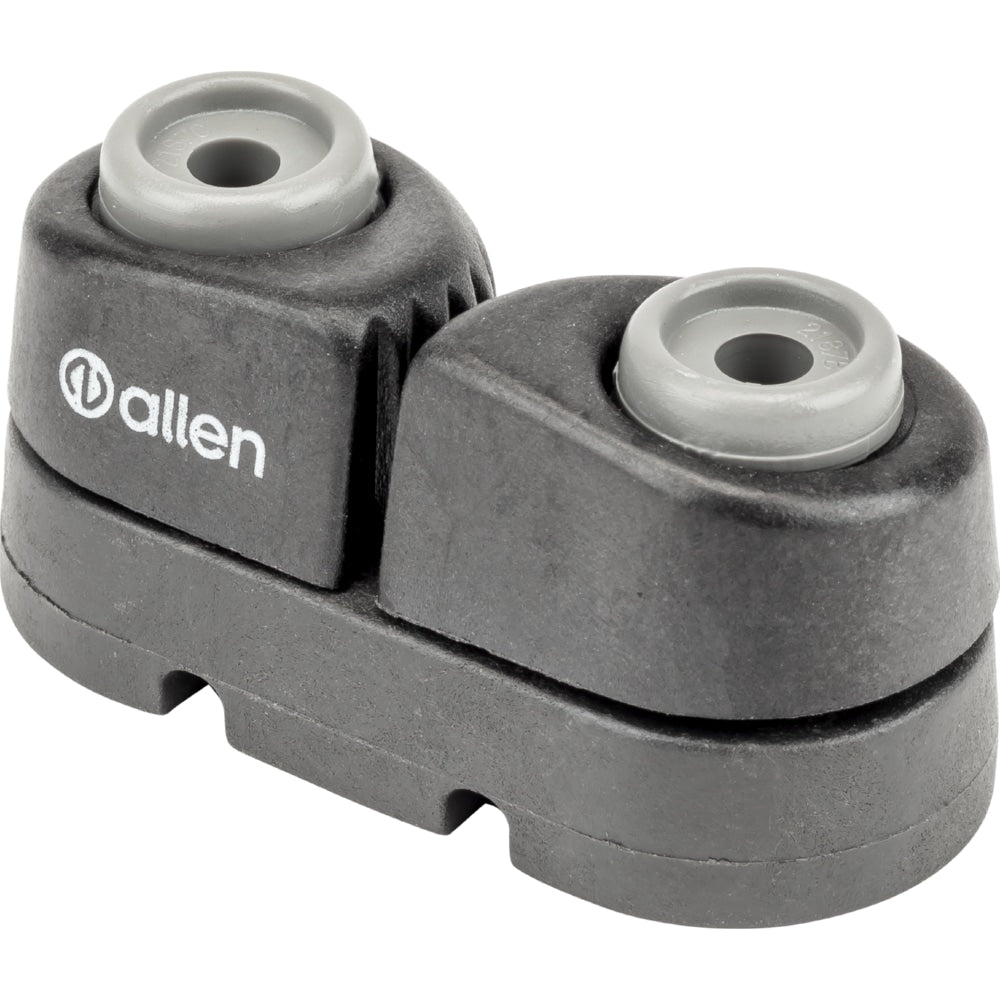

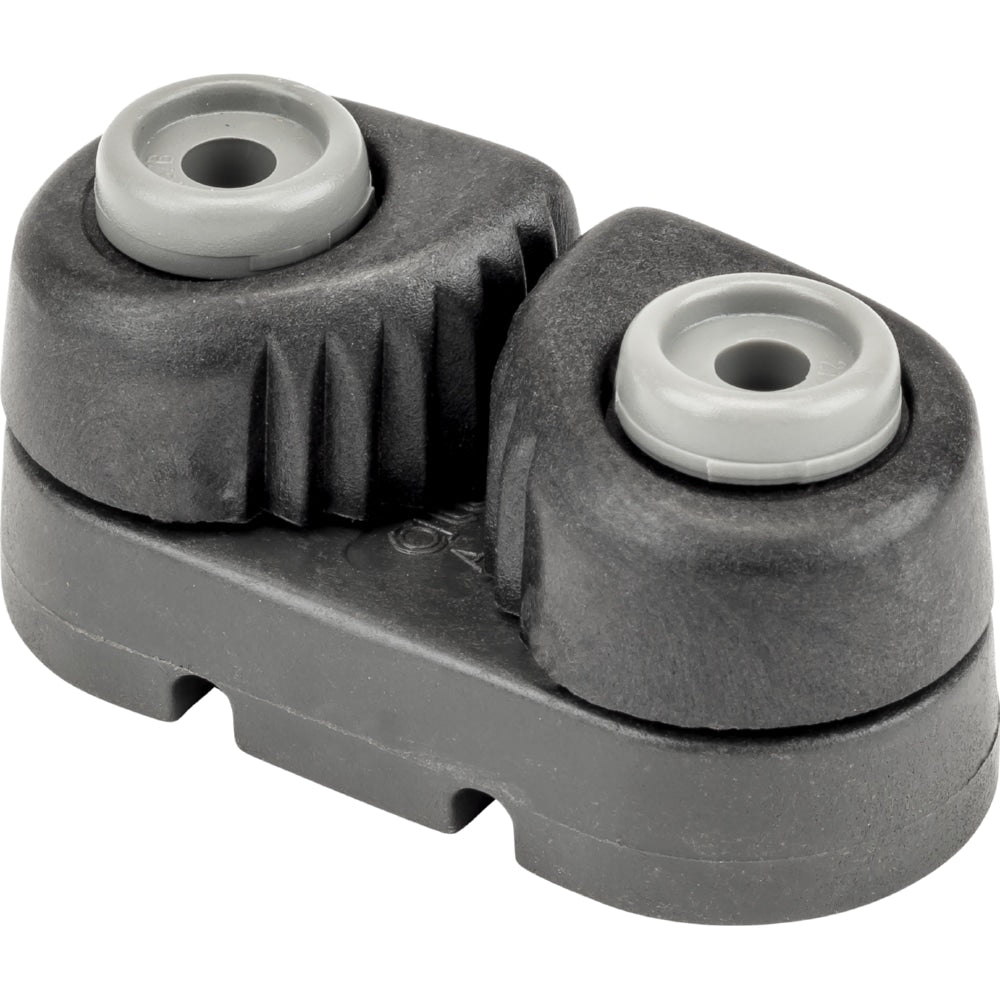

Designed for lightweight control line applications, this Small Allenite Cam Cleat with Mega Pro-Lead combines reliable cleating performance with excellent rope guidance. The cam cleat features the same proven jaw profile as the aluminium version but is moulded from Allen's proprietary Allenite material, offering reduced weight, enhanced heat dissipation, and improved wear resistance compared to standard acetal cleats.

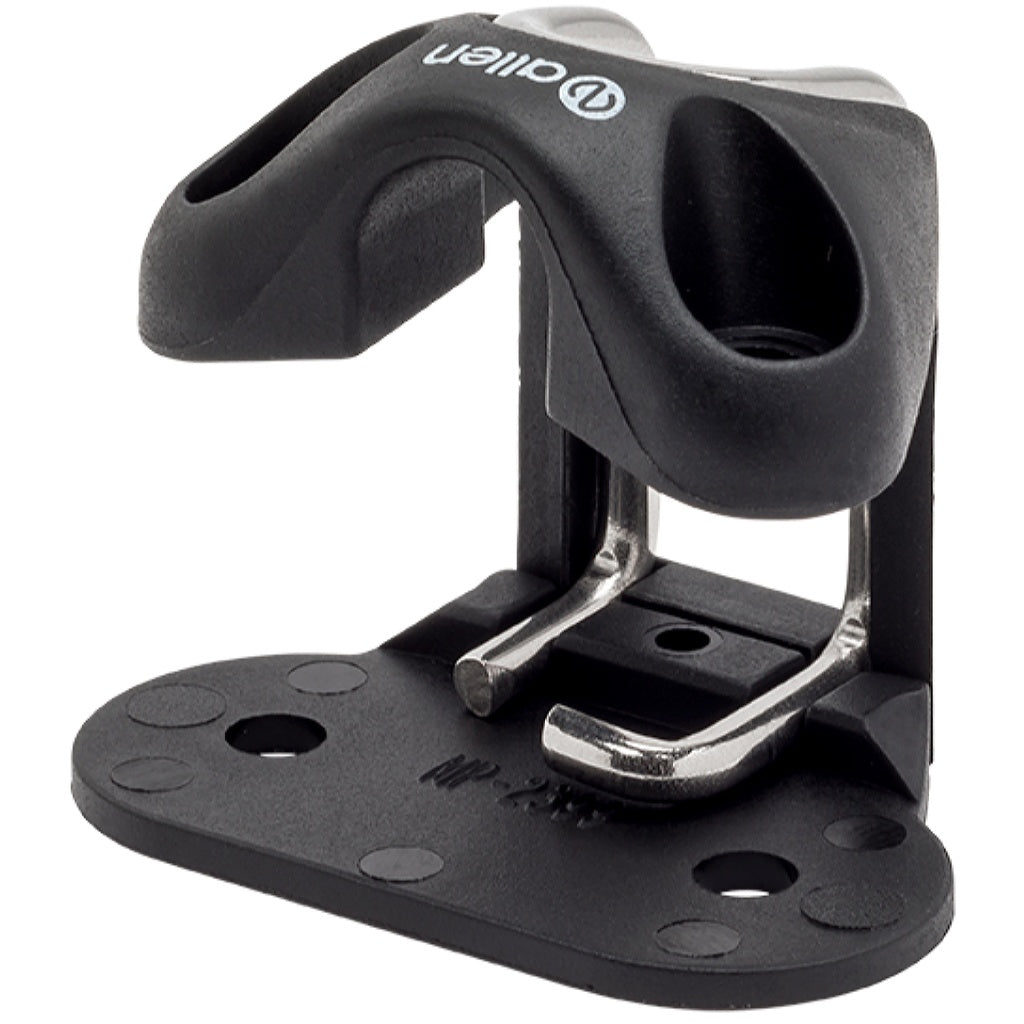

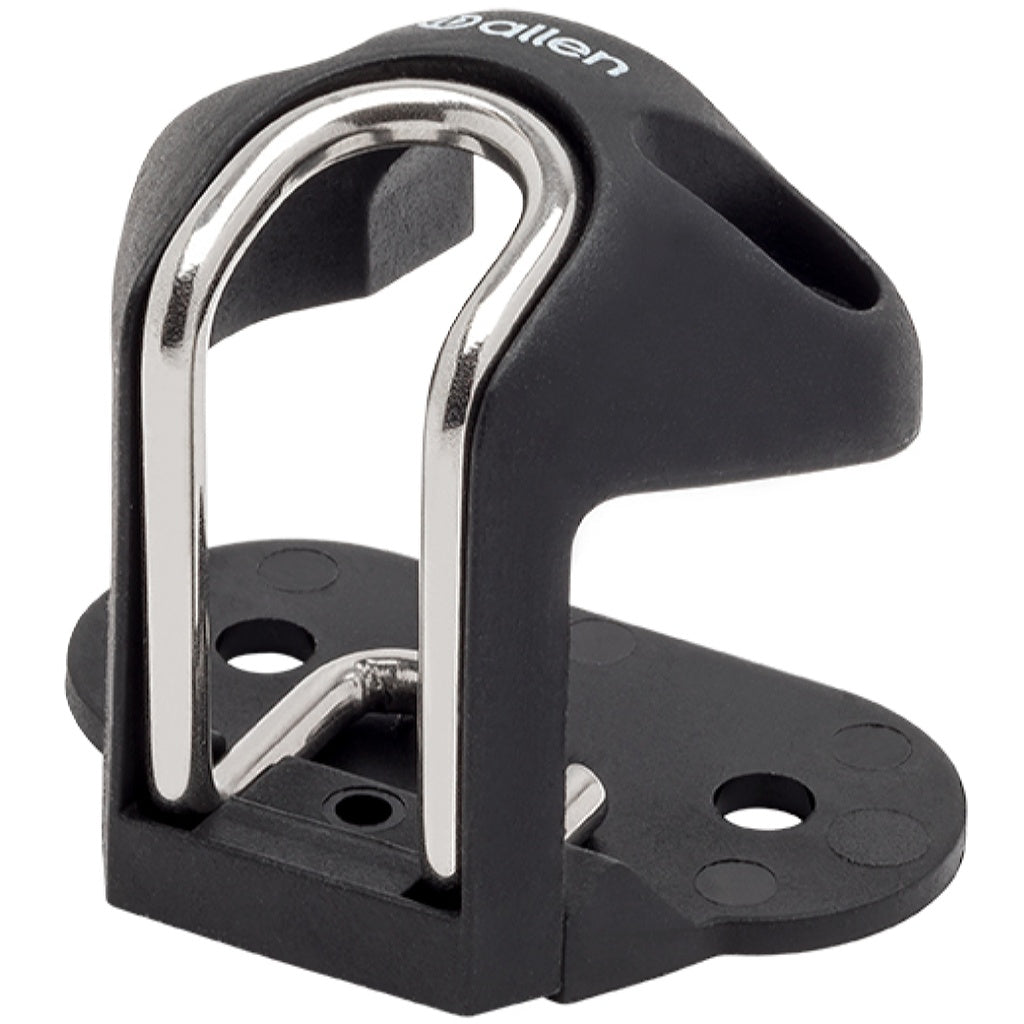

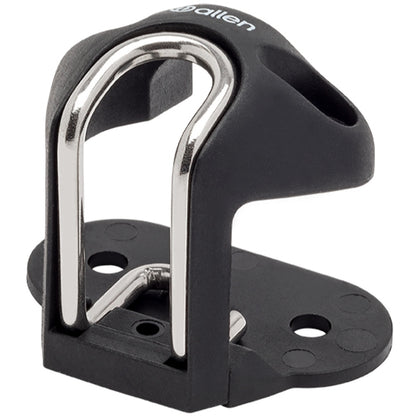

The Mega Pro-Lead incorporates an acetal cage with an additional wire frame around the exit side of the cleat, keeping the rope centred while allowing adjustment from a wide range of angles for smooth and efficient operation.

Key Features:

  • Small Allenite cam cleat with Mega Pro-Lead
  • Lightweight Allenite construction
  • Optimised jaw profile for easy cleating and releasing
  • Enhanced wear resistance and heat dissipation
  • Plain bearing design for reduced weight
  • Mega Pro-Lead keeps rope centred in the cleat
  • Allows rope adjustment from multiple angles
  • Cost-effective solution for low-load applications

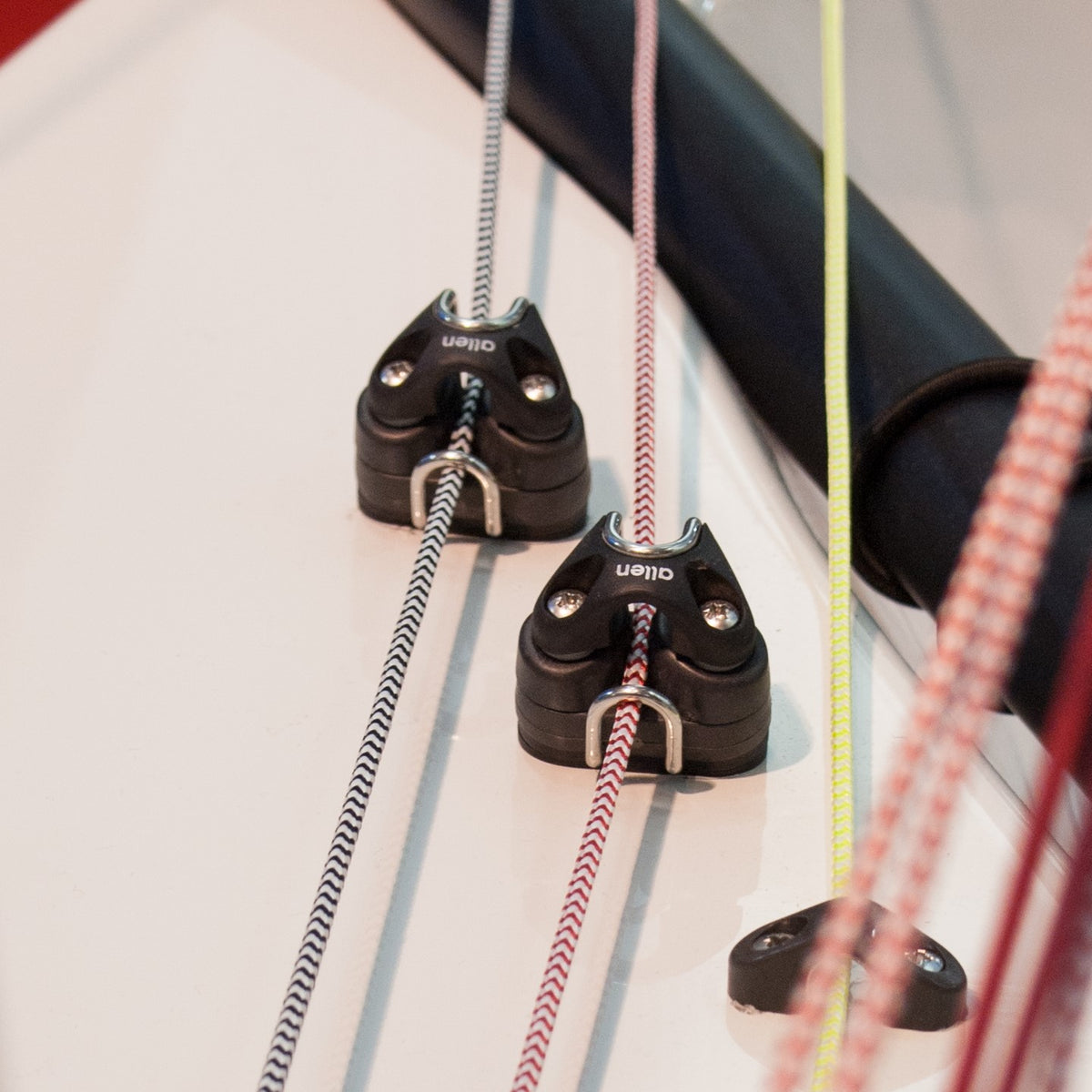

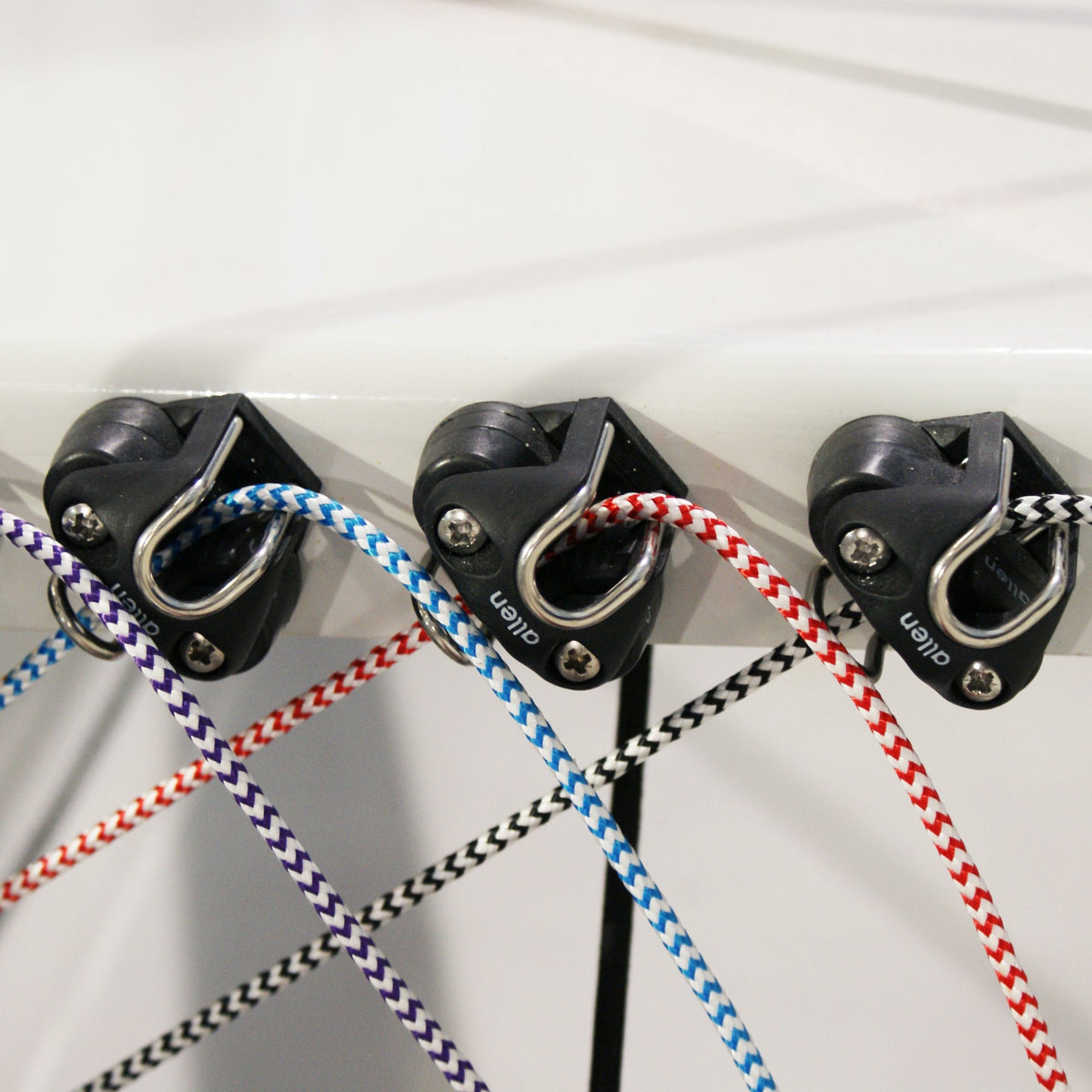

  • Ideal for marine control line systems and dinghies
Bearing type Plain Bearing
Brand Allen
Fixing hole diameter mm 4
Height mm 39
Hole pitch mm 28
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a.677-497.igs
Material Allenite
Maximum line diameter mm 6
Maximum working load kg 80
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a-677-497-ref.pdf
Related collection CollectionDrop
Short description Allenite Cam Cleat With Mega Pro Lead - Small
Width mm 48
Swipe
SKU Title Fixing Hole Dia mm Height mm Hole Pitch mm Max Line Dia mm Max Working Load Kg Weight (g) Price
A.676

Allenite Cam Cleat - Medium

 5 29 38 10 130 36
£26.13 ex VAT £31.36 inc VAT
ex VAT £0.00 inc VAT £26.13 ex VAT £31.36 inc VAT
A.677

Allenite Cam Cleat - Small

 4 22 28 6 80 23
£20.88 ex VAT £25.06 inc VAT
ex VAT £0.00 inc VAT £20.88 ex VAT £25.06 inc VAT
A.676-496

Allenite Cam Cleat With Mega Pro Lead - Medium

 5 48 38 10 130 73
£41.14 ex VAT £49.37 inc VAT
ex VAT £0.00 inc VAT £41.14 ex VAT £49.37 inc VAT
A.677-497

Allenite Cam Cleat With Mega Pro Lead - Small

 4 39 28 6 80 45
£35.32 ex VAT £42.38 inc VAT
ex VAT £0.00 inc VAT £35.32 ex VAT £42.38 inc VAT
A..76

Ball Bearing Cam Cleat - Medium

 5 29 38 10 150 64
£40.15 ex VAT £48.18 inc VAT
ex VAT £0.00 inc VAT £40.15 ex VAT £48.18 inc VAT
A..77

Ball Bearing Cam Cleat - Small

 4 22 28 6 100 27
£33.68 ex VAT £40.42 inc VAT
ex VAT £0.00 inc VAT £33.68 ex VAT £40.42 inc VAT
A..76-496

Ball Bearing Cam Cleat With Mega Pro Lead - Medium

 5 48 38 10 150 104
£50.96 ex VAT £61.15 inc VAT
ex VAT £0.00 inc VAT £50.96 ex VAT £61.15 inc VAT
A..77-497

Ball Bearing Cam Cleat With Mega Pro Lead - Small

 4 39 28 6 100 50
£47.71 ex VAT £57.25 inc VAT
ex VAT £0.00 inc VAT £47.71 ex VAT £57.25 inc VAT
A5848

Laser Control Line Cleats With Base

 5 56 67 6 100 141
£94.52 ex VAT £113.42 inc VAT
ex VAT £0.00 inc VAT £94.52 ex VAT £113.42 inc VAT
A5861

Laser Lower Vang Unit

 5 82 - 6 - 200
£149.34 ex VAT £179.21 inc VAT
ex VAT £0.00 inc VAT £149.34 ex VAT £179.21 inc VAT
A4077

Stainless Steel Base Cam Cleat - Medium

 5 18 38 12 60 36
£19.60 ex VAT £23.52 inc VAT
ex VAT £0.00 inc VAT £19.60 ex VAT £23.52 inc VAT
A4476

Stainless Steel Base Cam Cleat - Small

 4 10 26 6 40 18
£27.01 ex VAT £32.41 inc VAT
ex VAT £0.00 inc VAT £27.01 ex VAT £32.41 inc VAT
