SKU:A..76-496

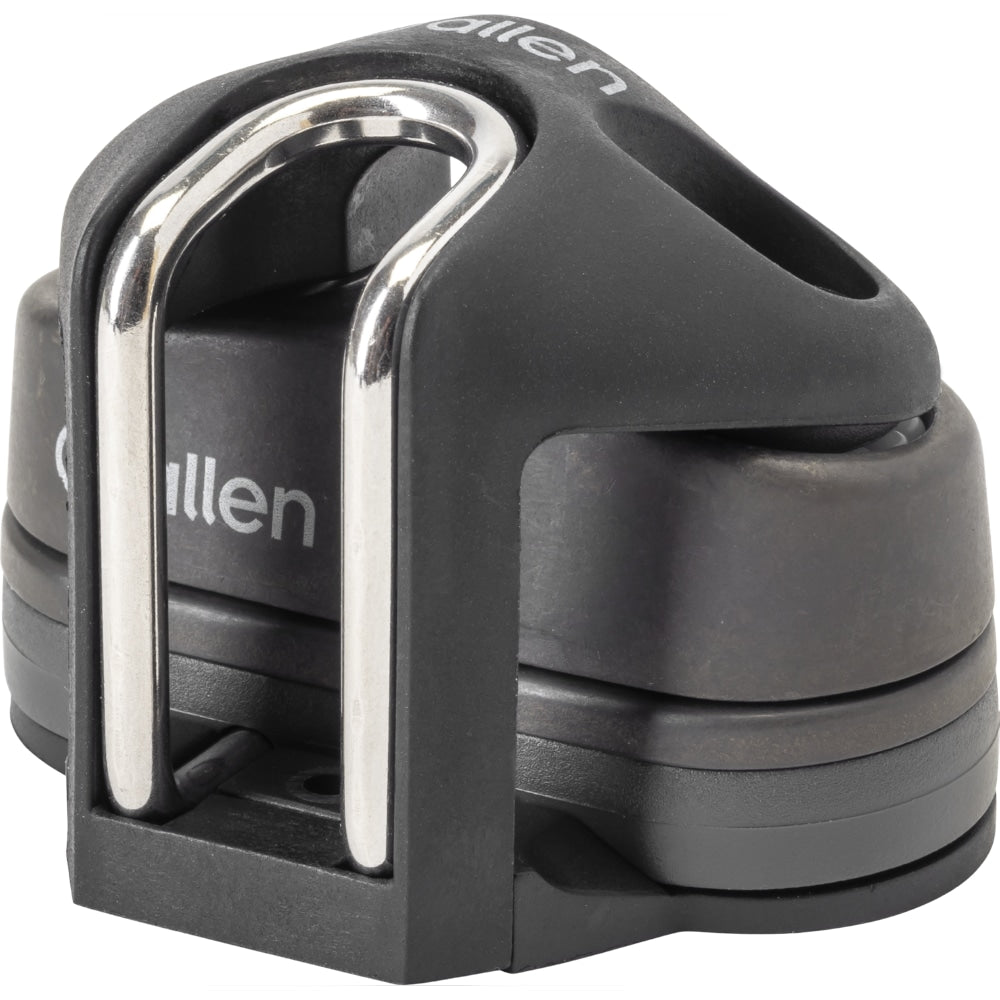

Ball Bearing Cam Cleat With Mega Pro Lead - Medium
Ball Bearing Cam Cleat With Mega Pro Lead - Medium
In stock - 17 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description
Ball Bearing Cam Cleat with Mega Pro-Lead - Medium
Designed for fast-running control lines, this Medium Ball Bearing Cam Cleat with Mega Pro-Lead delivers smooth, reliable performance and precise line control. Manufactured from die-cast aluminium, it offers higher working loads and increased durability compared to Allenite alternatives, making it ideal for demanding sailing applications.
Twin rows of ball bearings and double coil springs provide exceptionally smooth cam action and consistent cleating performance, while the optimised jaw profile reduces rope wear and allows for easy rope entry and release. The Mega Pro-Lead keeps the rope centred in the cleat and enables adjustment from a wide range of angles for maximum control.
Key Features:
- Medium aluminium ball bearing cam cleat

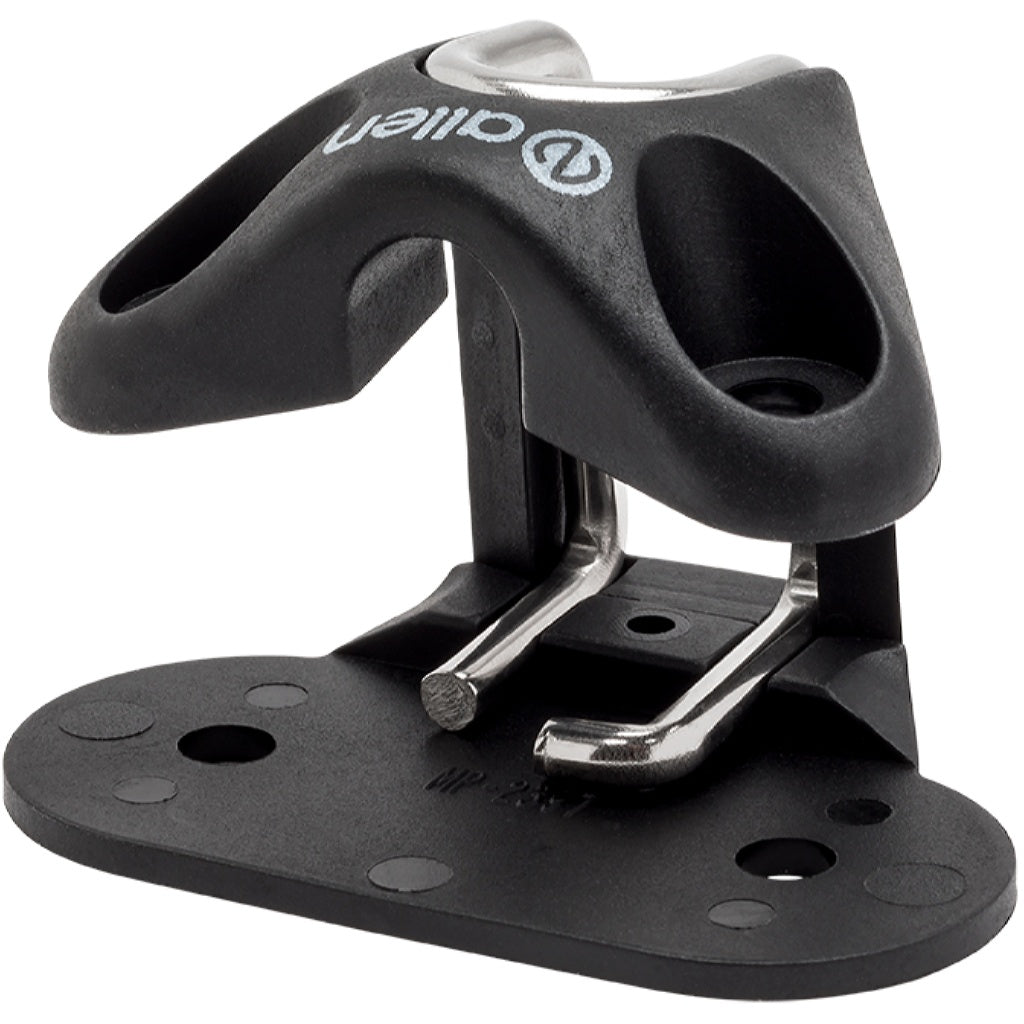

- Mega Pro-Lead for multi-angle rope entry
- Die-cast aluminium jaws and base
- Twin rows of ball bearings for smooth operation
- Double coil springs for consistent cam action
- Optimised jaw profile reduces rope wear
- Higher working loads than equivalent Allenite cam cleats
- Ideal for fast-running control lines
- Suitable for dinghies, keelboats, and yachts
- Durable dark grey finish
2025 Update:
- Updated dark grey base and cap for a modern appearance
- Refined jaw spring tension for easier line engagement
- Improved handling, particularly in lighter wind conditions
| Bearing type | Ball Bearing |
|---|---|
| Brand | Allen |
| Fixing hole diameter mm | 5 |
| Height mm | 48 |
| Hole pitch mm | 38 |
| Material | Aluminium |
| Maximum line diameter mm | 10 |
| Maximum working load kg | 150 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a--76-496-ref.pdf |
| Related collection | CollectionDrop |
| Short description | Ball Bearing Cam Cleat With Mega Pro Lead - Medium |
| Width mm | 66 |
| SKU | Title | Fixing Hole Dia mm | Height mm | Hole Pitch mm | Max Line Dia mm | Max Working Load Kg | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|
| A.676 |
Allenite Cam Cleat - Medium |
5 | 29 | 38 | 10 | 130 | 36 |
Regular price
£26.13 ex VAT
£31.36 inc VAT
Regular price
|
| A.677 |
Allenite Cam Cleat - Small |
4 | 22 | 28 | 6 | 80 | 23 |
Regular price
£20.88 ex VAT
£25.06 inc VAT
Regular price
|
| A.676-496 |
Allenite Cam Cleat With Mega Pro Lead - Medium |
5 | 48 | 38 | 10 | 130 | 73 |
Regular price
£41.14 ex VAT
£49.37 inc VAT
Regular price
|
| A.677-497 |
Allenite Cam Cleat With Mega Pro Lead - Small |
4 | 39 | 28 | 6 | 80 | 45 |
Regular price
£35.32 ex VAT
£42.38 inc VAT
Regular price
|
| A..76 |

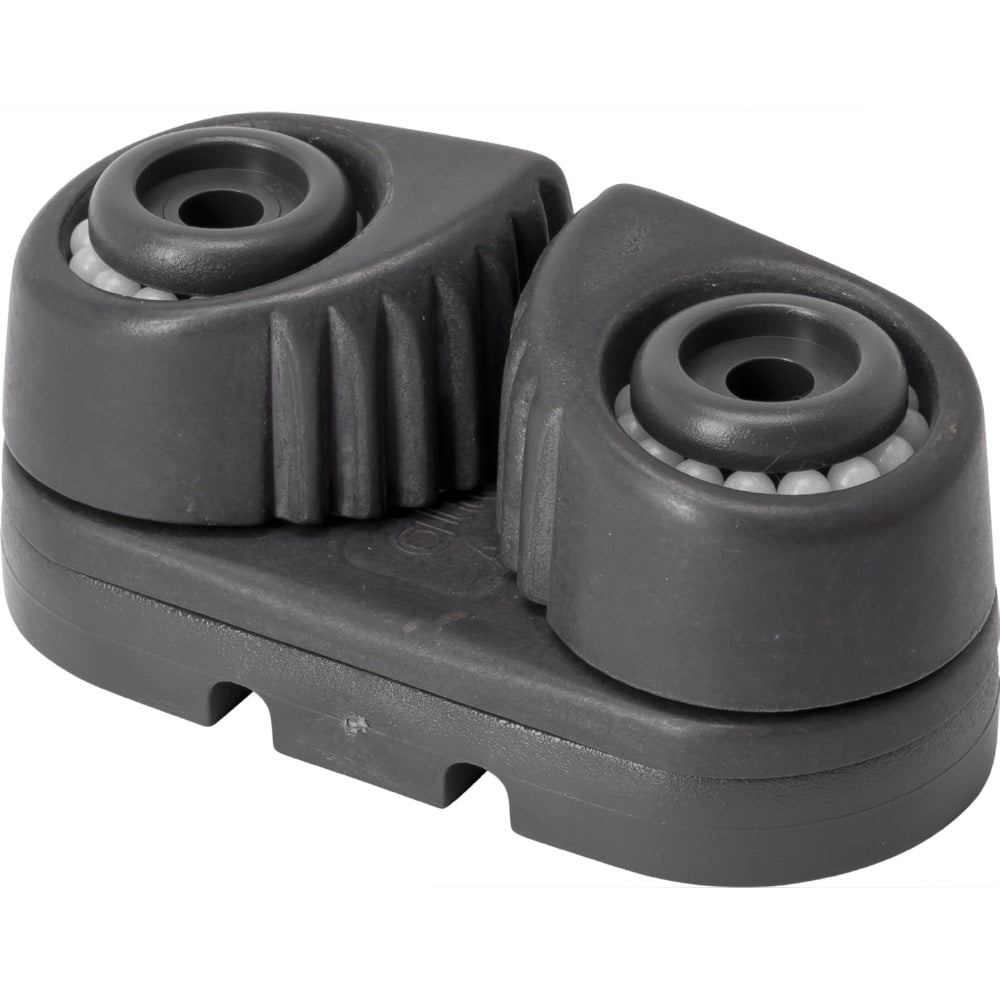

Ball Bearing Cam Cleat - Medium |
5 | 29 | 38 | 10 | 150 | 64 |
Regular price
£40.15 ex VAT
£48.18 inc VAT
Regular price
|
| A..77 |
Ball Bearing Cam Cleat - Small |
4 | 22 | 28 | 6 | 100 | 27 |
Regular price
£33.68 ex VAT
£40.42 inc VAT
Regular price
|
| A..76-496 |
Ball Bearing Cam Cleat With Mega Pro Lead - Medium |
5 | 48 | 38 | 10 | 150 | 104 |
Regular price
£50.96 ex VAT
£61.15 inc VAT
Regular price
|
| A..77-497 |
Ball Bearing Cam Cleat With Mega Pro Lead - Small |
4 | 39 | 28 | 6 | 100 | 50 |
Regular price
£47.71 ex VAT
£57.25 inc VAT
Regular price
|
| A5848 |
Laser Control Line Cleats With Base |
5 | 56 | 67 | 6 | 100 | 141 |
Regular price
£94.52 ex VAT
£113.42 inc VAT
Regular price
|
| A5861 |
Laser Lower Vang Unit |
5 | 82 | - | 6 | - | 200 |
Regular price
£149.34 ex VAT
£179.21 inc VAT
Regular price
|
| A4077 |
Stainless Steel Base Cam Cleat - Medium |
5 | 18 | 38 | 12 | 60 | 36 |
Regular price
£19.60 ex VAT
£23.52 inc VAT
Regular price
|
| A4476 |
Stainless Steel Base Cam Cleat - Small |
4 | 10 | 26 | 6 | 40 | 18 |
Regular price
£27.01 ex VAT
£32.41 inc VAT
Regular price
|
