SKU:A9060S

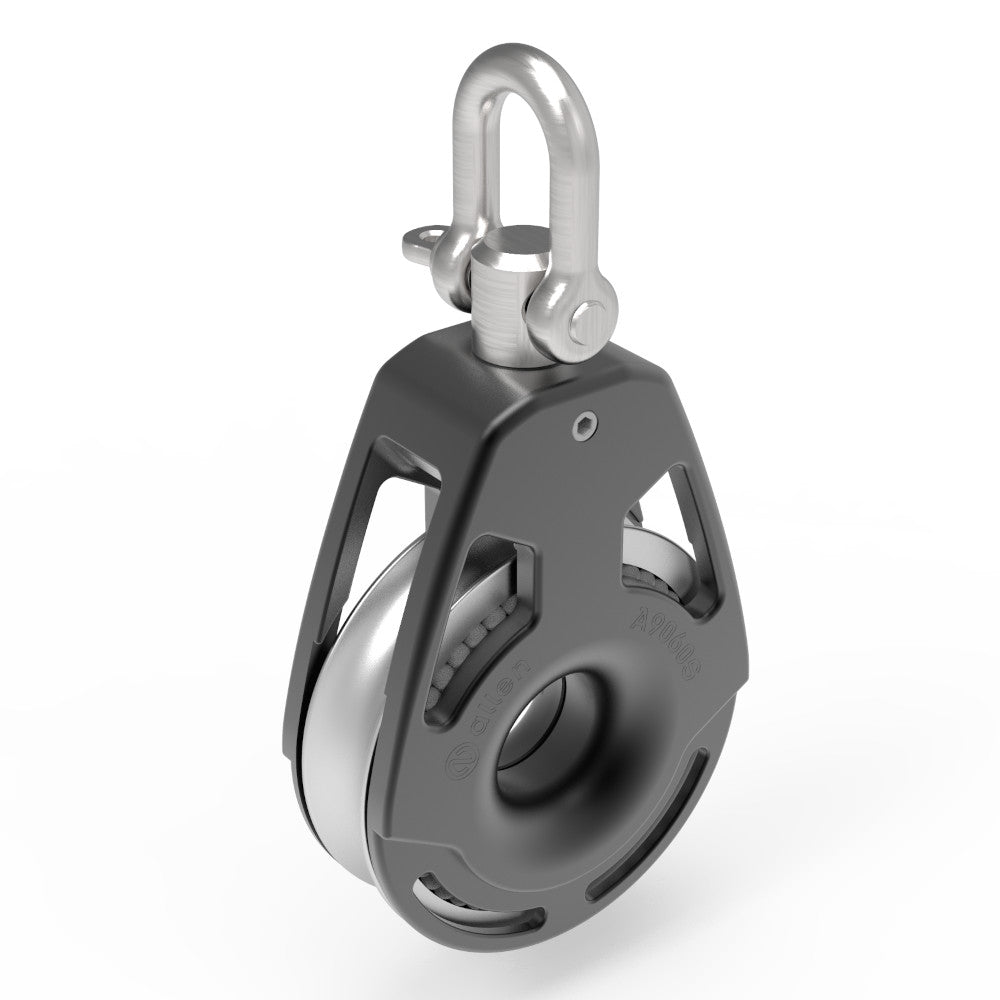

60mm Single High Roller Block
60mm Single High Roller Block
Low stock - 6 left(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Description
60mm Single High Roller Block with Swivel Shackle
Designed for high-load, high-speed sailing applications, the 60mm Single High Roller Block delivers outstanding performance with minimal friction.
PEEK Roller Bearings
Features caged PEEK roller (needle) bearings that keep rollers evenly spaced, reducing friction and ensuring smooth operation under extreme loads.
Delrin Side-Load Bearings
Captive Delrin side-load ball bearings help manage off-centre loads while further reducing friction.
Swivel Shackle
The shackle is mounted on a swivel pin, allowing free rotation or locking in 90-degree positions to suit your setup.
Becket Function
The large central hole can be used as a becket, providing a convenient tie-off point when needed.
Easy Maintenance
Designed for quick disassembly and servicing, with replacement bearings available. It can also be easily installed onto pre-spliced lines.
Applications
Ideal for:
- Keelboat mainsheets
- Runners
- Halyards
- Spinnaker systems
- Jib sheets
- Other high-load control systems
Custom Colours
Available in custom anodised colours. Please get in touch for more information.
The standard block colour is black with a silver sheave.
Technical Drawing
Click the PDF logo above to open a detailed technical drawing.
| Accessories | Swivel |
|---|---|
| Brand | Allen |
| Breaking load kg | 2600 |
| Configuration | Single |
| Height mm | 60 |
| Length mm | 120.56 |
| Maximum line diameter mm | 13 |
| Maximum working load kg | 1300 |
| Pin size mm | 6 |
| Related collection | CollectionDrop |
| Sheave diameter mm | 60 |
| Short description | Ideal for keelboat mainsheets, runners, halyards, spinnaker gear, jib sheets, and other high-load systems. |
| Width mm | 24 |
| Youtube key 1 | mUqZfovP0EI |
| SKU | Title | Breaking Load Kg | Max Working Load Kg | Length mm | Max Line Dia mm | Hole Pitch mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A9062 |
60mm Double High Roller Block |
4700 | 2300 | 135.61 | 13 | - | 8 | 310 |
Regular price
£322.79 ex VAT
£387.35 inc VAT
Regular price
|
| A9060S |
60mm Single High Roller Block |
2600 | 1300 | 120.56 | 13 | - | 6 | 176 |
Regular price
£200.00 ex VAT
£240.00 inc VAT
Regular price
|
| A9060C |
60mm Single High Roller Block - Cheek |
4000 | 2000 | 83.11 | 13 | 45 | - | 132 |
Regular price
£191.60 ex VAT
£229.92 inc VAT
Regular price
|
| A9060P |
60mm Single High Roller Block - Pad Eye |
4000 | 2000 | 84 | 13 | - | 10 | 140 |
Regular price
£200.00 ex VAT
£240.00 inc VAT
Regular price
|
| A9060 |
60mm Single High Roller Block - Tii-On |
4000 | 2000 | 83 | 13 | - | - | 132 |
Regular price
£187.50 ex VAT
£225.00 inc VAT
Regular price
|
| A9063 |
60mm Triple High Roller Block |
4700 | 2300 | 135.61 | 13 | - | 8 | 440 |
Regular price
£443.67 ex VAT
£532.40 inc VAT
Regular price
|
