SKU:A9060C
60mm Single High Roller Block - Cheek
60mm Single High Roller Block - Cheek
Low stock - 1 left(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Product Datasheet Download
Description

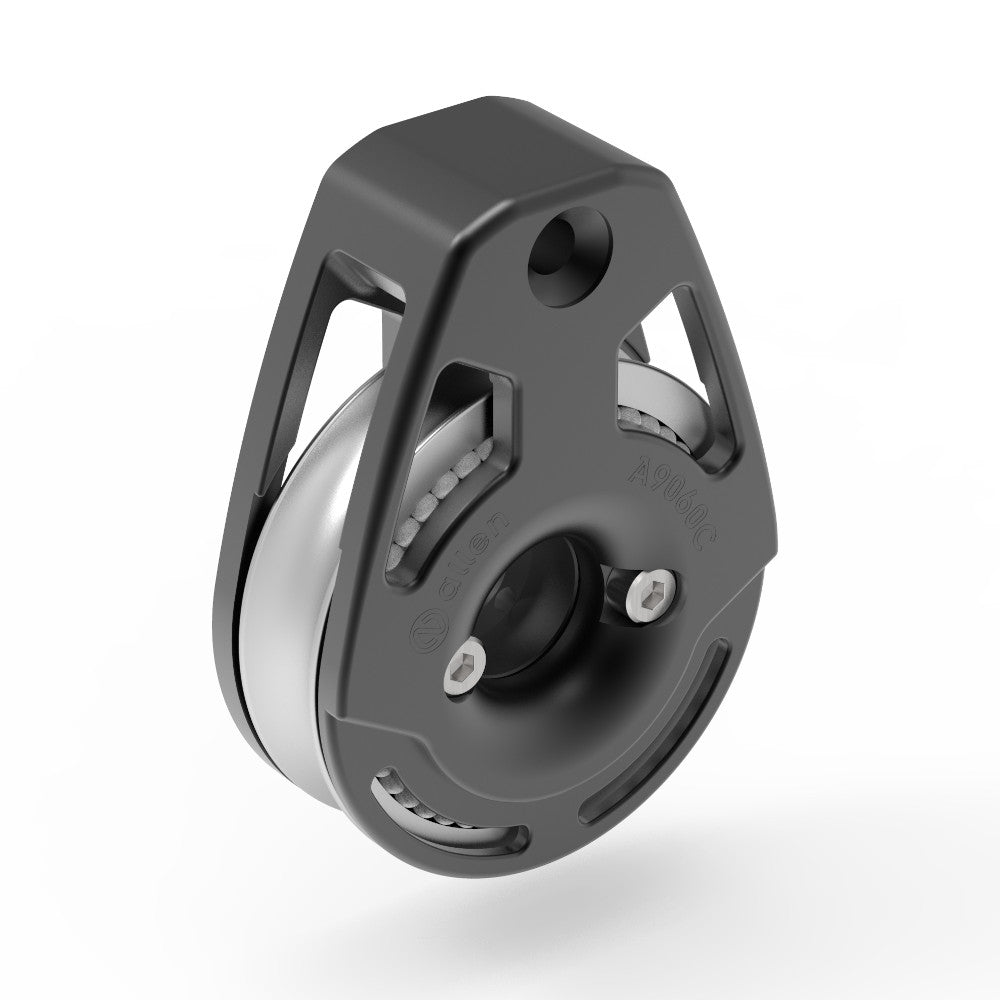

60mm Single Cheek High Roller Block
A high-performance block built for high-stakes sailing.
Designed for high-load, high-speed applications, the 60mm High Roller Block delivers exceptional performance with minimal friction and outstanding durability.
PEEK Roller Bearings
Features caged PEEK roller (needle) bearings that keep rollers evenly spaced, reducing friction and ensuring fast, smooth operation under extreme loads.
Delrin Side-Load Bearings
Captive Delrin side-load ball bearings help manage off-centre loads while providing smooth performance and easy servicing.
Cheek Mount Design
Designed for flat mounting onto a surface, making it ideal for redirecting highly loaded, fast-running lines across the deck into a winch or rope clutch.
The block is secured using two countersunk fixing holes, including a central fixing point through the sheave with integrated drainage to prevent water from pooling inside the block.
Easy Maintenance
Designed for quick disassembly and servicing, with replacement bearings available.
Custom Colours
Available in custom anodised colours. Please get in touch for more information.
The standard block colour is black with a silver sheave.
Technical Drawing
Click the PDF logo above to open a detailed technical drawing.
| Accessories | None |
|---|---|
| Brand | Allen |
| Breaking load kg | 4000 |
| Configuration | Cheek |
| Fixing hole diameter mm | M6 |
| Hole pitch mm | 45 |
| Length mm | 83.11 |
| Maximum line diameter mm | 13 |
| Maximum working load kg | 2000 |
| GenericFileDrop | |
| Related collection | CollectionDrop |
| Sheave diameter mm | 60 |
| Short description | Ideal for leading highly loaded and fast-running lines across the deck. |
| Youtube key 1 | mUqZfovP0EI |
| SKU | Title | Breaking Load Kg | Max Working Load Kg | Length mm | Max Line Dia mm | Hole Pitch mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A9062 |
60mm Double High Roller Block |
4700 | 2300 | 135.61 | 13 | - | 8 | 310 |
Regular price
£322.79 ex VAT
£387.35 inc VAT
Regular price
|
| A9060S |
60mm Single High Roller Block |
2600 | 1300 | 120.56 | 13 | - | 6 | 176 |
Regular price
£200.00 ex VAT
£240.00 inc VAT
Regular price
|
| A9060C |
60mm Single High Roller Block - Cheek |
4000 | 2000 | 83.11 | 13 | 45 | - | 132 |
Regular price
£191.60 ex VAT
£229.92 inc VAT
Regular price
|
| A9060P |
60mm Single High Roller Block - Pad Eye |
4000 | 2000 | 84 | 13 | - | 10 | 140 |
Regular price
£200.00 ex VAT
£240.00 inc VAT
Regular price
|
| A9060 |
60mm Single High Roller Block - Tii-On |
4000 | 2000 | 83 | 13 | - | - | 132 |
Regular price
£187.50 ex VAT
£225.00 inc VAT
Regular price
|
| A9063 |
60mm Triple High Roller Block |
4700 | 2300 | 135.61 | 13 | - | 8 | 440 |
Regular price
£443.67 ex VAT
£532.40 inc VAT
Regular price
|
