A2030PF

Plain Bearing Single With Fork Head And Removable Pin

Plain Bearing Single With Fork Head And Removable Pin

£16.34 ex VAT £19.61 inc VAT
ex VAT £0.00 inc VAT £16.34 ex VAT £19.61 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 276 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

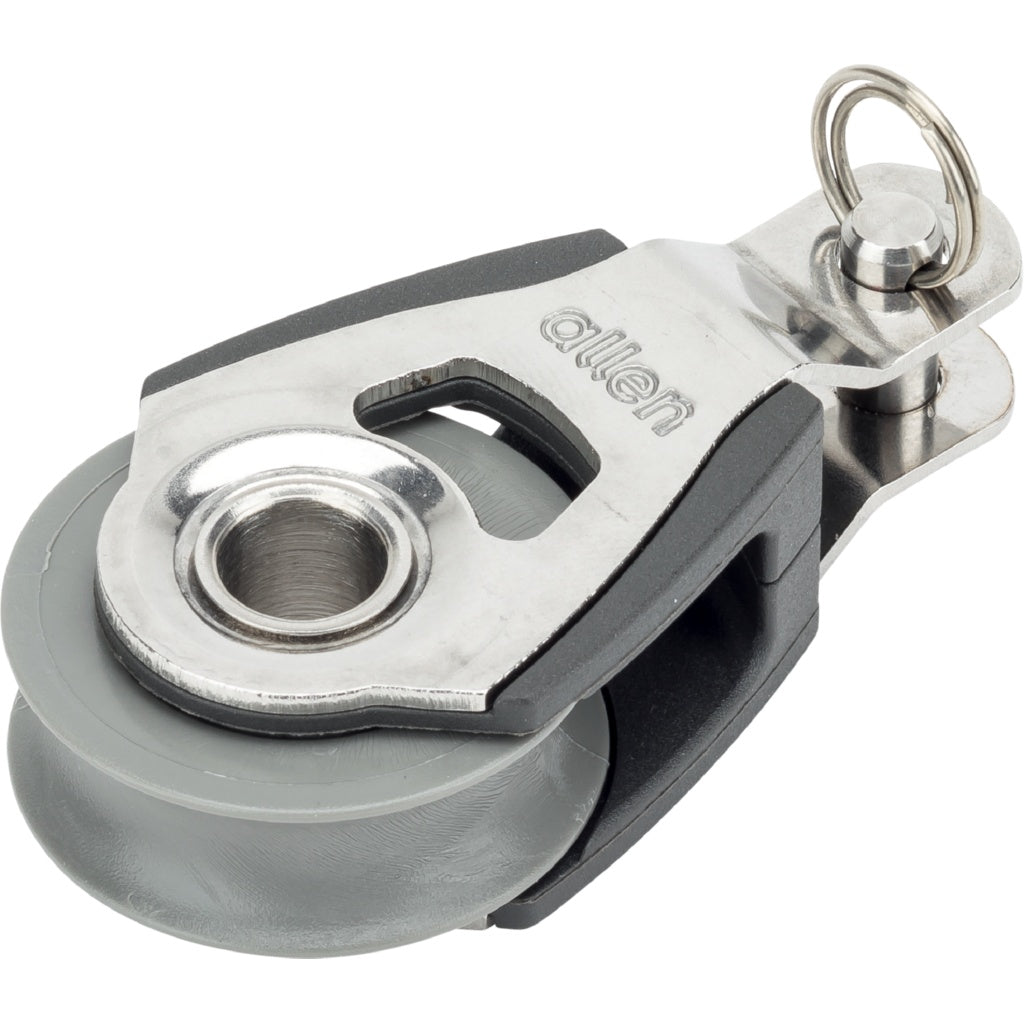

30mm Plain Bearing Single With Fork Head And Removable Pin
Plain bearing blocks are the ideal choice for take-up systems or systems which do not require friction reduction.
For ultimate performance, we suggest using the Dynamic block range instead.
This plain bearing block is made from recycled plastics.
Fork Head
– This block features a removable clevis pin to make the attachment of this 30mm dynamic single block super easy.
Plain Bearing
– The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
Becket
– The hole through the middle of the block can be used as a tying off point (becket).

Accessories Fork
Bearing type Plain
Brand Allen
Breaking load kg 600
Configuration Single
Height mm 15
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2030pf.igs
Length mm 56
Maximum line diameter mm 8
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/A2030PF-REF.pdf
Related collection CollectionDrop
Sheave diameter mm 30
Width mm 30
Swipe
SKU Title Breaking Load Kg Hole Pitch mm Length mm Max Line Dia mm Weight (g) Price
A2132HL

30mm Double High Load Through Deck Block

 500 90 77 8 45
£85.50 ex VAT £102.60 inc VAT
ex VAT £0.00 inc VAT £85.50 ex VAT £102.60 inc VAT
A2131HL

30mm Single High Load Through Deck Block

 500 60 74 8 26
£50.32 ex VAT £60.38 inc VAT
ex VAT £0.00 inc VAT £50.32 ex VAT £60.38 inc VAT
A2036P

Plain Bearing Cheek Block

 500 - 58.7 8 32
£16.19 ex VAT £19.43 inc VAT
ex VAT £0.00 inc VAT £16.19 ex VAT £19.43 inc VAT
A2032P

Plain Bearing Double

 1250 - 64 8 68
From £30.82 ex VAT £36.98 inc VAT
ex VAT £0.00 inc VAT From £30.82 ex VAT £36.98 inc VAT
A2132P

Plain Bearing Double Through Deck Block

 500 90 104 8 45
£38.06 ex VAT £45.67 inc VAT
ex VAT £0.00 inc VAT £38.06 ex VAT £45.67 inc VAT
A2033P

Plain Bearing Double With Becket

 1250 - 76 8 73
£32.55 ex VAT £39.06 inc VAT
ex VAT £0.00 inc VAT £32.55 ex VAT £39.06 inc VAT
A2031P

Plain Bearing Multi-Function Single

 750 - 46.6 8 27
£10.13 ex VAT £12.16 inc VAT
ex VAT £0.00 inc VAT £10.13 ex VAT £12.16 inc VAT
A2030P

Plain Bearing Single

 750 - 49 8 23
£11.25 ex VAT £13.50 inc VAT
ex VAT £0.00 inc VAT £11.25 ex VAT £13.50 inc VAT
A2131P

Plain Bearing Single Through Deck Block.

 500 60 74 8 27
£26.57 ex VAT £31.88 inc VAT
ex VAT £0.00 inc VAT £26.57 ex VAT £31.88 inc VAT
A2030PF

Plain Bearing Single With Fork Head And Removable Pin

 600 - 56 8 27
£16.34 ex VAT £19.61 inc VAT
ex VAT £0.00 inc VAT £16.34 ex VAT £19.61 inc VAT
A2030PF-873

Plain Bearing Single With Fork Head And Vang Key

 600 - 77 8 36
£23.11 ex VAT £27.73 inc VAT
ex VAT £0.00 inc VAT £23.11 ex VAT £27.73 inc VAT
A2030PSC

Plain Bearing Single With Swivel

 600 - 66.3 8 32
£28.26 ex VAT £33.91 inc VAT
ex VAT £0.00 inc VAT £28.26 ex VAT £33.91 inc VAT
A2030PSHK

Plain Bearing Single With Swivel Hook

 450 - 70.4 8 32
£27.69 ex VAT £33.23 inc VAT
ex VAT £0.00 inc VAT £27.69 ex VAT £33.23 inc VAT
A2030PLZ

Plain Bearing Stand Up Single

 500 - 59 8 27
£17.05 ex VAT £20.46 inc VAT
ex VAT £0.00 inc VAT £17.05 ex VAT £20.46 inc VAT
A2034P

Plain Bearing Triple

 1750 - 62.6 8 95
£40.29 ex VAT £48.35 inc VAT
ex VAT £0.00 inc VAT £40.29 ex VAT £48.35 inc VAT
A2035P

Plain Bearing Triple With Becket

 1750 - 82.5 8 104
£47.11 ex VAT £56.53 inc VAT
ex VAT £0.00 inc VAT £47.11 ex VAT £56.53 inc VAT
