1 1

A2132P

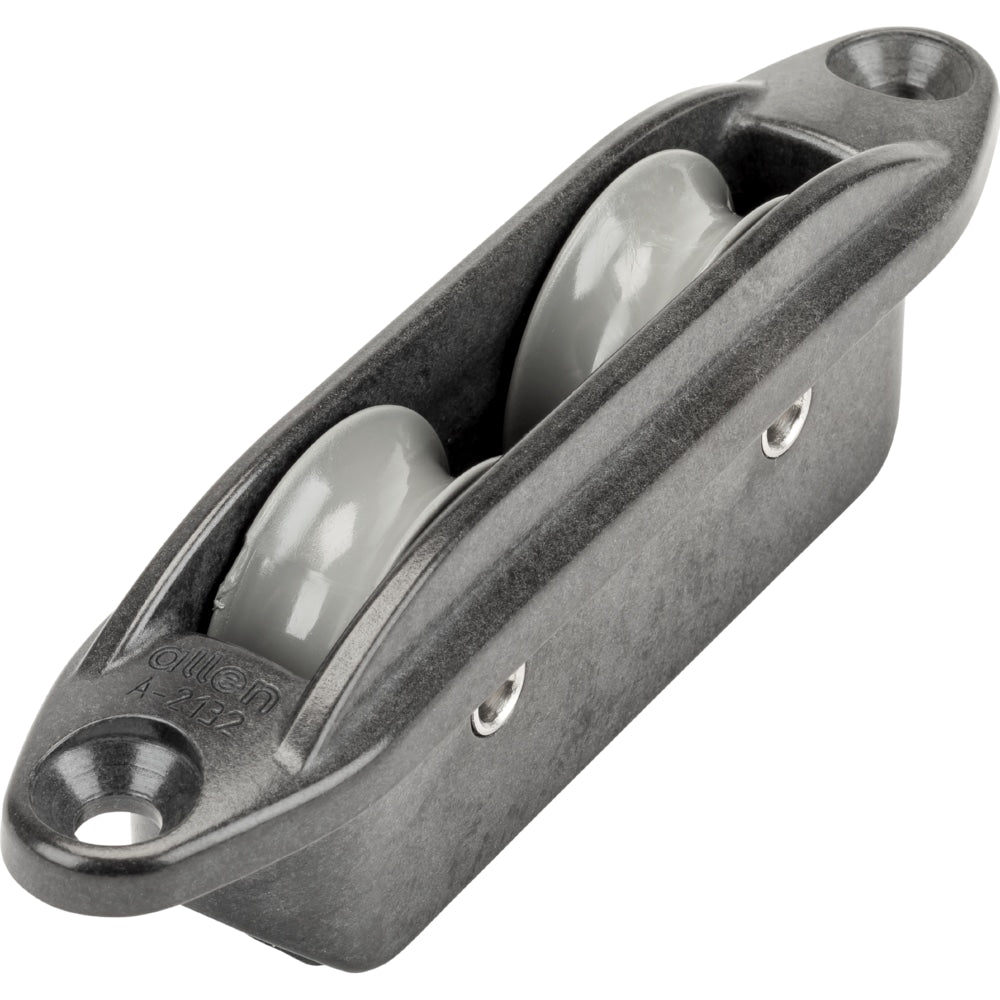

Plain Bearing Double Through Deck Block

Plain Bearing Double Through Deck Block

£38.06 ex VAT £45.67 inc VAT
ex VAT £0.00 inc VAT £38.06 ex VAT £45.67 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 15 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

30mm Plain Bearing Through Deck Double Block.
Through deck blocks are designed to guide rope control lines through a deck or surface.
Featuring a hard-wearing acetal body shaped perfectly to house the sheave, which results in a performance that you can rely on for adjustable rigging and other highly loaded applications.
Available with one or two sheaves and in plain and ball bearing systems to suit a wide variety of applications.
This double sheave version allows the rope to run through a surface at a maximum of 180 degrees.
Plain Bearing
– The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
Click the PDF logo above for a detailed technical drawing.

Accessories None
Bearing type Plain
Brand Allen
Breaking load kg 500
Configuration Double
Hole pitch mm 90
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2132p.igs
Length mm 104
Maximum line diameter mm 8
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a2132p-ref-v2.pdf
Related collection CollectionDrop
Sheave diameter mm 30
Swipe
SKU Title Breaking Load Kg Hole Pitch mm Length mm Max Line Dia mm Weight (g) Price
A2132HL

30mm Double High Load Through Deck Block

 500 90 77 8 45
£85.50 ex VAT £102.60 inc VAT
ex VAT £0.00 inc VAT £85.50 ex VAT £102.60 inc VAT
A2131HL

30mm Single High Load Through Deck Block

 500 60 74 8 26
£50.32 ex VAT £60.38 inc VAT
ex VAT £0.00 inc VAT £50.32 ex VAT £60.38 inc VAT
A2036P

Plain Bearing Cheek Block

 500 - 58.7 8 32
£16.19 ex VAT £19.43 inc VAT
ex VAT £0.00 inc VAT £16.19 ex VAT £19.43 inc VAT
A2032P

Plain Bearing Double

 1250 - 64 8 68
From £30.82 ex VAT £36.98 inc VAT
ex VAT £0.00 inc VAT From £30.82 ex VAT £36.98 inc VAT
A2132P

Plain Bearing Double Through Deck Block

 500 90 104 8 45
£38.06 ex VAT £45.67 inc VAT
ex VAT £0.00 inc VAT £38.06 ex VAT £45.67 inc VAT
A2033P

Plain Bearing Double With Becket

 1250 - 76 8 73
£32.55 ex VAT £39.06 inc VAT
ex VAT £0.00 inc VAT £32.55 ex VAT £39.06 inc VAT
A2031P

Plain Bearing Multi-Function Single

 750 - 46.6 8 27
£10.13 ex VAT £12.16 inc VAT
ex VAT £0.00 inc VAT £10.13 ex VAT £12.16 inc VAT
A2030P

Plain Bearing Single

 750 - 49 8 23
£11.25 ex VAT £13.50 inc VAT
ex VAT £0.00 inc VAT £11.25 ex VAT £13.50 inc VAT
A2131P

Plain Bearing Single Through Deck Block.

 500 60 74 8 27
£26.57 ex VAT £31.88 inc VAT
ex VAT £0.00 inc VAT £26.57 ex VAT £31.88 inc VAT
A2030PF

Plain Bearing Single With Fork Head And Removable Pin

 600 - 56 8 27
£16.34 ex VAT £19.61 inc VAT
ex VAT £0.00 inc VAT £16.34 ex VAT £19.61 inc VAT
A2030PF-873

Plain Bearing Single With Fork Head And Vang Key

 600 - 77 8 36
£23.11 ex VAT £27.73 inc VAT
ex VAT £0.00 inc VAT £23.11 ex VAT £27.73 inc VAT
A2030PSC

Plain Bearing Single With Swivel

 600 - 66.3 8 32
£28.26 ex VAT £33.91 inc VAT
ex VAT £0.00 inc VAT £28.26 ex VAT £33.91 inc VAT
A2030PSHK

Plain Bearing Single With Swivel Hook

 450 - 70.4 8 32
£27.69 ex VAT £33.23 inc VAT
ex VAT £0.00 inc VAT £27.69 ex VAT £33.23 inc VAT
A2030PLZ

Plain Bearing Stand Up Single

 500 - 59 8 27
£17.05 ex VAT £20.46 inc VAT
ex VAT £0.00 inc VAT £17.05 ex VAT £20.46 inc VAT
A2034P

Plain Bearing Triple

 1750 - 62.6 8 95
£40.29 ex VAT £48.35 inc VAT
ex VAT £0.00 inc VAT £40.29 ex VAT £48.35 inc VAT
A2035P

Plain Bearing Triple With Becket

 1750 - 82.5 8 104
£47.11 ex VAT £56.53 inc VAT
ex VAT £0.00 inc VAT £47.11 ex VAT £56.53 inc VAT
