SKU:A2064
60mm Triple Dynamic Block
60mm Triple Dynamic Block
Available on back order(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description

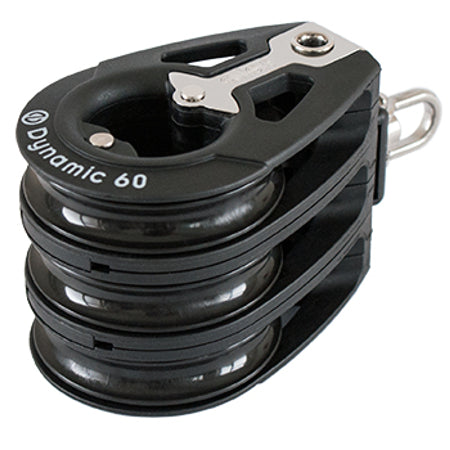

60mm Triple Dynamic Block.
The A2064 is a high-performance ball bearing block, designed to eliminate friction and allow rope to run at high speeds.
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between.
The 50mm triple is a great choice for systems which require a larger purchase system with minimal friction.
Bearings: Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
Swivel Lock: The A2064 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
Becket: A large central hole not only reduces the overall weight of the block but also offers a rope-friendly attachment, perfect as a tie-off point when being used in a cascade system.
| Bearing type | Dynamic |
|---|---|
| Brand | Allen |
| Breaking load kg | 1250 |
| Configuration | Triple |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a2064.igs |
| Length mm | 130 |
| Maximum line diameter mm | 12 |
| Maximum working load kg | 600 |
| GenericFileDrop | |
| Pdf ref link | https://www.allenbrothers.co.uk/wp-content/uploads/2018/09/a2064-ref-2.pdf |
| Pin size mm | 5 |
| Related collection | CollectionDrop |
| Sheave diameter mm | 60 |
| Short description | Ideal for use on Keelboats and Catamarans for a range of applications. |
| SKU | Title | Breaking Load Kg | Max Working Load Kg | Hole Pitch mm | Length mm | Max Line Dia mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A2166 |
60mm Block Cheek Adaptor |
- | - | 60 | 115 | - | - | - |
Regular price
£6.49 ex VAT
£7.79 inc VAT
Regular price
|
| A2062 |
60mm Double Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 254 |
Regular price
£114.04 ex VAT
£136.85 inc VAT
Regular price
|
| A2063 |
60mm Double Dynamic Block - Becket |
1250 | 600 | - | 148 | 12 | 5 | 272 |
Regular price
£119.42 ex VAT
£143.30 inc VAT
Regular price
|
| A2066 |
60mm Quad Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 445 |
Regular price
£200.99 ex VAT
£241.19 inc VAT
Regular price
|
| A2067 |
60mm Quad Dynamic Block - Becket |
1250 | 600 | - | 148 | 12 | 5 | 458 |
Regular price
£206.40 ex VAT
£247.68 inc VAT
Regular price
|
| A2069 |
60mm Quint Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 549 |
Regular price
£231.68 ex VAT
£278.02 inc VAT
Regular price
|
| A2069B |
60mm Quint Dynamic Block - Becket |
1250 | 600 | - | 150 | 12 | 6 | 553 |
Regular price
£236.98 ex VAT
£284.38 inc VAT
Regular price
|
| A2060 |
60mm Single Dynamic Block |
1000 | 500 | - | 118 | 12 | 5 | 127 |
Regular price
£55.10 ex VAT
£66.12 inc VAT
Regular price
|
| A2060C |
60mm Single Dynamic Block - Cheek |
1000 | 500 | 60 | 115 | 12 | 5 | 150 |
Regular price
£61.60 ex VAT
£73.92 inc VAT
Regular price
|
| A2060Tii |
60mm Single Dynamic Block - Tii-On |
1400 | 700 | - | 84.1 | 10 | - | 91 |
Regular price
From £55.10 ex VAT
£66.12 inc VAT
Regular price
|
| A2064 |
60mm Triple Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 354 |
Regular price
£154.97 ex VAT
£185.96 inc VAT
Regular price
|
| A2065 |
60mm Triple Dynamic Block - Becket |
1250 | 600 | - | 148 | 12 | 5 | 399 |
Regular price
£160.38 ex VAT
£192.46 inc VAT
Regular price
|
