1 5

A2060

60mm Single Dynamic Block

60mm Single Dynamic Block

£55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT £55.10 ex VAT £66.12 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 14 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

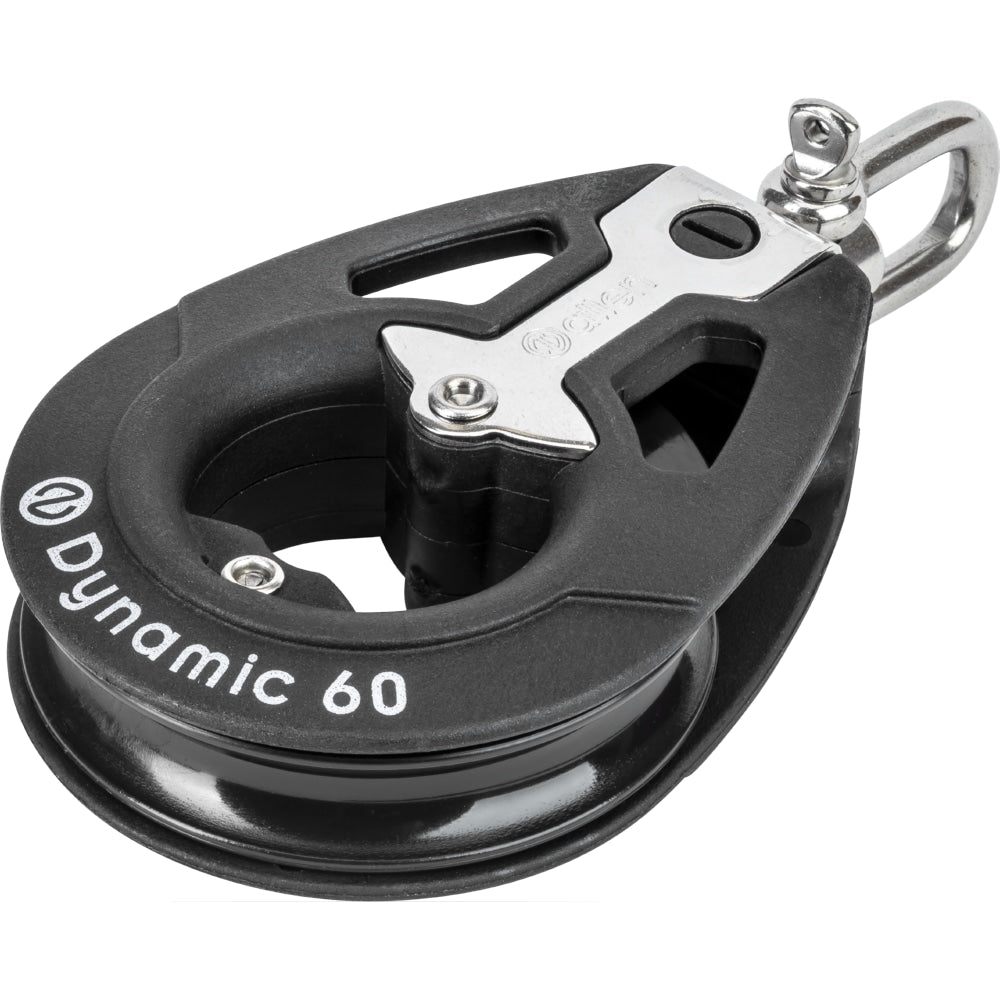

60mm Dynamic Single Block.

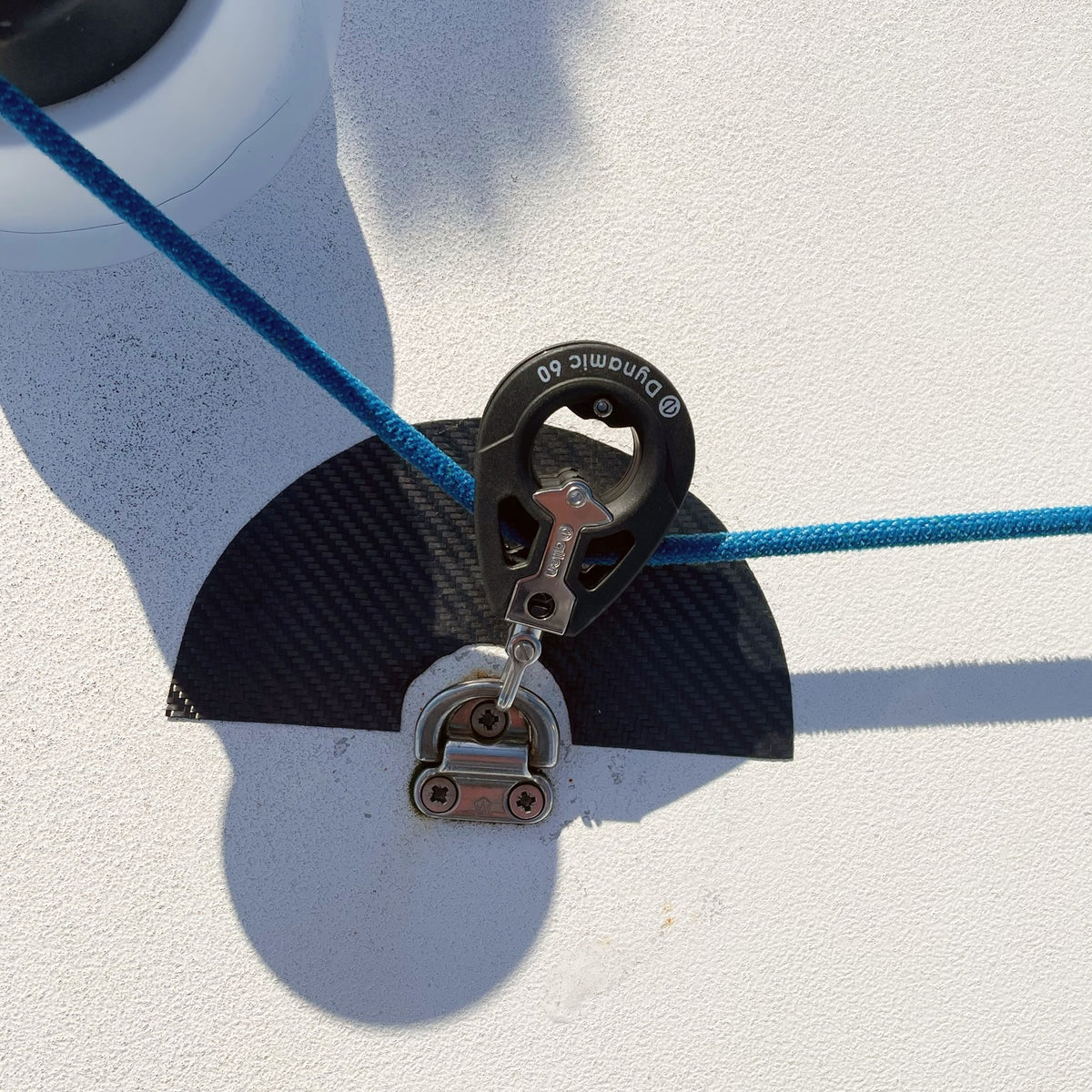

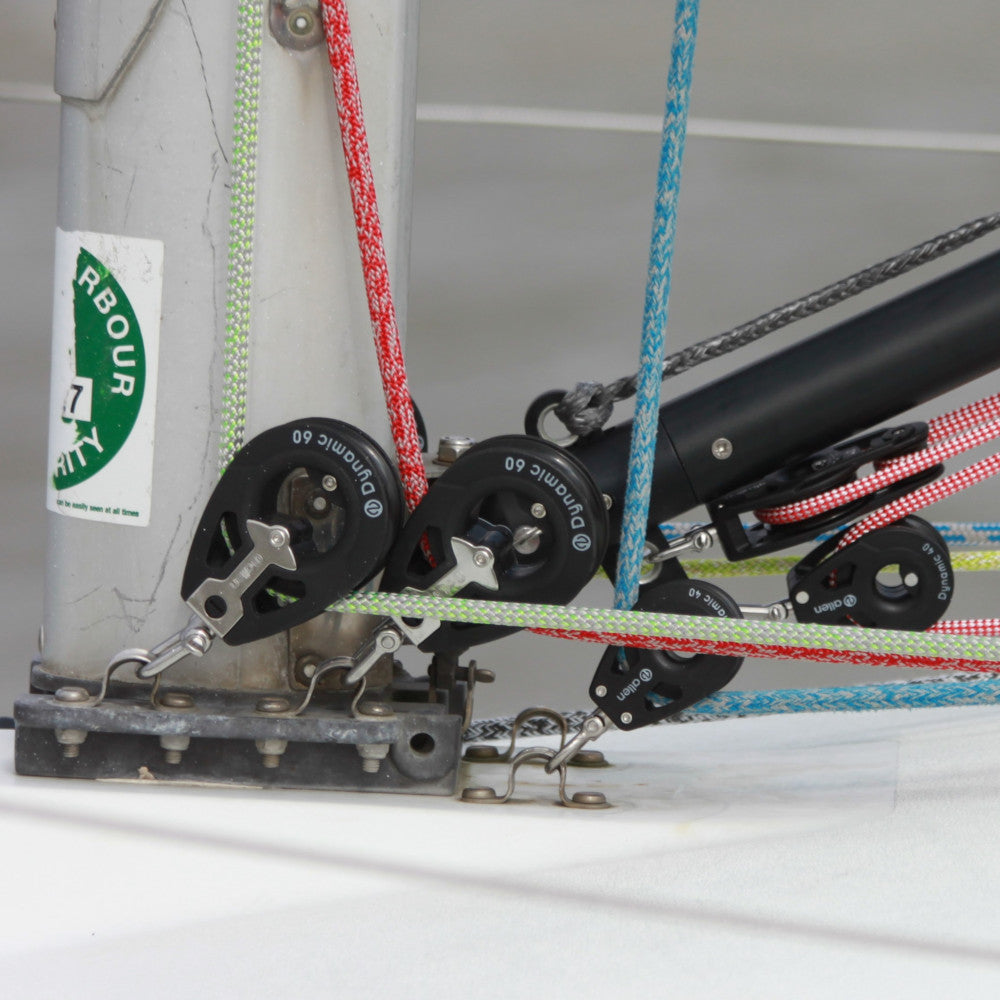

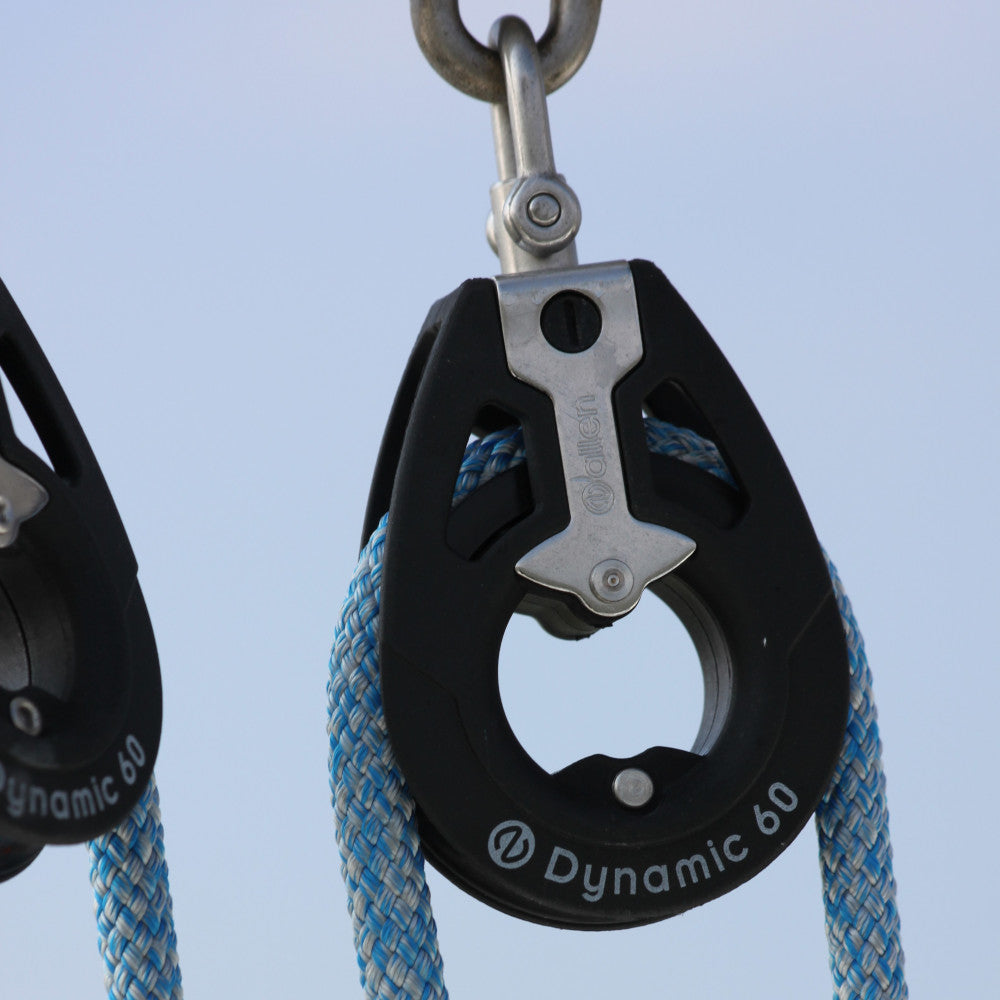

Designed for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems and everything in between.

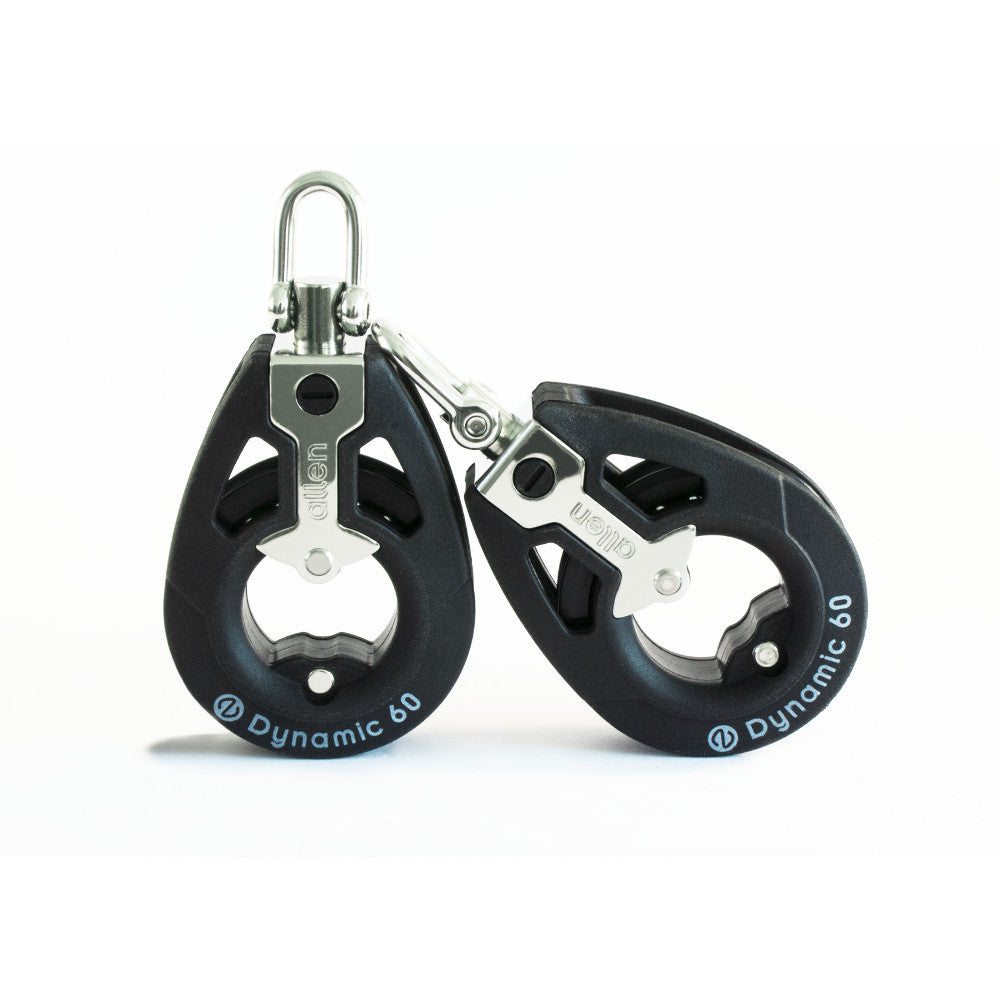

The single block features a swivel lock, located at the head of the block. Simply turn the locking screw to either lock the swivel in 90-degree orientations or unlock for complete free spinning.

Bearings: Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems, which run on a plastic rail.

Becket: A large central hole not only reduces the overall weight of the block but also offers a rope-friendly attachment, perfect as a tie-off point when being used in a cascade system.

Bearing type Dynamic
Brand Allen
Breaking load kg 1000
Configuration Single
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2060.igs
Length mm 118
Maximum line diameter mm 12
Maximum working load kg 500
Pdf GenericFileDrop
Pdf ref link https://www.allenbrothers.co.uk/wp-content/uploads/2018/09/a2060-ref-3.pdf
Pin size mm 5
Related collection CollectionDrop
Sheave diameter mm 60
Short description Designed for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems and everything in between.
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Length mm Max Line Dia mm Pin Size mm Weight (g) Price
A2166

60mm Block Cheek Adaptor

 - - 60 115 - - -
£6.49 ex VAT £7.79 inc VAT
ex VAT £0.00 inc VAT £6.49 ex VAT £7.79 inc VAT
A2062

60mm Double Dynamic Block

 1250 600 - 130 12 5 254
£114.04 ex VAT £136.85 inc VAT
ex VAT £0.00 inc VAT £114.04 ex VAT £136.85 inc VAT
A2063

60mm Double Dynamic Block - Becket

 1250 600 - 148 12 5 272
£119.42 ex VAT £143.30 inc VAT
ex VAT £0.00 inc VAT £119.42 ex VAT £143.30 inc VAT
A2066

60mm Quad Dynamic Block

 1250 600 - 130 12 5 445
£200.99 ex VAT £241.19 inc VAT
ex VAT £0.00 inc VAT £200.99 ex VAT £241.19 inc VAT
A2067

60mm Quad Dynamic Block - Becket

 1250 600 - 148 12 5 458
£206.40 ex VAT £247.68 inc VAT
ex VAT £0.00 inc VAT £206.40 ex VAT £247.68 inc VAT
A2069

60mm Quint Dynamic Block

 1250 600 - 130 12 5 549
£231.68 ex VAT £278.02 inc VAT
ex VAT £0.00 inc VAT £231.68 ex VAT £278.02 inc VAT
A2069B

60mm Quint Dynamic Block - Becket

 1250 600 - 150 12 6 553
£236.98 ex VAT £284.38 inc VAT
ex VAT £0.00 inc VAT £236.98 ex VAT £284.38 inc VAT
A2060

60mm Single Dynamic Block

 1000 500 - 118 12 5 127
£55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT £55.10 ex VAT £66.12 inc VAT
A2060C

60mm Single Dynamic Block - Cheek

 1000 500 60 115 12 5 150
£61.60 ex VAT £73.92 inc VAT
ex VAT £0.00 inc VAT £61.60 ex VAT £73.92 inc VAT
A2060Tii

60mm Single Dynamic Block - Tii-On

 1400 700 - 84.1 10 - 91
From £55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT From £55.10 ex VAT £66.12 inc VAT
A2064

60mm Triple Dynamic Block

 1250 600 - 130 12 5 354
£154.97 ex VAT £185.96 inc VAT
ex VAT £0.00 inc VAT £154.97 ex VAT £185.96 inc VAT
A2065

60mm Triple Dynamic Block - Becket

 1250 600 - 148 12 5 399
£160.38 ex VAT £192.46 inc VAT
ex VAT £0.00 inc VAT £160.38 ex VAT £192.46 inc VAT
