SKU:A-622108
Bow Shackle With Forged Pin
Bow Shackle With Forged Pin
Regular price
£4.97 ex VAT
£5.96 inc VAT
Regular price
ex VAT
£0.00 inc VAT
Sale price
£4.97 ex VAT
£5.96 inc VAT
Shipping calculated at checkout.
Available on back order(Can be backordered)
Require larger quantities? Contact us
Quantity
Couldn't load pickup availability
Product Datasheet Download
Description

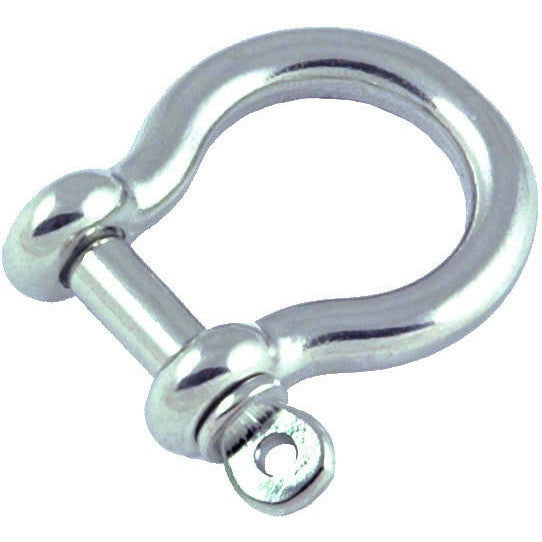

Round Body Bow Shackle With 8mm Forged Pin
This round body shackle offers exceptional quality and value, making it a great economical alternative to a fully forged shackle. Featuring a smooth, rounded body and a forged pin for added strength and security, it's ideal for a wide range of marine, industrial, and general rigging applications.
Manufactured from 316 stainless steel, it provides reliable corrosion resistance and long-lasting durability in tough environments.
Key Features:
8mm Screw Pin.
Economical alternative to fully forged shackles.
Forged pin for extra strength and security.
316 Stainless steel construction for corrosion resistance.
Click the PDF logo above to open a detailed technical drawing.
| A mm | 18 |
|---|---|
| Brand | Allen |
| Breaking load kg | 2500 |
| Configuration | Bow |
| D mm | 8 |
| Height mm | 28 |
| Hole pin diameter mm | 8 |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a-622108.igs |
| Length mm | 41 |
| L mm | 36 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a-622108-ref.pdf |
| Related collection | CollectionDrop |
| Short description | Bow Shackle With Forged Pin |
| Width mm | 16 |
| W mm | 28 |
Swipe
| SKU | Title | Breaking Load Kg | Internal Length mm | Internal Width mm | Length mm | Opening mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A-622104 |
Bow Shackle With Forged Pin |
500 | - | - | 20 | - | - | 9 |
Regular price
£2.14 ex VAT
£2.57 inc VAT
Regular price
|
| A-622105 |
Bow Shackle With Forged Pin |
950 | - | - | 25 | - | - | 14 |
Regular price
£2.58 ex VAT
£3.10 inc VAT
Regular price
|
| A-622106 |
Bow Shackle With Forged Pin |
1500 | - | - | 30 | - | - | 27 |
Regular price
£2.79 ex VAT
£3.35 inc VAT
Regular price
|
| A-622108 |
Bow Shackle With Forged Pin |
2500 | - | - | 41 | - | - | 59 |
Regular price
£4.97 ex VAT
£5.96 inc VAT
Regular price
|
| A-621104 |
D Shackle With Forged Pin |
500 | - | - | 16 | - | - | 5 |
Regular price
£2.07 ex VAT
£2.48 inc VAT
Regular price
|
| A-621105 |
D Shackle With Forged Pin |
950 | - | - | 20 | - | - | 14 |
Regular price
£2.25 ex VAT
£2.70 inc VAT
Regular price
|
| A-621106 |
D Shackle With Forged Pin |
1500 | - | - | 24 | - | - | 23 |
Regular price
£2.92 ex VAT
£3.50 inc VAT
Regular price
|
| A-621108 |
D Shackle With Forged Pin |
2500 | - | - | 32 | - | - | 54 |
Regular price
£4.65 ex VAT
£5.58 inc VAT
Regular price
|
| A-621110 |
D Shackle With Forged Pin |
4100 | - | - | 40 | - | - | 109 |
Regular price
£6.68 ex VAT
£8.02 inc VAT
Regular price
|
| A-623104 |
Long D Shackle With Forged Pin |
500 | - | - | 32 | - | - | 9 |
Regular price
£2.21 ex VAT
£2.65 inc VAT
Regular price
|
| A-623105 |
Long D Shackle With Forged Pin |
950 | - | - | 40 | - | - | 18 |
Regular price
£2.87 ex VAT
£3.44 inc VAT
Regular price
|
| A-623106 |
Long D Shackle With Forged Pin |
1500 | - | - | 48 | - | - | - |
Regular price
£3.77 ex VAT
£4.52 inc VAT
Regular price
|
| A-623108 |
Long D Shackle With Forged Pin |
2500 | - | - | 64 | - | - | 73 |
Regular price
£6.41 ex VAT
£7.69 inc VAT
Regular price
|
| A-623110 |
Long D Shackle With Forged Pin |
3000 | - | - | 80 | - | - | 9 |
Regular price
£10.90 ex VAT
£13.08 inc VAT
Regular price
|
| A-624105 |
Twisted Shackle With Forged Pin |
950 | - | - | 24 | - | - | 18 |
Regular price
£3.29 ex VAT
£3.95 inc VAT
Regular price
|
| A-624106 |
Twisted Shackle With Forged Pin |
1500 | - | - | 30 | - | - | 27 |
Regular price
£3.99 ex VAT
£4.79 inc VAT
Regular price
|
| A-624108 |
Twisted Shackle With Forged Pin |
2500 | - | - | 36 | - | - | 64 |
Regular price
£6.38 ex VAT
£7.66 inc VAT
Regular price
|
| A-624110 |
Twisted Shackle With Forged Pin |
4100 | - | - | 44 | - | - | - |
Regular price
£9.23 ex VAT
£11.08 inc VAT
Regular price
|
