SKU:A-621105
D Shackle With Forged Pin
D Shackle With Forged Pin
In stock - 55 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Product Datasheet Download
Description

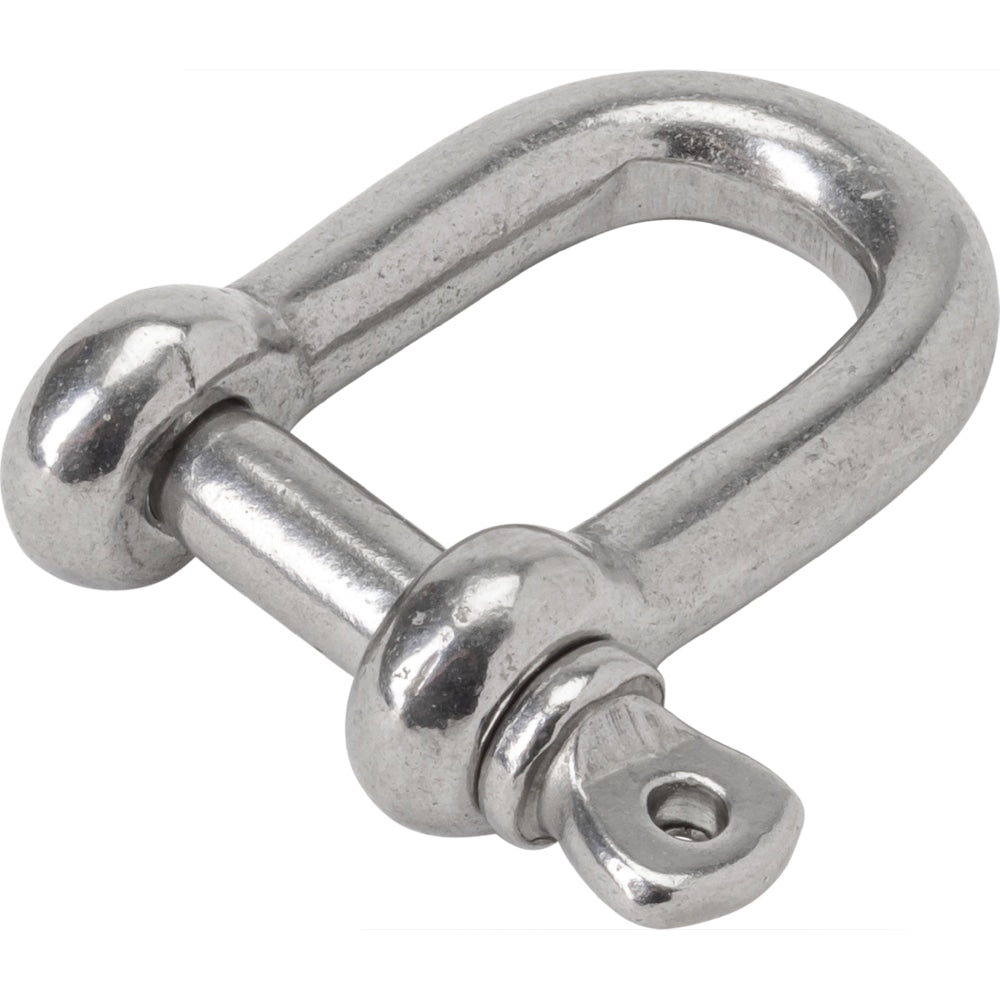

Round Body D Shackle With 5mm Forged Pin
This round body shackle offers exceptional quality and value, making it a great economical alternative to a fully forged shackle. Featuring a smooth, rounded body and a forged pin for added strength and security, it's ideal for a wide range of marine, industrial, and general rigging applications.
Manufactured from 316 stainless steel, it provides reliable corrosion resistance and long-lasting durability in tough environments.
Key Features:
5mm Screw Pin.
Economical alternative to fully forged shackles.
Forged pin for extra strength and security.
316 Stainless steel construction for corrosion resistance.
Click the PDF logo above to open a detailed technical drawing.
| A mm | 11 |
|---|---|
| Brand | Allen |
| Breaking load kg | 950 |
| Configuration | D |
| D mm | 5 |
| Height mm | 5 |
| Hole pin diameter mm | 5 |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a-621105.igs |
| Length mm | 20 |
| L mm | 18 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a-621105-ref.pdf |
| Related collection | CollectionDrop |
| Short description | D Shackle With Forged Pin |
| Width mm | 10 |
| SKU | Title | Breaking Load Kg | Internal Length mm | Internal Width mm | Length mm | Opening mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A-622104 |
Bow Shackle With Forged Pin |
500 | - | - | 20 | - | - | 9 |
Regular price
£2.14 ex VAT
£2.57 inc VAT
Regular price
|
| A-622105 |
Bow Shackle With Forged Pin |
950 | - | - | 25 | - | - | 14 |
Regular price
£2.58 ex VAT
£3.10 inc VAT
Regular price
|
| A-622106 |
Bow Shackle With Forged Pin |
1500 | - | - | 30 | - | - | 27 |
Regular price
£2.79 ex VAT
£3.35 inc VAT
Regular price
|
| A-622108 |
Bow Shackle With Forged Pin |
2500 | - | - | 41 | - | - | 59 |
Regular price
£4.97 ex VAT
£5.96 inc VAT
Regular price
|
| A-621104 |
D Shackle With Forged Pin |
500 | - | - | 16 | - | - | 5 |
Regular price
£2.07 ex VAT
£2.48 inc VAT
Regular price
|
| A-621105 |
D Shackle With Forged Pin |
950 | - | - | 20 | - | - | 14 |
Regular price
£2.25 ex VAT
£2.70 inc VAT
Regular price
|
| A-621106 |
D Shackle With Forged Pin |
1500 | - | - | 24 | - | - | 23 |
Regular price
£2.92 ex VAT
£3.50 inc VAT
Regular price
|
| A-621108 |
D Shackle With Forged Pin |
2500 | - | - | 32 | - | - | 54 |
Regular price
£4.65 ex VAT
£5.58 inc VAT
Regular price
|
| A-621110 |
D Shackle With Forged Pin |
4100 | - | - | 40 | - | - | 109 |
Regular price
£6.68 ex VAT
£8.02 inc VAT
Regular price
|
| A-623104 |
Long D Shackle With Forged Pin |
500 | - | - | 32 | - | - | 9 |
Regular price
£2.21 ex VAT
£2.65 inc VAT
Regular price
|
| A-623105 |
Long D Shackle With Forged Pin |
950 | - | - | 40 | - | - | 18 |
Regular price
£2.87 ex VAT
£3.44 inc VAT
Regular price
|
| A-623106 |
Long D Shackle With Forged Pin |
1500 | - | - | 48 | - | - | - |
Regular price
£3.77 ex VAT
£4.52 inc VAT
Regular price
|
| A-623108 |
Long D Shackle With Forged Pin |
2500 | - | - | 64 | - | - | 73 |
Regular price
£6.41 ex VAT
£7.69 inc VAT
Regular price
|
| A-623110 |
Long D Shackle With Forged Pin |
3000 | - | - | 80 | - | - | 9 |
Regular price
£10.90 ex VAT
£13.08 inc VAT
Regular price
|
| A-624105 |
Twisted Shackle With Forged Pin |
950 | - | - | 24 | - | - | 18 |
Regular price
£3.29 ex VAT
£3.95 inc VAT
Regular price
|
| A-624106 |
Twisted Shackle With Forged Pin |
1500 | - | - | 30 | - | - | 27 |
Regular price
£3.99 ex VAT
£4.79 inc VAT
Regular price
|
| A-624108 |
Twisted Shackle With Forged Pin |
2500 | - | - | 36 | - | - | 64 |
Regular price
£6.38 ex VAT
£7.66 inc VAT
Regular price
|
| A-624110 |
Twisted Shackle With Forged Pin |
4100 | - | - | 44 | - | - | - |
Regular price
£9.23 ex VAT
£11.08 inc VAT
Regular price
|
