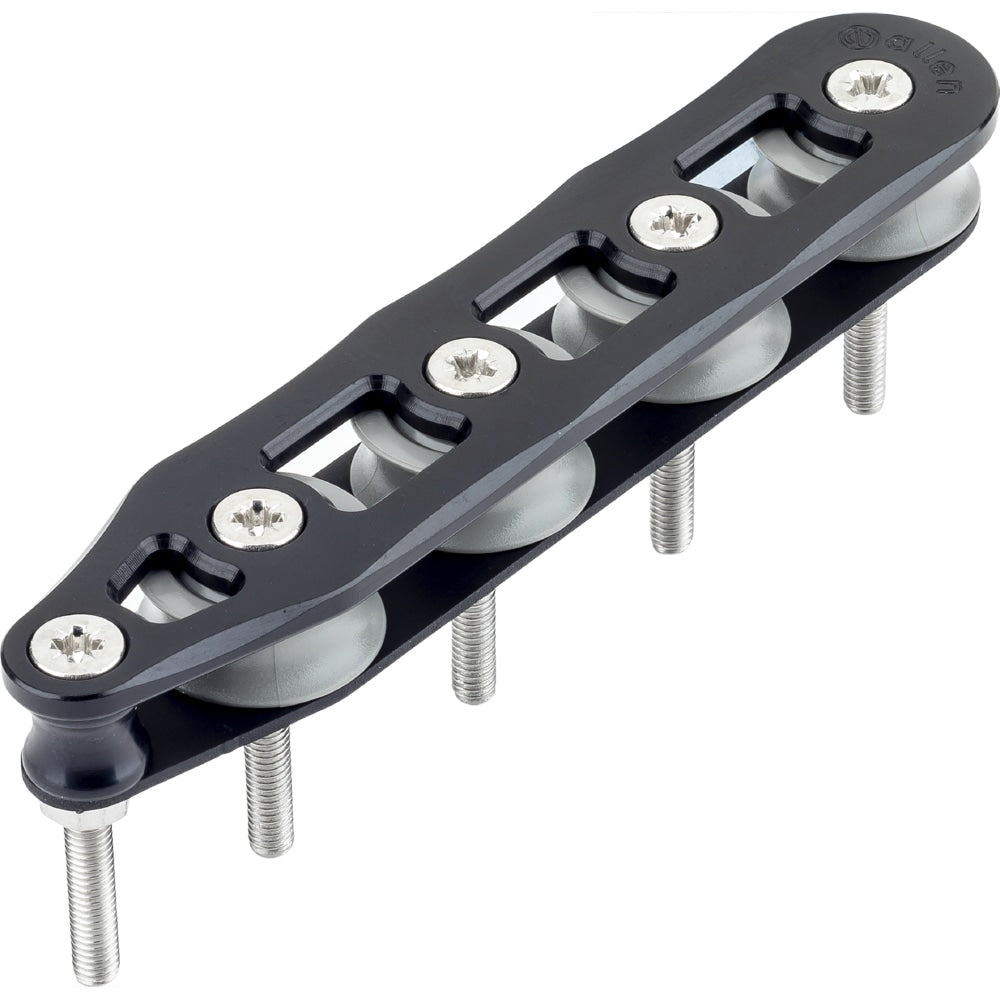

20mm Quad Plain Bearing Deck Organiser

20mm Quad Plain Bearing Quad Deck Organiser

Designed for leading control lines and halyards along a deck or coach roof.

The cheeks are made from marine-grade aluminium and anodised black.

Includes four bolts, nuts and washers.

The non-sheave column can be used as a becket.

Easily stacked to create a double-height deck organiser. When stacked, the upper organiser is rated to two-thirds of the maximum working and breaking load.

Plain Bearing

The Plain Bearing sheaves offer excellent static load capability at low weight and cost. They are the ideal choice for systems that are not fast-running or require constant adjustment. Made using recycled materials, they feature grey sheaves to distinguish them from the Dynamic Bearing version.

Load Rating

The Plain Bearing Deck Organiser range is rated based on a 30-degree turning angle around the sheave. A 30-degree turn on a sheave results in a load factor of 50% of the line load.

Key Features

• Four Plain Bearing sheaves
• Lightweight and easy to install
• Stackable design

• Stylish and sleek appearance

Typical Applications

• Guiding halyards along a coach roof to clutches, cleats and winches
• Diverting control lines around corners, above or below deck
• Underdeck take-up systems
• Redirecting a halyard, sheet or control line to achieve the correct lead angle into a winch or cleat

Technical Drawing

Click the PDF above to view detailed dimensions.
