A2166

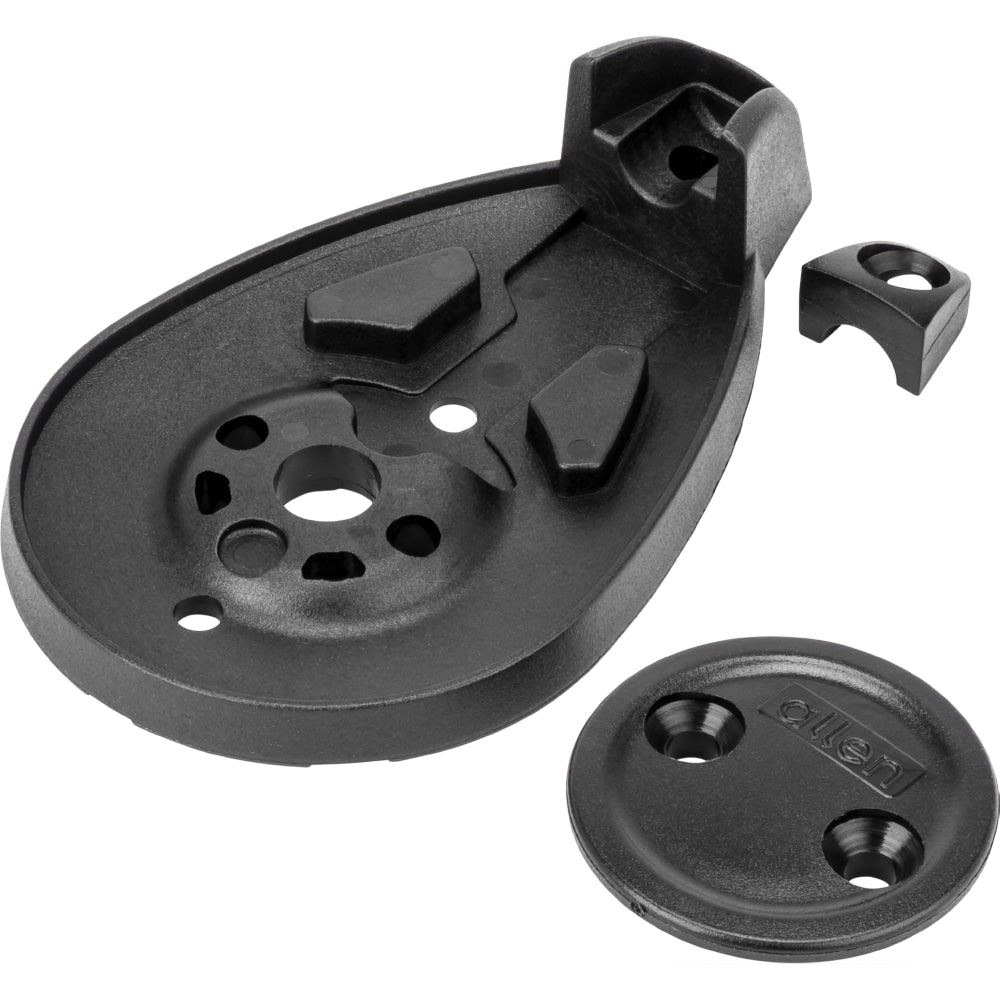

60mm Block Cheek Adaptor

60mm Block Cheek Adaptor

£6.49 ex VAT £7.79 inc VAT
ex VAT £0.00 inc VAT £6.49 ex VAT £7.79 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 8 left(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

Cheek adaptor for 60mm blocks.

Can be used with:

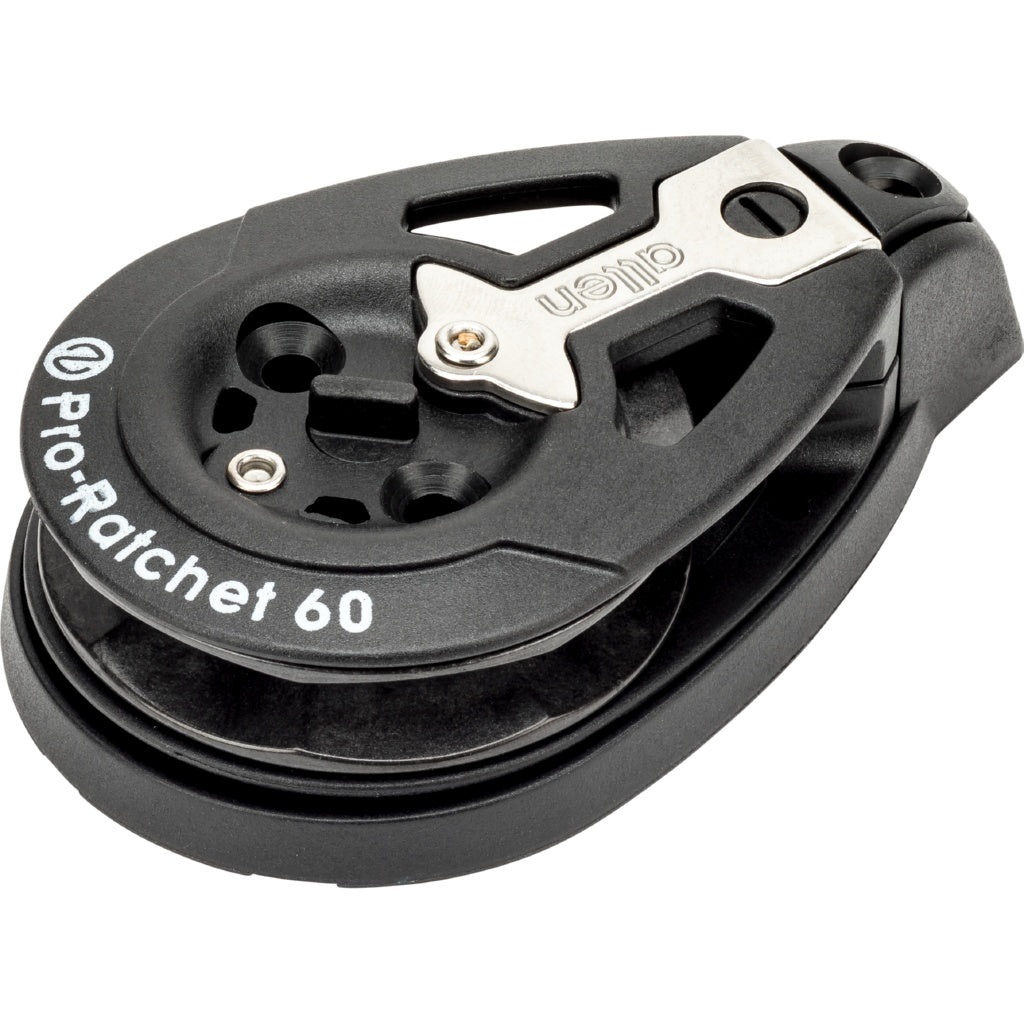

A2160 - 60mm Pro-Ratchet Block
A2160WAVE - 60mm Wave Pro-Ratchet Block
A2060 - 60mm Dynamic Single Block.

Simply remove the shackle from the top of your block and insert the block into the cheek adaptor.

The adaptor allows for three fixings to be used to ensure a strong and reliable fitting to any surface. The chamfered shape of the cheek adaptor limits the chances of snagging.

Bearing type Dynamic
Brand Allen
Configuration Cheek
Hole pitch mm 60
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2166.igs
Length mm 115
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a2060c-ref.pdf
Related collection CollectionDrop
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Length mm Max Line Dia mm Pin Size mm Weight (g) Price
A2166

60mm Block Cheek Adaptor

 - - 60 115 - - -
£6.49 ex VAT £7.79 inc VAT
ex VAT £0.00 inc VAT £6.49 ex VAT £7.79 inc VAT
A2062

60mm Double Dynamic Block

 1250 600 - 130 12 5 254
£114.04 ex VAT £136.85 inc VAT
ex VAT £0.00 inc VAT £114.04 ex VAT £136.85 inc VAT
A2063

60mm Double Dynamic Block - Becket

 1250 600 - 148 12 5 272
£119.42 ex VAT £143.30 inc VAT
ex VAT £0.00 inc VAT £119.42 ex VAT £143.30 inc VAT
A2066

60mm Quad Dynamic Block

 1250 600 - 130 12 5 445
£200.99 ex VAT £241.19 inc VAT
ex VAT £0.00 inc VAT £200.99 ex VAT £241.19 inc VAT
A2067

60mm Quad Dynamic Block - Becket

 1250 600 - 148 12 5 458
£206.40 ex VAT £247.68 inc VAT
ex VAT £0.00 inc VAT £206.40 ex VAT £247.68 inc VAT
A2069

60mm Quint Dynamic Block

 1250 600 - 130 12 5 549
£231.68 ex VAT £278.02 inc VAT
ex VAT £0.00 inc VAT £231.68 ex VAT £278.02 inc VAT
A2069B

60mm Quint Dynamic Block - Becket

 1250 600 - 150 12 6 553
£236.98 ex VAT £284.38 inc VAT
ex VAT £0.00 inc VAT £236.98 ex VAT £284.38 inc VAT
A2060

60mm Single Dynamic Block

 1000 500 - 118 12 5 127
£55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT £55.10 ex VAT £66.12 inc VAT
A2060C

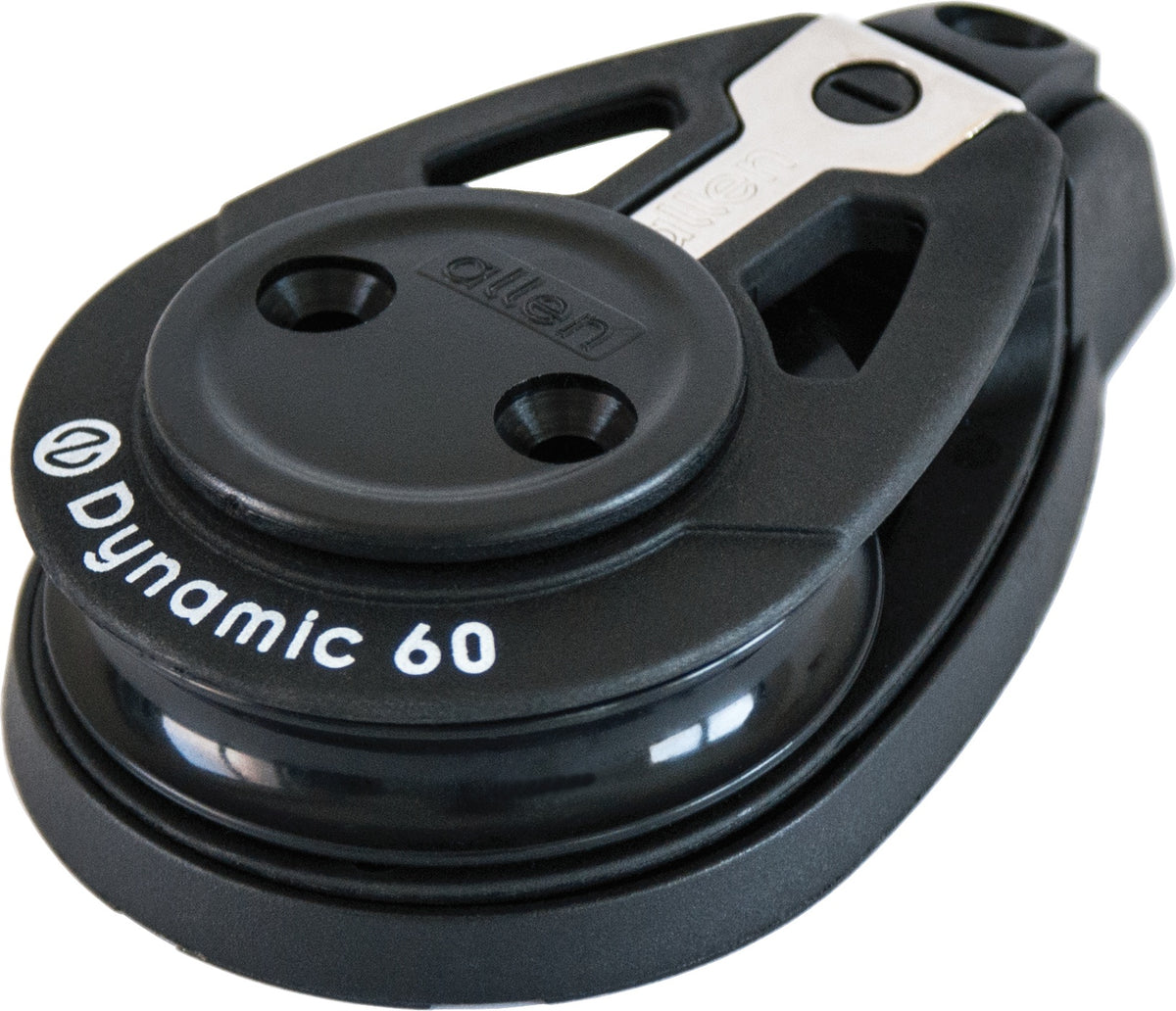

60mm Single Dynamic Block - Cheek

 1000 500 60 115 12 5 150
£61.60 ex VAT £73.92 inc VAT
ex VAT £0.00 inc VAT £61.60 ex VAT £73.92 inc VAT
A2060Tii

60mm Single Dynamic Block - Tii-On

 1400 700 - 84.1 10 - 91
From £55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT From £55.10 ex VAT £66.12 inc VAT
A2064

60mm Triple Dynamic Block

 1250 600 - 130 12 5 354
£154.97 ex VAT £185.96 inc VAT
ex VAT £0.00 inc VAT £154.97 ex VAT £185.96 inc VAT
A2065

60mm Triple Dynamic Block - Becket

 1250 600 - 148 12 5 399
£160.38 ex VAT £192.46 inc VAT
ex VAT £0.00 inc VAT £160.38 ex VAT £192.46 inc VAT
