Description

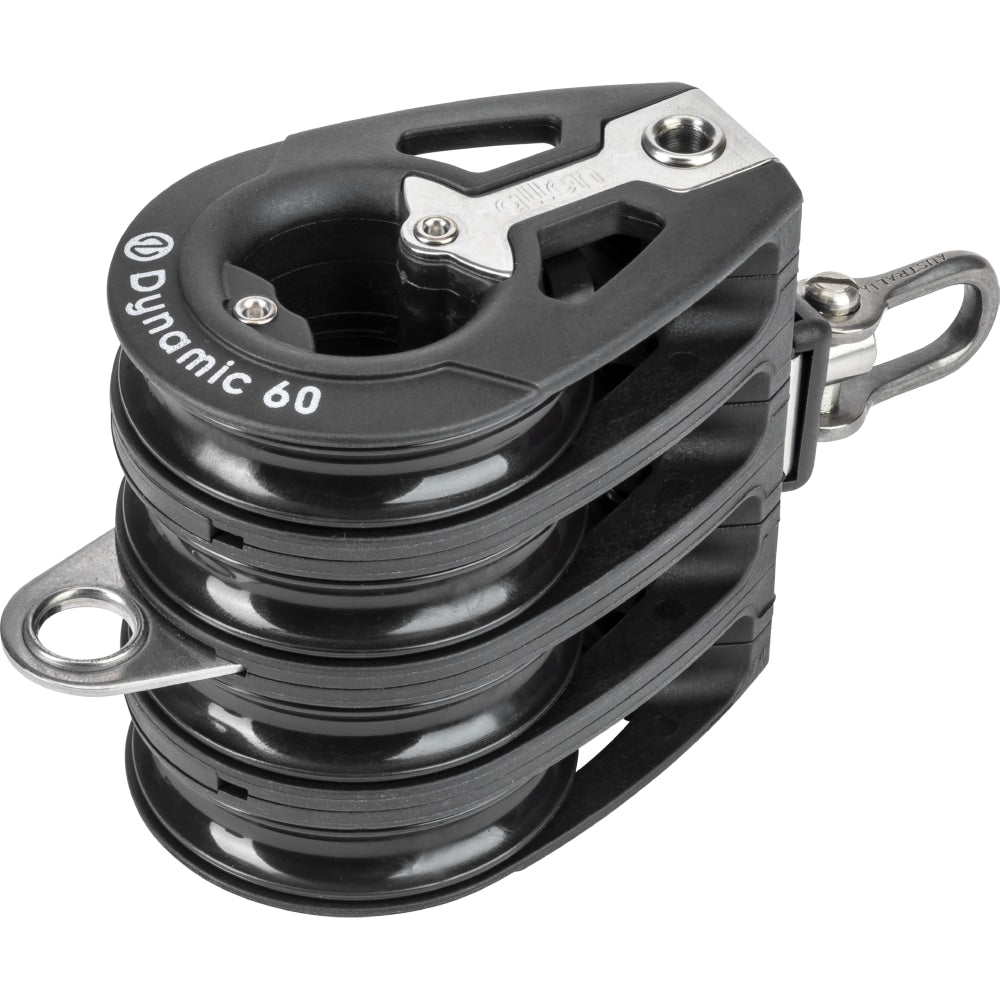

60mm Quad Dynamic Block with Becket.
The A2067 is a high-performance ball bearing block, designed to eliminate friction and allow rope to run at high speeds.
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between.
The 60mm quad is a great choice for systems which require a larger purchase system with minimal friction.
Bearings: Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
Swivel Lock: The A2067 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
Becket: This pulley features a central becket between the sheaves. This allows for easy termination of a rope as well as helping keep the load centralised.
| Bearing type | Dynamic |
|---|---|
| Brand | Allen |
| Breaking load kg | 1250 |
| Configuration | Quad |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a2067.igs |
| Length mm | 148 |
| Maximum line diameter mm | 12 |
| Maximum working load kg | 600 |
| GenericFileDrop | |
| Pdf ref link | https://www.allenbrothers.co.uk/wp-content/uploads/2018/09/a2067-ref-2.pdf |
| Pin size mm | 5 |
| Related collection | CollectionDrop |
| Sheave diameter mm | 60 |
| Short description | Ideal for use on Keelboats and Catamarans for a range of applications. |
| SKU | Title | Breaking Load Kg | Max Working Load Kg | Hole Pitch mm | Length mm | Max Line Dia mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A2166 |
60mm Block Cheek Adaptor |
- | - | 60 | 115 | - | - | - |
Regular price
£6.49 ex VAT
£7.79 inc VAT
Regular price
|
| A2062 |
60mm Double Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 254 |
Regular price
£114.04 ex VAT
£136.85 inc VAT
Regular price
|
| A2063 |
60mm Double Dynamic Block - Becket |
1250 | 600 | - | 148 | 12 | 5 | 272 |
Regular price
£119.42 ex VAT
£143.30 inc VAT
Regular price
|
| A2066 |
60mm Quad Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 445 |
Regular price
£200.99 ex VAT
£241.19 inc VAT
Regular price
|
| A2067 |
60mm Quad Dynamic Block - Becket |
1250 | 600 | - | 148 | 12 | 5 | 458 |
Regular price
£206.40 ex VAT
£247.68 inc VAT
Regular price
|
| A2069 |
60mm Quint Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 549 |
Regular price
£231.68 ex VAT
£278.02 inc VAT
Regular price
|
| A2069B |
60mm Quint Dynamic Block - Becket |
1250 | 600 | - | 150 | 12 | 6 | 553 |
Regular price
£236.98 ex VAT
£284.38 inc VAT
Regular price
|
| A2060 |
60mm Single Dynamic Block |
1000 | 500 | - | 118 | 12 | 5 | 127 |
Regular price
£55.10 ex VAT
£66.12 inc VAT
Regular price
|
| A2060C |
60mm Single Dynamic Block - Cheek |
1000 | 500 | 60 | 115 | 12 | 5 | 150 |
Regular price
£61.60 ex VAT
£73.92 inc VAT
Regular price
|
| A2060Tii |
60mm Single Dynamic Block - Tii-On |
1400 | 700 | - | 84.1 | 10 | - | 91 |
Regular price
From £55.10 ex VAT
£66.12 inc VAT
Regular price
|
| A2064 |
60mm Triple Dynamic Block |
1250 | 600 | - | 130 | 12 | 5 | 354 |
Regular price
£154.97 ex VAT
£185.96 inc VAT
Regular price
|
| A2065 |
60mm Triple Dynamic Block - Becket |
1250 | 600 | - | 148 | 12 | 5 | 399 |
Regular price
£160.38 ex VAT
£192.46 inc VAT
Regular price
|
