A3343-XHL

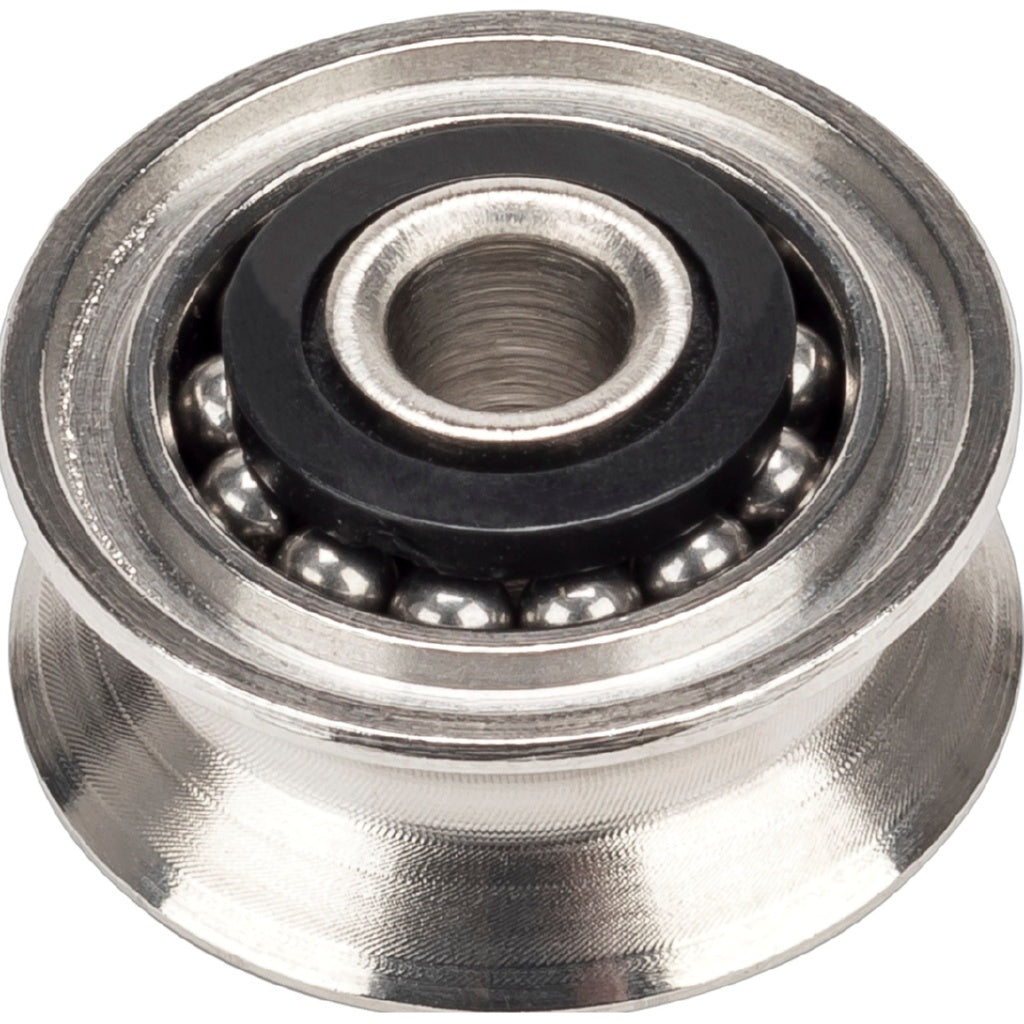

28mm XHL Stainless Steel Sheave

28mm XHL Stainless Steel Sheave

£45.40 ex VAT £54.48 inc VAT
ex VAT £0.00 inc VAT £45.40 ex VAT £54.48 inc VAT
Sale Sold out
Shipping calculated at checkout.

Available on back order(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

28mm XHL Stainless Steel Sheave

Used in the A2030XHL.

Engineered for extreme applications, the 28mm XHL Stainless Steel Sheave is designed to handle exceptionally high loads without compromising dynamic performance. Combining Allen's patented Dynamic Bearing Technology with a plain bearing PEEK washer, the XHL system maintains smooth, efficient operation even after being subjected to static loads of up to 1250kg.

Key Features:

  • 28mm stainless steel sheave
  • XHL bearing technology for extreme load applications
  • Patented Dynamic Bearing System
  • PEEK washer for enhanced durability and load handling
  • Maintains excellent dynamic performance after high static loads
  • Suitable for demanding marine and industrial environments
Bearing type XHL
Bore mm 7.25
Brand Allen
Breaking load kg 1250
Diameter mm 28.35
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a3343-xhl.igs
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a3343-xhl-ref_2.pdf
Related collection CollectionDrop
Sheave diameter mm 28.35
Sheave material Stainless Steel
Sheave width mm 13
Width mm 13
Swipe
SKU Title Bearing Type Bore mm Breaking Load Kg Sheave Dia mm Sheave Width mm Weight (g) Price
A..45

15mm Plain Bearing Acetal Sheave

 Plain 6 - 15 6.2 -
£0.96 ex VAT £1.15 inc VAT
ex VAT £0.00 inc VAT £0.96 ex VAT £1.15 inc VAT
A..46

15mm Plain Bearing Brass Sheave

 Plain 6 - 15.5 6.2 5
£2.87 ex VAT £3.44 inc VAT
ex VAT £0.00 inc VAT £2.87 ex VAT £3.44 inc VAT
A4567

16mm Ball Bearing Stainless Steel Sheave

 High Load 3.5 400 16 6.1 5
£13.57 ex VAT £16.28 inc VAT
ex VAT £0.00 inc VAT £13.57 ex VAT £16.28 inc VAT
A4567R

16mm Ball Bearing Stainless Steel Sheave

 High Load 3.2 400 16 6.1 -
£13.57 ex VAT £16.28 inc VAT
ex VAT £0.00 inc VAT £13.57 ex VAT £16.28 inc VAT
A4056

18mm Dynamic Acetal Sheave

 Dynamic 3.1 400 17.6 8.8 -
£4.98 ex VAT £5.98 inc VAT
ex VAT £0.00 inc VAT £4.98 ex VAT £5.98 inc VAT
A2086-3

20mm Dynamic Acetal Sheave

 Dynamic 3.2 540 20 8 -
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A2086-4

20mm Dynamic Acetal Sheave

 Dynamic 4.2 540 20 8 5
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A2086-5

20mm Dynamic Acetal Sheave

 Dynamic 5.2 540 20 8 5
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A4886

20mm Dynamic Acetal Sheave

 Dynamic 3 540 20 8.1 5
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A4886-5

20mm Dynamic Acetal Sheave

 Dynamic 5 540 20 8.1 5
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A4886B

20mm Dynamic Acetal Sheave

 Dynamic 3 540 20 8.1 5
£4.98 ex VAT £5.98 inc VAT
ex VAT £0.00 inc VAT £4.98 ex VAT £5.98 inc VAT
A2087-3

20mm Dynamic Acetal Sheave - Wide

 Dynamic 3.2 540 20 12 -
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A2087-4

20mm Dynamic Acetal Sheave - Wide

 Dynamic 4.2 540 20 12 -
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A2087-5

20mm Dynamic Acetal Sheave - Wide

 Dynamic 5.2 540 20 12 -
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A3342

20mm High Load Stainless Steel Sheave

 High Load 4.5 540 20 11.3 14
£24.50 ex VAT £29.40 inc VAT
ex VAT £0.00 inc VAT £24.50 ex VAT £29.40 inc VAT
A.612

20mm Plain Bearing Acetal Sheave

 Plain 6 - 20 7.6 -
£1.58 ex VAT £1.90 inc VAT
ex VAT £0.00 inc VAT £1.58 ex VAT £1.90 inc VAT
A3342-XHL

20mm XHL Stainless Steel Sheave

 XHL 4.5 900 20 11.3 9
£43.80 ex VAT £52.56 inc VAT
ex VAT £0.00 inc VAT £43.80 ex VAT £52.56 inc VAT
A4986-6

25mm Ball Bearing Stainless Steel Sheave

 High Load 8 750 25 6.6 18
£18.96 ex VAT £22.75 inc VAT
ex VAT £0.00 inc VAT £18.96 ex VAT £22.75 inc VAT
A4986-8

25mm Ball Bearing Stainless Steel Sheave

 High Load 8 750 25 8.3 18
£18.96 ex VAT £22.75 inc VAT
ex VAT £0.00 inc VAT £18.96 ex VAT £22.75 inc VAT
A..86-6

25mm Plain Bearing Acetal Sheave

 Plain 8 - 25 6.2 -
£1.61 ex VAT £1.93 inc VAT
ex VAT £0.00 inc VAT £1.61 ex VAT £1.93 inc VAT
A..86-8

26mm Plain Bearing Acetal Sheave

 Plain 8 - 26 6.2 5
£1.61 ex VAT £1.93 inc VAT
ex VAT £0.00 inc VAT £1.61 ex VAT £1.93 inc VAT
A..80A

27mm Plain Bearing Acetal Sheave

 Plain 10 - 27 18 5
£2.17 ex VAT £2.60 inc VAT
ex VAT £0.00 inc VAT £2.17 ex VAT £2.60 inc VAT
A..80B

27mm Plain Bearing Acetal Sheave

 Plain 8 - 27 18 5
£2.17 ex VAT £2.60 inc VAT
ex VAT £0.00 inc VAT £2.17 ex VAT £2.60 inc VAT
A.220

27mm Plain Bearing Acetal Sheave

 Plain 9 - 27 5.9 -
£1.61 ex VAT £1.93 inc VAT
ex VAT £0.00 inc VAT £1.61 ex VAT £1.93 inc VAT
A.613

27mm Plain Bearing Acetal Sheave

 Plain 8 - 27 10.4 -
£1.63 ex VAT £1.96 inc VAT
ex VAT £0.00 inc VAT £1.63 ex VAT £1.96 inc VAT
A4086

28mm Dynamic Acetal Sheave

 Dynamic 5.1 700 28.2 11 9
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A4086-6

28mm Dynamic Acetal Sheave

 Dynamic 6.2 700 28.2 11 9
£9.87 ex VAT £11.84 inc VAT
ex VAT £0.00 inc VAT £9.87 ex VAT £11.84 inc VAT
A4086B

28mm Dynamic Acetal Sheave

 Dynamic 5.1 700 28.2 11 9
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A3343

28mm High Load Stainless Steel Sheave

 High Load 7.5 800 28.5 13 27
£26.09 ex VAT £31.31 inc VAT
ex VAT £0.00 inc VAT £26.09 ex VAT £31.31 inc VAT
A..84

28mm Plain Bearing Aluminium Sheave

 Plain 9 - 28 8.2 9
£8.40 ex VAT £10.08 inc VAT
ex VAT £0.00 inc VAT £8.40 ex VAT £10.08 inc VAT
A3343-XHL

28mm XHL Stainless Steel Sheave

 XHL 7.25 1250 28.35 13 27
£45.40 ex VAT £54.48 inc VAT
ex VAT £0.00 inc VAT £45.40 ex VAT £54.48 inc VAT
A..85

36mm Plain Bearing Acetal Sheave

 Plain 8 - 36 5.8 5
£2.21 ex VAT £2.65 inc VAT
ex VAT £0.00 inc VAT £2.21 ex VAT £2.65 inc VAT
A4786-10

38mm Ball Bearing Stainless Steel Sheave

 High Load 8 1000 38 8.4 59
£39.35 ex VAT £47.22 inc VAT
ex VAT £0.00 inc VAT £39.35 ex VAT £47.22 inc VAT
A4786-6

38mm Ball Bearing Stainless Steel Sheave

 High Load 8 1000 38 8.4 50
£37.57 ex VAT £45.08 inc VAT
ex VAT £0.00 inc VAT £37.57 ex VAT £45.08 inc VAT
A4786-8

38mm Ball Bearing Stainless Steel Sheave

 High Load 8 1000 38 8.4 54
£37.57 ex VAT £45.08 inc VAT
ex VAT £0.00 inc VAT £37.57 ex VAT £45.08 inc VAT
A1086

38mm Dynamic Acetal Sheave

 Dynamic 6 700 40 16.8 27
£10.61 ex VAT £12.73 inc VAT
ex VAT £0.00 inc VAT £10.61 ex VAT £12.73 inc VAT
A1086B

38mm Dynamic Acetal Sheave

 Dynamic 6 700 40 16.8 27
£10.61 ex VAT £12.73 inc VAT
ex VAT £0.00 inc VAT £10.61 ex VAT £12.73 inc VAT
A1086SP-B

38mm Dynamic Acetal Sheave

 Dynamic 8 700 38 16.8 27
£10.55 ex VAT £12.66 inc VAT
ex VAT £0.00 inc VAT £10.55 ex VAT £12.66 inc VAT
A3086

38mm Dynamic Acetal Sheave

 Dynamic 5 800 38 13 18
£9.12 ex VAT £10.94 inc VAT
ex VAT £0.00 inc VAT £9.12 ex VAT £10.94 inc VAT
A.150

38mm Plain Bearing Acetal Sheave

 Plain 8 - 38 6.8 9
£2.44 ex VAT £2.93 inc VAT
ex VAT £0.00 inc VAT £2.44 ex VAT £2.93 inc VAT
A.150-6

38mm Plain Bearing Acetal Sheave

 Plain 8 - 38 6.8 9
£2.44 ex VAT £2.93 inc VAT
ex VAT £0.00 inc VAT £2.44 ex VAT £2.93 inc VAT
A.614

38mm Plain Bearing Acetal Sheave

 Plain 8 - 38 13 9
£2.35 ex VAT £2.82 inc VAT
ex VAT £0.00 inc VAT £2.35 ex VAT £2.82 inc VAT
A..83

38mm Plain Bearing Aluminium Sheave

 Plain 8 - 38 8.2 18
£8.88 ex VAT £10.66 inc VAT
ex VAT £0.00 inc VAT £8.88 ex VAT £10.66 inc VAT
A.185

38mm Plain Bearing Aluminium Sheave

 Plain 8 - 38 6 14
£8.67 ex VAT £10.40 inc VAT
ex VAT £0.00 inc VAT £8.67 ex VAT £10.40 inc VAT
A.315

38mm Plain Bearing Aluminium Sheave

 Plain 8 - 38 12.2 32
£12.25 ex VAT £14.70 inc VAT
ex VAT £0.00 inc VAT £12.25 ex VAT £14.70 inc VAT
A150-3916

39mm Plain Bearing Acetal Sheave

 Plain 6.2 700 39 16.5 -
£15.51 ex VAT £18.61 inc VAT
ex VAT £0.00 inc VAT £15.51 ex VAT £18.61 inc VAT
A.215

40mm Plain Bearing Acetal Sheave

 Plain 8 - 39.8 11.7 9
£2.72 ex VAT £3.26 inc VAT
ex VAT £0.00 inc VAT £2.72 ex VAT £3.26 inc VAT
A.119

50mm Plain Bearing Acetal Sheave

 Plain 8 - 50 8.5 9
£4.80 ex VAT £5.76 inc VAT
ex VAT £0.00 inc VAT £4.80 ex VAT £5.76 inc VAT
A.216

50mm Plain Bearing Acetal Sheave

 Plain 8 - 50 12.7 14
£3.53 ex VAT £4.24 inc VAT
ex VAT £0.00 inc VAT £3.53 ex VAT £4.24 inc VAT
A1886

52mm Dynamic Acetal Sheave

 Dynamic 6.5 800 52 15 45
£15.14 ex VAT £18.17 inc VAT
ex VAT £0.00 inc VAT £15.14 ex VAT £18.17 inc VAT
A.219

62mm Plain Bearing Acetal Sheave

 Plain 7.8 - 62 13 18
£4.74 ex VAT £5.69 inc VAT
ex VAT £0.00 inc VAT £4.74 ex VAT £5.69 inc VAT
A.217

74mm Plain Bearing Acetal Sheave

 Plain 9 - 74 12.8 27
£7.01 ex VAT £8.41 inc VAT
ex VAT £0.00 inc VAT £7.01 ex VAT £8.41 inc VAT
A.386

Nylon Cheek Block

 Plain 75 - 27 8.2 9
£3.73 ex VAT £4.48 inc VAT
ex VAT £0.00 inc VAT £3.73 ex VAT £4.48 inc VAT
