A9214-1

Size 14 End Stop With Block And Becket

Size 14 End Stop With Block And Becket

£47.70 ex VAT £57.24 inc VAT
ex VAT £0.00 inc VAT £47.70 ex VAT £57.24 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 3 left(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

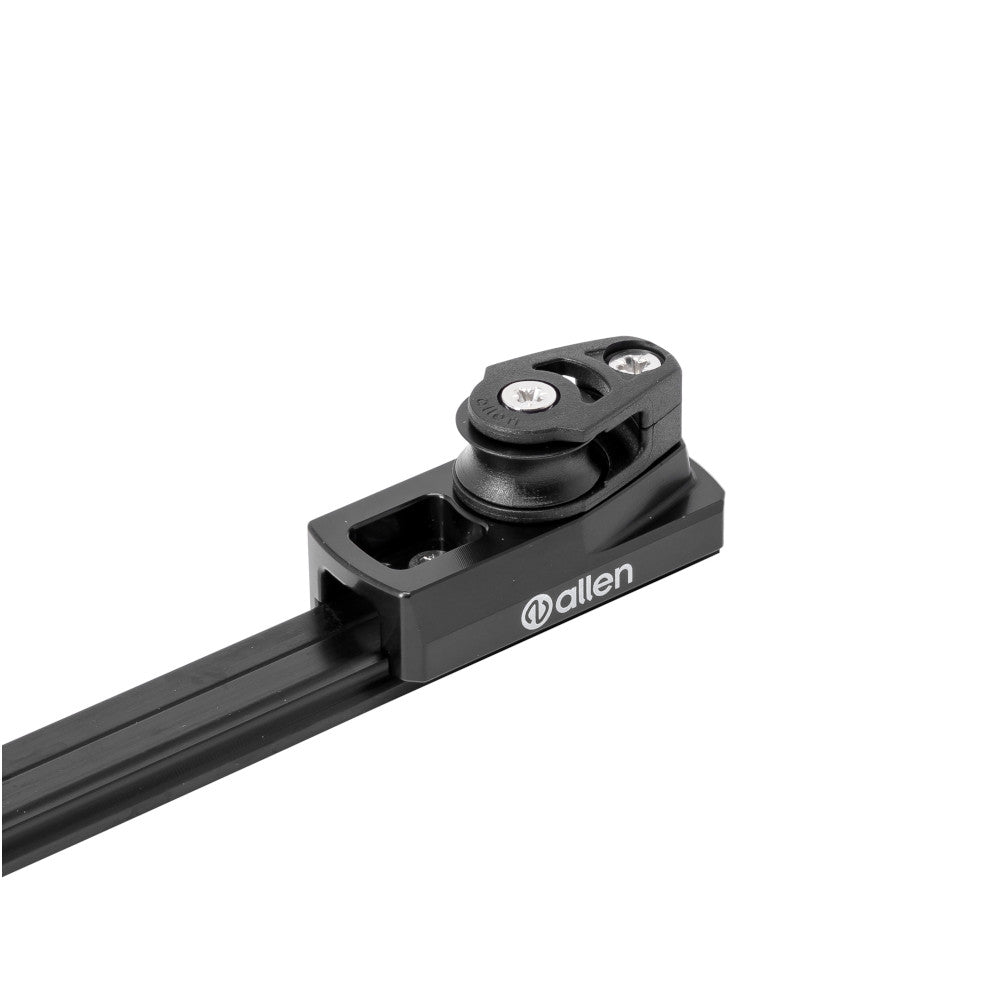

Size 14 End Stop with Block and Becket
The Size 14 End Stop with Block and Becket is expertly designed to enhance the functionality and aesthetics of your traveller system. CNC machined from marine-grade aluminium, this endstop delivers exceptional strength, precision, and durability. Finished with a black anodised coating.
Cheek Block
This version features a pre-installed 20mm dynamic cheek block, providing versatile options for traveller car control systems. The block is securely attached using two machine screws threaded into tapped holes on the end stop body, making replacement or maintenance quick and straightforward.
Becket
The integrated becket is designed with a smooth, rope-friendly surface, allowing you to tie or splice lines with ease. This feature adds flexibility to your rigging setup, ensuring a reliable and user-friendly system.
Easy Installation
The end stop comes complete with all the necessary hardware, including nuts, bolts, and washers, for secure attachment to the track.
Breaking and MWL
These loads are based on the included block.
Click the PDF logo above to open a detailed technical drawing.

Accessories A2026M
Brand Allen
Breaking load kg 800
Configuration End Stop
Fixing hole diameter mm M4
Height mm 27.5
Hole pitch mm 33.5
Length mm 57.5
Maximum working load kg 120
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a9214-1-ref.pdf
Related collection CollectionDrop
Width mm 25
Swipe
SKU Title Accessories Breaking Load Kg Max Working Load Kg Fixing Hole Dia mm Height mm Hole Pitch mm Length mm Width mm Weight (g) Price
A9114-3

Self Tacking Jib Car

 A2031 800 120 - 55 - 50 40 -
£99.26 ex VAT £119.11 inc VAT
ex VAT £0.00 inc VAT £99.26 ex VAT £119.11 inc VAT
A9114-LOADER

Size 14 Ball Bearing and Track Loader

 - - - - - - - - -
£6.22 ex VAT £7.46 inc VAT
ex VAT £0.00 inc VAT £6.22 ex VAT £7.46 inc VAT
A9114

Size 14 Base Car

 - 800 120 - 34 - 50 40 68
£109.90 ex VAT £131.88 inc VAT
ex VAT £0.00 inc VAT £109.90 ex VAT £131.88 inc VAT
A9114-2

Size 14 Cheek Block Car

 A2026 800 120 - 34 - 105 40 100
£145.54 ex VAT £174.65 inc VAT
ex VAT £0.00 inc VAT £145.54 ex VAT £174.65 inc VAT
A9214-1

Size 14 End Stop With Block And Becket

 A2026M 800 120 M4 27.5 33.5 57.5 25 54
£47.70 ex VAT £57.24 inc VAT
ex VAT £0.00 inc VAT £47.70 ex VAT £57.24 inc VAT
A9214-2

Size 14 End Stop With Double Block And Becket

 A2126M 800 225 M4 40 33.5 57.5 25 64
£71.39 ex VAT £85.67 inc VAT
ex VAT £0.00 inc VAT £71.39 ex VAT £85.67 inc VAT
A9014-29ER

Size 14 Jib Track for 29er

 - - - M4 10 - 778 14 -
£58.46 ex VAT £70.15 inc VAT
ex VAT £0.00 inc VAT £58.46 ex VAT £70.15 inc VAT
A9114-1

Size 14 P-Clip Car

 A4038-4 800 120 - 34 - 50 40 68
£115.28 ex VAT £138.34 inc VAT
ex VAT £0.00 inc VAT £115.28 ex VAT £138.34 inc VAT
A9214-PS

Size 14 Plastic End Stop

 - - - M4 14 - 27 22 5
£2.44 ex VAT £2.93 inc VAT
ex VAT £0.00 inc VAT £2.44 ex VAT £2.93 inc VAT
A9114-Tii-90

Size 14 Tii-On 90 Degree Car

 - 800 120 - 19.5 - 49.6 40 54
£97.65 ex VAT £117.18 inc VAT
ex VAT £0.00 inc VAT £97.65 ex VAT £117.18 inc VAT
A9114-Tii

Size 14 Tii-On Car

 - 800 120 - 19.4 - 49.6 40 59
£97.65 ex VAT £117.18 inc VAT
ex VAT £0.00 inc VAT £97.65 ex VAT £117.18 inc VAT
A9014

Size 14 Track - 1 Metre

 - - - M4 10 75 - 14 -
From £49.08 ex VAT £58.90 inc VAT
ex VAT £0.00 inc VAT From £49.08 ex VAT £58.90 inc VAT
