1 3

A881630-BLK

Pad-Tii Fixed Bar

Pad-Tii Fixed Bar

£50.70 ex VAT £60.84 inc VAT
ex VAT £0.00 inc VAT £50.70 ex VAT £60.84 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 9 left(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

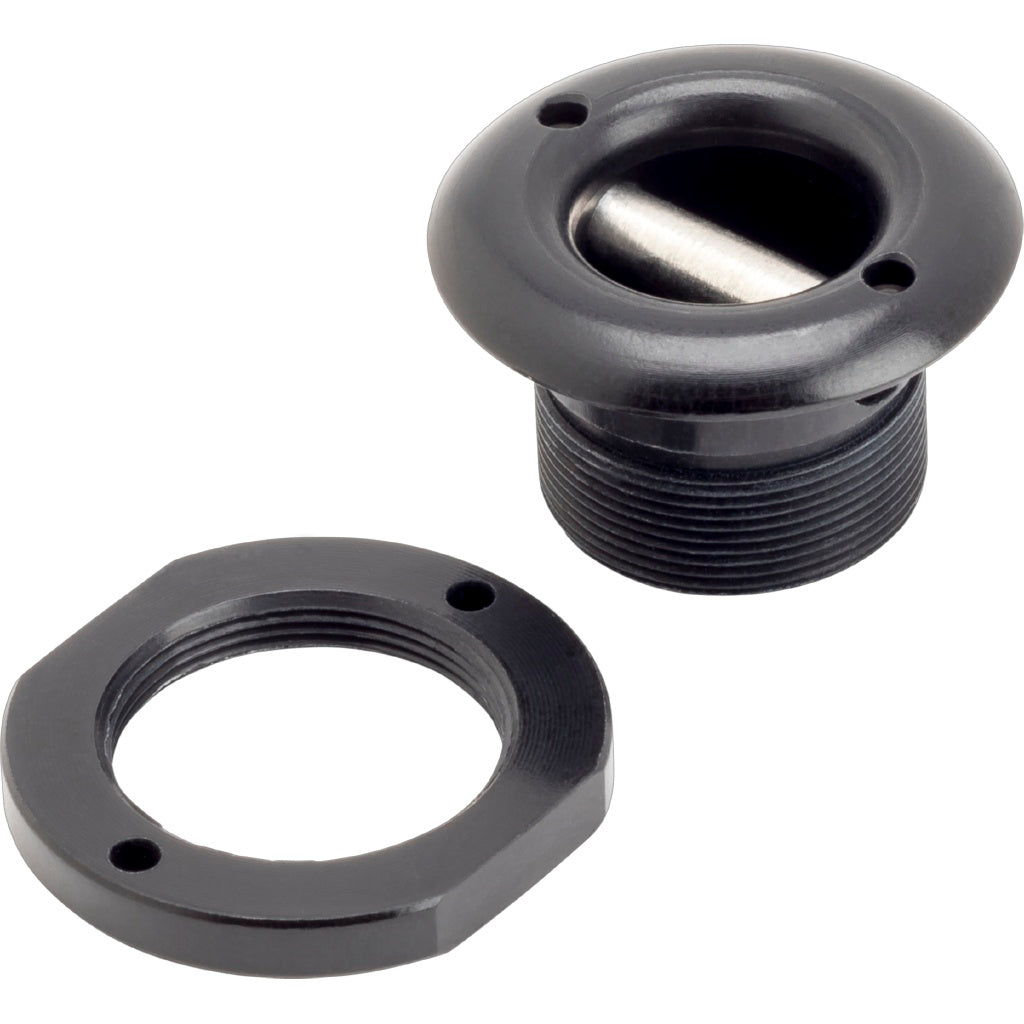

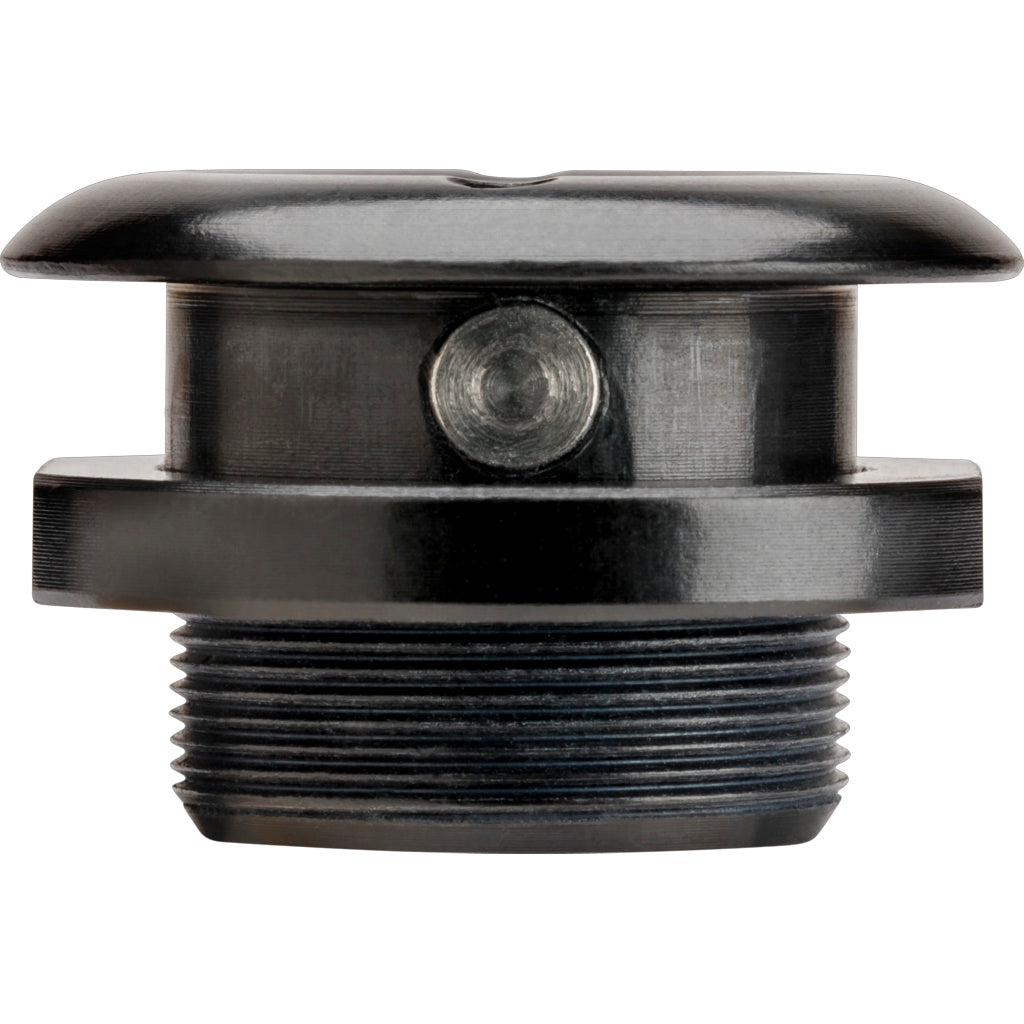

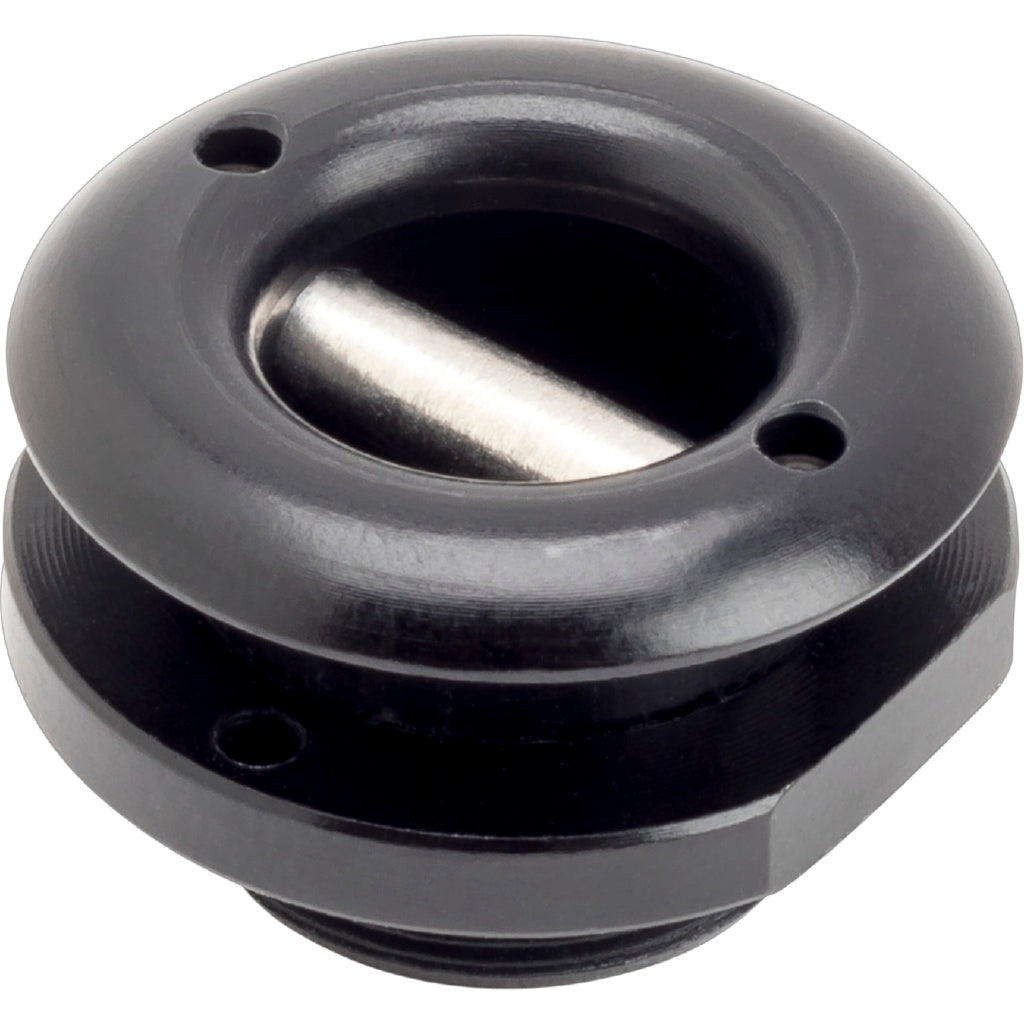

Pad-Tii with Fixed Tii-Bar

Designed to provide a simple, secure, and low-profile attachment point, the Pad-Tii with Fixed Tii-Bar is an ideal through-deck fitting for marine and industrial applications. Its fixed Tii-Bar design offers a permanent, reliable attachment solution with no moving parts, providing excellent strength while keeping maintenance to a minimum.

The two-piece construction allows for quick installation, while the domed interior shape makes it easy to feed rope around the Tii-Bar for secure and efficient rope management. When installed with a suitable sealant, it also provides a watertight finish suitable for demanding marine environments.

Key Features:

  • Fixed Tii-Bar for a secure, permanent attachment point
  • Simple two-piece through-deck design
  • Low-profile installation with a neat finish
  • Easy installation using circlip tools
  • Domed internal shape for smooth rope routing
  • Suitable for marine and industrial applications
  • Designed for a watertight installation when used with a suitable sealant
  • Durable, corrosion-resistant construction
  • Ideal for rigging, lashings, and attachment points
  • Provides a strong and tidy deck fitting solution
Breaking load kg 575
Depth mm 33
Fixing hole depth mm 30 Max - 19 Min
Fixing hole diameter mm 16
Height mm 35.5
Length mm 25.5
Maximum line diameter mm 4
Maximum working load kg 350
Outside diameter mm 38
Pdf GenericFileDrop
Related collection CollectionDrop
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Fixing Hole Depth mm Fixing Hole Dia mm Outside Dia mm Weight (g) Price
A8639-10

Pad-Tii

 350 250 12 Max - 10 Min 13 19 23
£45.02 ex VAT £54.02 inc VAT
ex VAT £0.00 inc VAT £45.02 ex VAT £54.02 inc VAT
A8639-6

Pad-Tii

 350 250 8 Max - 6 Min 12.8 19 23
£45.02 ex VAT £54.02 inc VAT
ex VAT £0.00 inc VAT £45.02 ex VAT £54.02 inc VAT
A8639-8

Pad-Tii

 350 250 10 Max - 8 Min 12.8 19 23
£45.02 ex VAT £54.02 inc VAT
ex VAT £0.00 inc VAT £45.02 ex VAT £54.02 inc VAT
A8739-10

Pad-Tii

 400 300 12 Max - 10 Min 16 24 9
£47.54 ex VAT £57.05 inc VAT
ex VAT £0.00 inc VAT £47.54 ex VAT £57.05 inc VAT
A8739-18

Pad-Tii

 400 300 20 Max - 18 Min 16 24 9
£48.01 ex VAT £57.61 inc VAT
ex VAT £0.00 inc VAT £48.01 ex VAT £57.61 inc VAT
A8739-6

Pad-Tii

 400 300 8 Max - 6 Min 16 24 9
£47.54 ex VAT £57.05 inc VAT
ex VAT £0.00 inc VAT £47.54 ex VAT £57.05 inc VAT
A8739-8

Pad-Tii

 400 300 10 Max - 8 Min 16 24 9
£47.54 ex VAT £57.05 inc VAT
ex VAT £0.00 inc VAT £47.54 ex VAT £57.05 inc VAT
A892525-BLK

Pad-Tii Big Boat

 1400 700 25 Max - 5 Min 26 42 36
£95.35 ex VAT £114.42 inc VAT
ex VAT £0.00 inc VAT £95.35 ex VAT £114.42 inc VAT
A893830-BLK

Pad-Tii Big Boat

 2000 1000 29.5 Max - 9 Min 38 50 100
£130.52 ex VAT £156.62 inc VAT
ex VAT £0.00 inc VAT £130.52 ex VAT £156.62 inc VAT
A881310-BLK

Pad-Tii Fixed Bar

 350 250 10 Max - 4.5 Min 12.8 19 9
£45.02 ex VAT £54.02 inc VAT
ex VAT £0.00 inc VAT £45.02 ex VAT £54.02 inc VAT
A881610-BLK

Pad-Tii Fixed Bar

 575 350 10 Max - 4.5 Min 16 24 9
£47.54 ex VAT £57.05 inc VAT
ex VAT £0.00 inc VAT £47.54 ex VAT £57.05 inc VAT
A881620-BLK

Pad-Tii Fixed Bar

 575 350 20 Max - 4.5 Min 16 19 13
£49.12 ex VAT £58.94 inc VAT
ex VAT £0.00 inc VAT £49.12 ex VAT £58.94 inc VAT
A881320-BLK

Pad-Tii Fixed Bar

 350 250 20 Max - 4.5 Min 12.8 19 10
£46.60 ex VAT £55.92 inc VAT
ex VAT £0.00 inc VAT £46.60 ex VAT £55.92 inc VAT
A882525-BLK

Pad-Tii Fixed Bar

 1400 700 44 Max - 24 Min 25 38 -
£65.16 ex VAT £78.19 inc VAT
ex VAT £0.00 inc VAT £65.16 ex VAT £78.19 inc VAT
A881630-BLK

Pad-Tii Fixed Bar

 575 350 30 Max - 19 Min 16 38 -
£50.70 ex VAT £60.84 inc VAT
ex VAT £0.00 inc VAT £50.70 ex VAT £60.84 inc VAT
A881330-BLK

Pad-Tii Fixed Bar

 350 250 30 Max - 19 Min 12.8 19 10
£48.18 ex VAT £57.82 inc VAT
ex VAT £0.00 inc VAT £48.18 ex VAT £57.82 inc VAT
