A8039-BLK

Flanged Deck Bush - Small

Flanged Deck Bush - Small

£19.01 ex VAT £22.81 inc VAT
ex VAT £0.00 inc VAT £19.01 ex VAT £22.81 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 14 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

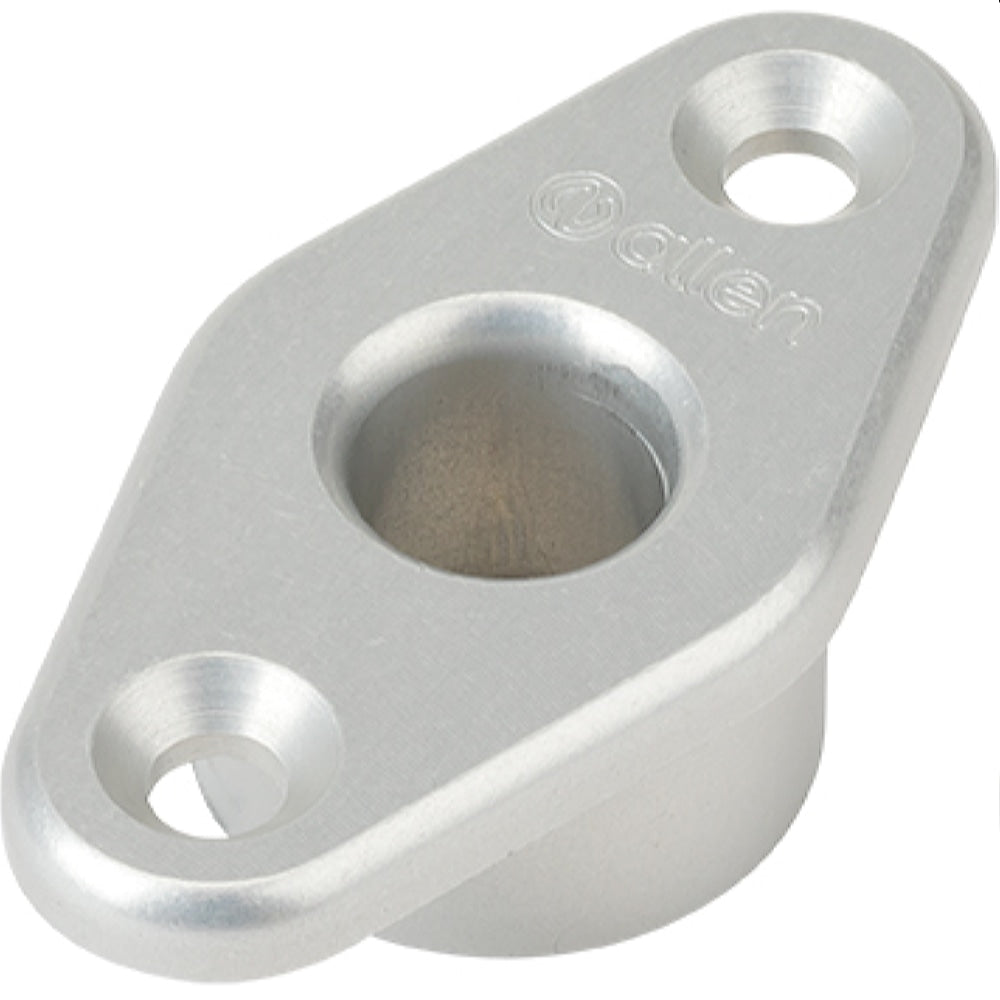

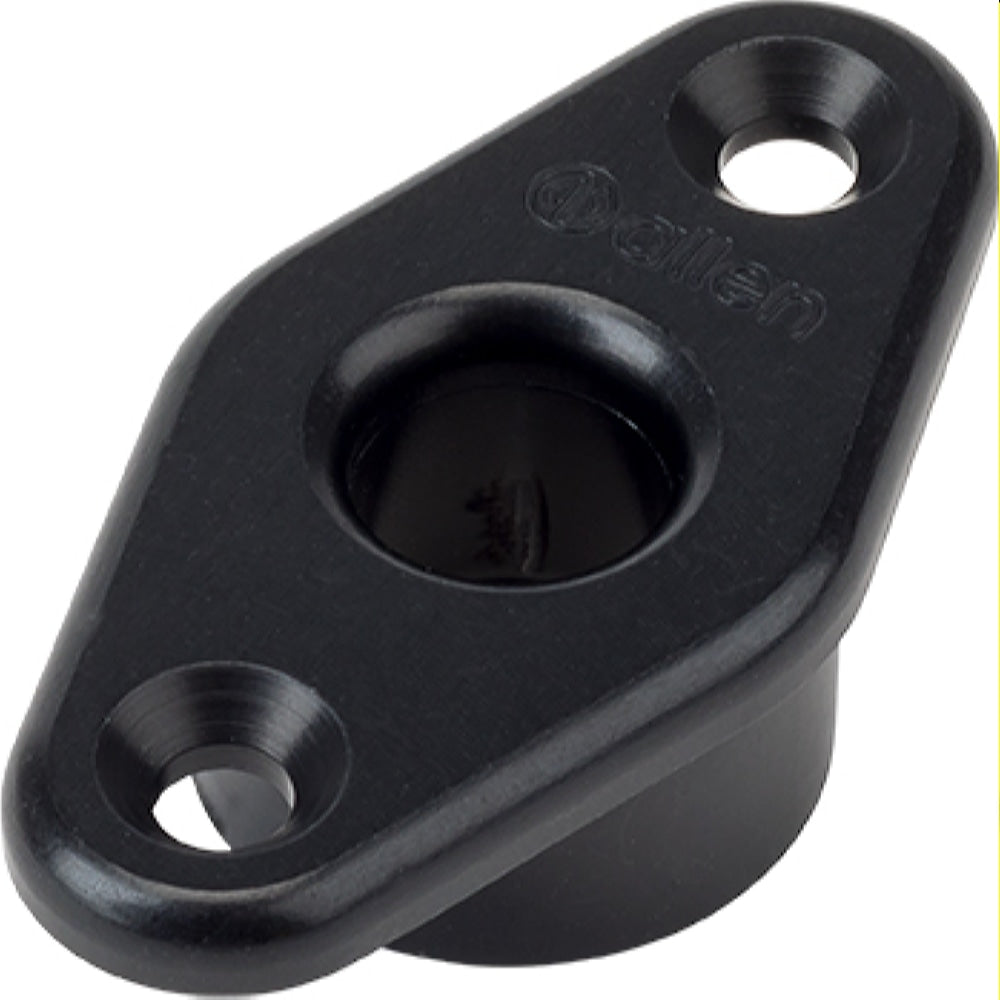

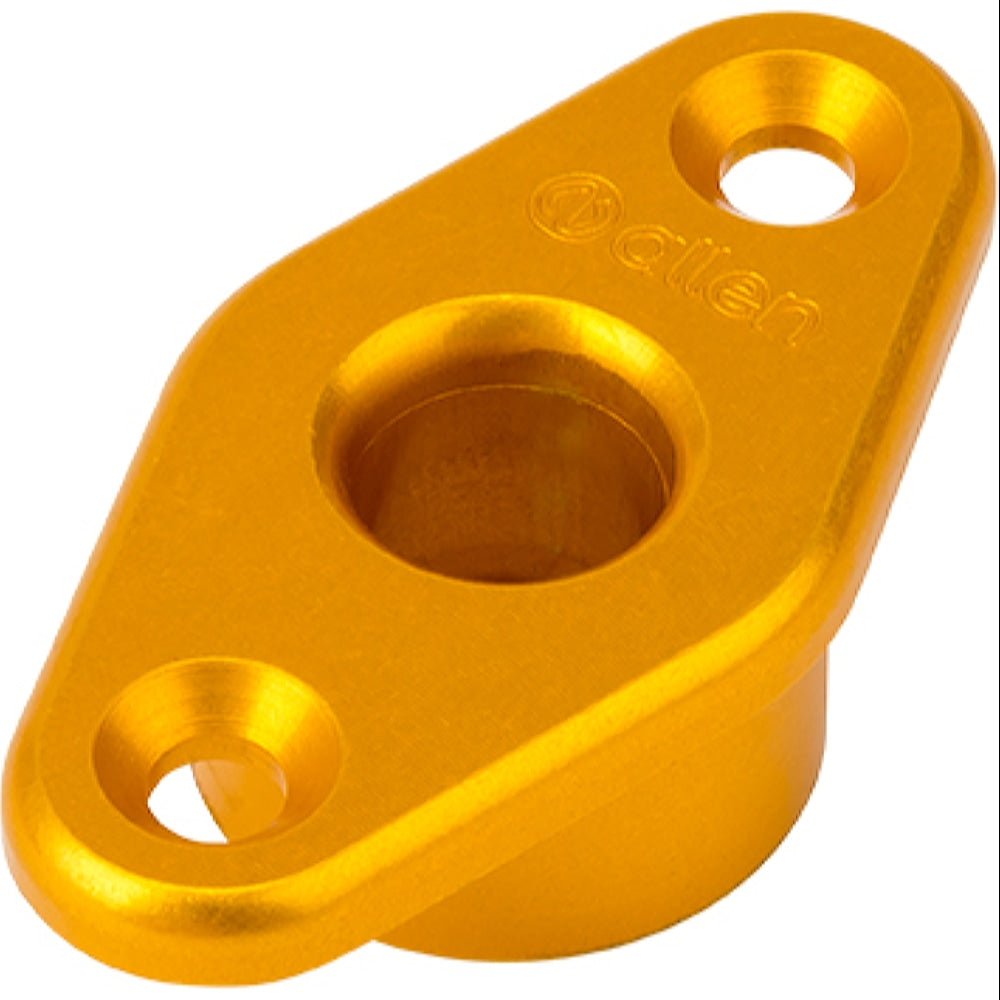

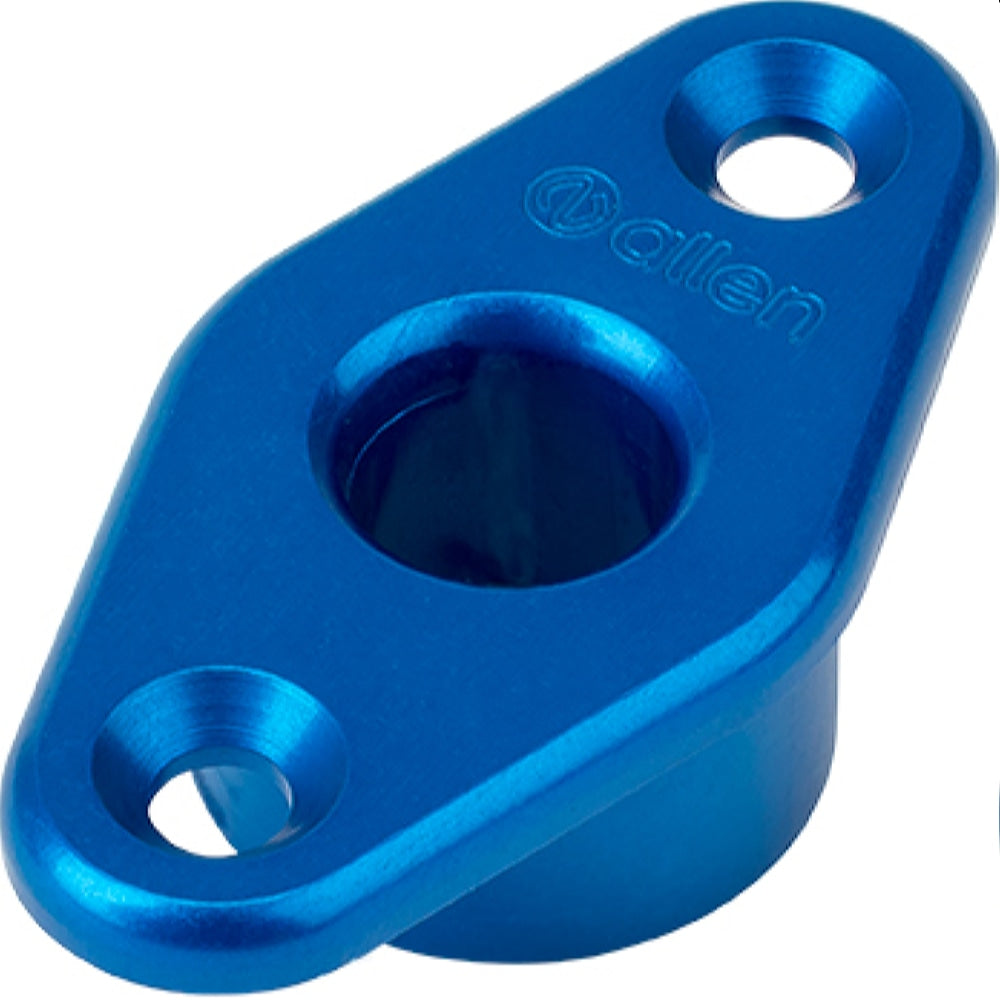

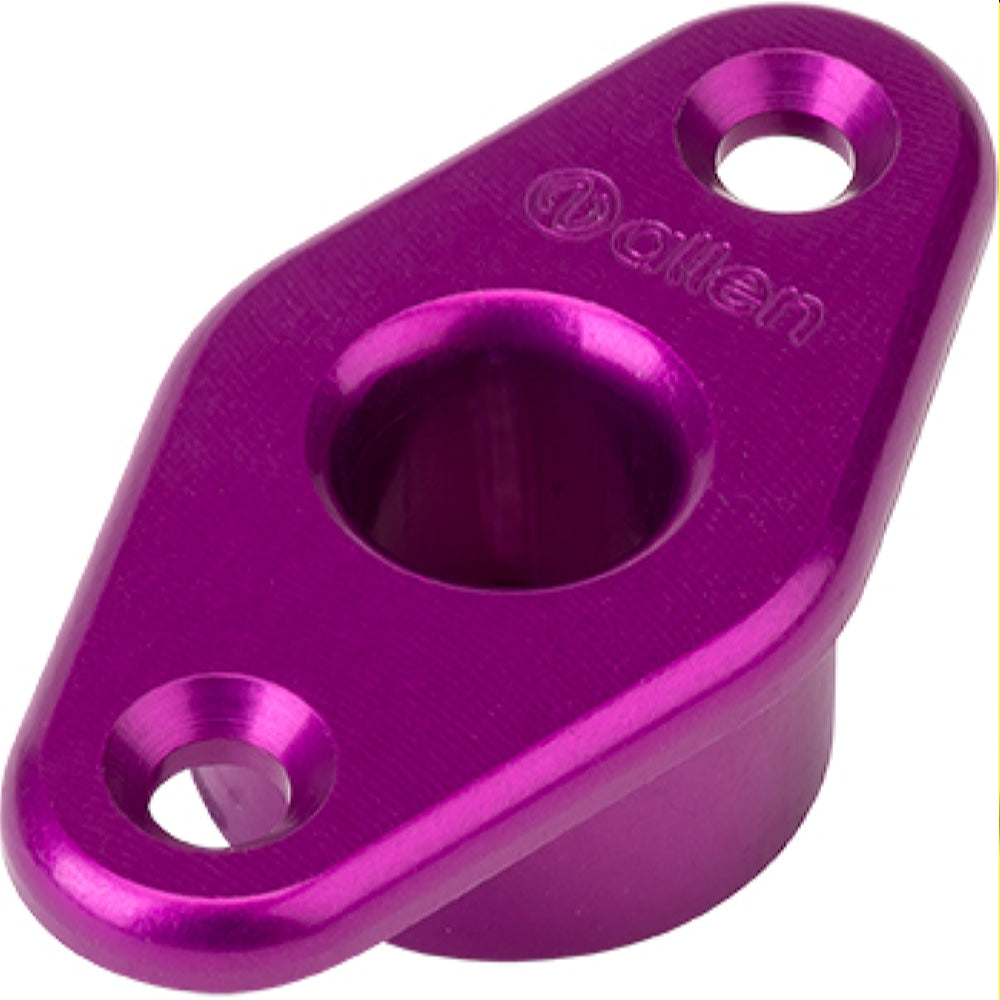

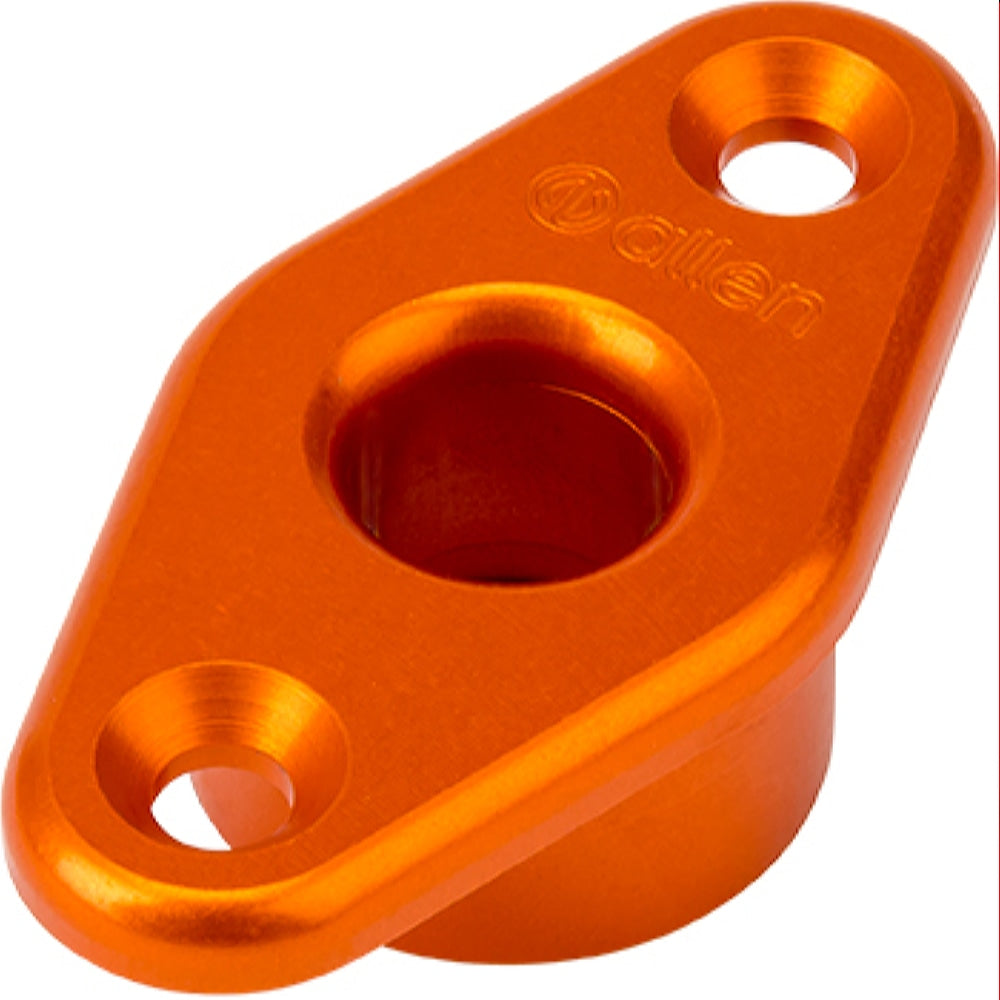

Flanged Aluminium Deck Bush - Small

Designed to provide smooth and secure rope or wire routing through decks and panels, this Small Flanged Aluminium Deck Bush offers enhanced protection for both the line and mounting surface. The flanged design features a larger bearing surface and two fixing holes, allowing for a simple and secure installation.

Ideal for marine and industrial applications, it provides a neat, professional finish while helping to reduce wear on ropes, wires, and surrounding surfaces.

Key Features:

  • Small flanged aluminium deck bush
  • Wide flange for increased surface protection
  • Two fixing holes for secure installation
  • Smooth rope and wire guidance
  • Protects ropes, wires, and mounting surfaces from wear
  • Lightweight and corrosion-resistant aluminium construction
  • Available in six colour options
  • Ideal for marine and industrial applications
  • Also known as a through deck fairlead, rope guide, or thru-deck bush
Brand Allen
Colour Black
Fixing hole depth mm 9
Fixing hole diameter mm 4
Fixing type Bolt
Hole pitch mm 29
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a8039.igs
Inside diameter mm 9
Outside diameter mm 19
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a8039-ref.pdf
Related collection CollectionDrop
Swipe
SKU Title Fixing Hole Depth mm Hole Pitch mm Inside Dia mm Outside Dia mm Weight (g) Price
A8040-56

Aluminium Rope Guide - Medium

 6 - 56 x 16 68 x 36 14
£32.40 ex VAT £38.88 inc VAT
ex VAT £0.00 inc VAT £32.40 ex VAT £38.88 inc VAT
A8040-34

Aluminium Rope Guide - Small

 6 - 34 x 8 44 x 42 9
£22.17 ex VAT £26.60 inc VAT
ex VAT £0.00 inc VAT £22.17 ex VAT £26.60 inc VAT
A8539-13

Aluminium Threaded Through Deck Bush - 12mm x 13mm

 13 Min - 18 Max - 12 16 9
£21.16 ex VAT £25.39 inc VAT
ex VAT £0.00 inc VAT £21.16 ex VAT £25.39 inc VAT
A8539-17

Aluminium Threaded Through Deck Bush - 12mm x 17mm

 17 Min - 22 Max - 12 16 8
£21.16 ex VAT £25.39 inc VAT
ex VAT £0.00 inc VAT £21.16 ex VAT £25.39 inc VAT
A8539-21

Aluminium Threaded Through Deck Bush - 12mm x 21mm

 21 Min - 26 Max - 12 16 9
£21.28 ex VAT £25.54 inc VAT
ex VAT £0.00 inc VAT £21.28 ex VAT £25.54 inc VAT
A8539-25

Aluminium Threaded Through Deck Bush - 12mm x 25mm

 25 Min - 30 Max - 12 16 9
£21.28 ex VAT £25.54 inc VAT
ex VAT £0.00 inc VAT £21.28 ex VAT £25.54 inc VAT
A8539-29

Aluminium Threaded Through Deck Bush - 12mm x 29mm

 29 Min - 34 Max - 12 16 9
From £21.28 ex VAT £25.54 inc VAT
ex VAT £0.00 inc VAT From £21.28 ex VAT £25.54 inc VAT
A8539-35

Aluminium Threaded Through Deck Bush - 12mm x 35mm

 35 Min - 40 Max - 12 16 9
£22.41 ex VAT £26.89 inc VAT
ex VAT £0.00 inc VAT £22.41 ex VAT £26.89 inc VAT
A8539-7

Aluminium Threaded Through Deck Bush - 12mm x 7mm

 7 Min - 9 Max - 12 16 5
£21.16 ex VAT £25.39 inc VAT
ex VAT £0.00 inc VAT £21.16 ex VAT £25.39 inc VAT
A8539-9

Aluminium Threaded Through Deck Bush - 12mm x 9mm

 9 Min - 14 Max - 12 16 5
£21.16 ex VAT £25.39 inc VAT
ex VAT £0.00 inc VAT £21.16 ex VAT £25.39 inc VAT
A8439-13

Aluminium Threaded Through Deck Bush - 8mm x 13mm

 13 Min - 18 Max - 8 12.8 5
£19.82 ex VAT £23.78 inc VAT
ex VAT £0.00 inc VAT £19.82 ex VAT £23.78 inc VAT
A8439-17

Aluminium Threaded Through Deck Bush - 8mm x 17mm

 17 Min - 22 Max - 8 12.8 5
£19.82 ex VAT £23.78 inc VAT
ex VAT £0.00 inc VAT £19.82 ex VAT £23.78 inc VAT
A8439-21

Aluminium Threaded Through Deck Bush - 8mm x 21mm

 21 Min - 26 Max - 8 12.8 9
£19.97 ex VAT £23.96 inc VAT
ex VAT £0.00 inc VAT £19.97 ex VAT £23.96 inc VAT
A8439-25

Aluminium Threaded Through Deck Bush - 8mm x 25mm

 25 Min - 30 Max - 8 12.8 9
£19.97 ex VAT £23.96 inc VAT
ex VAT £0.00 inc VAT £19.97 ex VAT £23.96 inc VAT
A8439-29

Aluminium Threaded Through Deck Bush - 8mm x 29mm

 29 Min - 34 Max - 8 12.8 9
£19.97 ex VAT £23.96 inc VAT
ex VAT £0.00 inc VAT £19.97 ex VAT £23.96 inc VAT
A8439-35BLK

Aluminium Threaded Through Deck Bush - 8mm x 35mm

 35 Min - 40 Max - 8 12.8 -
£21.09 ex VAT £25.31 inc VAT
ex VAT £0.00 inc VAT £21.09 ex VAT £25.31 inc VAT
A8439-7

Aluminium Threaded Through Deck Bush - 8mm x 7mm

 7 Min - 9 Max - 8 12.8 5
£19.82 ex VAT £23.78 inc VAT
ex VAT £0.00 inc VAT £19.82 ex VAT £23.78 inc VAT
A8439-9

Aluminium Threaded Through Deck Bush - 8mm x 9mm

 9 Min - 14 Max - 8 12.8 5
£19.82 ex VAT £23.78 inc VAT
ex VAT £0.00 inc VAT £19.82 ex VAT £23.78 inc VAT
A.539A-B

Aluminium Through Deck Bush - 12mm

 8 - 12 16 5
£10.59 ex VAT £12.71 inc VAT
ex VAT £0.00 inc VAT £10.59 ex VAT £12.71 inc VAT
A.439A-B

Aluminium Through Deck Bush - 8mm

 8 - 8 13 5
£9.88 ex VAT £11.86 inc VAT
ex VAT £0.00 inc VAT £9.88 ex VAT £11.86 inc VAT
A8339-BLK

Flanged Deck Bush - Large

 9 36 15 24 14
£21.09 ex VAT £25.31 inc VAT
ex VAT £0.00 inc VAT £21.09 ex VAT £25.31 inc VAT
A8239-BLK

Flanged Deck Bush - Medium

 9 32 13 21.5 9
£21.09 ex VAT £25.31 inc VAT
ex VAT £0.00 inc VAT £21.09 ex VAT £25.31 inc VAT
A8039-BLK

Flanged Deck Bush - Small

 9 29 9 19 9
£19.01 ex VAT £22.81 inc VAT
ex VAT £0.00 inc VAT £19.01 ex VAT £22.81 inc VAT
A8139-BLK

Flanged Deck Bush - XL

 9 44 23 33 18
£25.35 ex VAT £30.42 inc VAT
ex VAT £0.00 inc VAT £25.35 ex VAT £30.42 inc VAT
