SKU:A5266COMP

Self Aligning Mainsheet Jammer - Compact

Self Aligning Mainsheet Jammer - Compact

Regular price £180.01 ex VAT £216.01 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price £180.01 ex VAT £216.01 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 9 left(Can be backordered)

Require larger quantities? Contact us

Quantity

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details

Description

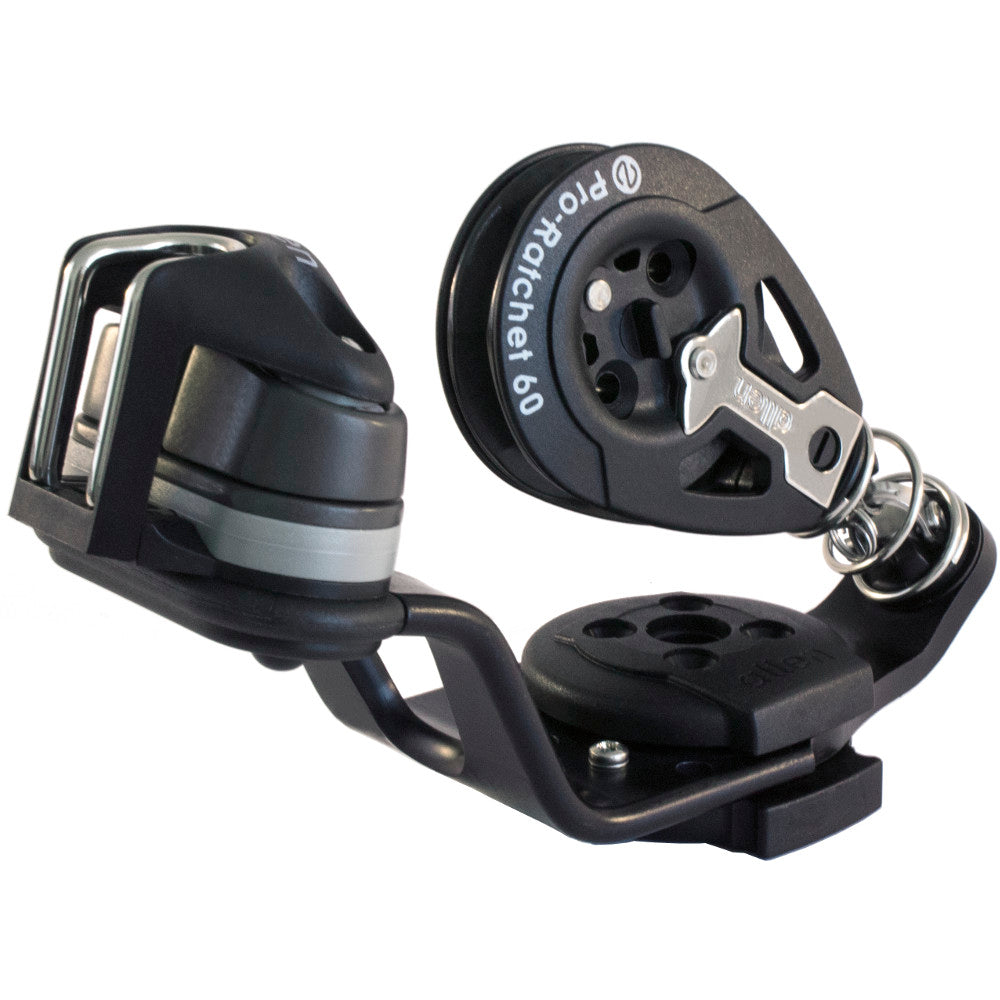

Compact Self-Aligning Mainsheet Jammer

Designed to deliver smoother, faster manoeuvres, this Compact Self-Aligning Mainsheet Jammer automatically positions itself through tacks and gybes without manual adjustment. By offsetting and angling the ratchet block away from the cleat, the system generates a turning force that keeps the jammer pointing away from the leeward side of the boat, preventing sheet wrap and improving mainsheet control.

Built around a cold-forged bearing system with a ball-locating groove for smooth rotation and reduced lateral movement, the jammer arm can be configured to rotate through 180°, 220°, or 360° to suit different setups. Supplied with an aluminium cam cleat and Mega Pro-Lead, it provides reliable cleating and easy release when needed.

Key Features:

  • Patented self-aligning design for hands-free operation
  • Reduces mainsheet wrapping during tacks and gybes
  • Improves control and handling in fast manoeuvres
  • Cold-forged bearing system for smooth rotation
  • Ball-locating groove reduces lateral arm movement
  • Adjustable rotation settings of 180°, 220°, or 360°
  • Optimised arm angle for easy cleating and uncleating
  • Supplied with aluminium cam cleat and Mega Pro-Lead
  • Available with or without a 60mm Pro-Ratchet Block
  • Ideal for racing and performance sailing applications
Brand Allen
Comes with A..76-496, A2160
Fixing hole diameter mm 5
Height mm 117.9
Hole pitch mm 19.5 x 19.5
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a5266comp.igs
Maximum working load kg 600
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a5266comp- Sales Ref.pdf
Related collection CollectionDrop
Width mm 72.8
Youtube key 1 wd5jxMUhXb4
Swipe
SKU Title Comes With Fixing Hole Dia mm Hole Pitch mm Length mm Max Working Load Kg Weight (g) Price
A5166DUAL

Dual Arm Mainsheet Jammer

A..76-496A..77-497A2160 5 19.5 x 19.5 - 600 513
Regular price From £309.82 ex VAT £371.78 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price From £309.82 ex VAT £371.78 inc VAT
A5166DUAL-COMP

Dual Arm Mainsheet Jammer - Compact

A..76-496A..77-497A2160 5 19.5 x 19.5 - - 503
Regular price From £309.82 ex VAT £371.78 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price From £309.82 ex VAT £371.78 inc VAT
A5166

Mainsheet Jammer

A..76-496A2160A2160FIDDLE 5 19.5 x 19.5 194.3 600 367
Regular price From £170.03 ex VAT £204.04 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price From £170.03 ex VAT £204.04 inc VAT
A5166COMP

Mainsheet Jammer - Compact

A..76-496A2160A2160WAVE 5 19.5 x 19.5 158.4 600 340
Regular price From £166.79 ex VAT £200.15 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price From £166.79 ex VAT £200.15 inc VAT
A5266

Self Aligning Mainsheet Jammer

A..76-496A2160 5 19.5 x 19.5 - 600 408
Regular price From £183.27 ex VAT £219.92 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price From £183.27 ex VAT £219.92 inc VAT
A5266COMP

Self Aligning Mainsheet Jammer - Compact

A..76-496A2160 5 19.5 x 19.5 - 600 367
Regular price From £180.01 ex VAT £216.01 inc VAT
Regular price ex VAT £0.00 inc VAT Sale price From £180.01 ex VAT £216.01 inc VAT
