SKU:A6078
Shackle With Key Pin And Extra Pin & Ring
Shackle With Key Pin And Extra Pin & Ring
Regular price
£16.40 ex VAT
£19.68 inc VAT
Regular price
ex VAT
£0.00 inc VAT
Sale price
£16.40 ex VAT
£19.68 inc VAT
Shipping calculated at checkout.
Low stock - 5 left(Can be backordered)
Require larger quantities? Contact us
Quantity
Couldn't load pickup availability
Product Datasheet Download
Description

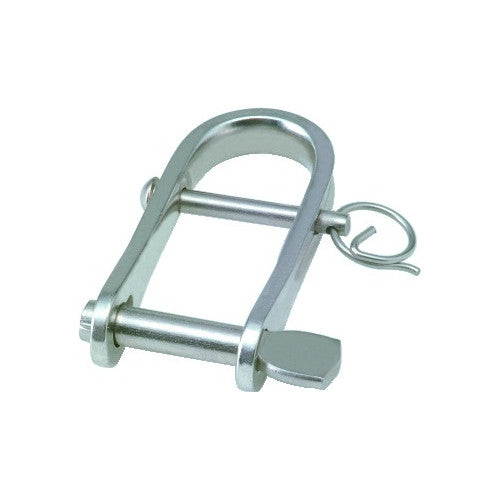

Strip Shackle with 8mm Key Pin and Halyard Retaining Pin
Marine Grade 316 Stainless Steel Strip Shackle.
This strip shackle is manufactured from premium marine grade 316 stainless steel for outstanding corrosion resistance and long-lasting durability. Perfect for use in saltwater environments, it’s ideal for sailing, marine rigging, and general marine applications.
Precision-engineered for strength and performance, it’s a dependable choice for both professional and recreational use.
Key Features:
8mm Key Shaped Locking Pin
Removable "halyard retaining" clevis pin.
High-quality 316 stainless steel construction.
Excellent corrosion resistance for marine environments.
Strong and durable under load.
Low-profile design for versatile applications.

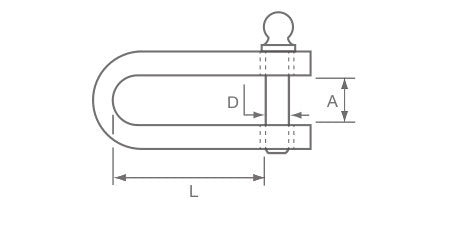

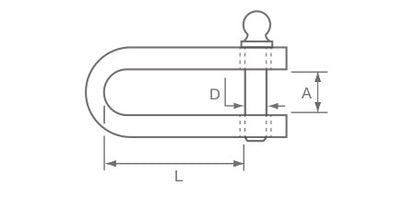

Click the PDF logo to open a detailed technical drawing.
| A mm | 38 |
|---|---|
| Brand | Allen |
| Breaking load kg | 2000 |
| Configuration | Long D |
| D mm | 8 |
| Hole pin diameter mm | 8 |
| Iges | GenericFileDrop |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a6078.igs |
| Internal length mm | 20 |
| L mm | 20 |
| Opening mm | 38 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a6078-ref.pdf |
| Related collection | CollectionDrop |
| Short description | Shackle With Key Pin And Extra Pin & Ring |
Swipe
| SKU | Title | Breaking Load Kg | Internal Length mm | Length mm | Opening mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|
| A6045 |
Bow Shackle With Standard Pin |
2000 | 23 | - | 15 | - | - |
Regular price
£3.67 ex VAT
£4.40 inc VAT
Regular price
|
| A6046 |
Bow Shackle With Standard Pin |
3000 | 32 | - | 17 | - | 41 |
Regular price
£8.22 ex VAT
£9.86 inc VAT
Regular price
|
| A6047 |
Bow Shackle With Standard Pin |
5000 | 40 | - | 21 | - | - |
Regular price
£16.40 ex VAT
£19.68 inc VAT
Regular price
|
| A6035 |
D Shackle With Slotted Pin |
500 | 15 | - | 10 | - | 5 |
Regular price
£1.65 ex VAT
£1.98 inc VAT
Regular price
|
| A6037 |
D Shackle With Slotted Pin |
1000 | 17 | - | 12 | - | 9 |
Regular price
£1.85 ex VAT
£2.22 inc VAT
Regular price
|
| A6038 |
D Shackle With Slotted Pin |
1000 | 24 | - | 15 | - | 14 |
Regular price
£2.78 ex VAT
£3.34 inc VAT
Regular price
|
| A6039 |
D Shackle With Slotted Pin |
1200 | 36 | - | 16 | - | - |
Regular price
£2.86 ex VAT
£3.43 inc VAT
Regular price
|
| A6040 |
D Shackle With Slotted Pin |
1200 | 25 | - | 12 | - | 9 |
Regular price
£2.44 ex VAT
£2.93 inc VAT
Regular price
|
| A6020 |
D Shackle With Standard Pin |
500 | 15 | - | 10 | - | 5 |
Regular price
£1.51 ex VAT
£1.81 inc VAT
Regular price
|
| A6022 |
D Shackle With Standard Pin |
1000 | 17 | - | 12 | - | 9 |
Regular price
£1.70 ex VAT
£2.04 inc VAT
Regular price
|
| A6023 |
D Shackle With Standard Pin |
1000 | 24 | - | 15 | - | 14 |
Regular price
£2.32 ex VAT
£2.78 inc VAT
Regular price
|
| A6024 |
D Shackle With Standard Pin |
1200 | 36 | - | 16 | - | 18 |
Regular price
£2.86 ex VAT
£3.43 inc VAT
Regular price
|
| A6028 |
D Shackle With Standard Pin |
1200 | 40 | - | 15 | - | 27 |
Regular price
£4.58 ex VAT
£5.50 inc VAT
Regular price
|
| A6027 |
Shackle With Key Pin |
1200 | 24 | - | 16 | - | 18 |
Regular price
£2.86 ex VAT
£3.43 inc VAT
Regular price
|
| A6065 |
Shackle With Key Pin |
600 | 17 | - | 11 | - | 5 |
Regular price
£3.05 ex VAT
£3.66 inc VAT
Regular price
|
| A6066 |
Shackle With Key Pin |
1200 | 36 | - | 15 | - | 14 |
Regular price
£3.40 ex VAT
£4.08 inc VAT
Regular price
|
| A6067 |
Shackle With Key Pin |
1200 | 26 | - | 13 | - | 14 |
Regular price
£2.62 ex VAT
£3.14 inc VAT
Regular price
|
| A6068 |
Shackle With Key Pin |
2000 | 40 | - | 15 | - | 27 |
Regular price
£5.51 ex VAT
£6.61 inc VAT
Regular price
|
| A6069 |
Shackle With Key Pin |
2000 | 25 | - | 14 | - | - |
Regular price
£0.00 ex VAT
£0.00 inc VAT
Regular price
|
| A6075 |
Shackle With Key Pin And Extra Pin & Ring |
700 | 12 | - | 23 | - | 14 |
Regular price
£7.32 ex VAT
£8.78 inc VAT
Regular price
|
| A6076 |
Shackle With Key Pin And Extra Pin & Ring |
700 | 15 | - | 33 | - | 18 |
Regular price
£8.98 ex VAT
£10.78 inc VAT
Regular price
|
| A6077 |
Shackle With Key Pin And Extra Pin & Ring |
1500 | 14 | - | 23 | - | 27 |
Regular price
£10.08 ex VAT
£12.10 inc VAT
Regular price
|
| A6078 |
Shackle With Key Pin And Extra Pin & Ring |
2000 | 20 | - | 38 | - | 50 |
Regular price
£16.40 ex VAT
£19.68 inc VAT
Regular price
|
| A6060 |
Twisted Shackle With Standard Pin |
1200 | 22 | - | 12 | - | 9 |
Regular price
£3.40 ex VAT
£4.08 inc VAT
Regular price
|
| A6061 |
Twisted Shackle With Standard Pin |
1200 | 33 | - | 12 | - | 14 |
Regular price
£4.80 ex VAT
£5.76 inc VAT
Regular price
|
| A6062 |
Twisted Shackle With Standard Pin |
2000 | 36 | - | 14 | - | 27 |
Regular price
£6.94 ex VAT
£8.33 inc VAT
Regular price
|
