SKU:A5406S
D Shackle Medium
D Shackle Medium
In stock - 1336 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Product Datasheet Download
Description

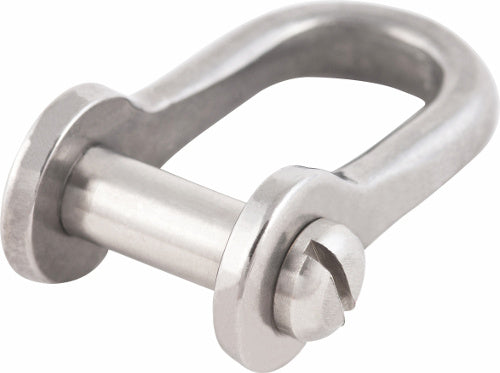

Forged 316 Stainless Steel Shackle – 6mm Slotted Pin
Built for strength and corrosion resistance, this forged 316 stainless steel shackle is perfect for marine and industrial use. The 6mm slotted pin can be tightened securely using a flathead screwdriver, while the 2500kg breaking load ensures reliability under heavy loads.
316 stainless steel:
Maximum durability & corrosion resistance
4mm slotted pin:
Easy to remove & secure
Breaking load:
2500kg – Strong & reliable
Upgrade your rigging with a high-performance stainless steel shackle.
Click the PDF logo above to open a detailed technical drawing.
| A mm | 12 |
|---|---|
| Brand | Allen |
| Breaking load kg | 2500 |
| Configuration | Screw |
| D mm | 6 |
| Height mm | 5.4 |
| Hole pin diameter mm | 6 |
| Iges | GenericFileDrop |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a5406s.igs |
| Internal length mm | 24 |
| Length mm | 35.9 |
| L mm | 24 |
| Opening mm | 12 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a5406s-ref.pdf |
| Related collection | CollectionDrop |
| Short description | D Shackle Medium |
| Width mm | 24 |
| SKU | Title | Breaking Load Kg | Internal Length mm | Length mm | Opening mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|
| A5404S |
D Shackle Extra Small |
780 | 14.9 | 23.4 | 9.2 | - | 5 |
Regular price
£5.44 ex VAT
£6.53 inc VAT
Regular price
|
| A5405S |
D Shackle Extra Small |
780 | 18 | 29.9 | 11.2 | - | 9 |
Regular price
£8.36 ex VAT
£10.03 inc VAT
Regular price
|
| A5404C |
D Shackle Extra Small With Clevis Pin |
780 | 14.9 | 23.4 | 9.2 | - | 5 |
Regular price
£5.44 ex VAT
£6.53 inc VAT
Regular price
|
| A5406S |
D Shackle Medium |
2500 | 24 | 35.9 | 12 | - | 9 |
Regular price
£9.41 ex VAT
£11.29 inc VAT
Regular price
|
| A5405N |
D Shackle Narrow |
1250 | 18 | 29.2 | 5.6 | - | 5 |
Regular price
£8.36 ex VAT
£10.03 inc VAT
Regular price
|
| A5405C |
D Shackle Small With Clevis Pin |
1250 | 18 | 29.9 | 11.2 | - | 9 |
Regular price
£8.36 ex VAT
£10.03 inc VAT
Regular price
|
