A4601

Through Deck Single With Brass Sheave

Through Deck Single With Brass Sheave

£20.20 ex VAT £24.24 inc VAT
ex VAT £0.00 inc VAT £20.20 ex VAT £24.24 inc VAT
Sale Sold out
Shipping calculated at checkout.

Available on back order(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details

Description

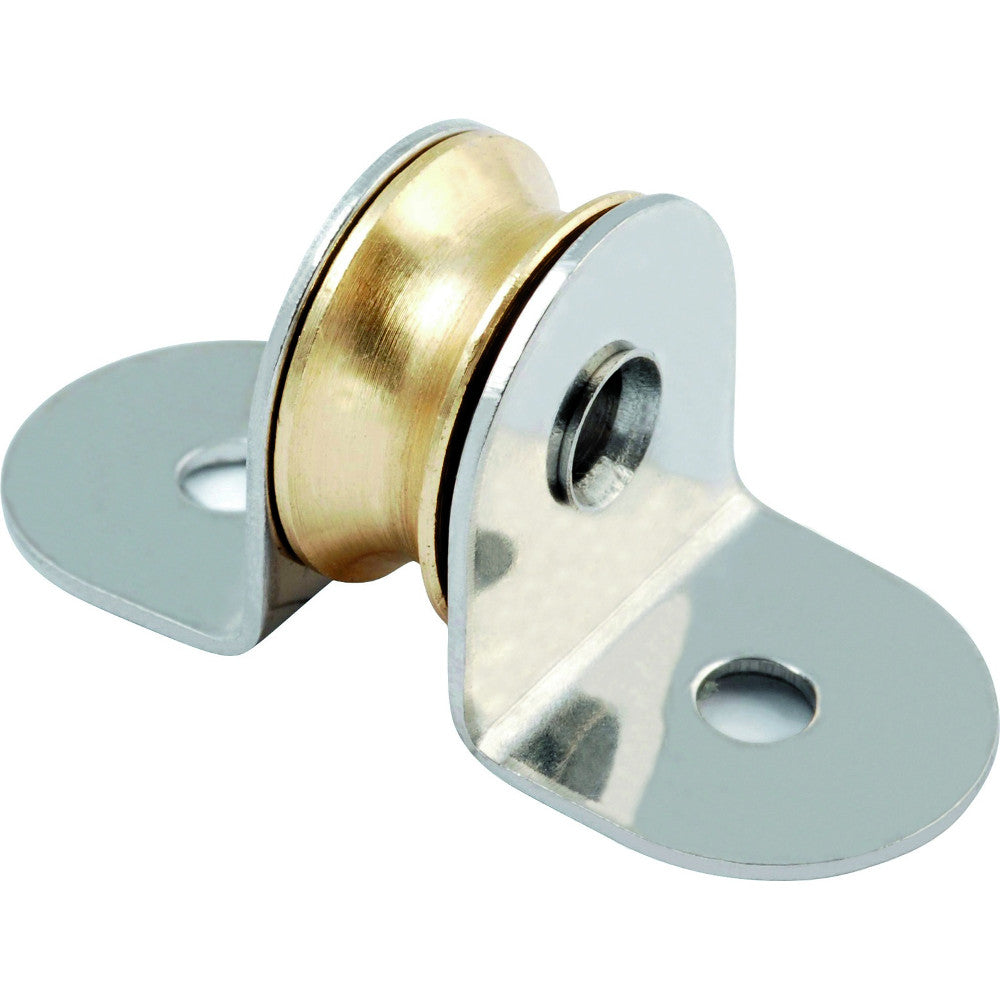

16mm Single Through Deck Plain Bearing Block With Brass Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
The brass sheave allows this block to be paired with wire as well as offering more durability over the acetal sheave.
Plain Bearing
– The brass sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
Lightweight Body
- The body of this block is formed in stainless steel for a lightweight yet robust frame.
Through Deck
- This block is designed to guide rope or bungee through a surface. It offers less friction than a
deck bush
, but cannot withstand high loads.

Bearing type Plain
Brand Allen
Breaking load kg 275
Configuration Single
Hole pitch mm 20.2
Length mm 16
Maximum line diameter mm 5
Related collection CollectionDrop
Sheave diameter mm 16
Short description Through Deck Single With Brass Sheave
Swipe
SKU Title Breaking Load Kg Length mm Max Line Dia mm To Suit Shackle Pin mm Weight (g) Price
A4081

Double With Acetal Sheave

 275 30 5 4 9
£10.22 ex VAT £12.26 inc VAT
ex VAT £0.00 inc VAT £10.22 ex VAT £12.26 inc VAT
A4078

Single With Acetal Sheave

 275 26 5 4 5
£5.40 ex VAT £6.48 inc VAT
ex VAT £0.00 inc VAT £5.40 ex VAT £6.48 inc VAT
A4080

Single With Brass Sheave

 275 26 5 4 9
£7.35 ex VAT £8.82 inc VAT
ex VAT £0.00 inc VAT £7.35 ex VAT £8.82 inc VAT
A4301

Through Deck Double With Acetal Sheave

 275 38 5 - 14
£13.20 ex VAT £15.84 inc VAT
ex VAT £0.00 inc VAT £13.20 ex VAT £15.84 inc VAT
A4401

Through Deck Double With Brass Sheave

 275 38 5 - 27
£28.89 ex VAT £34.67 inc VAT
ex VAT £0.00 inc VAT £28.89 ex VAT £34.67 inc VAT
A4501

Through Deck Single With Acetal Sheave

 275 16 5 - 9
£12.25 ex VAT £14.70 inc VAT
ex VAT £0.00 inc VAT £12.25 ex VAT £14.70 inc VAT
A4601

Through Deck Single With Brass Sheave

 275 16 5 - 14
£20.20 ex VAT £24.24 inc VAT
ex VAT £0.00 inc VAT £20.20 ex VAT £24.24 inc VAT
