SKU:A4328

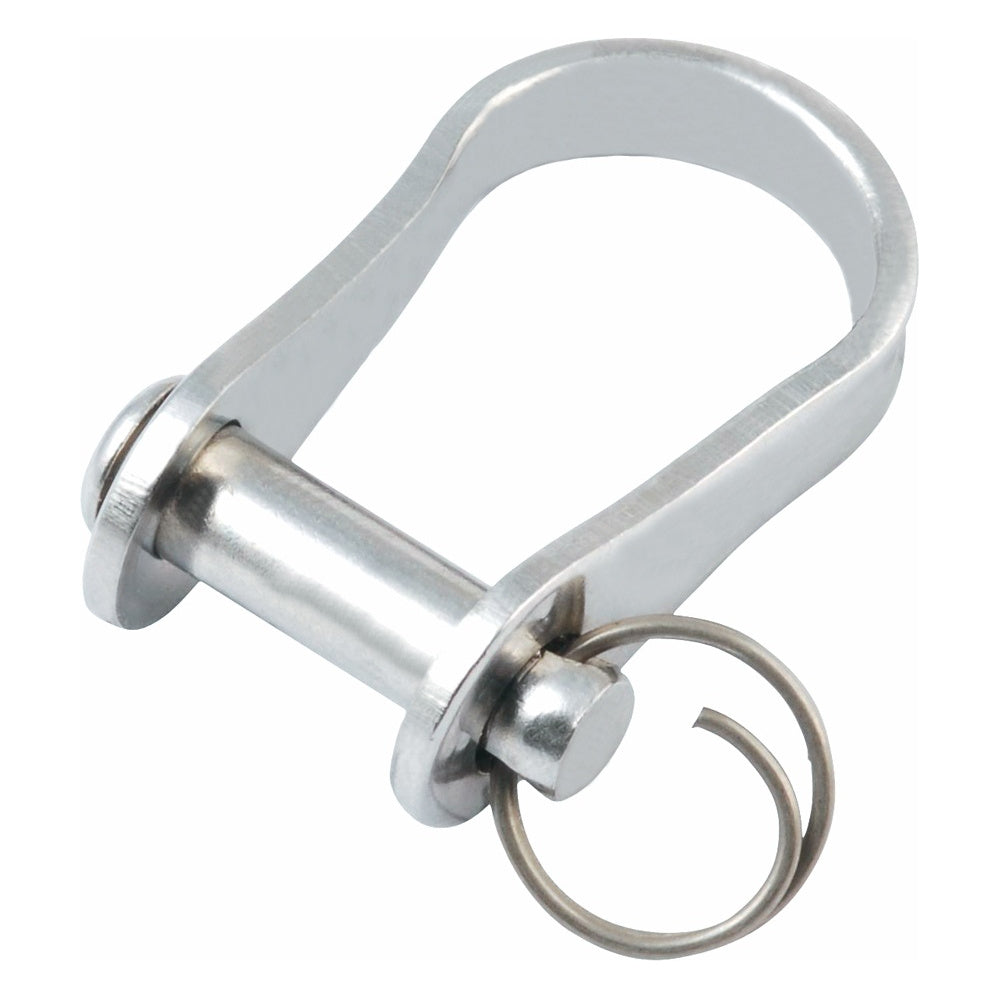

Pressed Rigging Link Narrow
Pressed Rigging Link Narrow
In stock - 203 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Product Datasheet Download
Description
Pressed Rigging Link with 5mm Clevis Pin
This pressed stainless-steel shackle is a lightweight and practical choice for a variety of applications, including marine, industrial, and general-purpose rigging.
Made from marine grade 316 stainless steel, it offers good corrosion resistance and dependable strength, making it ideal for use in harsh environments.
The compact, low-profile design allows for easy installation, while the simple construction ensures reliable performance.
Key Features:
5mm Clevis pin.
316 Stainless steel.
Lightweight, pressed design.
Suitable for marine, industrial, and general rigging use.
Click the PDF logo above for a detailed technical drawing.

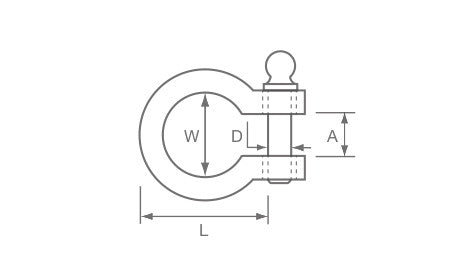

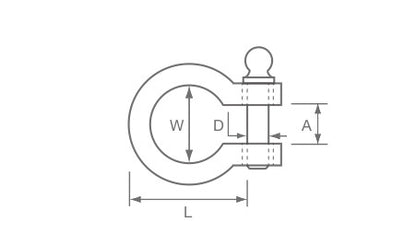

| A mm | 13 |
|---|---|
| Brand | Allen |
| Breaking load kg | 1000 |
| Configuration | Clevis Pin |
| D mm | 5 |
| Hole pin diameter mm | 5 |
| Iges | GenericFileDrop |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a4328.igs |
| Internal length mm | 20.7 |
| Internal width mm | 14 |
| Length mm | 30.5 |
| L mm | 21 |
| Maximum working load kg | 300 |
| Opening mm | 13 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a4328-ref.pdf |
| Pin size mm | 4.9 |
| Related collection | CollectionDrop |
| Short description | Pressed Rigging Link Narrow |
| W mm | 14 |
| SKU | Title | Breaking Load Kg | Internal Length mm | Internal Width mm | Length mm | Opening mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A4828 |
Bayonet Halyard Shackle |
550 | 25.2 | 13 | 35.7 | 13 | 4.6 | 18 |
Regular price
£18.67 ex VAT
£22.40 inc VAT
Regular price
|
| A4228 |
Large Pressed Rigging Link Narrow |
1300 | 29 | 13 | 45.3 | 9 | 4.9 | 18 |
Regular price
£7.94 ex VAT
£9.53 inc VAT
Regular price
|
| A4128 |
Pressed Rigging Link |
700 | 18.2 | 8 | 29 | 8 | 4.9 | 9 |
Regular price
£3.95 ex VAT
£4.74 inc VAT
Regular price
|
| A4138 |
Pressed Rigging Link |
800 | 30.6 | 18 | 42.3 | 18 | 4.9 | 14 |
Regular price
£5.63 ex VAT
£6.76 inc VAT
Regular price
|
| A4028 |
Pressed Rigging Link Narrow |
900 | 16.3 | 9 | 26.1 | 9 | 4.9 | 9 |
Regular price
£5.70 ex VAT
£6.84 inc VAT
Regular price
|
| A4328 |
Pressed Rigging Link Narrow |
1000 | 20.7 | 14 | 30.5 | 13 | 4.9 | 9 |
Regular price
£3.73 ex VAT
£4.48 inc VAT
Regular price
|
| A4528 |
Pressed Rigging Link Narrow |
900 | 15.2 | 13 | 25 | 13 | 4.9 | 9 |
Regular price
£4.50 ex VAT
£5.40 inc VAT
Regular price
|
| A4728 |
Pressed Rigging Link Narrow |
250 | 10 | 9 | 17 | 9 | 3 | 5 |
Regular price
£3.88 ex VAT
£4.66 inc VAT
Regular price
|
| A1438 |
Pressed Shackle |
1000 | 27 | 18 | 38.9 | 16 | 5.9 | 18 |
Regular price
£7.64 ex VAT
£9.17 inc VAT
Regular price
|
| A4048 |
Pressed Shackle |
800 | 20.3 | 14 | 30.5 | 13 | 5 | 9 |
Regular price
£4.80 ex VAT
£5.76 inc VAT
Regular price
|
| A4148 |
Pressed Shackle |
1000 | 16 | 9 | 26.2 | 9 | 5 | 9 |
Regular price
£6.41 ex VAT
£7.69 inc VAT
Regular price
|
| A4348 |
Pressed Shackle |
1000 | 14 | 13 | 25.8 | 13 | 5 | 5 |
Regular price
£6.41 ex VAT
£7.69 inc VAT
Regular price
|
| A4428 |
Pressed Shackle |
1000 | 19.3 | 16 | 29.7 | 16 | 4.9 | 9 |
Regular price
£7.08 ex VAT
£8.50 inc VAT
Regular price
|
| A4929 |
Pressed Shackle with 5mm Clevis Pin |
300 | 9 | 11 | 18.3 | 11 | 4.9 | 5 |
Regular price
£4.97 ex VAT
£5.96 inc VAT
Regular price
|
