SKU:A4181

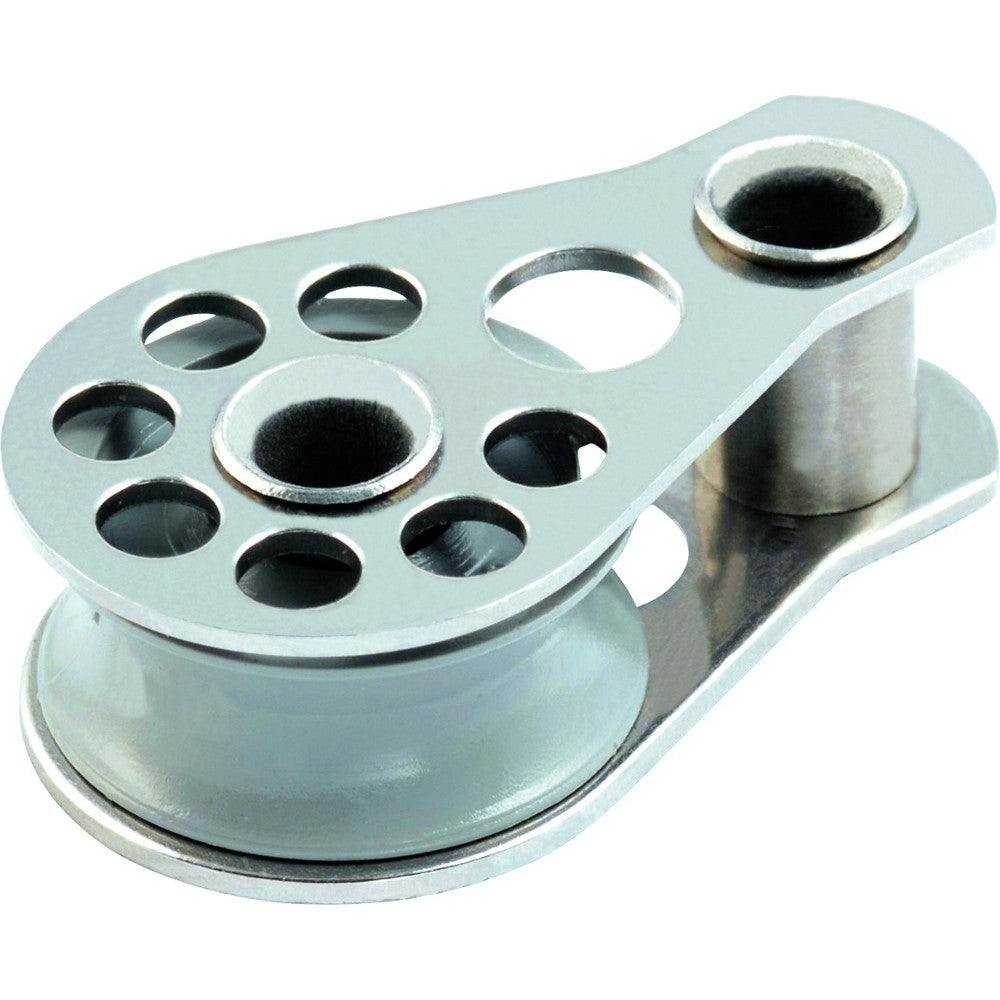

Cheek With Acetal Sheave
Cheek With Acetal Sheave
In stock - 38 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Description
16mm Single Plain Bearing Cheek Block With Acetal Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
Plain Bearing
– The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
Lightweight Strap
- The body of this block is formed in stainless steel for a lightweight yet robust frame.
Cheek Block
- Designed to be fixed to a flat surface. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by two screws. One screw through the middle of the sheave and the other through the top rivet.
| Bearing type | Plain |
|---|---|
| Brand | Allen |
| Breaking load kg | 275 |
| Configuration | Cheek |
| Length mm | 30 |
| Maximum line diameter mm | 5 |
| Related collection | CollectionDrop |
| Sheave diameter mm | 16 |
| Short description | Cheek With Acetal Sheave |
| To suit shackle pin mm | 4 |
| SKU | Title | Breaking Load Kg | Length mm | Max Line Dia mm | To Suit Shackle Pin mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|
| A4181 |
Cheek With Acetal Sheave |
275 | 30 | 5 | 4 | 5 |
Regular price
£6.91 ex VAT
£8.29 inc VAT
Regular price
|
| A4178 |
Single With Acetal Sheave |
400 | 41 | 8 | 5 | 14 |
Regular price
£7.46 ex VAT
£8.95 inc VAT
Regular price
|
| A4178E |
Single With Hook And Acetal Sheave |
400 | 72 | 8 | - | 41 |
Regular price
£18.84 ex VAT
£22.61 inc VAT
Regular price
|
