50mm Single Tii-On Dynamic Block.

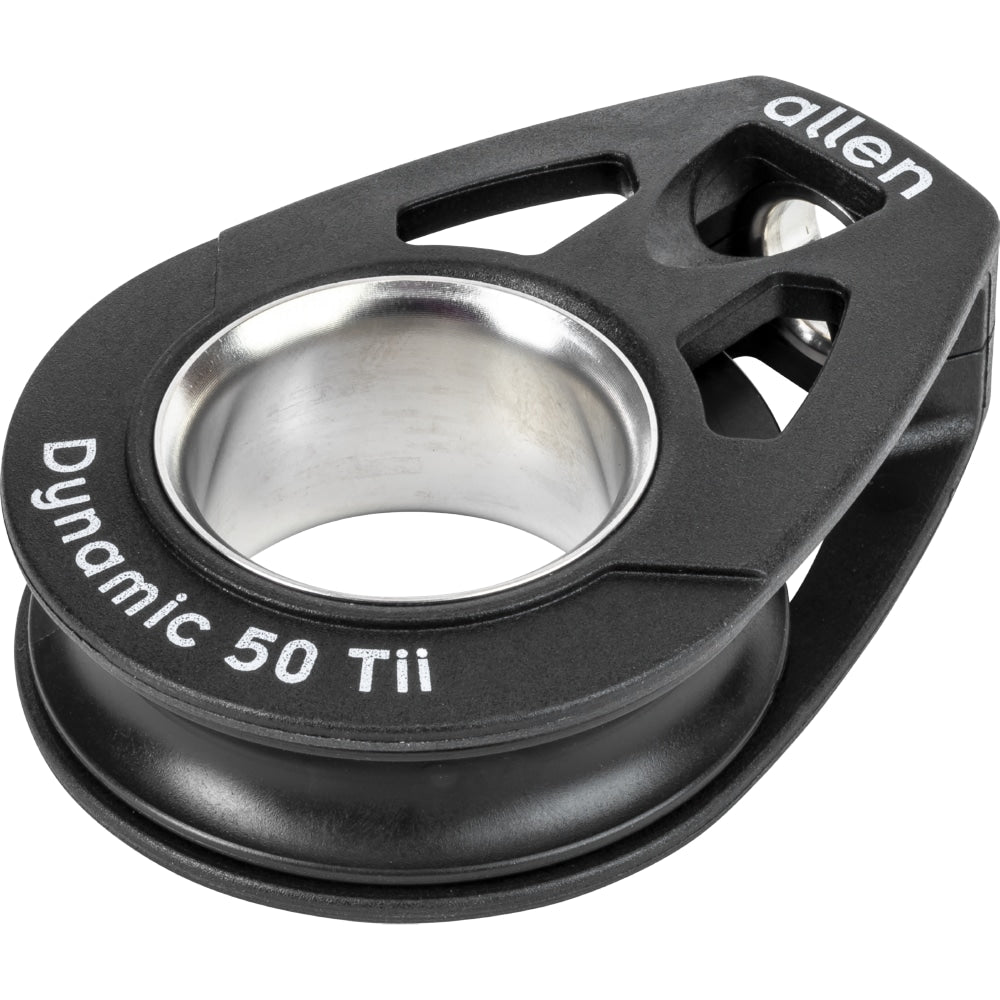

Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

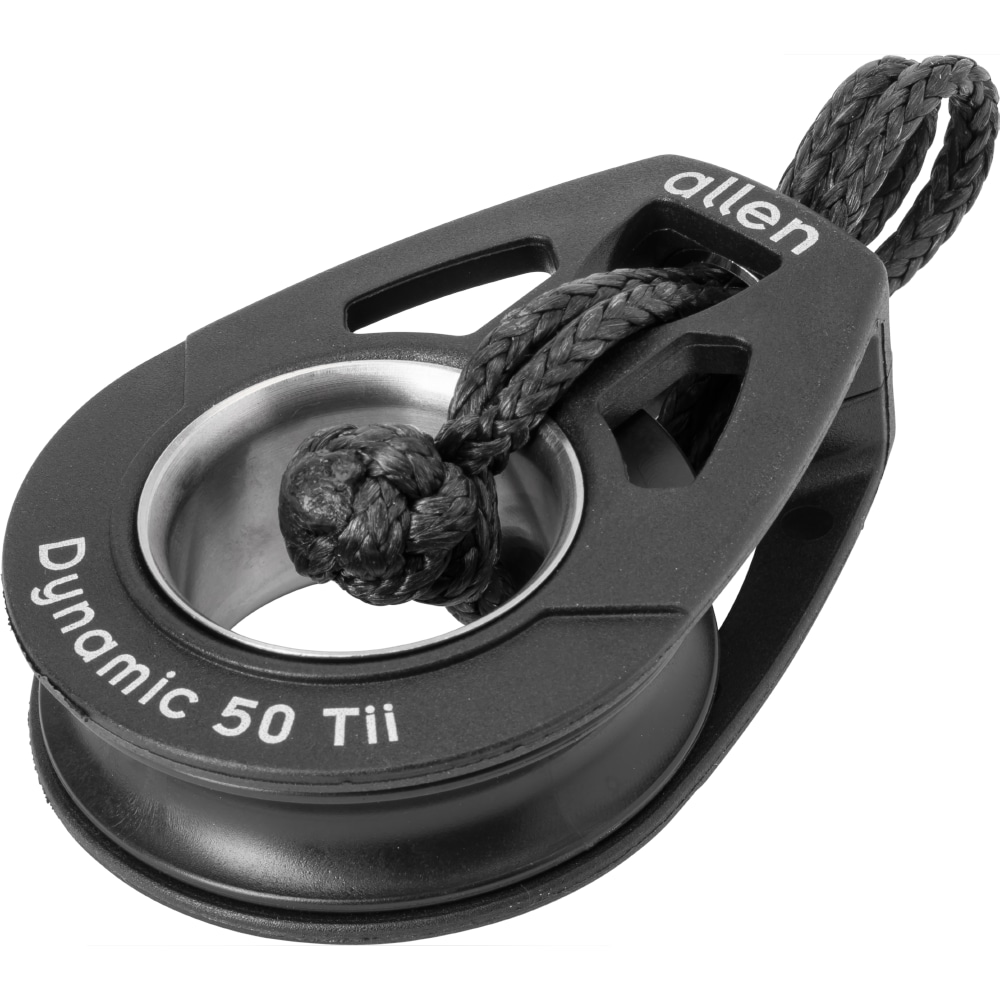

Available with or without a soft shackle.

Becket: The large central rivet not only reduces the overall weight but also offers a rope-friendly attachment, perfect as a tie-off point when being used in a cascade system.

Bearings: Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.

Fitting Instructions: Tii-On blocks rely on the correct attachment method to give them maximum strength.

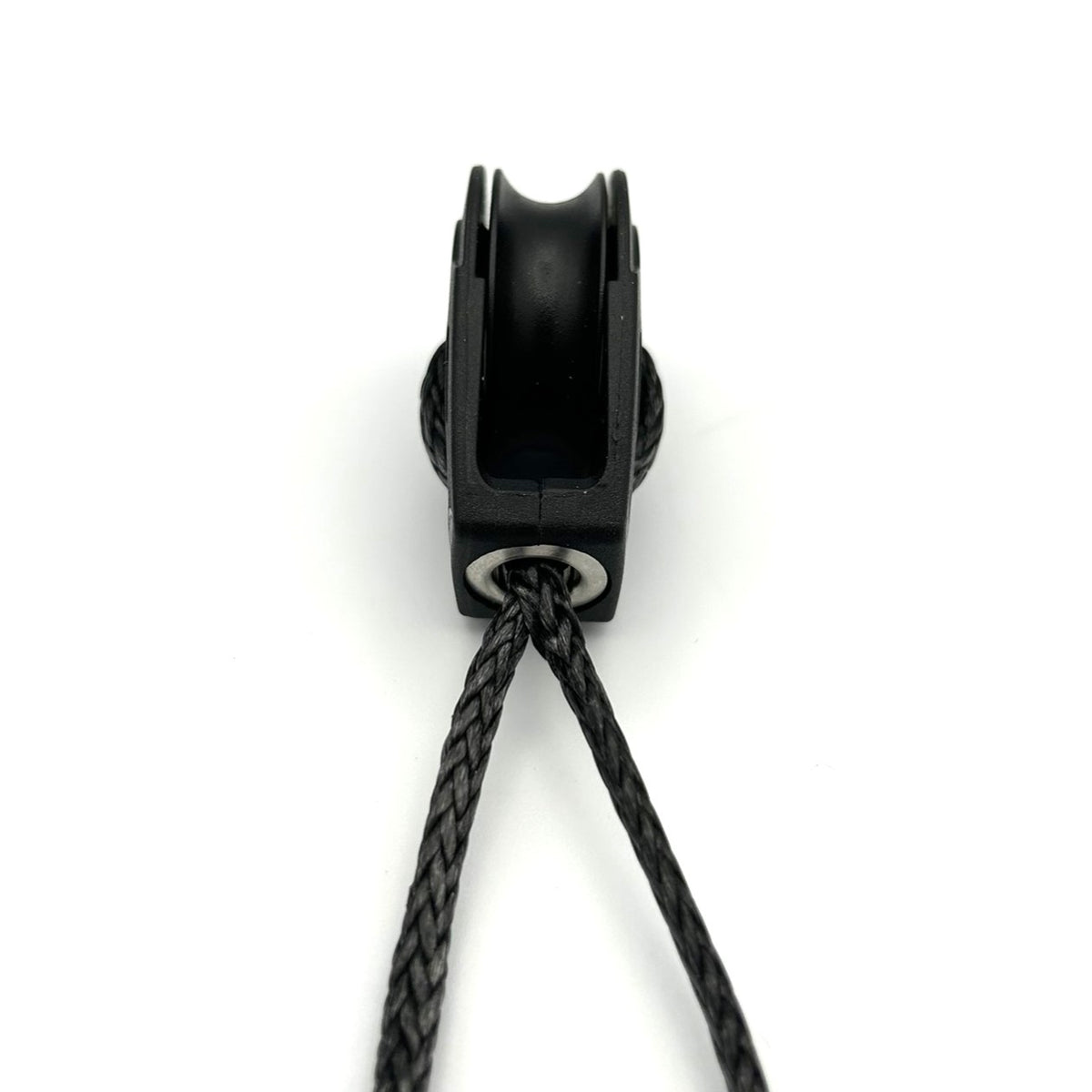

When attaching a Tii-on block, you must feed the rope around the central axle and through the head of the block.

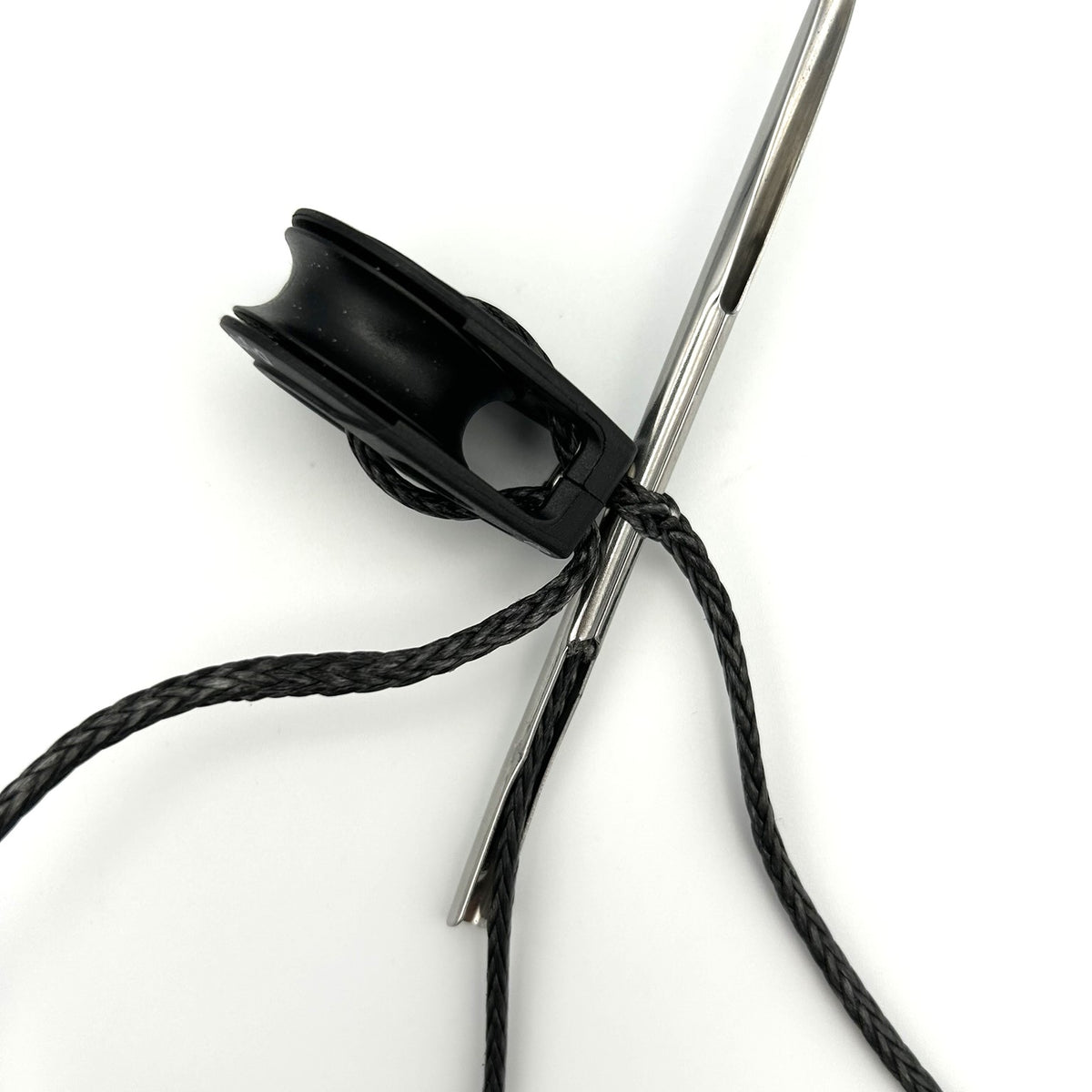

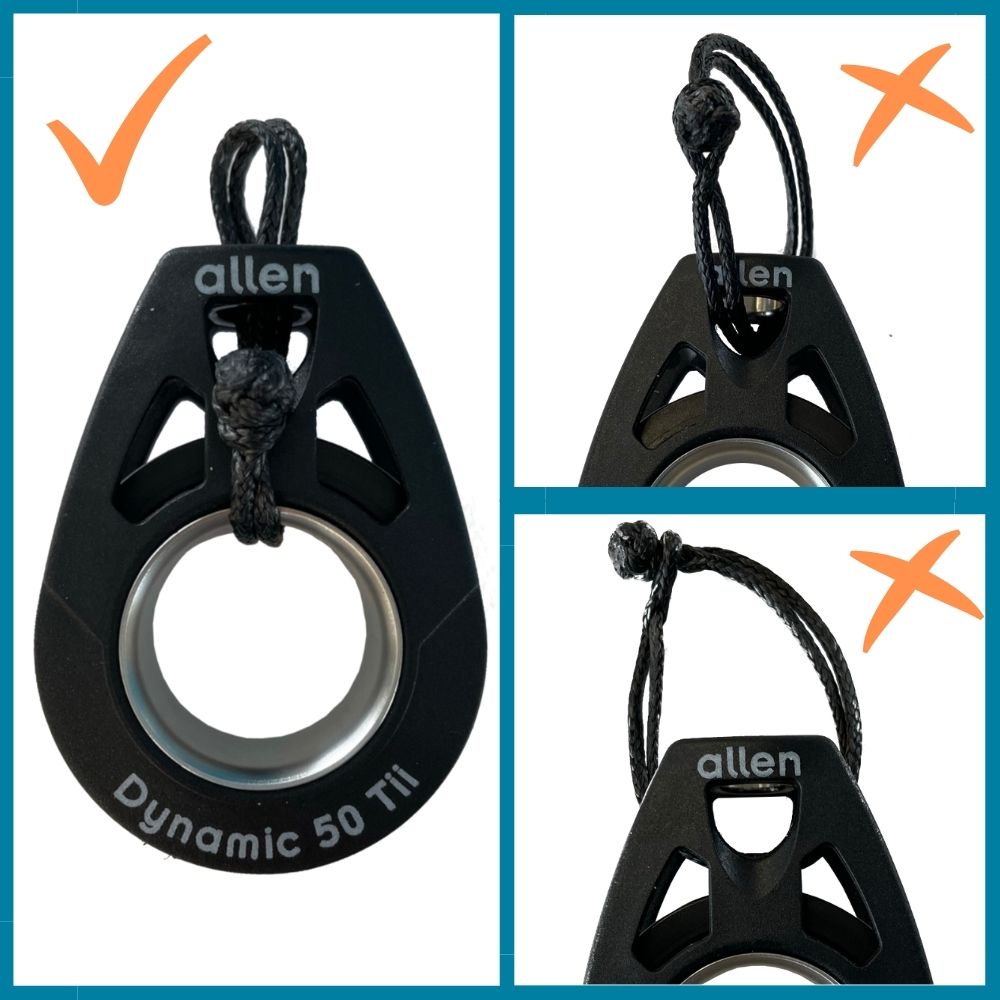

When possible, Tii-on blocks should be attached with a crossed/ through threaded line. (see pictures for example). This is very important, as it keeps the line load pulling the side cheeks together.

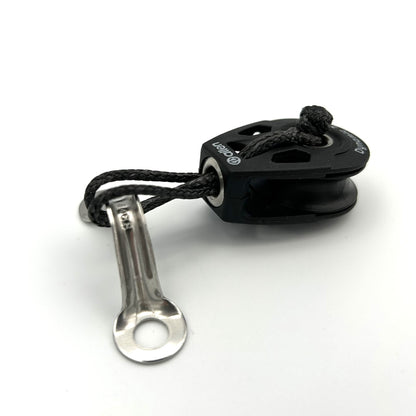

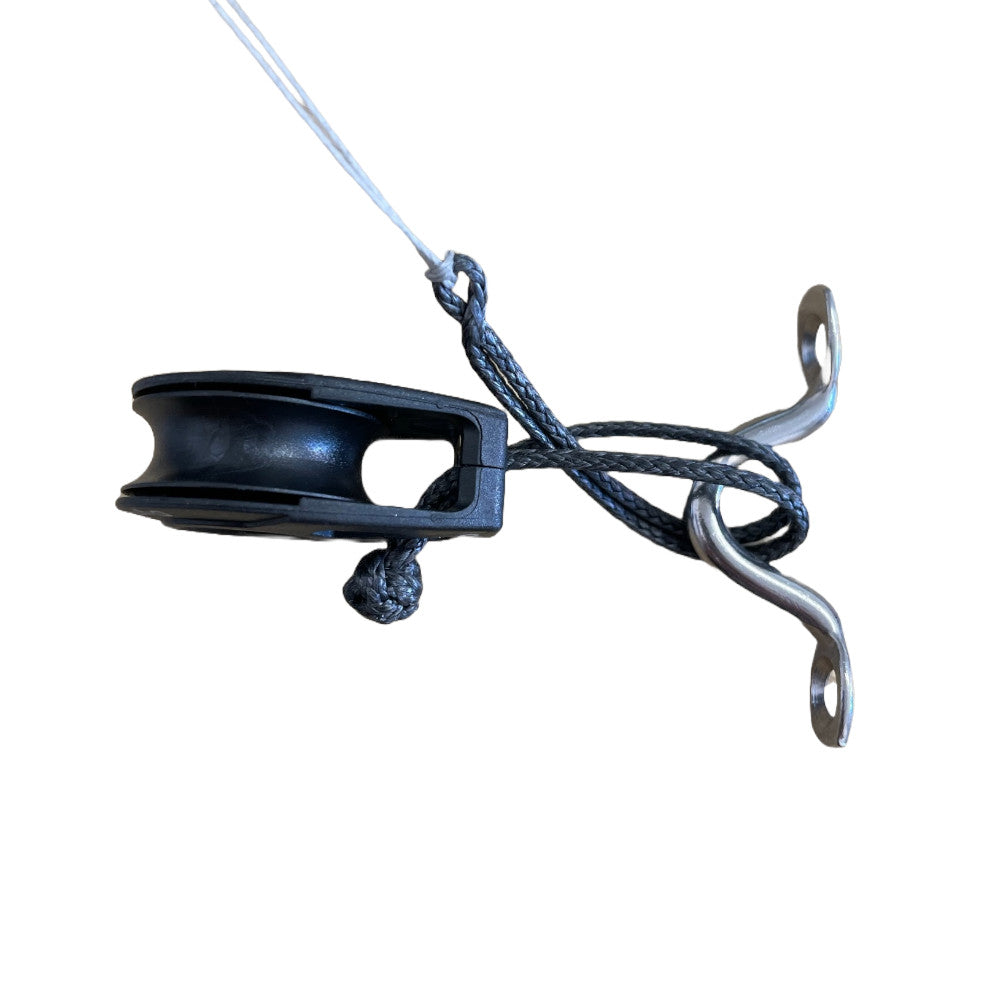

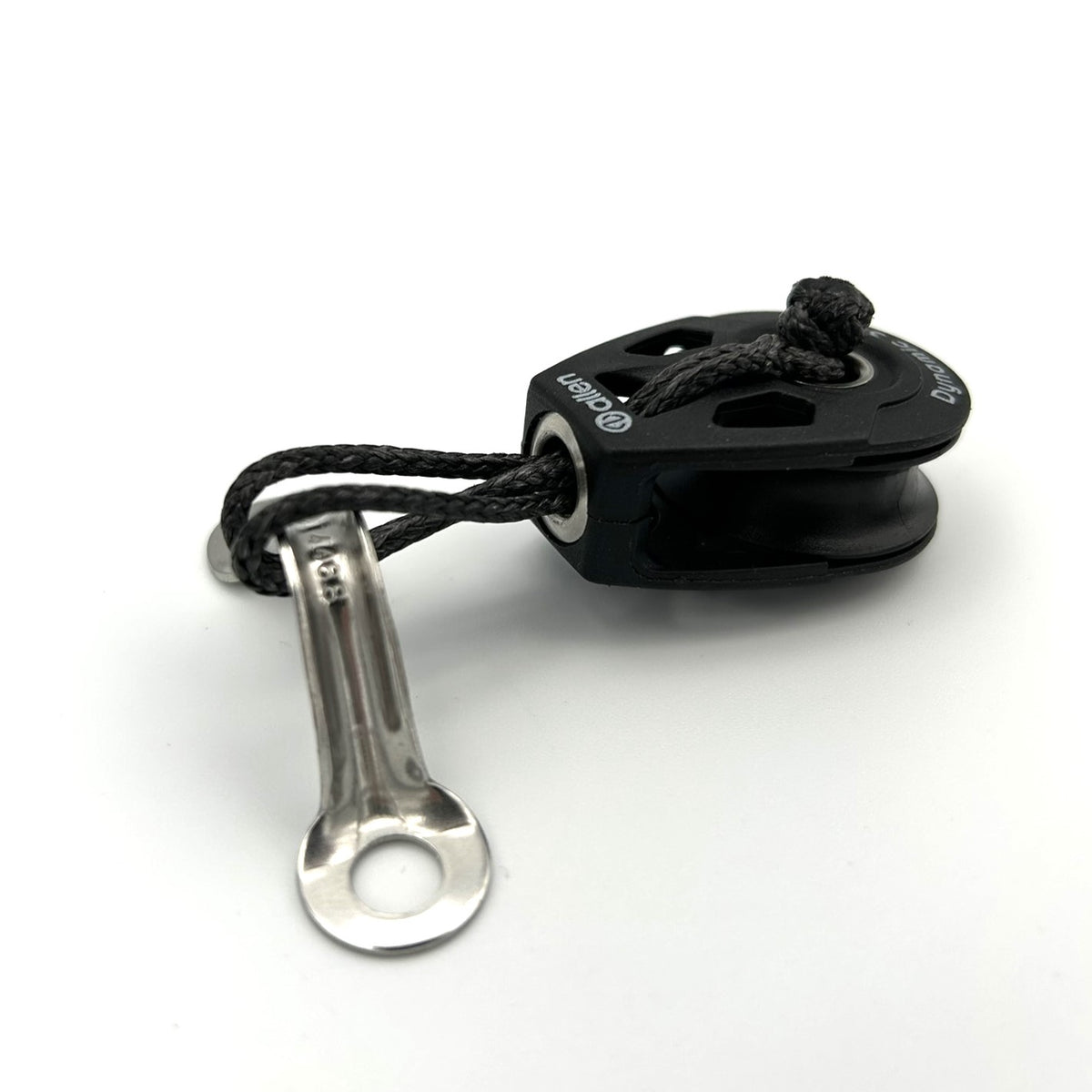

When using a Tii-Shackle, when possible, cross the lines. Only use a non-crossed Tii-Shackle on low-load applications. See the picture above of the block attached to a lacing eye for an example of how to cross the Tii-Shackle.

For further fitting advice, please contact us.
