SKU:A2050
50mm Single Dynamic Block
50mm Single Dynamic Block
In stock - 28 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description

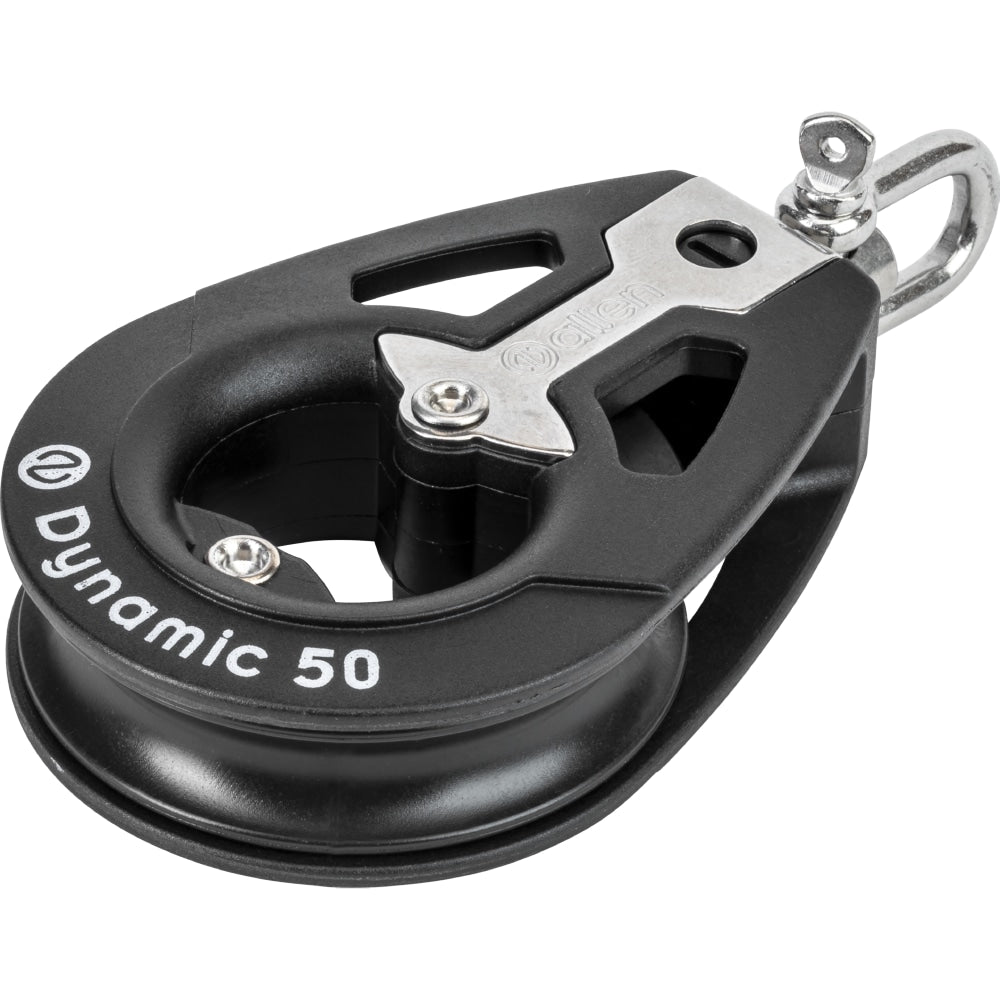

50mm Single Dynamic Block.
The A2050 is a high-performing ball-bearing block, designed to eliminate friction and allow rope to run at great speeds.
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems and everything in between.
Bearings: Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
Swivel Lock: The single block features a swivel lock, located at the head of the block. Simply turn the locking screw to either lock the swivel in 90-degree orientations or unlock it for a completely free-spinning shackle.
Becket: A large central hole not only reduces the overall weight of the block but also offers a rope-friendly attachment, perfect as a tie-off point when being used in a cascade system.
| Bearing type | Dynamic |
|---|---|
| Brand | Allen |
| Breaking load kg | 900 |
| Configuration | Single |
| Iges | GenericFileDrop |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a2050.igs |
| Length mm | 95 |
| Maximum line diameter mm | 10 |
| Maximum working load kg | 300 |
| GenericFileDrop | |
| Pdf ref link | https://www.allenbrothers.co.uk/wp-content/uploads/2018/09/a2050-ref_3.pdf |
| Pin size mm | 4 |
| Related collection | CollectionDrop |
| Sheave diameter mm | 50 |
| Short description | A high-performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds. |
| SKU | Title | Breaking Load Kg | Max Working Load Kg | Hole Pitch mm | Length mm | Max Line Dia mm | Pin Size mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|
| A2156 |
50mm Block Cheek Adaptor |
- | - | 19 | 95 | - | - | - |
Regular price
£5.76 ex VAT
£6.91 inc VAT
Regular price
|
| A2052 |
50mm Double Dynamic Block |
950 | 450 | - | 100 | 10 | 4 | 150 |
Regular price
£96.22 ex VAT
£115.46 inc VAT
Regular price
|
| A2053 |
50mm Double Dynamic Block - Becket |
950 | 450 | - | 136 | 10 | 4 | 159 |
Regular price
£99.16 ex VAT
£118.99 inc VAT
Regular price
|
| A2056 |
50mm Quad Dynamic Block |
950 | 470 | - | 100 | 10 | 5 | 268 |
Regular price
£177.28 ex VAT
£212.74 inc VAT
Regular price
|
| A2057 |
50mm Quad Dynamic Block - Becket |
950 | 470 | - | 136 | 10 | 5 | 272 |
Regular price
£187.72 ex VAT
£225.26 inc VAT
Regular price
|
| A2059 |
50mm Quint Dynamic Block |
950 | 470 | - | 100 | 10 | 5 | 322 |
Regular price
£207.99 ex VAT
£249.59 inc VAT
Regular price
|
| A2050 |
50mm Single Dynamic Block |
900 | 300 | - | 95 | 10 | 4 | 73 |
Regular price
£46.74 ex VAT
£56.09 inc VAT
Regular price
|
| A2050C |
50mm Single Dynamic Block - Cheek |
900 | 300 | - | 96 | 10 | - | 82 |
Regular price
£48.57 ex VAT
£58.28 inc VAT
Regular price
|
| A2050Tii |
50mm Single Dynamic Block - Tii-On |
900 | 450 | - | 72 | 10 | - | 59 |
Regular price
From £46.74 ex VAT
£56.09 inc VAT
Regular price
|
| A2054 |
50mm Triple Dynamic Block |
950 | 470 | - | 100 | 10 | 4 | 191 |
Regular price
£135.08 ex VAT
£162.10 inc VAT
Regular price
|
| A2055 |
50mm Triple Dynamic Block - Becket |
950 | 470 | - | 136 | 10 | 4 | 222 |
Regular price
£138.78 ex VAT
£166.54 inc VAT
Regular price
|
| A2054HK |
50mm Triple Dynamic Block - Hook |
950 | 470 | - | 140 | 10 | 4 | 227 |
Regular price
£149.21 ex VAT
£179.05 inc VAT
Regular price
|
