1 1

A2041

Single With Swivel And 20mm Fiddle Block

Single With Swivel And 20mm Fiddle Block

£27.49 ex VAT £32.99 inc VAT
£76.36 ex VAT £91.63 inc VAT £27.49 ex VAT £32.99 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 8 left(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

This product has been discontinued and replaced by
A20401F
.
The remaining stock is now available with an end-of-line discount of 40% from RRP.

The product is brand new, never used and has no defects. Get yourself a bargain.

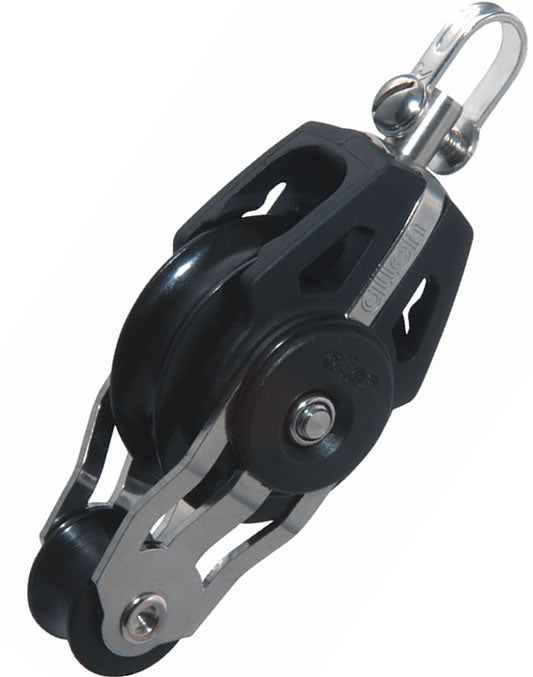

40mm Single With Swivel And 20mm Fiddle Block
Featuring durable stainless steel side plates to hold the 20mm fiddle sheave in place.
Bearings
– Dynamic blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. The ball bearings are caged for further friction reduction. These features provide a superior load-carrying ability and longevity when compared to other bearing systems.
Swivel Head
– Featuring a 360-degree swivel head with a 4mm shackle.
Fiddle
– The fiddle sheave is a 20mm dynamic bearing sheave. This ensures that any purchase systems run

Accessories Fiddle, Swivel
Bearing type Dynamic
Brand Allen
Breaking load kg 800
Configuration Single
Height mm 20
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2041.igs
Length mm 100
Maximum line diameter mm 10
Maximum working load kg 180
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a2041-ref.pdf
Pin size mm 4
Related collection CollectionDrop
Sheave diameter mm 40
Short description Single With Swivel And 20mm Fiddle Block
Width mm 40
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Length mm Max Line Dia mm Pin Size mm Sheave Dia mm Weight (g) Price
A4250P

20mm Single Plain Bearing Pulley

 400 - - 41 6 - 20 14
£2.43 ex VAT £2.92 inc VAT
£6.75 ex VAT £8.10 inc VAT £2.43 ex VAT £2.92 inc VAT
A4380P

27mm Classic Plain Bearing Block With Becket

 600 - - 28 8 - 27 73
£6.10 ex VAT £7.32 inc VAT
£16.94 ex VAT £20.33 inc VAT £6.10 ex VAT £7.32 inc VAT
A4978

30mm Dynamic Flip Flop Block

 700 140 - 63 8 - 30 59
£12.52 ex VAT £15.02 inc VAT
£34.79 ex VAT £41.75 inc VAT £12.52 ex VAT £15.02 inc VAT
A2047

40mm Quad Dynamic Block

 1350 320 - 84 10 - 40 163
£48.52 ex VAT £58.22 inc VAT
£134.78 ex VAT £161.74 inc VAT £48.52 ex VAT £58.22 inc VAT
A2046

40mm Single Dynamic Block - Cheek

 800 180 35 62 10 - 40 32
£12.79 ex VAT £15.35 inc VAT
£35.54 ex VAT £42.65 inc VAT £12.79 ex VAT £15.35 inc VAT
A2040HK

40mm Single Dynamic Block - Hook

 500 180 - 110 10 - 40 68
£14.98 ex VAT £17.98 inc VAT
£41.61 ex VAT £49.93 inc VAT £14.98 ex VAT £17.98 inc VAT
A9040

40mm Single High Roller Block - Tii-On

 2000 800 - 55 10 - 40 45
£95.14 ex VAT £114.17 inc VAT
£264.27 ex VAT £317.12 inc VAT £95.14 ex VAT £114.17 inc VAT
A2040LZ

Single With Lacing Eye And Spring

 800 180 34 77.5 10 - 40 45
£14.00 ex VAT £16.80 inc VAT
£38.88 ex VAT £46.66 inc VAT £14.00 ex VAT £16.80 inc VAT
A2041

Single With Swivel And 20mm Fiddle Block

 800 180 - 100 10 4 40 86
£27.49 ex VAT £32.99 inc VAT
£76.36 ex VAT £91.63 inc VAT £27.49 ex VAT £32.99 inc VAT
A2040SC-677

Single With Swivel And A.677 Cam Cleat

 800 180 - 73 6 4 40 109
£33.15 ex VAT £39.78 inc VAT
£92.07 ex VAT £110.48 inc VAT £33.15 ex VAT £39.78 inc VAT
A2043

Single With Swivel And Becket

 800 180 - 100 10 4 40 77
£72.68 ex VAT £87.22 inc VAT
£72.68 ex VAT £87.22 inc VAT £72.68 ex VAT £87.22 inc VAT
A2044

Single With Swivel, 20mm Fiddle Block And Becket

 800 180 - 122 10 4 40 100
£85.54 ex VAT £102.65 inc VAT
£85.54 ex VAT £102.65 inc VAT £85.54 ex VAT £102.65 inc VAT
A2043-676

Single With Swivel, Becket And A.676

 800 180 - 100 10 4 40 159
£30.79 ex VAT £36.95 inc VAT
£122.10 ex VAT £146.52 inc VAT £30.79 ex VAT £36.95 inc VAT
A2044-676

Single With Swivel, Fiddle Block, Becket And A.676

 800 180 - 122 10 4 40 154
£48.58 ex VAT £58.30 inc VAT
£134.95 ex VAT £161.94 inc VAT £48.58 ex VAT £58.30 inc VAT
A2044-677

Single With Swivel, Fiddle Block, Becket And A.677

 800 180 - 122 6 4 40 145
£46.30 ex VAT £55.56 inc VAT
£128.60 ex VAT £154.32 inc VAT £46.30 ex VAT £55.56 inc VAT
A2045

Triple

 1350 320 - 84 10 - 40 127
£37.87 ex VAT £45.44 inc VAT
£105.19 ex VAT £126.23 inc VAT £37.87 ex VAT £45.44 inc VAT
A2045B

Triple With Becket

 1350 320 - 84 10 - 40 150
£42.20 ex VAT £50.64 inc VAT
£117.21 ex VAT £140.65 inc VAT £42.20 ex VAT £50.64 inc VAT
