SKU:A..74
Alloy Inglefield Clip
Alloy Inglefield Clip
In stock - 225 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Product Datasheet Download
Description
Medium Alloy Inglefield Clip
An Inglefield clip, also known as an Inglefield connector, flag clip and spinnaker clip is a specialised clip used primarily for attaching and hoisting flags.
The clip design allows for two flags to be joined together with a simple twist-and-lock mechanism. This makes it easy to quickly connect or disconnect flags without the need for knots or complex fastening methods.
The other end of the clip is connected to the halyard, allowing the flag to be raised or lowered as needed. Multiple flags can be attached in a series using additional Inglefield clips.
Inglefield clips can also be used for attaching sheets to a low-loaded sail. Securing spinnaker sail bags in a companionway for easy access or hoisting.
Made from marine-grade aluminium.
Single item, for a pair you need to order the quantity of two. Image for demonstration purposes.
Click the PDF above to open a detailed technical drawing.
| Brand | Allen |
|---|---|
| Breaking load kg | 178 |
| Height mm | 6.4 |
| Iges | GenericFileDrop |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a..74.igs |
| Length mm | 36 |
| Maximum line diameter mm | 6 |
| Maximum working load kg | 89 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a--74-ref.pdf |
| Related collection | CollectionDrop |
| Short description | An Inglefield clip, also known as an Inglefield connector, flag clip and spinnaker clip, is a specialised clip used primarily for attaching and hoisting flags. |
| Thickness mm | 4 |
| Width mm | 22 |
| SKU | Title | Breaking Load Kg | Length mm | Max Line Dia mm | Max Working Load Kg | Width mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|
| A..74 |
Alloy Inglefield Clip |
178 | 36 | 6 | 89 | 22 | 9 |
Regular price
£2.44 ex VAT
£2.93 inc VAT
Regular price
|
| A..75 |
Alloy Inglefield Clip |
39 | 26 | 5 | 20 | 15 | - |
Regular price
£1.92 ex VAT
£2.30 inc VAT
Regular price
|

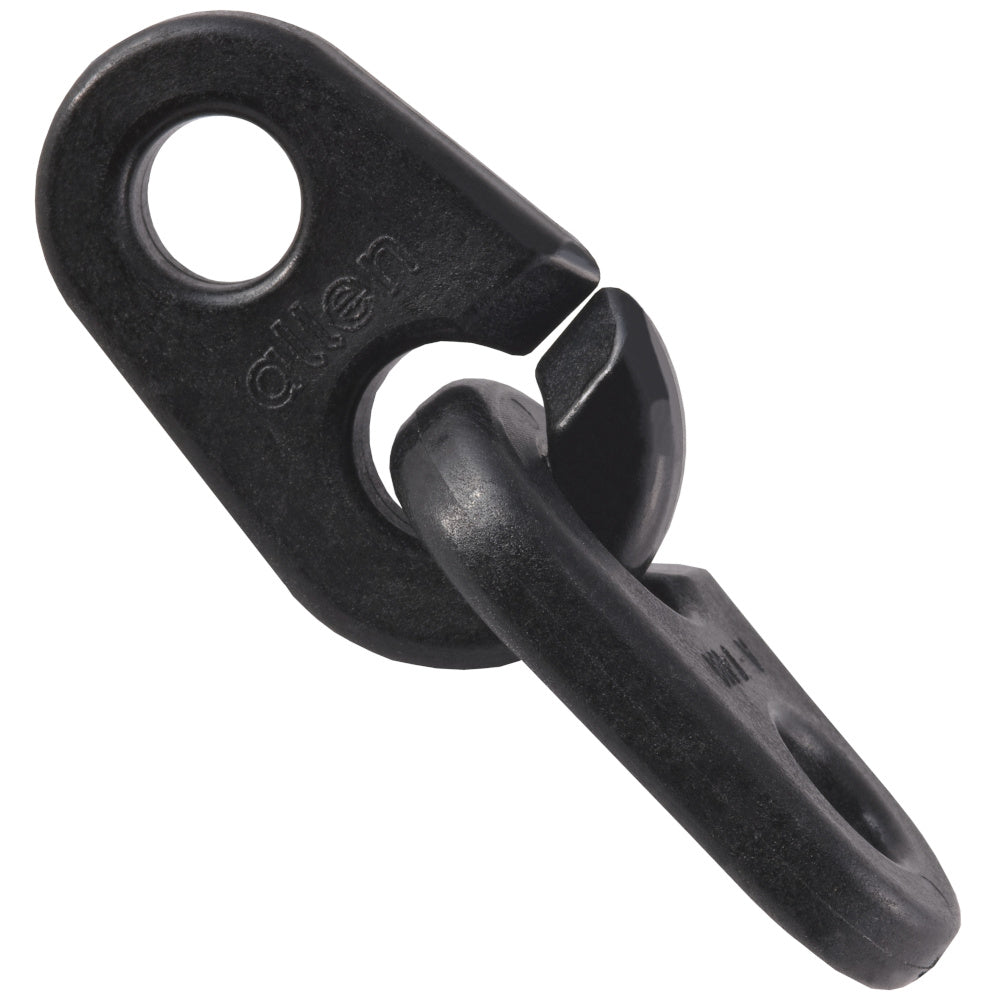

| A.174 |
Alloy Inglefield Clip |
266 | 50 | 10 | 133 | 30 | 18 |
Regular price
£5.48 ex VAT
£6.58 inc VAT
Regular price
|

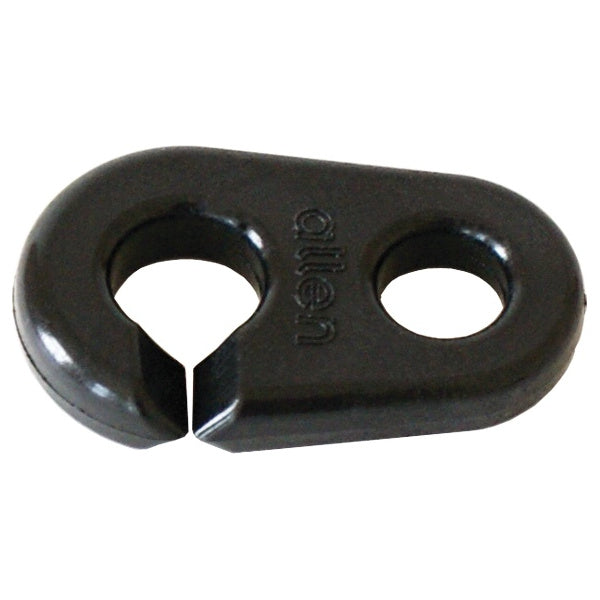

| A..74M |
Nylon Inglefield Clip |
60 | 36 | 6 | 30 | - | - |
Regular price
£1.40 ex VAT
£1.68 inc VAT
Regular price
|
