A.519

Transom Pintle

Transom Pintle

£22.35 ex VAT £26.82 inc VAT
ex VAT £0.00 inc VAT £22.35 ex VAT £26.82 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 14 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

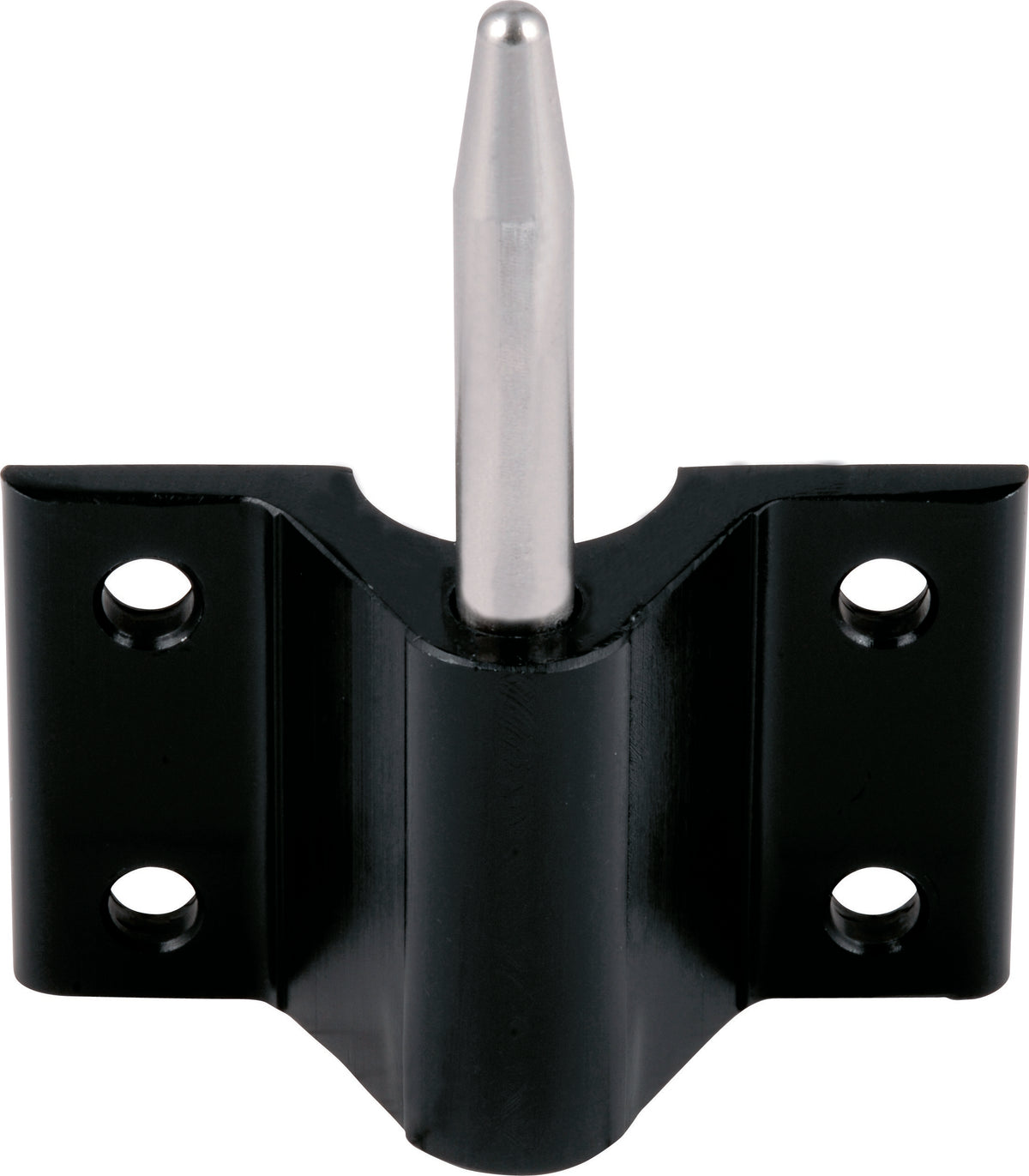

Four Hole Transom Pintle with 8mm Pin.

A pintle is a critical component used on a sailboat's rudder system. It is a pin or rod that attaches the rudder to the boat's stern, allowing the rudder to pivot and steer the boat. The pintle works in conjunction with a corresponding fitting called a gudgeon, which is a socket that the pintle fits into.

The Allen four-hole transom pintle is crafted from marine-grade aluminium and stainless steel. It’s been built to withstand the harsh marine environment, offering superior resistance to corrosion and wear.

Perfect Fit:
Available in various pin sizes to match your specific rudder and gudgeon setup, providing a secure and stable connection.

Versatile Use:
Ideal for small to medium-sized sailboats, dinghies, and other watercraft requiring a dependable rudder pintle.

Safety Hole:
The pintle pin has a cross hole drilled into it so that an R-clip can be used to secure the rudder in place. Reducing the risk of losing a rudder during a capsize.

Similar to RWO R0746

Click the above PDF to open a detailed technical drawing.

Brand Allen
Fixing hole diameter mm 5
Height mm 86
Hole pin diameter mm 7.8
Hole pitch mm 50.3 x 25
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a-519.igs
Length mm 28
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a-519-ref_2.pdf
Pin length mm 45
Related collection CollectionDrop
Short description Transom Pintle
Transom to pin centre mm 19
Width mm 72
Swipe
SKU Title Fixing Hole Dia mm Hole / Pin Dia mm Hole Pitch mm Length mm Pin Length mm Transom To Pin Centre mm Width mm Weight (g) Price
A.519-10H

Four Hole Transom Pintle With 10mm Pin

 6.3 9.95 50.3 x 25 97 57 18 72 95
£22.87 ex VAT £27.44 inc VAT
ex VAT £0.00 inc VAT £22.87 ex VAT £27.44 inc VAT
A4022

Large Transom Gudgeon

 6 8 - - - 43 120 -
£25.21 ex VAT £30.25 inc VAT
ex VAT £0.00 inc VAT £25.21 ex VAT £30.25 inc VAT
A.485

Laser/ ILCA Gudgeon

 6 10 110.9 30 - 36 130 36
£4.65 ex VAT £5.58 inc VAT
ex VAT £0.00 inc VAT £4.65 ex VAT £5.58 inc VAT
A7001

One Piece Pintle & Gudeon For A7000

 5 7.59 176 x 54 28 47 18 71.9 100
£133.67 ex VAT £160.40 inc VAT
ex VAT £0.00 inc VAT £133.67 ex VAT £160.40 inc VAT
A4420

Optimist Transom Gudgeon

 4 6.3 30 30.6 - 24 44 23
£17.52 ex VAT £21.02 inc VAT
ex VAT £0.00 inc VAT £17.52 ex VAT £21.02 inc VAT
A.619

Pintle Packing Spacer

 - - 50 5 - - 71 5
£4.80 ex VAT £5.76 inc VAT
ex VAT £0.00 inc VAT £4.80 ex VAT £5.76 inc VAT
A.420

Transom Gudgeon

 5 8 110 30 - 39 131 41
£4.65 ex VAT £5.58 inc VAT
ex VAT £0.00 inc VAT £4.65 ex VAT £5.58 inc VAT
A.520

Transom Gudgeon

 5 8 50 28 - 19 72.5 27
£9.93 ex VAT £11.92 inc VAT
ex VAT £0.00 inc VAT £9.93 ex VAT £11.92 inc VAT
A.520-10

Transom Gudgeon

 5 10 50 28 - 16 72.5 27
£9.93 ex VAT £11.92 inc VAT
ex VAT £0.00 inc VAT £9.93 ex VAT £11.92 inc VAT
A4020

Transom Gudgeon

 5 8 51 26.1 - 18 70 23
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A4020S

Transom Gudgeon

 5 8 58.7 25.9 - 17 75 41
£19.29 ex VAT £23.15 inc VAT
ex VAT £0.00 inc VAT £19.29 ex VAT £23.15 inc VAT
A4120

Transom Gudgeon

 5 8 42 23.2 - 18 58 18
£6.82 ex VAT £8.18 inc VAT
ex VAT £0.00 inc VAT £6.82 ex VAT £8.18 inc VAT
A.519

Transom Pintle

 5 7.8 50.3 x 25 28 45 19 72 91
£22.35 ex VAT £26.82 inc VAT
ex VAT £0.00 inc VAT £22.35 ex VAT £26.82 inc VAT
A.519-10

Transom Pintle

 5 10 50.3 x 25 - 57 16 70 95
£22.87 ex VAT £27.44 inc VAT
ex VAT £0.00 inc VAT £22.87 ex VAT £27.44 inc VAT
A4019

Transom Pintle

 4 7.8 60.3 x 32.1 - 57 18 80 68
£12.17 ex VAT £14.60 inc VAT
ex VAT £0.00 inc VAT £12.17 ex VAT £14.60 inc VAT
A4019S

Transom Pintle

 4 7.8 58 x 38 x 16 56.9 57 17 75 113
£40.83 ex VAT £49.00 inc VAT
ex VAT £0.00 inc VAT £40.83 ex VAT £49.00 inc VAT
A4317

Transom Pintle

 4 7.8 22 x 25 25.6 37 18 31.8 41
£30.56 ex VAT £36.67 inc VAT
ex VAT £0.00 inc VAT £30.56 ex VAT £36.67 inc VAT
