A20401S-2030

40 & 30mm Single Dynamic Blocks - Linked

40 & 30mm Single Dynamic Blocks - Linked

£50.72 ex VAT £60.86 inc VAT
ex VAT £0.00 inc VAT £50.72 ex VAT £60.86 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 3 left(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

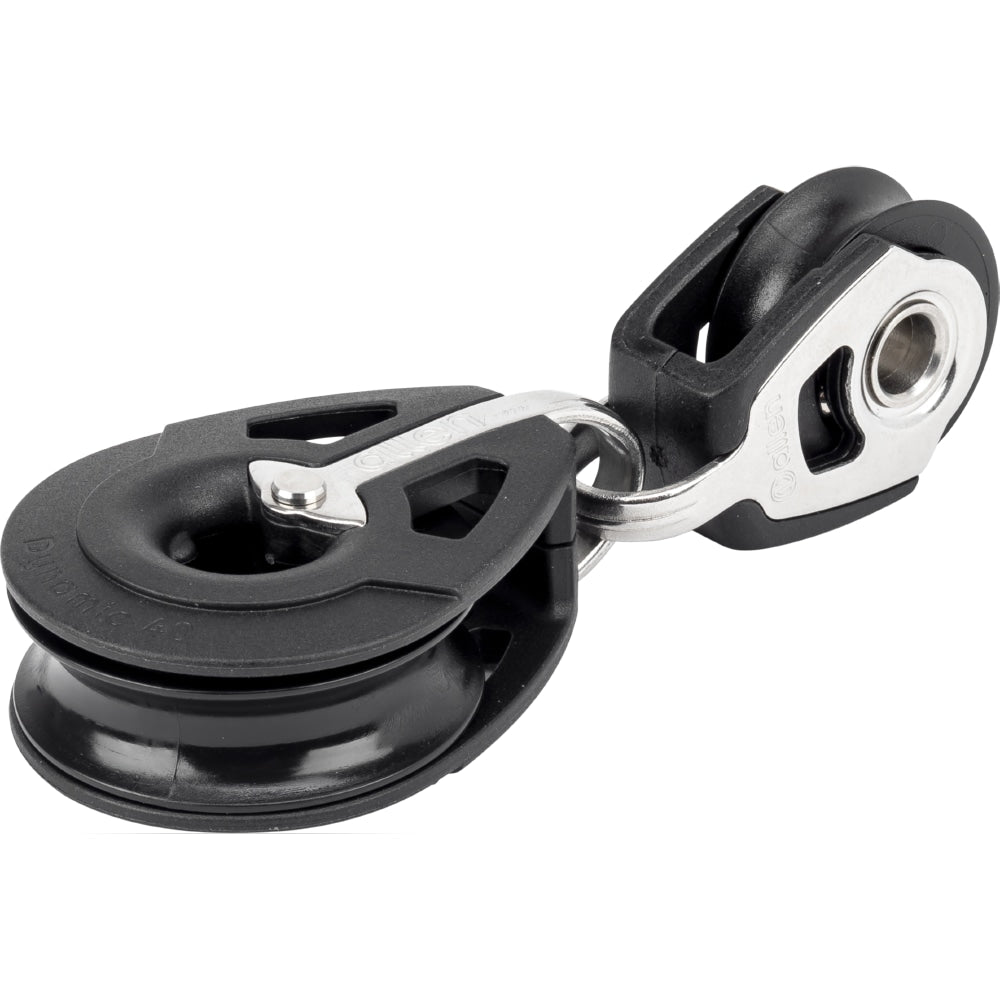

40mm & 30mm Dynamic Linked Single Blocks

The 40mm & 30mm Dynamic Linked Single Blocks combine a 40mm and 30mm Dynamic Block in a compact linked assembly, providing an efficient solution for mainsheet, traveller, and control line systems.

Key Features

  • Linked 40mm and 30mm Dynamic Blocks for compact, efficient rigging setups
  • Ideal for mainsheet systems requiring a traveller block and mainsheet block mounted close together
  • Suitable for mainsheet, spinnaker, pole launcher, and control line applications
  • Reduces the chance of snagging and simplifies system layouts
  • Manufactured from lightweight, high-strength glass-loaded nylon
  • Patented Dynamic Bearing System featuring twin rows of stainless-steel ball bearings running on a stainless-steel rail
  • Caged ball bearings for reduced friction and enhanced performance
  • Superior load-carrying capability and long service life
  • 40mm block features a large central hole that can be used as a becket (tie-off point)

Please Note: Maximum working load is rated to the A2030 (30mm) block.

Accessories Linked
Bearing type Dynamic
Brand Allen
Breaking load kg 780
Configuration Single
Height mm 108
Length mm 108
Maximum line diameter mm 8
Maximum working load kg 140
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a20401s-2030-ref.pdf
Related collection CollectionDrop
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Length mm Max Line Dia mm Pin Size mm Weight (g) Price
A20401S-2030

40 & 30mm Single Dynamic Blocks - Linked

 780 140 - 108 8 - 64
£50.72 ex VAT £60.86 inc VAT
ex VAT £0.00 inc VAT £50.72 ex VAT £60.86 inc VAT
A20402

40mm Double Dynamic Block

 1150 500 - 93.55 10 5 100
£76.79 ex VAT £92.15 inc VAT
ex VAT £0.00 inc VAT £76.79 ex VAT £92.15 inc VAT
A20402B

40mm Double Dynamic Block - Becket

 1150 500 - 110.05 10 5 113
£78.88 ex VAT £94.66 inc VAT
ex VAT £0.00 inc VAT £78.88 ex VAT £94.66 inc VAT
A20404

40mm Quad Dynamic Block

 1400 750 - 95.05 10 5 213
£153.56 ex VAT £184.27 inc VAT
ex VAT £0.00 inc VAT £153.56 ex VAT £184.27 inc VAT
A20401

40mm Single Dynamic Block

 780 240 - 83.38 10 4 54
£38.39 ex VAT £46.07 inc VAT
ex VAT £0.00 inc VAT £38.39 ex VAT £46.07 inc VAT
A20401B

40mm Single Dynamic Block - Becket

 780 240 - 99.88 10 4 59
£40.48 ex VAT £48.58 inc VAT
ex VAT £0.00 inc VAT £40.48 ex VAT £48.58 inc VAT
A20401B-77

40mm Single Dynamic Block - Becket, Cleat

 780 80 - 99.88 6 4 122
£94.14 ex VAT £112.97 inc VAT
ex VAT £0.00 inc VAT £94.14 ex VAT £112.97 inc VAT
A20401BF

40mm Single Dynamic Block - Becket, Fiddle

 780 240 - 126.88 10 4 73
£57.39 ex VAT £68.87 inc VAT
ex VAT £0.00 inc VAT £57.39 ex VAT £68.87 inc VAT
A20401BF-77

40mm Single Dynamic Block - Becket, Fiddle, Cleat

 780 80 - 126.88 6 4 141
£109.55 ex VAT £131.46 inc VAT
ex VAT £0.00 inc VAT £109.55 ex VAT £131.46 inc VAT
A20401BFH-77

40mm Single Dynamic Block - Becket, Fiddle, Hook, Cleat

 540 80 - 153 6 4 172
£114.77 ex VAT £137.72 inc VAT
ex VAT £0.00 inc VAT £114.77 ex VAT £137.72 inc VAT
A20401C

40mm Single Dynamic Block - Cheek

 780 240 35.5 62 10 - 36
£35.54 ex VAT £42.65 inc VAT
ex VAT £0.00 inc VAT £35.54 ex VAT £42.65 inc VAT
A20401CB

40mm Single Dynamic Block - Cheek, Becket

 780 240 62.5 X 14.6 73 10 - 41
£37.63 ex VAT £45.16 inc VAT
ex VAT £0.00 inc VAT £37.63 ex VAT £45.16 inc VAT
A20401-77

40mm Single Dynamic Block - Cleat

 750 80 - 83.38 6 4 118
£92.07 ex VAT £110.48 inc VAT
ex VAT £0.00 inc VAT £92.07 ex VAT £110.48 inc VAT
A20401F

40mm Single Dynamic Block - Fiddle

 780 240 - 108.38 10 4 68
£50.96 ex VAT £61.15 inc VAT
ex VAT £0.00 inc VAT £50.96 ex VAT £61.15 inc VAT
A20401F-77

40mm Single Dynamic Block - Fiddle, Cleat

 780 80 - 108.38 6 4 136
£104.58 ex VAT £125.50 inc VAT
ex VAT £0.00 inc VAT £104.58 ex VAT £125.50 inc VAT
A20401H

40mm Single Dynamic Block - Hook

 540 250 - 109 10 - 73
£43.60 ex VAT £52.32 inc VAT
ex VAT £0.00 inc VAT £43.60 ex VAT £52.32 inc VAT
A20401BFH

40mm Single Dynamic Block - Hook, Becket, Fiddle

 540 240 - 153 6 4 91
£62.60 ex VAT £75.12 inc VAT
ex VAT £0.00 inc VAT £62.60 ex VAT £75.12 inc VAT
A20401FH

40mm Single Dynamic Block - Hook, Fiddle

 540 240 - 134 6 4 86
£56.18 ex VAT £67.42 inc VAT
ex VAT £0.00 inc VAT £56.18 ex VAT £67.42 inc VAT
A20401FH-77

40mm Single Dynamic Block - Hook, Fiddle, Cleat

 540 80 - 134 6 4 154
£109.80 ex VAT £131.76 inc VAT
ex VAT £0.00 inc VAT £109.80 ex VAT £131.76 inc VAT
A20401SR

40mm Single Dynamic Block - Removable Strap

 700 240 - 64 10 - 41
£37.55 ex VAT £45.06 inc VAT
ex VAT £0.00 inc VAT £37.55 ex VAT £45.06 inc VAT
A20401SLZ

40mm Single Dynamic Block - Stand Up

 700 240 36.25 74 10 - 45
£38.88 ex VAT £46.66 inc VAT
ex VAT £0.00 inc VAT £38.88 ex VAT £46.66 inc VAT
A20401S

40mm Single Dynamic Block - Strap

 700 240 - 64.5 10 - 41
£33.74 ex VAT £40.49 inc VAT
ex VAT £0.00 inc VAT £33.74 ex VAT £40.49 inc VAT
A2040Tii

40mm Single Dynamic Block - Tii-On

 800 180 - 58 10 - 36
From £33.74 ex VAT £40.49 inc VAT
ex VAT £0.00 inc VAT From £33.74 ex VAT £40.49 inc VAT
A20401HL

40mm Single High Load Block

 780 360 - 83.38 10 4 77
£59.18 ex VAT £71.02 inc VAT
ex VAT £0.00 inc VAT £59.18 ex VAT £71.02 inc VAT
A20401CHL

40mm Single High Load Block - Cheek

 780 360 35.5 62 10 - 54
£54.85 ex VAT £65.82 inc VAT
ex VAT £0.00 inc VAT £54.85 ex VAT £65.82 inc VAT
A20401SRHL

40mm Single High Load Block - Removable Strap

 700 360 - 64.5 10 - 64
£56.45 ex VAT £67.74 inc VAT
ex VAT £0.00 inc VAT £56.45 ex VAT £67.74 inc VAT
A2040TiiHL

40mm Single High Load Block - Tii-On

 800 360 - 58 10 - 41
£54.50 ex VAT £65.40 inc VAT
ex VAT £0.00 inc VAT £54.50 ex VAT £65.40 inc VAT
A2040XHL-B

40mm Single XHL Block

 1500 650 - 54 8 - 73
£161.40 ex VAT £193.68 inc VAT
ex VAT £0.00 inc VAT £161.40 ex VAT £193.68 inc VAT
A20403

40mm Triple Dynamic Block

 1400 750 - 93.35 10 5 159
£115.18 ex VAT £138.22 inc VAT
ex VAT £0.00 inc VAT £115.18 ex VAT £138.22 inc VAT
A20403B

40mm Triple Dynamic Block - Becket

 1400 750 - 110.05 10 5 163
£117.20 ex VAT £140.64 inc VAT
ex VAT £0.00 inc VAT £117.20 ex VAT £140.64 inc VAT
A20403B-77

40mm Triple Dynamic Block - Becket, Cleat

 1400 750 - 110.5 6 5 240
£183.50 ex VAT £220.20 inc VAT
ex VAT £0.00 inc VAT £183.50 ex VAT £220.20 inc VAT
A20403-77

40mm Triple Dynamic Block - Cleat

 1400 750 - 93.35 6 5 240
£181.47 ex VAT £217.76 inc VAT
ex VAT £0.00 inc VAT £181.47 ex VAT £217.76 inc VAT
ATII-LOCK-40

Tii-Lock-40

 - - - - - - -
£3.75 ex VAT £4.50 inc VAT
ex VAT £0.00 inc VAT £3.75 ex VAT £4.50 inc VAT
