1 1

A9603-B

3mm Tii-Bone

3mm Tii-Bone

£7.69 ex VAT £9.23 inc VAT
ex VAT £0.00 inc VAT £7.69 ex VAT £9.23 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 22 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

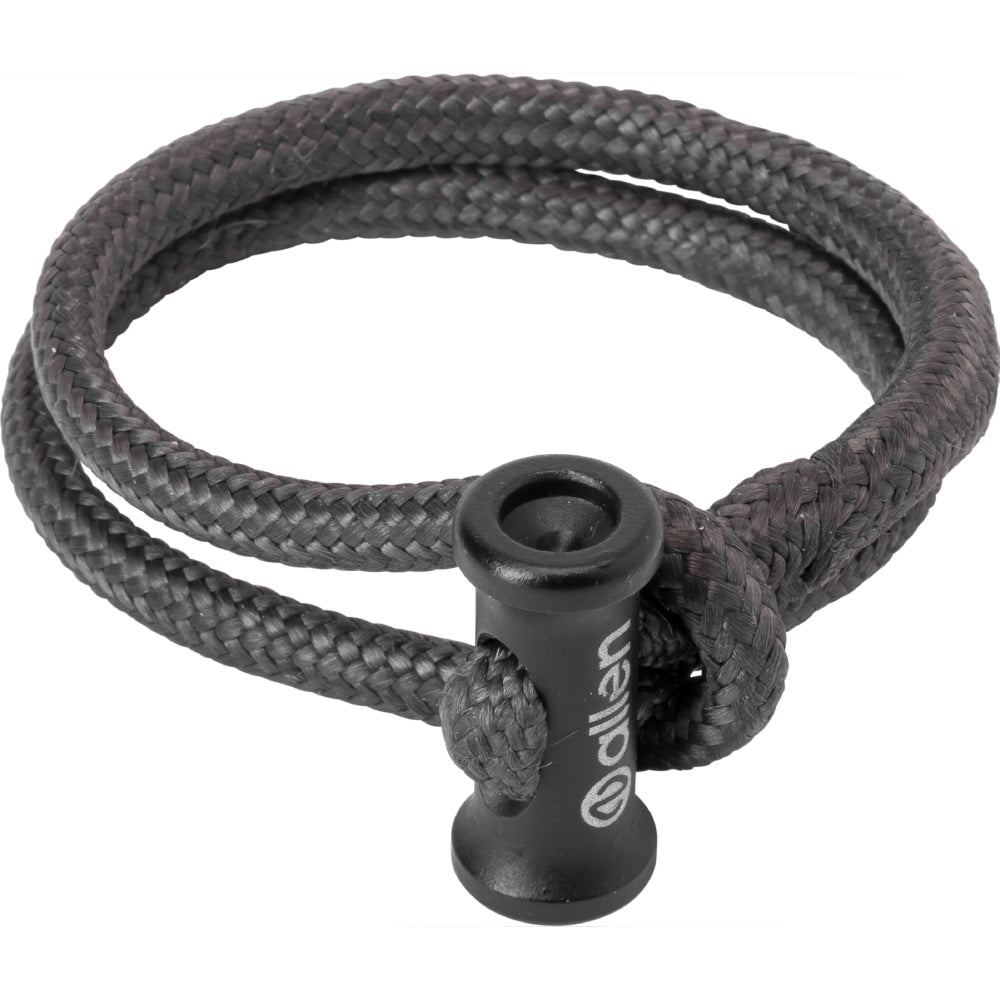

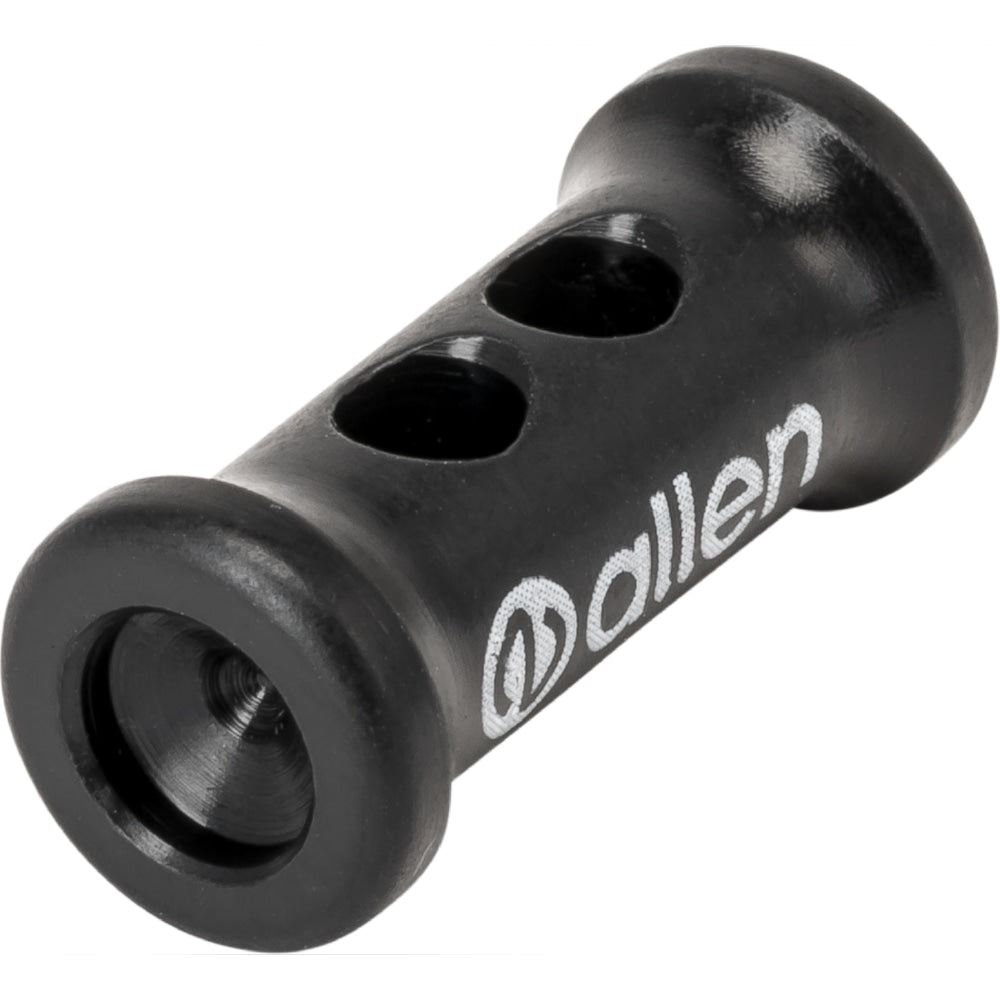

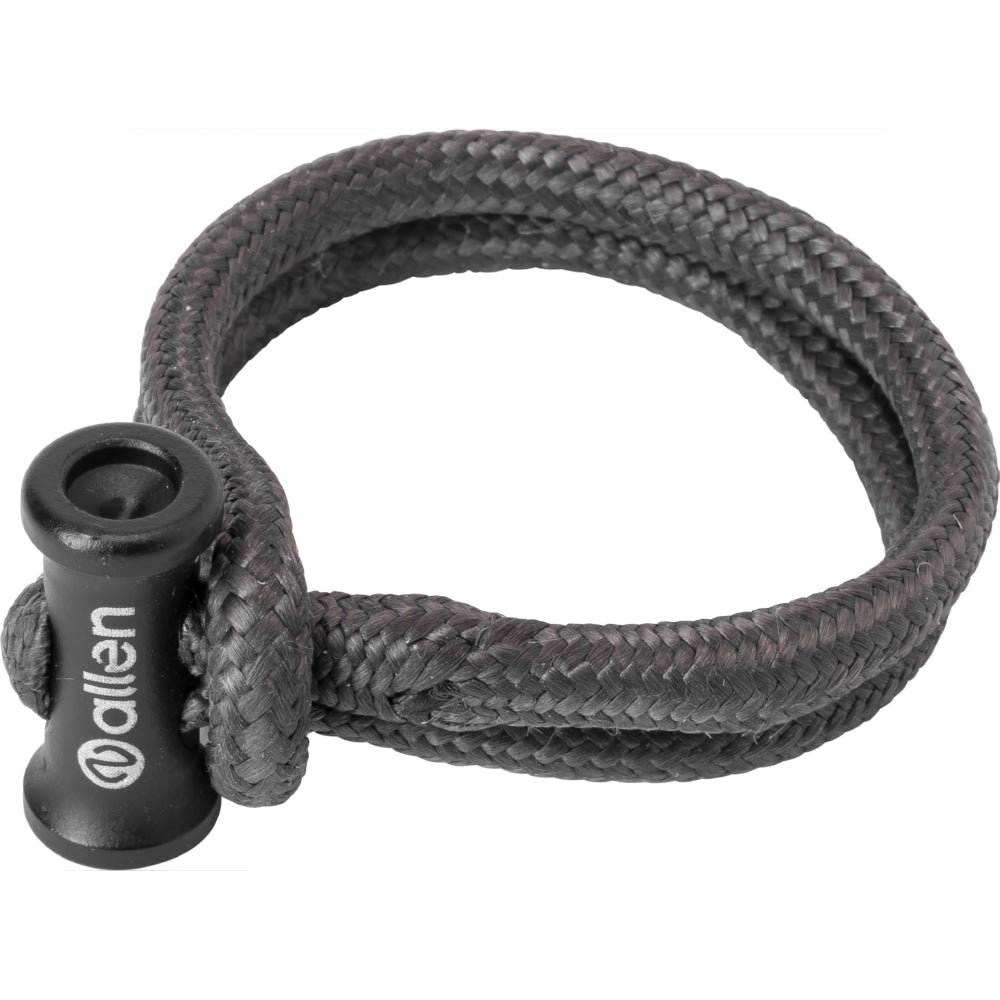

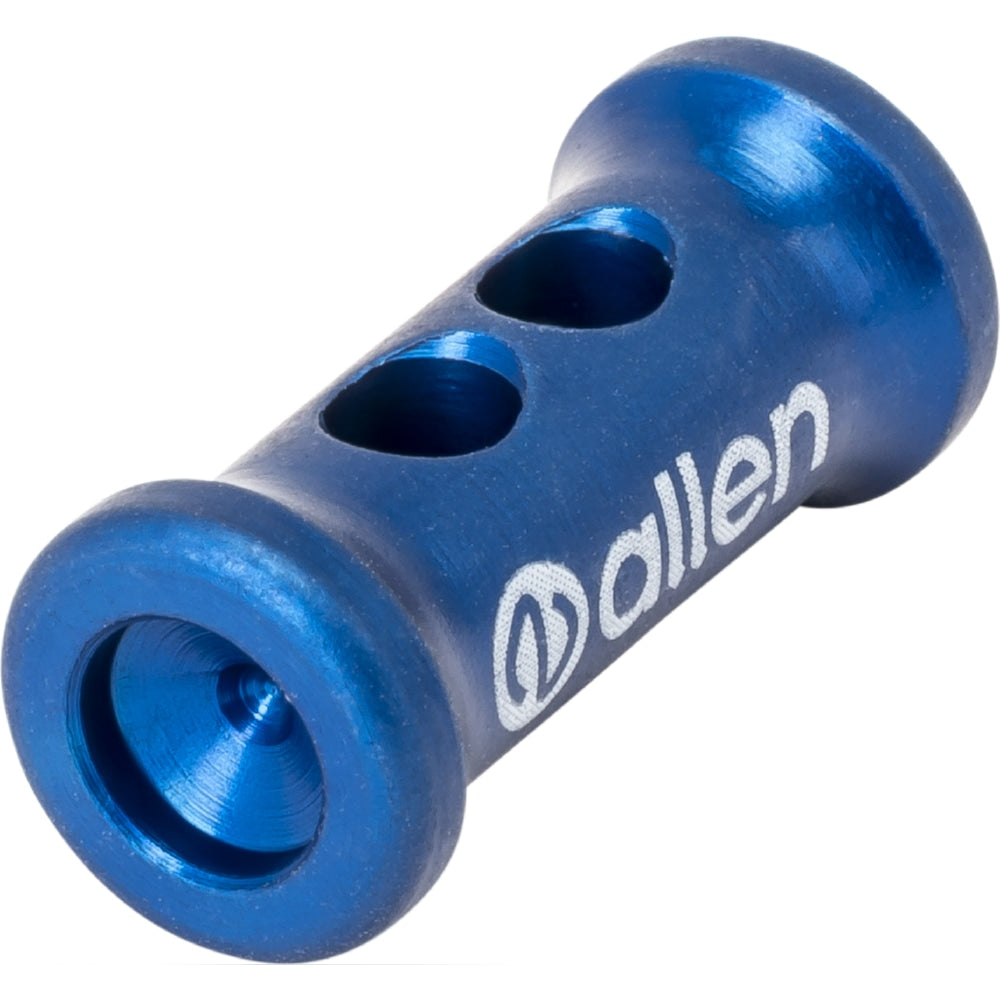

3mm Tii-Bone

The 3mm Tii-Bone is a lightweight, high-strength connector designed for modern performance rigging. Machined from marine-grade aluminium, it provides a simple and reliable soft attachment solution for halyards, sheets, control lines, lashings, and tensioning systems.

Features:

  • Lightweight, high-strength aluminium construction
  • Two central holes for easy spliced loop attachments
  • Ideal for halyards, sheets, soft shackles, and control lines
  • Corrosion-resistant anodised finish
  • Available in Blue or Black anodising for easy system identification

For detailed dimensions and specifications, click the PDF icon above to download the technical drawing.

Brand Allen
Breaking load kg 600
Colour Blue
Height mm 7
Length mm 20
Maximum line diameter mm 3
Maximum outside diameter mm 9
Maximum working load kg 300
Minimum outside diameter mm 7
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a9603-ref.pdf
Related collection CollectionDrop
Width mm 9
Swipe
SKU Title Breaking Load Kg Length mm Max Line Dia mm Max Outside Dia mm Max Working Load Kg Min Outside Dia mm Weight (g) Price
A8610B

10mm Dog Bone

 1800 36 - 10 900 6.5 5
£10.45 ex VAT £12.54 inc VAT
ex VAT £0.00 inc VAT £10.45 ex VAT £12.54 inc VAT
A8612

12mm Dog Bone

 2500 40 6 12 1400 7 9
£11.37 ex VAT £13.64 inc VAT
ex VAT £0.00 inc VAT £11.37 ex VAT £13.64 inc VAT
A8616

16mm Dog Bone

 3500 48 8 16 2000 8 14
£13.75 ex VAT £16.50 inc VAT
ex VAT £0.00 inc VAT £13.75 ex VAT £16.50 inc VAT
A9603-B

3mm Tii-Bone

 600 20 3 9 300 7 -
£7.69 ex VAT £9.23 inc VAT
ex VAT £0.00 inc VAT £7.69 ex VAT £9.23 inc VAT
A9604-B

4mm Tii-Bone

 1100 24 4 14 550 10.5 5
£9.78 ex VAT £11.74 inc VAT
ex VAT £0.00 inc VAT £9.78 ex VAT £11.74 inc VAT
A9605-B

5mm Tii-Bone

 1500 28 5 16 750 12.5 9
£11.58 ex VAT £13.90 inc VAT
ex VAT £0.00 inc VAT £11.58 ex VAT £13.90 inc VAT
A8606

6mm Dog Bone

 600 24 4 6 350 4 -
£7.52 ex VAT £9.02 inc VAT
ex VAT £0.00 inc VAT £7.52 ex VAT £9.02 inc VAT
A9606-B

6mm Tii-Bone

 1900 32 6 17 950 14 9
£14.66 ex VAT £17.59 inc VAT
ex VAT £0.00 inc VAT £14.66 ex VAT £17.59 inc VAT
A8608

8mm Dog Bone

 1100 32 5 8 600 6 5
£9.54 ex VAT £11.45 inc VAT
ex VAT £0.00 inc VAT £9.54 ex VAT £11.45 inc VAT
A9608-B

8mm Tii-Bone

 3000 42 8 20 1500 16 18
£19.48 ex VAT £23.38 inc VAT
ex VAT £0.00 inc VAT £19.48 ex VAT £23.38 inc VAT
