1 1

A4371L

U Bolt With Top & Bottom Backing Plate

U Bolt With Top & Bottom Backing Plate

£14.99 ex VAT £17.99 inc VAT
ex VAT £0.00 inc VAT £14.99 ex VAT £17.99 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 59 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

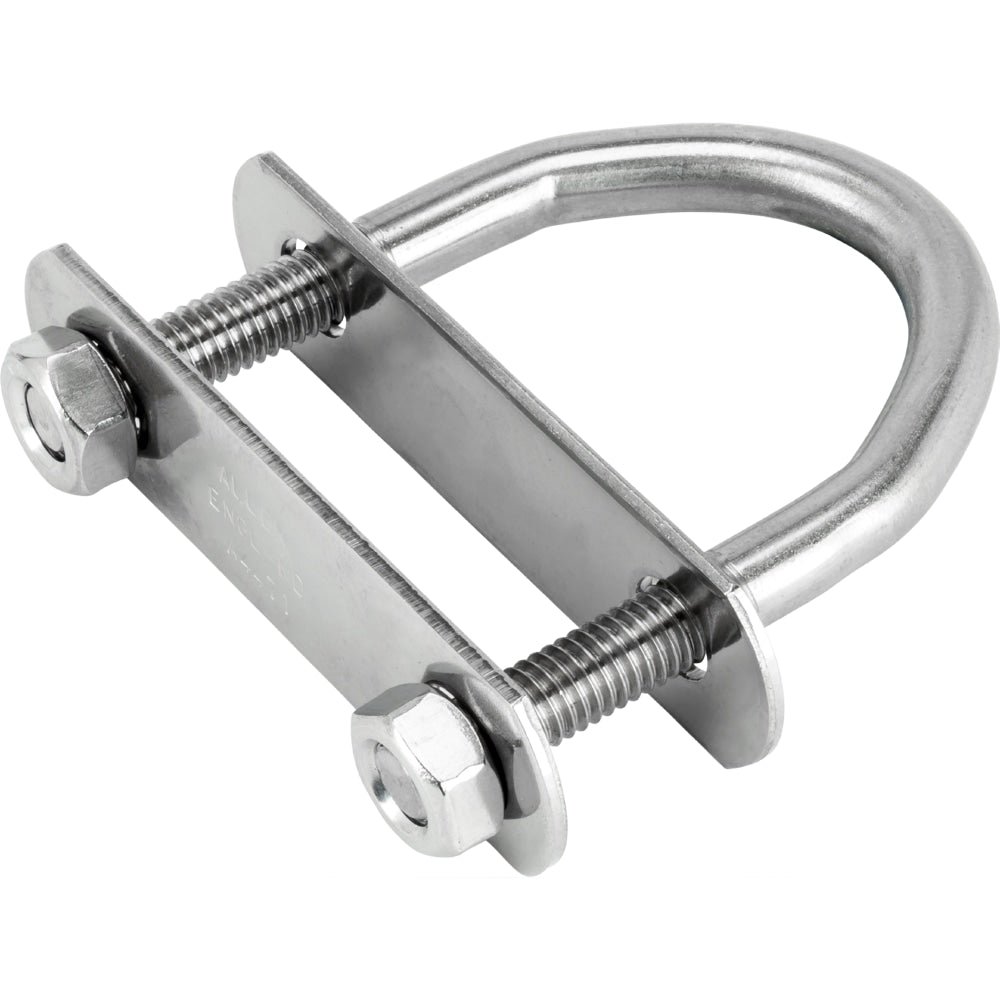

Long U Bolt With Top & Bottom Backing Plate
5mm rod - 23mm internal width.
Shaped like the letter "U" with threaded ends and two backing plates.
Typically bolted through the deck of a boat and used as an attachment point for lines, hardware or rigging.
This comes as one singular U-Bolt, with two nuts, and two backing plates (one for either side of the deck).
Made from marine-grade stainless steel.
Click the PDF above to open a detailed technical drawing.

Brand Allen
Height mm 51
Hole pitch mm 28
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a4371l.igs
Internal width mm 23
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a4371l-ref.pdf
Related collection CollectionDrop
Rod size mm 5
Short description U Bolt With Top & Bottom Backing Plate
Thread length mm 20
Swipe
SKU Title Height mm Hole Pitch mm Inside Dia mm Length mm Rod Size mm Thread Length mm Weight (g) Price
A4871

U Bolt With Heavy Duty Top & Bottom Backing Plate

 43 28 - - 6 20 64
£21.64 ex VAT £25.97 inc VAT
ex VAT £0.00 inc VAT £21.64 ex VAT £25.97 inc VAT
A4871X

U Bolt With Heavy Duty Top & Bottom Backing Plate

 50 28 - - 6 25 59
£23.14 ex VAT £27.77 inc VAT
ex VAT £0.00 inc VAT £23.14 ex VAT £27.77 inc VAT
A4512

U Bolt With Lowers & Bottom Backing Plate

 80 28 - - 6 25 100
£66.83 ex VAT £80.20 inc VAT
ex VAT £0.00 inc VAT £66.83 ex VAT £80.20 inc VAT
A4671XT

U Bolt With Nut & Washer

 120 38 - - 6 96 59
£43.97 ex VAT £52.76 inc VAT
ex VAT £0.00 inc VAT £43.97 ex VAT £52.76 inc VAT
A4671XT-FT

U Bolt With Tang, Nut & Washer

 120 38 - - 6 96 91
£75.13 ex VAT £90.16 inc VAT
ex VAT £0.00 inc VAT £75.13 ex VAT £90.16 inc VAT
A4371

U Bolt With Top & Bottom Backing Plate

 43 28 - - 5 20 23
£14.50 ex VAT £17.40 inc VAT
ex VAT £0.00 inc VAT £14.50 ex VAT £17.40 inc VAT
A4371L

U Bolt With Top & Bottom Backing Plate

 51 28 - - 5 20 27
£14.99 ex VAT £17.99 inc VAT
ex VAT £0.00 inc VAT £14.99 ex VAT £17.99 inc VAT
A4471

U Bolt With Top & Bottom Backing Plate

 58 38 - - 6 25 54
£16.69 ex VAT £20.03 inc VAT
ex VAT £0.00 inc VAT £16.69 ex VAT £20.03 inc VAT
A4571

U Bolt With Top & Bottom Backing Plate

 75 51 - - 8 25 113
£21.69 ex VAT £26.03 inc VAT
ex VAT £0.00 inc VAT £21.69 ex VAT £26.03 inc VAT
A4671

U Bolt With Top Backing Plate

 77.5 38 - - 6 39 54
£21.51 ex VAT £25.81 inc VAT
ex VAT £0.00 inc VAT £21.51 ex VAT £25.81 inc VAT
