SKU:A4587

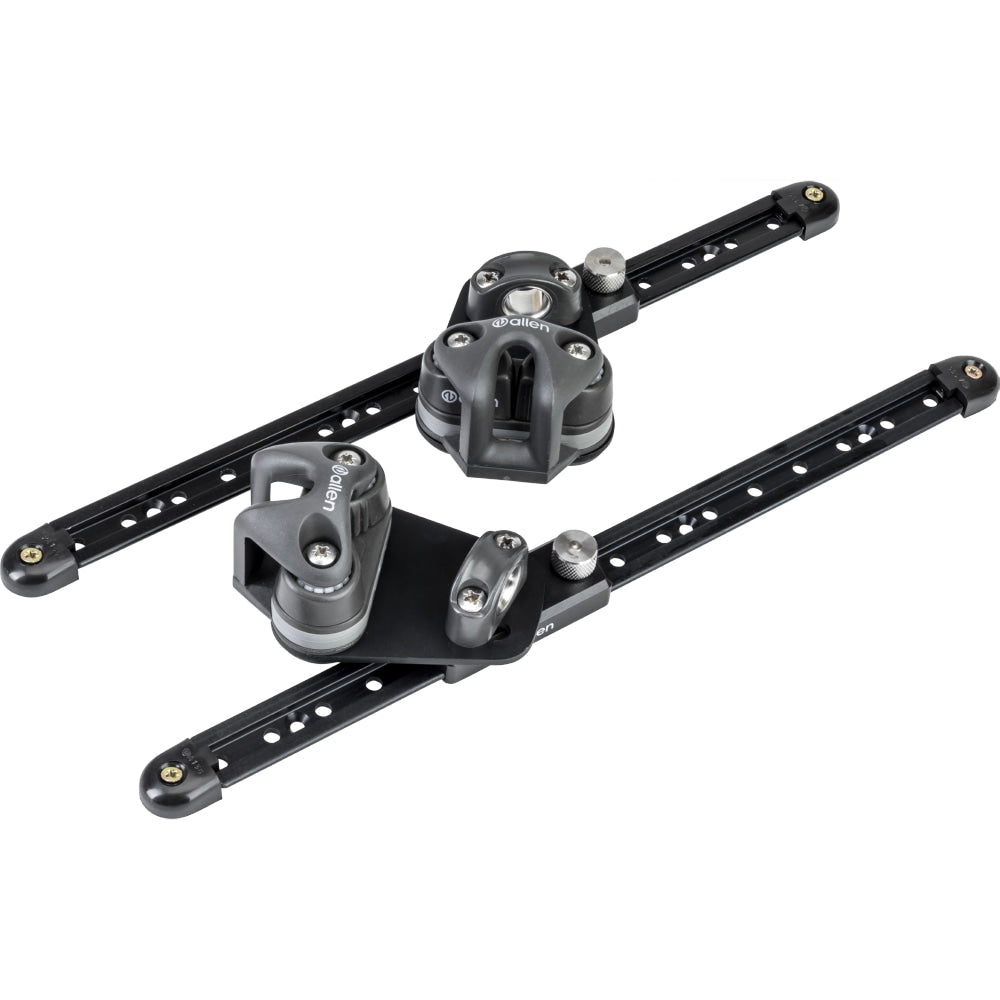

Piston Stop Bullseye Fairlead With Swivel Cleat
Piston Stop Bullseye Fairlead With Swivel Cleat
In stock - 11 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description
Piston Stop Bullseye Fairlead With Swivel Cleat.
Designed for use as a jib sheet fairlead for performance dinghies. Control the jib sheeting angle by sliding the car to the desired angle.
A..76 Cleat
-
Medium Ball Bearing Cam Cleat. The jaw profile is optimised for rope entry and exit reducing wear on the rope. Ball bearings and double coil springs give a super smooth cam action, allowing for a consistent feel every time the rope is cleated.
The cam cleat is mounted to an aluminium base plate. The plate moves from side to side, to allow the cleat to align with the sheet.
Traveller Car
- An adapted version of the
A4591
piston stop car. The piston is spring-loaded to ensure even under high loads the car cannot move. To move the car simply lift the piston by hand and slide the car to the desired hole on the track.
Track
- A.226 aluminium track. Anodised black and pre-drilled with fixing holes.
Comes as a handed pair.
| Brand | Allen |
|---|---|
| Cam cleat | A..76 |
| Configuration | Complete |
| Distance betweem adjustments mm | 19 |
| Fixing hole diameter mm | 4 |
| Hole pitch mm | 76 |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a4587.igs |
| Maximum line diameter mm | 10 |
| Number of fixing holes | 4 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a4587-ref.pdf |
| Related collection | CollectionDrop |
| Short description | Piston Stop Bullseye Fairlead With Swivel Cleat |
| Track length mm | 300 |
| SKU | Title | Cam Cleat | Car Length mm | Distance Betweem Adjustments mm | Fixing Hole Dia mm | Hole Pitch mm | Length mm | Max Line Dia mm | Number of Fixing Holes | Track Length mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A4590 |
Adjustable Jib Slider And Track |
- | - | 19 | 4 | 56 | - | - | 4 | 222 | 54 |
Regular price
£228.02 ex VAT
£273.62 inc VAT
Regular price
|
| A4490 |
Adjustable Jib Track With A2030 |
- | - | - | M5 | 100 | - | 8 | 6 | 450 | 91 |
Regular price
£290.59 ex VAT
£348.71 inc VAT
Regular price
|
| A.226-1000 |
Alloy Track Anodised |
- | - | 19 | 4 | 76 | 1000 | - | - | - | 9 |
Regular price
£30.07 ex VAT
£36.08 inc VAT
Regular price
|
| A.226-2 |
Alloy Track Anodised |
- | - | 19 | 4 | 76 | 3660 | - | Undrilled | - | 9 |
Regular price
£78.69 ex VAT
£94.43 inc VAT
Regular price
|
| A.226-222Black |
Alloy Track Anodised |
- | - | 19 | 4 | 76 | 222 | - | - | - | 9 |
Regular price
£24.67 ex VAT
£29.60 inc VAT
Regular price
|
| A.226-230 |
Alloy Track Anodised |
- | - | 19 | 4 | 76 | 230 | - | - | - | 9 |
Regular price
£26.11 ex VAT
£31.33 inc VAT
Regular price
|
| A.226-330 |
Alloy Track Anodised |
- | - | 19 | 4 | 76 | 330 | - | - | - | 68 |
Regular price
£37.45 ex VAT
£44.94 inc VAT
Regular price
|
| A.226-5 |
Alloy Track Anodised |
- | - | 19 | 4 | 76 | 565 | - | - | - | 68 |
Regular price
£32.96 ex VAT
£39.55 inc VAT
Regular price
|
| A.226-1 |
Alloy Track Un-Anodised |
- | - | Undrilled | Undrilled | Undrilled | 3660 | - | Undrilled | - | 9 |
Regular price
£51.70 ex VAT
£62.04 inc VAT
Regular price
|
| A4089 |
Mainsheet Slider |
- | - | - | - | - | 51 | 8 | - | - | 36 |
Regular price
£13.26 ex VAT
£15.91 inc VAT
Regular price
|
| A4587 |
Piston Stop Bullseye Fairlead With Swivel Cleat |
A..76 | - | 19 | 4 | 76 | - | 10 | 4 | 300 | 59 |
Regular price
£301.58 ex VAT
£361.90 inc VAT
Regular price
|
| A4574 |
Piston Stop Wire Fairlead With A2030 |
- | - | 19 | 4 | 56 | - | 8 | 5 | 330 | 86 |
Regular price
£202.02 ex VAT
£242.42 inc VAT
Regular price
|
| A.136 |
Size T22 End Stop |
- | - | - | M4 | - | 25 | - | 1 | - | - |
Regular price
£1.06 ex VAT
£1.27 inc VAT
Regular price
|
| A4575 |
Sliding Fairlead With Piston Stop |
- | - | - | - | - | 51 | - | - | - | 59 |
Regular price
£62.95 ex VAT
£75.54 inc VAT
Regular price
|
| A4591 |
Sliding Fairlead with Piston Stop |
- | - | - | - | - | 66 | - | - | - | 64 |
Regular price
£44.73 ex VAT
£53.68 inc VAT
Regular price
|
| A4573 |
Sliding Wire Fairlead With Piston Stop |
- | - | 19 | 4 | 56 | - | - | 6 | 330 | 86 |
Regular price
£182.92 ex VAT
£219.50 inc VAT
Regular price
|
