SKU:A4474

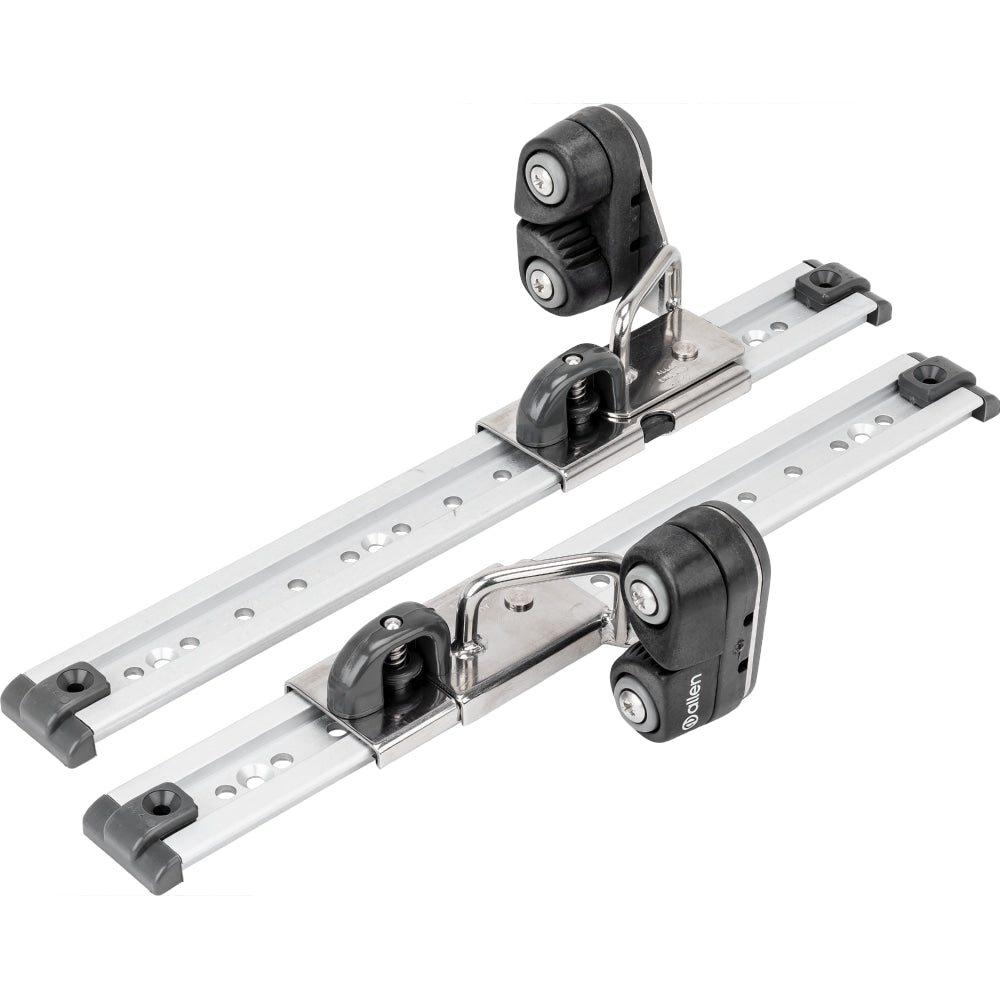

Piston Stop Wire Fairlead Vertical Cam Cleat
Piston Stop Wire Fairlead Vertical Cam Cleat
In stock - 40 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability
Product Datasheet Download
Description
Size T33 Fairlead With Vertical Allenite Cam Cleat
Size T33 Track is our largest T-section style track and is ideal for creating jib or spinnaker sheeting systems on dinghies or small keelboats up to 25ft.
Vertical Cam Cleat
This model, the A4474, comes equipped with the A.676 medium Allenite cam cleat mounted vertically to offer a different cleating angle to the A4274 version. Engineered for lightweight performance, the Allenite cam cleat offers a significant weight reduction compared to its aluminium counterpart, making it perfect for lower-load applications.
Wire Fairlead
The wire fairlead is designed to guide jib or spinnaker sheets smoothly towards the cam cleat with minimal friction and is very unlikely to wear out.
What's Included
The A4474 comes as a pair with all of the required screws and end stops to complete installation.
Replacements and Spares
Spare and replacement parts are readily available for the fairlead and car.
Click here to explore options and ensure your system remains in peak condition.
Click the PDF logo above to open a detailed technical drawing.
| Brand | Allen |
|---|---|
| Cam cleat | A.676 |
| Car length mm | 76.2 |
| Configuration | Complete |
| Distance betweem adjustments mm | 19 |
| Fixing hole diameter mm | 5 |
| Height mm | 65 |
| Hole pitch mm | 76 |
| Iges | GenericFileDrop |
| Iges file link | https://abassets.ams3.digitaloceanspaces.com/iges/a4474.igs |
| Length mm | 300 |
| Maximum line diameter mm | 10 |
| Number of fixing holes | 4 |
| GenericFileDrop | |
| Pdf ref link | https://abassets.ams3.digitaloceanspaces.com/product_files/a4474-ref.pdf |
| Related collection | CollectionDrop |
| Short description | Piston Stop Wire Fairlead Vertical Cam Cleat |
| Track length mm | 300 |
| Width mm | 33 |
| SKU | Title | Cam Cleat | Car Length mm | Distance Betweem Adjustments mm | Fixing Hole Dia mm | Hole Pitch mm | Length mm | Max Line Dia mm | Number of Fixing Holes | Track Length mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A.326-2 |
Alloy Track Anodised |
- | - | 19 | 5 | 75 | 3660 | - | Undrilled | 3660 | 9 |
Regular price
£53.44 ex VAT
£64.13 inc VAT
Regular price
|
| A.726-4 |
Alloy Track Anodised |
- | - | 19 | 5 | 75 | 1043 | - | - | 1043 | 73 |
Regular price
£55.36 ex VAT
£66.43 inc VAT
Regular price
|
| A.326-1 |
Alloy Track Un-Anodised |
- | - | Undrilled | Undrilled | Undrilled | 3660 | - | Undrilled | 3660 | 9 |
Regular price
£53.44 ex VAT
£64.13 inc VAT
Regular price
|
| A4274TZ |
Jib Sliding Fairlead |
A.676 | 76.2 | 19 | 5 | 76 | - | 10 | 6 | 451 | 41 |
Regular price
£219.04 ex VAT
£262.85 inc VAT
Regular price
|
| A4274 |
Piston Stop Nylon Fairlead Cam Cleat |
A.676 | 76.2 | 19 | 5 | 76 | - | 10 | 5 | 377 | 41 |
Regular price
£219.04 ex VAT
£262.85 inc VAT
Regular price
|
| A4274-76 |
Piston Stop Nylon Fairlead Cam Cleat |
A..76 | 76.2 | 19 | 5 | 76 | 375 | 10 | 5 | 377 | 41 |
Regular price
£238.00 ex VAT
£285.60 inc VAT
Regular price
|
| A4474 |
Piston Stop Wire Fairlead Vertical Cam Cleat |
A.676 | 76.2 | 19 | 5 | 76 | 300 | 10 | 4 | 300 | 54 |
Regular price
£245.18 ex VAT
£294.22 inc VAT
Regular price
|
| A4474-76 |
Piston Stop Wire Fairlead Vertical Cam Cleat |
A..76 | - | 19 | 5 | 76 | 300 | 10 | 4 | 300 | 717 |
Regular price
£283.64 ex VAT
£340.37 inc VAT
Regular price
|
| A.736 |
Size T33 End Stop |
- | - | - | M4 | - | 21.9 | - | 1 | - | - |
Regular price
£1.37 ex VAT
£1.64 inc VAT
Regular price
|
| A4354 |
Slider With Piston Stop And Lacing Eye |
- | 76.2 | - | - | - | 76 | - | - | - | 82 |
Regular price
£45.49 ex VAT
£54.59 inc VAT
Regular price
|
