A6047

Bow Shackle With Standard Pin

Bow Shackle With Standard Pin

£16.40 ex VAT £19.68 inc VAT
ex VAT £0.00 inc VAT £16.40 ex VAT £19.68 inc VAT
Sale Sold out
Shipping calculated at checkout.

Available on back order(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

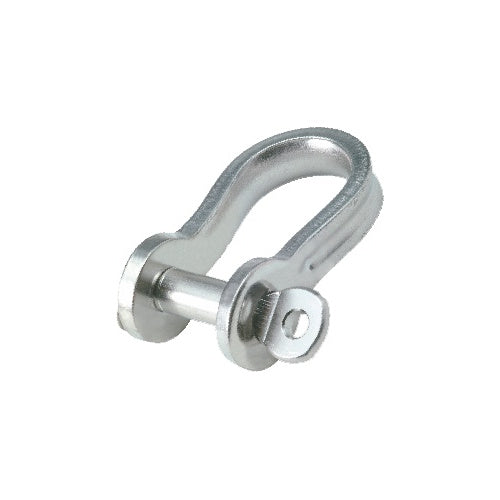

Bow Strip Shackle with 10mm Screw Pin
Marine Grade 316 Stainless Steel Strip Shackle.
This strip shackle is manufactured from premium marine grade 316 stainless steel for outstanding corrosion resistance and long-lasting durability. Perfect for use in saltwater environments, it’s ideal for sailing, marine rigging, and general marine applications.
Precision-engineered for strength and performance, it’s a dependable choice for both professional and recreational use.
Key Features:
Standard 10mm screw pin.
High-quality 316 stainless steel construction.
Excellent corrosion resistance for marine environments.
Strong and durable under load.
Low-profile design for versatile applications.

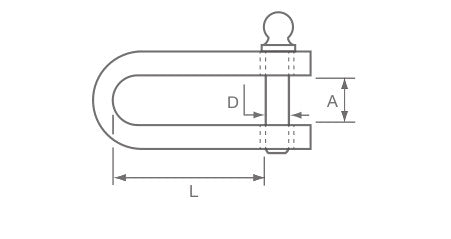

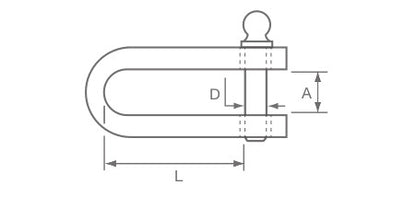

Click the PDF logo to open a detailed technical drawing.

A mm 21
Brand Allen
Breaking load kg 5000
Configuration Bow
D mm 10
Hole pin diameter mm 10
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a6047.igs
Internal length mm 40
L mm 40
Opening mm 21
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a6047-ref.pdf
Related collection CollectionDrop
Short description Bow Shackle With Standard Pin
Swipe
SKU Title Breaking Load Kg Internal Length mm Length mm Opening mm Pin Size mm Weight (g) Price
A6045

Bow Shackle With Standard Pin

 2000 23 - 15 - -
£3.67 ex VAT £4.40 inc VAT
ex VAT £0.00 inc VAT £3.67 ex VAT £4.40 inc VAT
A6046

Bow Shackle With Standard Pin

 3000 32 - 17 - 41
£8.22 ex VAT £9.86 inc VAT
ex VAT £0.00 inc VAT £8.22 ex VAT £9.86 inc VAT
A6047

Bow Shackle With Standard Pin

 5000 40 - 21 - -
£16.40 ex VAT £19.68 inc VAT
ex VAT £0.00 inc VAT £16.40 ex VAT £19.68 inc VAT
A6035

D Shackle With Slotted Pin

 500 15 - 10 - 5
£1.65 ex VAT £1.98 inc VAT
ex VAT £0.00 inc VAT £1.65 ex VAT £1.98 inc VAT
A6037

D Shackle With Slotted Pin

 1000 17 - 12 - 9
£1.85 ex VAT £2.22 inc VAT
ex VAT £0.00 inc VAT £1.85 ex VAT £2.22 inc VAT
A6038

D Shackle With Slotted Pin

 1000 24 - 15 - 14
£2.78 ex VAT £3.34 inc VAT
ex VAT £0.00 inc VAT £2.78 ex VAT £3.34 inc VAT
A6039

D Shackle With Slotted Pin

 1200 36 - 16 - -
£2.86 ex VAT £3.43 inc VAT
ex VAT £0.00 inc VAT £2.86 ex VAT £3.43 inc VAT
A6040

D Shackle With Slotted Pin

 1200 25 - 12 - 9
£2.44 ex VAT £2.93 inc VAT
ex VAT £0.00 inc VAT £2.44 ex VAT £2.93 inc VAT
A6020

D Shackle With Standard Pin

 500 15 - 10 - 5
£1.51 ex VAT £1.81 inc VAT
ex VAT £0.00 inc VAT £1.51 ex VAT £1.81 inc VAT
A6022

D Shackle With Standard Pin

 1000 17 - 12 - 9
£1.70 ex VAT £2.04 inc VAT
ex VAT £0.00 inc VAT £1.70 ex VAT £2.04 inc VAT
A6023

D Shackle With Standard Pin

 1000 24 - 15 - 14
£2.32 ex VAT £2.78 inc VAT
ex VAT £0.00 inc VAT £2.32 ex VAT £2.78 inc VAT
A6024

D Shackle With Standard Pin

 1200 36 - 16 - 18
£2.86 ex VAT £3.43 inc VAT
ex VAT £0.00 inc VAT £2.86 ex VAT £3.43 inc VAT
A6028

D Shackle With Standard Pin

 1200 40 - 15 - 27
£4.58 ex VAT £5.50 inc VAT
ex VAT £0.00 inc VAT £4.58 ex VAT £5.50 inc VAT
A6027

Shackle With Key Pin

 1200 24 - 16 - 18
£2.86 ex VAT £3.43 inc VAT
ex VAT £0.00 inc VAT £2.86 ex VAT £3.43 inc VAT
A6065

Shackle With Key Pin

 600 17 - 11 - 5
£3.05 ex VAT £3.66 inc VAT
ex VAT £0.00 inc VAT £3.05 ex VAT £3.66 inc VAT
A6066

Shackle With Key Pin

 1200 36 - 15 - 14
£3.40 ex VAT £4.08 inc VAT
ex VAT £0.00 inc VAT £3.40 ex VAT £4.08 inc VAT
A6067

Shackle With Key Pin

 1200 26 - 13 - 14
£2.62 ex VAT £3.14 inc VAT
ex VAT £0.00 inc VAT £2.62 ex VAT £3.14 inc VAT
A6068

Shackle With Key Pin

 2000 40 - 15 - 27
£5.51 ex VAT £6.61 inc VAT
ex VAT £0.00 inc VAT £5.51 ex VAT £6.61 inc VAT
A6069

Shackle With Key Pin

 2000 25 - 14 - -
£0.00 ex VAT £0.00 inc VAT
ex VAT £0.00 inc VAT £0.00 ex VAT £0.00 inc VAT
A6075

Shackle With Key Pin And Extra Pin & Ring

 700 12 - 23 - 14
£7.32 ex VAT £8.78 inc VAT
ex VAT £0.00 inc VAT £7.32 ex VAT £8.78 inc VAT
A6076

Shackle With Key Pin And Extra Pin & Ring

 700 15 - 33 - 18
£8.98 ex VAT £10.78 inc VAT
ex VAT £0.00 inc VAT £8.98 ex VAT £10.78 inc VAT
A6077

Shackle With Key Pin And Extra Pin & Ring

 1500 14 - 23 - 27
£10.08 ex VAT £12.10 inc VAT
ex VAT £0.00 inc VAT £10.08 ex VAT £12.10 inc VAT
A6078

Shackle With Key Pin And Extra Pin & Ring

 2000 20 - 38 - 50
£16.40 ex VAT £19.68 inc VAT
ex VAT £0.00 inc VAT £16.40 ex VAT £19.68 inc VAT
A6060

Twisted Shackle With Standard Pin

 1200 22 - 12 - 9
£3.40 ex VAT £4.08 inc VAT
ex VAT £0.00 inc VAT £3.40 ex VAT £4.08 inc VAT
A6061

Twisted Shackle With Standard Pin

 1200 33 - 12 - 14
£4.80 ex VAT £5.76 inc VAT
ex VAT £0.00 inc VAT £4.80 ex VAT £5.76 inc VAT
A6062

Twisted Shackle With Standard Pin

 2000 36 - 14 - 27
£6.94 ex VAT £8.33 inc VAT
ex VAT £0.00 inc VAT £6.94 ex VAT £8.33 inc VAT
