SKU:A9040
40mm Single High Roller Block - Tii-On
40mm Single High Roller Block - Tii-On
In stock - 16 units(Can be backordered)
Require larger quantities? Contact us
Couldn't load pickup availability

Description

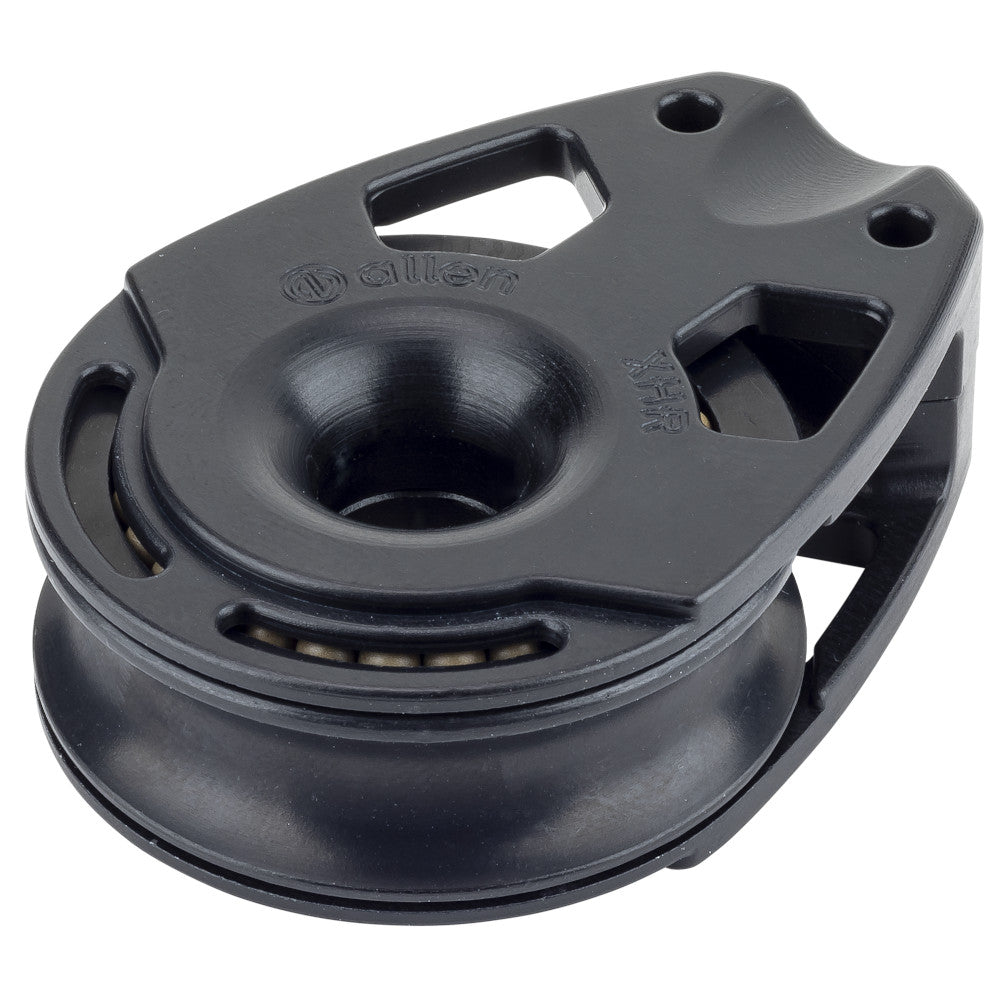

40mm Single Tii-On High Roller Block.
A high-performance block designed for high-stakes sailing.
This is the smallest block available on the market which features a high load two-stage roller bearing system. Roller (needle) bearings take the main loads of the sheave and offer great sheave rolling speeds at high loads. The side load ball bearings cater for any off-centre loading and minimise friction further.
This Tii-On block is designed to be attached via a single line or loop through the central hole in the block. The side cheeks feature a chamfered rope guide as well as two lashing line holes, through which a secondary line should be used to keep the block in the correct orientation.
Easily unassembled and serviced to give longer-lasting high performance.
Ideal for fast running and highly loaded lines on keel boats. Applications such as: mainsheets, runners, halyards, spinnaker systems, jib sheets and control lines.
For high static load applications, such as vang blocks, we suggest using the
A2040XHL.
SALE
- This item has been discontinued to make way for an upgraded version. All stock items purchased are new and unused. Grab yourself a great deal on a high-performance block.
| Accessories | None |
|---|---|
| Bearing type | Roller Bearing |
| Brand | Allen |
| Breaking load kg | 2000 |
| Configuration | Single |
| Height mm | 18 |
| Length mm | 55 |
| Maximum line diameter mm | 10 |
| Maximum working load kg | 800 |
| GenericFileDrop | |
| Related collection | CollectionDrop |
| Sheave diameter mm | 40 |
| Short description | A high-performance block designed for high-stakes sailing. |
| Width mm | 40 |
| SKU | Title | Breaking Load Kg | Max Working Load Kg | Hole Pitch mm | Length mm | Max Line Dia mm | Pin Size mm | Sheave Dia mm | Weight (g) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| A4250P |
20mm Single Plain Bearing Pulley |
400 | - | - | 41 | 6 | - | 20 | 14 |
Regular price
£2.43 ex VAT
£2.92 inc VAT
Regular price
|
| A4380P |
27mm Classic Plain Bearing Block With Becket |
600 | - | - | 28 | 8 | - | 27 | 73 |
Regular price
£6.10 ex VAT
£7.32 inc VAT
Regular price
|
| A4978 |
30mm Dynamic Flip Flop Block |
700 | 140 | - | 63 | 8 | - | 30 | 59 |
Regular price
£12.52 ex VAT
£15.02 inc VAT
Regular price
|
| A2047 |
40mm Quad Dynamic Block |
1350 | 320 | - | 84 | 10 | - | 40 | 163 |
Regular price
£48.52 ex VAT
£58.22 inc VAT
Regular price
|
| A2046 |
40mm Single Dynamic Block - Cheek |
800 | 180 | 35 | 62 | 10 | - | 40 | 32 |
Regular price
£12.79 ex VAT
£15.35 inc VAT
Regular price
|
| A2040HK |
40mm Single Dynamic Block - Hook |
500 | 180 | - | 110 | 10 | - | 40 | 68 |
Regular price
£14.98 ex VAT
£17.98 inc VAT
Regular price
|
| A9040 |
40mm Single High Roller Block - Tii-On |
2000 | 800 | - | 55 | 10 | - | 40 | 45 |
Regular price
£95.14 ex VAT
£114.17 inc VAT
Regular price
|
| A2040LZ |
Single With Lacing Eye And Spring |
800 | 180 | 34 | 77.5 | 10 | - | 40 | 45 |
Regular price
£14.00 ex VAT
£16.80 inc VAT
Regular price
|
| A2041 |
Single With Swivel And 20mm Fiddle Block |
800 | 180 | - | 100 | 10 | 4 | 40 | 86 |
Regular price
£27.49 ex VAT
£32.99 inc VAT
Regular price
|
| A2040SC-677 |
Single With Swivel And A.677 Cam Cleat |
800 | 180 | - | 73 | 6 | 4 | 40 | 109 |
Regular price
£33.15 ex VAT
£39.78 inc VAT
Regular price
|
| A2043 |
Single With Swivel And Becket |
800 | 180 | - | 100 | 10 | 4 | 40 | 77 |
Regular price
£72.68 ex VAT
£87.22 inc VAT
Regular price
|
| A2044 |
Single With Swivel, 20mm Fiddle Block And Becket |
800 | 180 | - | 122 | 10 | 4 | 40 | 100 |
Regular price
£85.54 ex VAT
£102.65 inc VAT
Regular price
|
| A2043-676 |
Single With Swivel, Becket And A.676 |
800 | 180 | - | 100 | 10 | 4 | 40 | 159 |
Regular price
£30.79 ex VAT
£36.95 inc VAT
Regular price
|
| A2044-676 |
Single With Swivel, Fiddle Block, Becket And A.676 |
800 | 180 | - | 122 | 10 | 4 | 40 | 154 |
Regular price
£48.58 ex VAT
£58.30 inc VAT
Regular price
|
| A2044-677 |
Single With Swivel, Fiddle Block, Becket And A.677 |
800 | 180 | - | 122 | 6 | 4 | 40 | 145 |
Regular price
£46.30 ex VAT
£55.56 inc VAT
Regular price
|
| A2045 |
Triple |
1350 | 320 | - | 84 | 10 | - | 40 | 127 |
Regular price
£37.87 ex VAT
£45.44 inc VAT
Regular price
|
| A2045B |
Triple With Becket |
1350 | 320 | - | 84 | 10 | - | 40 | 150 |
Regular price
£42.20 ex VAT
£50.64 inc VAT
Regular price
|
