A4428

Pressed Shackle

Pressed Shackle

£7.08 ex VAT £8.50 inc VAT
ex VAT £0.00 inc VAT £7.08 ex VAT £8.50 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 36 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

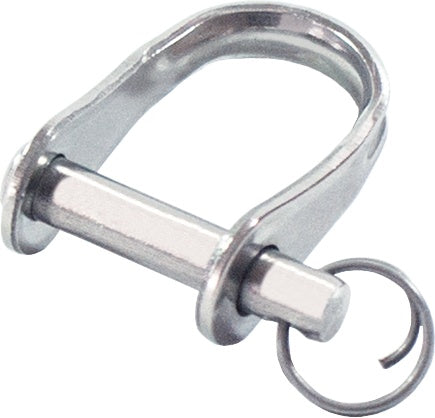

Pressed D Shackle with 5mm Clevis Pin
This pressed stainless-steel shackle is a lightweight and practical choice for a variety of applications, including marine, industrial, and general-purpose rigging.
Made from marine grade 316 stainless steel, it offers good corrosion resistance and dependable strength, making it ideal for use in harsh environments.
The compact, low-profile design allows for easy installation, while the simple construction ensures reliable performance.
Key Features:
5mm Clevis pin.
316 Stainless steel.
Lightweight, pressed design.
Suitable for marine, industrial, and general rigging use.
Click the PDF logo above for a detailed technical drawing.

A mm 16
Brand Allen
Breaking load kg 1000
Configuration Clevis Pin
D mm 5
Hole pin diameter mm 5
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a4428.igs
Internal width mm 16
L mm 20
Maximum working load kg 300
Opening mm 16
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a4428-ref.pdf
Related collection CollectionDrop
Short description Pressed Shackle
Swipe
SKU Title Breaking Load Kg Internal Length mm Internal Width mm Length mm Opening mm Pin Size mm Weight (g) Price
A4828

Bayonet Halyard Shackle

 550 - 13 25 13 - 18
£18.67 ex VAT £22.40 inc VAT
ex VAT £0.00 inc VAT £18.67 ex VAT £22.40 inc VAT
A4228

Large Pressed Rigging Link Narrow

 1300 - 13 29 9 - 18
£7.94 ex VAT £9.53 inc VAT
ex VAT £0.00 inc VAT £7.94 ex VAT £9.53 inc VAT
A4128

Pressed Rigging Link

 700 - 8 18 8 - 9
£3.95 ex VAT £4.74 inc VAT
ex VAT £0.00 inc VAT £3.95 ex VAT £4.74 inc VAT
A4138

Pressed Rigging Link

 800 - 18 31 18 - 14
£5.63 ex VAT £6.76 inc VAT
ex VAT £0.00 inc VAT £5.63 ex VAT £6.76 inc VAT
A4028

Pressed Rigging Link Narrow

 900 - 9 16 9 - 9
£5.70 ex VAT £6.84 inc VAT
ex VAT £0.00 inc VAT £5.70 ex VAT £6.84 inc VAT
A4328

Pressed Rigging Link Narrow

 1000 - 14 21 13 - 9
£3.73 ex VAT £4.48 inc VAT
ex VAT £0.00 inc VAT £3.73 ex VAT £4.48 inc VAT
A4528

Pressed Rigging Link Narrow

 900 - 13 15 13 - 9
£4.50 ex VAT £5.40 inc VAT
ex VAT £0.00 inc VAT £4.50 ex VAT £5.40 inc VAT
A4728

Pressed Rigging Link Narrow

 250 - 9 10 9 - 5
£3.88 ex VAT £4.66 inc VAT
ex VAT £0.00 inc VAT £3.88 ex VAT £4.66 inc VAT
A1438

Pressed Shackle

 1000 - 18 28 16 - 18
£7.64 ex VAT £9.17 inc VAT
ex VAT £0.00 inc VAT £7.64 ex VAT £9.17 inc VAT
A4048

Pressed Shackle

 800 - 14 24 13 - 9
£4.80 ex VAT £5.76 inc VAT
ex VAT £0.00 inc VAT £4.80 ex VAT £5.76 inc VAT
A4148

Pressed Shackle

 1000 - 9 16 9 - 9
£6.41 ex VAT £7.69 inc VAT
ex VAT £0.00 inc VAT £6.41 ex VAT £7.69 inc VAT
A4348

Pressed Shackle

 1000 - 13 14 13 - 5
£6.41 ex VAT £7.69 inc VAT
ex VAT £0.00 inc VAT £6.41 ex VAT £7.69 inc VAT
A4428

Pressed Shackle

 1000 - 16 - 16 - 9
£7.08 ex VAT £8.50 inc VAT
ex VAT £0.00 inc VAT £7.08 ex VAT £8.50 inc VAT
A4929

Pressed Shackle with 5mm Clevis Pin

 300 - 11 9 11 - 5
£4.97 ex VAT £5.96 inc VAT
ex VAT £0.00 inc VAT £4.97 ex VAT £5.96 inc VAT
