A2020P

Plain Bearing Single

Plain Bearing Single

£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 448 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

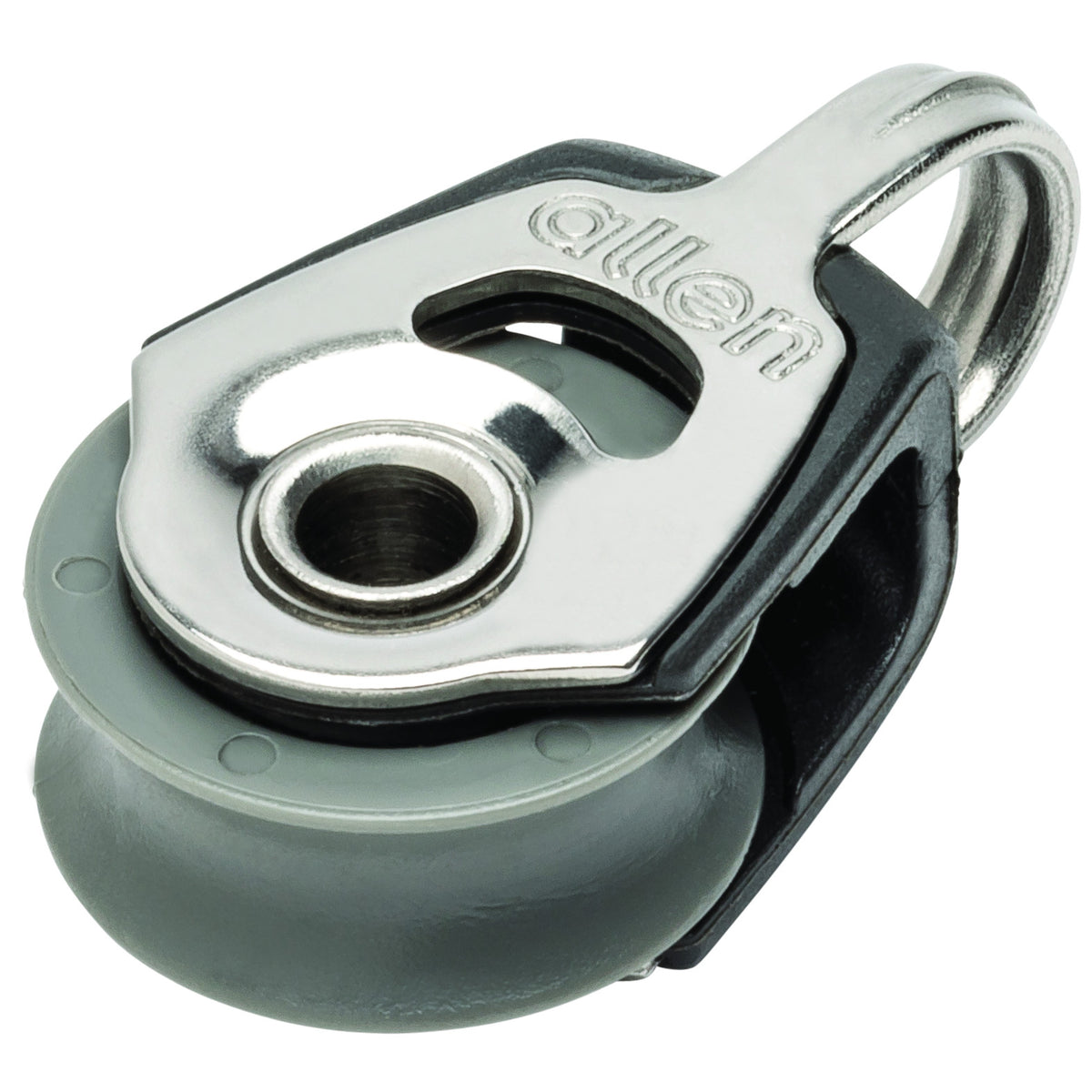

20mm Plain Bearing Single Block

The A2020P is our block of choice for applications which require a lightweight, budget friendly pulley.

Plain bearing blocks are the ideal choice for take-up systems or systems which do not require friction reduction.

For ultimate performance, we suggest using the Dynamic block range instead.

This plain bearing block is made from recycled plastics.

Plain Bearing
– The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.

Ultra-Strap
– A stainless steel strap which holds the block together and provides a strong, reliable and rope friendly attachment point.

Becket
– The hole through the middle of the block can be used as a tying off point (becket).

Accessories None
Bearing type Plain
Brand Allen
Breaking load kg 540
Configuration Single
Height mm 12
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2020p.igs
Length mm 37
Maximum line diameter mm 6
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a2020p-ref.pdf
Related collection CollectionDrop
Sheave diameter mm 20
Width mm 20
Swipe
SKU Title Breaking Load Kg Hole Pitch mm Length mm Max Line Dia mm Weight (g) Price
AB1476

20mm Brass Back To Back Block

 - - - - -
£22.99 ex VAT £27.59 inc VAT
ex VAT £0.00 inc VAT £22.99 ex VAT £27.59 inc VAT
A2122HL

20mm Double High Load Through Deck Block

 350 63 75 6 33
£73.55 ex VAT £88.26 inc VAT
ex VAT £0.00 inc VAT £73.55 ex VAT £88.26 inc VAT
A2121HL

20mm Single High Load Through Deck Block

 400 42 54 6 18
£42.89 ex VAT £51.47 inc VAT
ex VAT £0.00 inc VAT £42.89 ex VAT £51.47 inc VAT
AB1342

Brass Sheaved Plain Bearing

 540 - 37 6 -
£9.63 ex VAT £11.56 inc VAT
ex VAT £0.00 inc VAT £9.63 ex VAT £11.56 inc VAT
A2020PSC

Plain Bearing Block With Swivel

 350 - 53 6 18
£22.72 ex VAT £27.26 inc VAT
ex VAT £0.00 inc VAT £22.72 ex VAT £27.26 inc VAT
A2026P

Plain Bearing Cheek Block

 350 - 45 6 14
£13.36 ex VAT £16.03 inc VAT
ex VAT £0.00 inc VAT £13.36 ex VAT £16.03 inc VAT
A2022P

Plain Bearing Double Block

 500 - 47.6 6 27
£22.79 ex VAT £27.35 inc VAT
ex VAT £0.00 inc VAT £22.79 ex VAT £27.35 inc VAT
A2023P

Plain Bearing Double Block With Becket

 500 - 25 6 32
£24.00 ex VAT £28.80 inc VAT
ex VAT £0.00 inc VAT £24.00 ex VAT £28.80 inc VAT
A2122P

Plain Bearing Double Through Deck Block

 350 63 75 6 18
£26.33 ex VAT £31.60 inc VAT
ex VAT £0.00 inc VAT £26.33 ex VAT £31.60 inc VAT
A2022PSHK

Plain Bearing Double With Swivel Hook

 500 - 57.7 6 32
£40.80 ex VAT £48.96 inc VAT
ex VAT £0.00 inc VAT £40.80 ex VAT £48.96 inc VAT
A2021P

Plain Bearing Multi-Function Single

 350 - 35 6 9
£8.24 ex VAT £9.89 inc VAT
ex VAT £0.00 inc VAT £8.24 ex VAT £9.89 inc VAT
A2020P

Plain Bearing Single

 540 - 37 6 9
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A2021PHK

Plain Bearing Single Block With Hook

 165 - 65.5 6 18
£13.79 ex VAT £16.55 inc VAT
ex VAT £0.00 inc VAT £13.79 ex VAT £16.55 inc VAT
A2020P-4036

Plain Bearing Single With Lacing Eye

 540 - 52 6 14
£12.04 ex VAT £14.45 inc VAT
ex VAT £0.00 inc VAT £12.04 ex VAT £14.45 inc VAT
A2020P-4035

Plain Bearing Single With P-Clip

 540 - 62.4 6 14
£10.77 ex VAT £12.92 inc VAT
ex VAT £0.00 inc VAT £10.77 ex VAT £12.92 inc VAT
A2020PSHK

Plain Bearing Single With Swivel Hook

 350 - 57.7 6 18
£22.05 ex VAT £26.46 inc VAT
ex VAT £0.00 inc VAT £22.05 ex VAT £26.46 inc VAT
A2020PLZ

Plain Bearing Stand Up Block

 540 - 43 6 14
£14.96 ex VAT £17.95 inc VAT
ex VAT £0.00 inc VAT £14.96 ex VAT £17.95 inc VAT
A2020PTi3

Plain Bearing Ti3-On

 540 - 29 6 9
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A2020PTII

Plain Bearing Tii-On

 540 - 29 6 9
£6.75 ex VAT £8.10 inc VAT
ex VAT £0.00 inc VAT £6.75 ex VAT £8.10 inc VAT
A2024P

Plain Bearing Triple Block

 650 - 50.1 6 45
£33.09 ex VAT £39.71 inc VAT
ex VAT £0.00 inc VAT £33.09 ex VAT £39.71 inc VAT
A2025P

Plain Bearing Triple Block With Becket

 650 - 66 6 50
£36.62 ex VAT £43.94 inc VAT
ex VAT £0.00 inc VAT £36.62 ex VAT £43.94 inc VAT
A2121P

Through Deck Single

 400 42 54 6 9
£19.28 ex VAT £23.14 inc VAT
ex VAT £0.00 inc VAT £19.28 ex VAT £23.14 inc VAT
