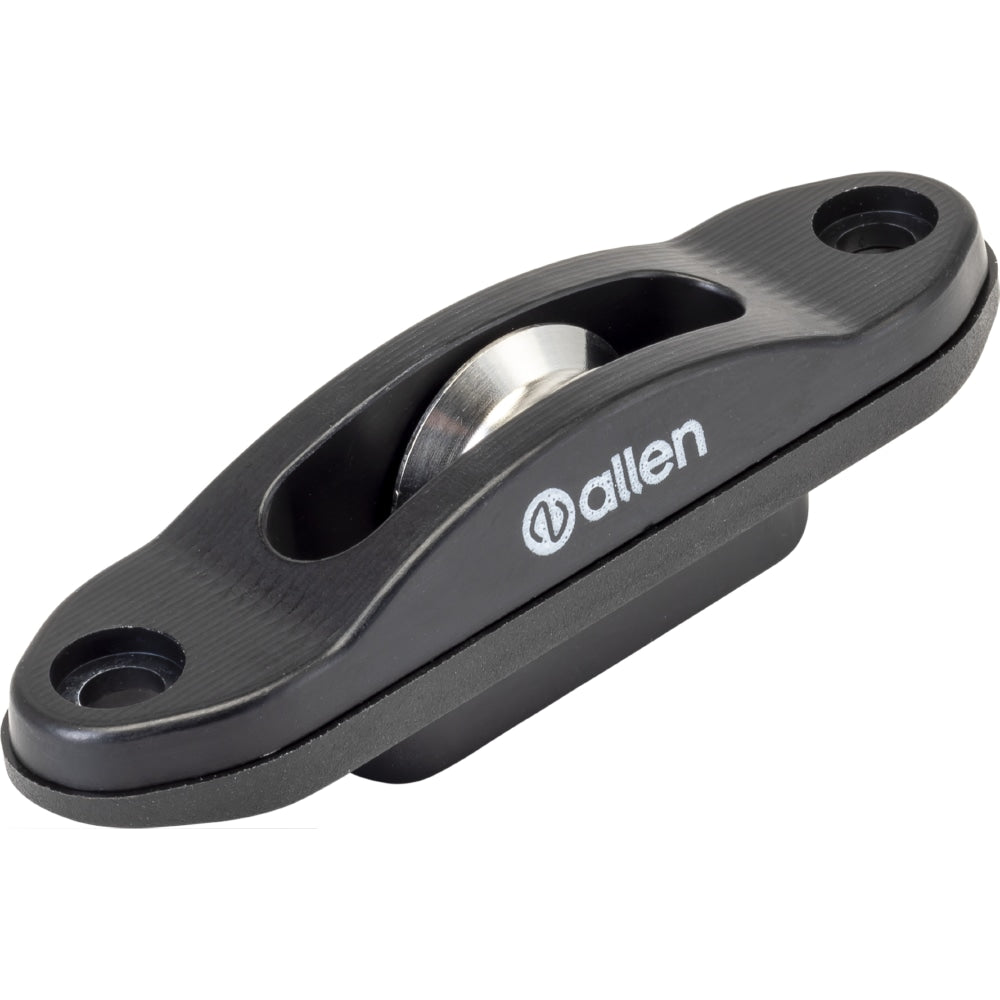

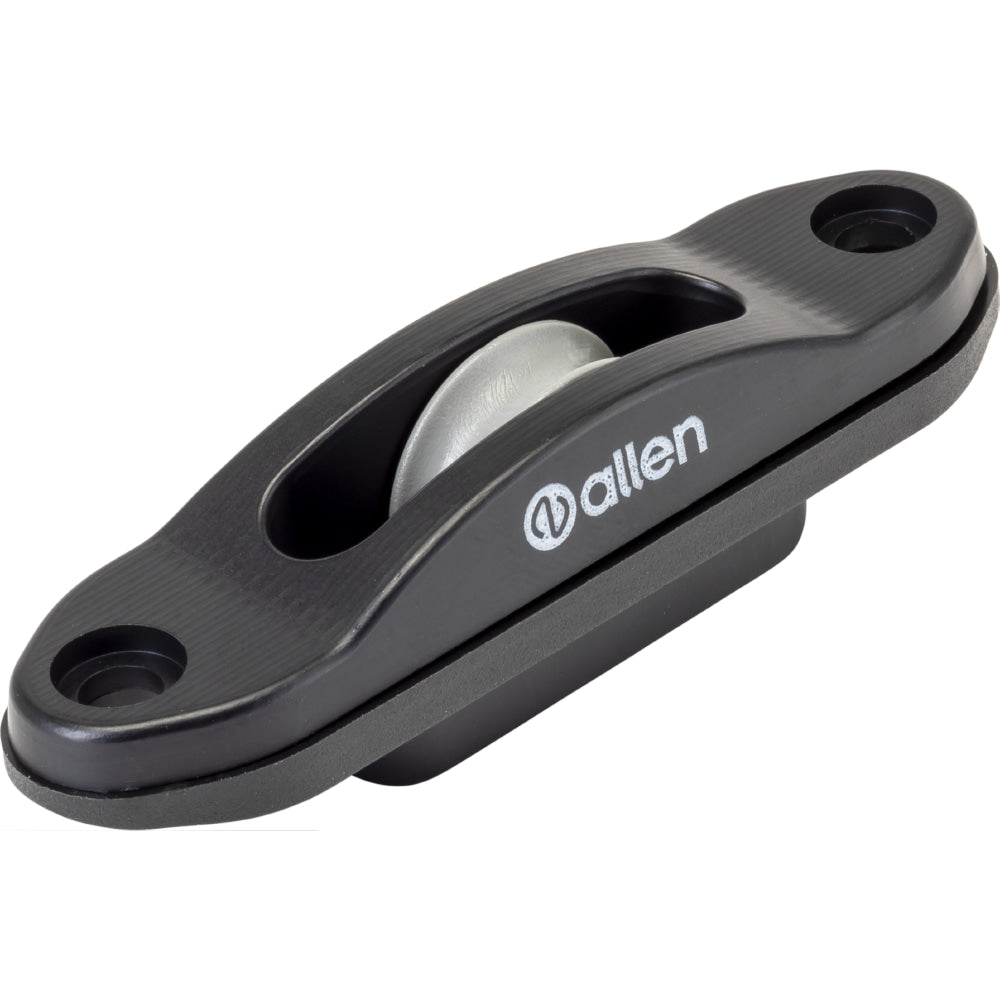

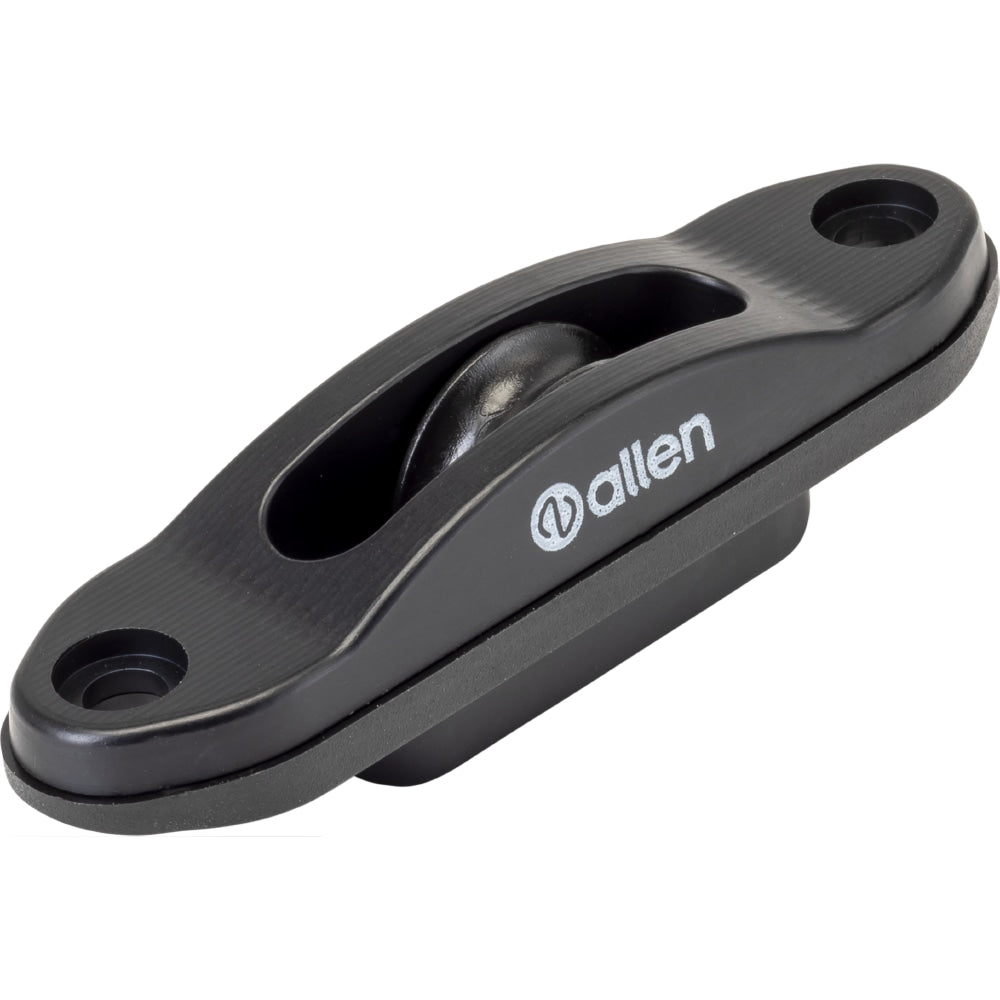

20mm Exit Sheave Box

Designed to improve the efficiency and durability of rigging systems, this 20mm Exit Sheave Box provides smooth and reliable rope or wire routing for masts, decks, and other marine applications. Manufactured from CNC-machined marine-grade aluminium, it features a removable axle pin for simple maintenance or sheave replacement, with a curved backing plate included for mounting to the leading edge of a mast.

Available with a choice of sheave options, the design helps minimise wear on halyards, extending rope life while ensuring efficient performance.

Key Features:

  • CNC-machined marine-grade aluminium body
  • Removable axle pin for easy maintenance
  • Includes curved backing plate for mast mounting
  • Suitable for rope and wire applications
  • Optimised design to reduce halyard wear
  • Corrosion-resistant construction
  • Ideal for masts, decks, and other marine installations

Sheave Options:

  • Acetal Plain Bearing: Lightweight, low-maintenance option suitable for working loads up to 200kg. Compatible with rope and wire.
  • Dynamic Bearing: Features patented Dynamic Bearing Technology for exceptionally low friction and smooth operation. Ideal for fast-running systems with working loads up to 105kg. Best suited to rope applications.
  • Stainless Steel Plain Bearing: Heavy-duty option designed for highly statically loaded applications, with working loads up to 250kg. Compatible with rope and wire.
Brand Allen
Breaking load kg 500
Fixing hole diameter mm 5
Height mm 19
Hole pitch mm 62
Iges GenericFileDrop
Length mm 77
Maximum line diameter mm 6
Maximum working load kg 250
Pdf GenericFileDrop
Related collection CollectionDrop
Sheave diameter mm 20
Sheave material Acetal
Sheave width mm 8
Slot size mm 42 x 15
Width mm 15.2
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Fixing Hole Dia mm Max Line Dia mm Length mm Sheave Dia mm Sheave Width mm Slot Size mm Weight (g) Price
A4420-4215-AP

20mm Exit Sheave Box

 500 250 62 5 6 77 20 8 42 x 15 27
From £36.08 ex VAT £43.30 inc VAT
ex VAT £0.00 inc VAT From £36.08 ex VAT £43.30 inc VAT
A4430-4716-AP

30mm Exit Sheave Box

 600 300 60 5.2 8 75 30 10 47 x 16 36
From £40.59 ex VAT £48.71 inc VAT
ex VAT £0.00 inc VAT From £40.59 ex VAT £48.71 inc VAT
A4438-5818-AP

38mm Exit Sheave Box

 900 600 76 5 8 90 38 11 58 x 18 73
From £45.12 ex VAT £54.14 inc VAT
ex VAT £0.00 inc VAT From £45.12 ex VAT £54.14 inc VAT
A4438-5415-AP

Wire Exit Sheave Box

 900 600 72 5 7 86 38 7 54 x 15 59
From £45.12 ex VAT £54.14 inc VAT
ex VAT £0.00 inc VAT From £45.12 ex VAT £54.14 inc VAT
