40mm Dynamic Flip Flop Block

40mm Dynamic Flip Flop Block

£53.59 ex VAT £64.31 inc VAT
ex VAT £0.00 inc VAT £53.59 ex VAT £64.31 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 24 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details

Description

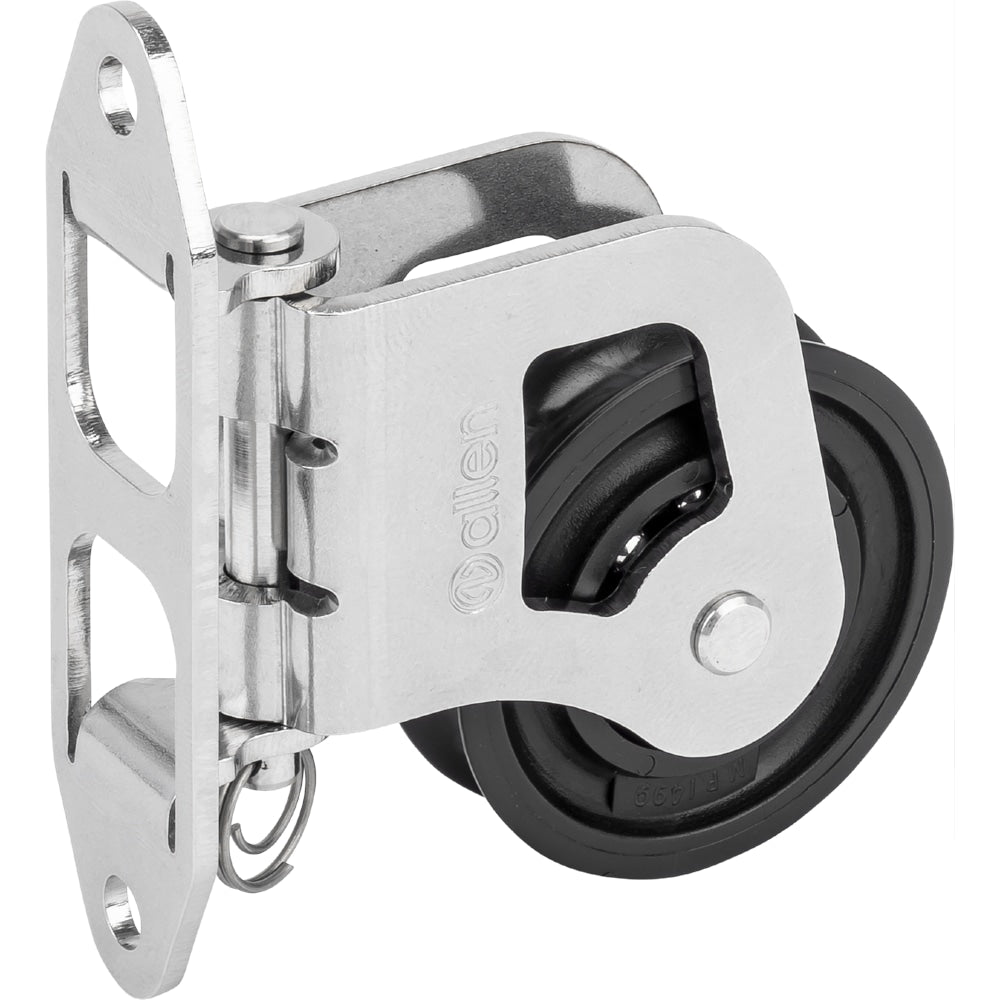

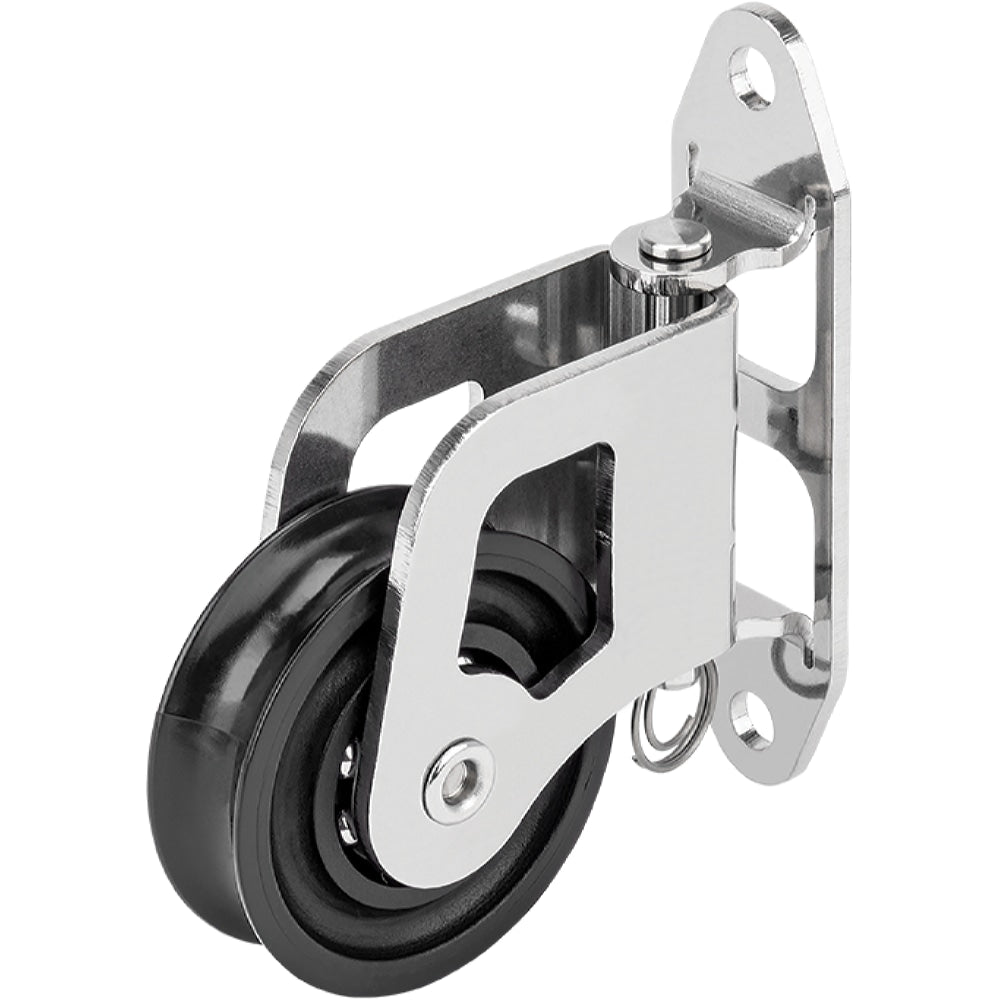

40mm Dynamic Flip Flop Block

Flip Flop Blocks are designed to pivot around a central fixing point, keeping the rope close to the deck, mast or boom while still allowing the block to articulate to the correct lead angle. This helps minimise friction while guiding the rope efficiently.

Manufactured from laser-cut stainless steel, the body and backing plate are produced to precise tolerances, ensuring consistent quality, maximum strength and a compact design.

Dynamic Bearing Sheave

The sheave features Allen's Dynamic Bearing technology, using twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides superior load-carrying capability and longevity compared to bearing systems that run on plastic rails.

Removable Design

A clevis pin connects the main Flip Flop body to the backing plate and serves as the pivot point. Removing the pin separates the body from the backing plate, allowing easier installation and enabling the body to be fitted either way up.

Compatible Mounting

The backing plate features fixing hole centres of 60.3mm, making the range easily interchangeable with existing products on the market.

Applications

Ideal for:

  • Halyards
  • Spinnaker sheet turning points
  • Sheet leads
  • Backstay systems

Technical Drawing

Click the PDF above to view the full detailed dimensions.

Accessories None
Brand Allen
Fixing hole diameter mm 5
Hole pitch mm 60.3
Maximum line diameter mm 10
Maximum working load kg 150
Related collection CollectionDrop
Sheave diameter mm 40
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Fixing Hole Dia mm Hole Pitch mm Max Line Dia mm Sheave Dia mm Weight (g) Price
A2123

20mm Dynamic Flip Flop Block

 350 105 4 16 5 20 18
£41.90 ex VAT £50.28 inc VAT
ex VAT £0.00 inc VAT £41.90 ex VAT £50.28 inc VAT
A2123-677

20mm Dynamic Flip Flop Block - Allenite Cam Cleat

 350 80 4 16 5 20 77
£61.86 ex VAT £74.23 inc VAT
ex VAT £0.00 inc VAT £61.86 ex VAT £74.23 inc VAT
A2123-77

20mm Dynamic Flip Flop Block - Aluminium Cam Cleat

 350 100 4 16 5 20 86
£83.78 ex VAT £100.54 inc VAT
ex VAT £0.00 inc VAT £83.78 ex VAT £100.54 inc VAT
A2133

30mm Dynamic Flip Flop Block

 700 140 5 20 8 30 54
£44.31 ex VAT £53.17 inc VAT
ex VAT £0.00 inc VAT £44.31 ex VAT £53.17 inc VAT
A2133-677

30mm Dynamic Flip Flop Block - Allenite Cam Cleat

 700 140 5 20 8 30 118
£62.49 ex VAT £74.99 inc VAT
ex VAT £0.00 inc VAT £62.49 ex VAT £74.99 inc VAT
A2133-77

30mm Dynamic Flip Flop Block - Aluminium Cam Cleat

 700 140 5 20 8 30 127
£84.42 ex VAT £101.30 inc VAT
ex VAT £0.00 inc VAT £84.42 ex VAT £101.30 inc VAT
A4988X

30mm Dynamic Lightweight Flip Flop Block - Removable Sheave

 170 100 5 85 6 30 109
£53.84 ex VAT £64.61 inc VAT
ex VAT £0.00 inc VAT £53.84 ex VAT £64.61 inc VAT
A2143

40mm Dynamic Flip Flop Block

 - 150 5 60.3 10 40 77
£53.59 ex VAT £64.31 inc VAT
ex VAT £0.00 inc VAT £53.59 ex VAT £64.31 inc VAT
A2143-676

40mm Dynamic Flip Flop Block - Allenite Cam Cleat

 800 130 5 60.3 10 40 209
£76.57 ex VAT £91.88 inc VAT
ex VAT £0.00 inc VAT £76.57 ex VAT £91.88 inc VAT
A2143-76

40mm Dynamic Flip Flop Block - Aluminium Cam Cleat

 800 150 5 60.3 10 40 254
£94.37 ex VAT £113.24 inc VAT
ex VAT £0.00 inc VAT £94.37 ex VAT £113.24 inc VAT
