A2022SC

20mm Double Dynamic Block - Swivel

20mm Double Dynamic Block - Swivel

£45.85 ex VAT £55.02 inc VAT
ex VAT £0.00 inc VAT £45.85 ex VAT £55.02 inc VAT
Sale Sold out
Shipping calculated at checkout.

In stock - 25 units(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

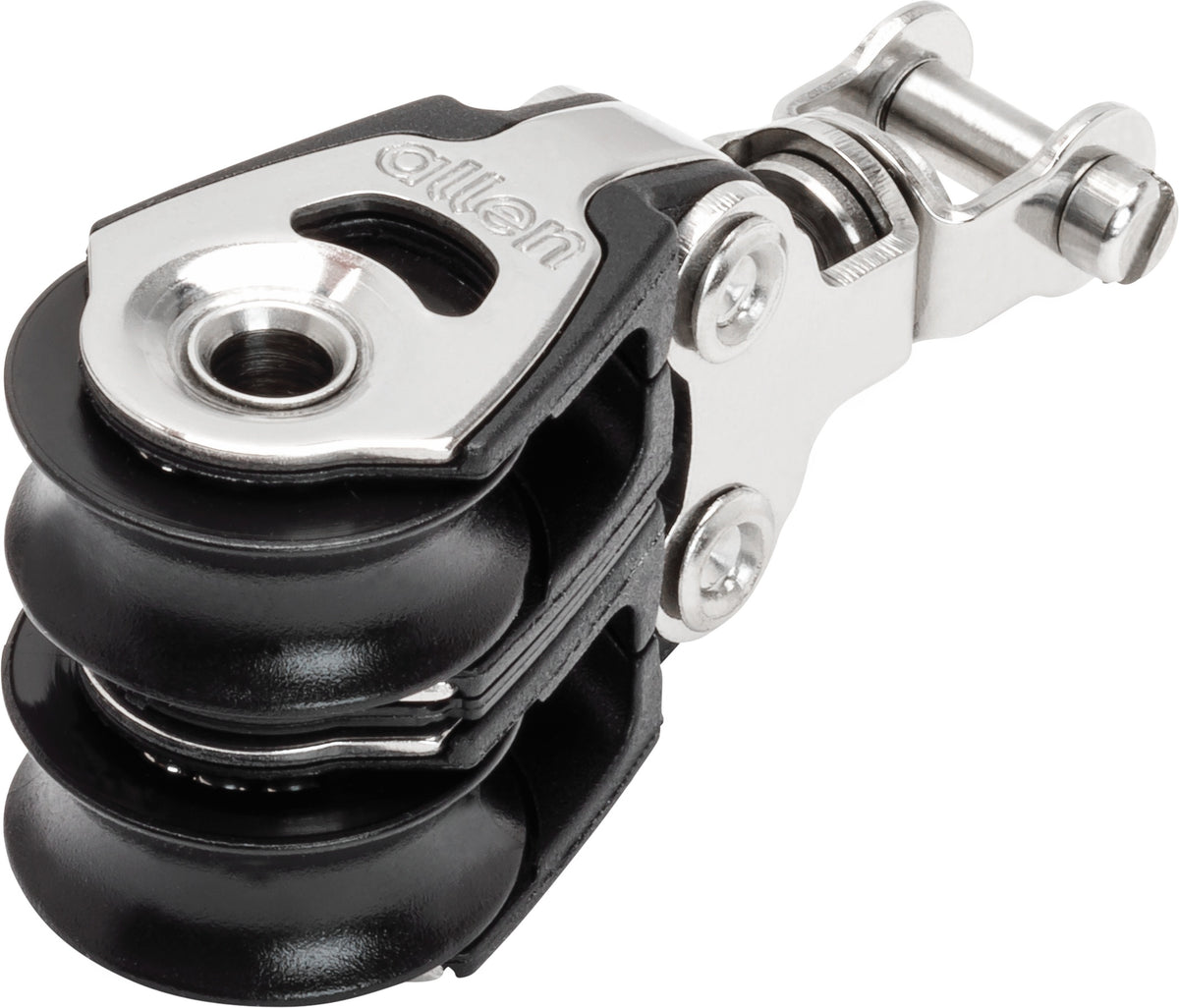

20mm Double Dynamic Block with Swivel Head

The 20mm Double Dynamic Block with Swivel Head offers low friction, fast rolling speeds, and exceptional strength in a lightweight package. Ideal for dinghies, windsurfers, kitesurfers, and other applications using small-diameter lines.

Part of our Dynamic Block range, it is the preferred choice for systems that require constant sheave movement and maximum efficiency.

Swivel Head

  • Fork head swivel allows the block to rotate freely under load
  • Ideal where pulling forces change direction
  • Swivel cannot be locked

Dynamic Bearings

  • Patented bearing system with twin rows of stainless steel ball bearings
  • Stainless steel bearing race for superior load capacity and longevity
  • Smoother and more durable than plastic race bearing systems

Integrated Becket

  • Large central rivet reduces overall weight
  • Rope-friendly attachment point
  • Ideal as a tie-off point in cascade systems
Accessories Swivel, Fork
Bearing type Dynamic
Brand Allen
Breaking load kg 350
Configuration Double
Height mm 12
Iges GenericFileDrop
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2022sc.igs
Length mm 56
Maximum line diameter mm 6
Maximum working load kg 225
Pdf GenericFileDrop
Pdf ref link https://abassets.ams3.digitaloceanspaces.com/product_files/a2022sc-ref.pdf
Pin size mm 4
Related collection CollectionDrop
Sheave diameter mm 20
Short description Double With Swivel
Width mm 20
