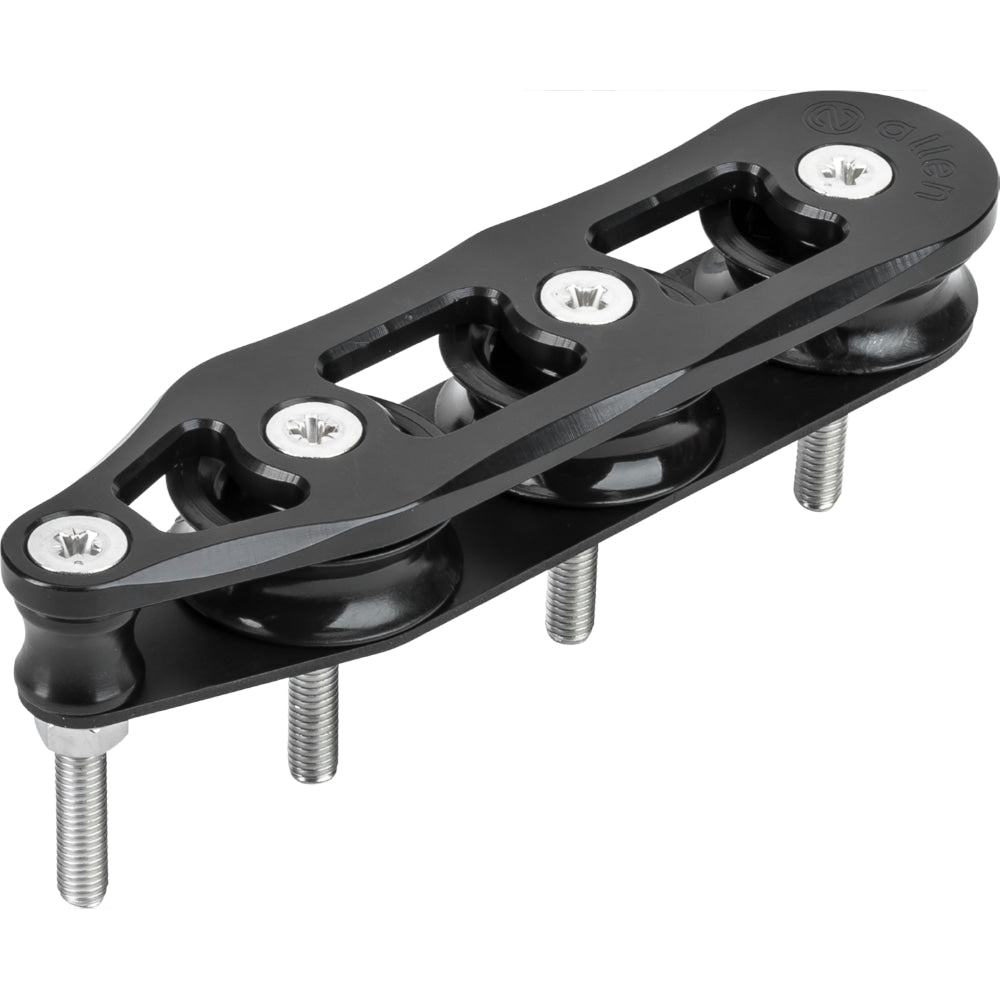

30mm Triple Plain Bearing Deck Organiser

30mm Triple Plain Bearing Deck Organiser

Designed for leading control lines and halyards along a deck or coach roof.

The cheeks are made from marine-grade aluminium and anodised black.

Includes four bolts, nuts and washers.

The non-sheave column can be used as a becket.

Easily stacked to create a double-height deck organiser. When stacked, the upper organiser is rated to two-thirds of the maximum working and breaking load.

Plain Bearing

The sheaves run on a central stainless-steel bush, making them ideal for high static-load applications commonly found in yacht halyard systems. Plain Bearing sheaves are recommended for any system that is subject to winching.

Load Rating

The Plain Bearing Deck Organiser range is rated based on a 30-degree turning angle around the sheave. A 30-degree turn on a sheave results in a load factor of 50% of the line load.

Key Features

• Three Plain Bearing sheaves
• Lightweight and easy to install
• Stackable design
• Suitable for boats up to 30ft
• Stylish and sleek appearance

Typical Applications

• Guiding halyards along a coach roof to clutches, cleats and winches
• Diverting control lines around corners, above or below deck
• Underdeck take-up systems
• Redirecting a halyard, sheet or control line to achieve the correct lead angle into a winch or cleat

Technical Drawing

Click the PDF above to view detailed dimensions.
