60mm Quint Dynamic Block - Becket

60mm Quint Dynamic Block - Becket

£236.98 ex VAT £284.38 inc VAT
ex VAT £0.00 inc VAT £236.98 ex VAT £284.38 inc VAT
Sale Sold out
Shipping calculated at checkout.

Low stock - 4 left(Can be backordered)

Require larger quantities? Contact us

Stockists

Delivery

Fast UK delivery from £4.50 or FREE when spending over £100.
More Info

View full details
Product Datasheet Download Product Datasheet Download

Description

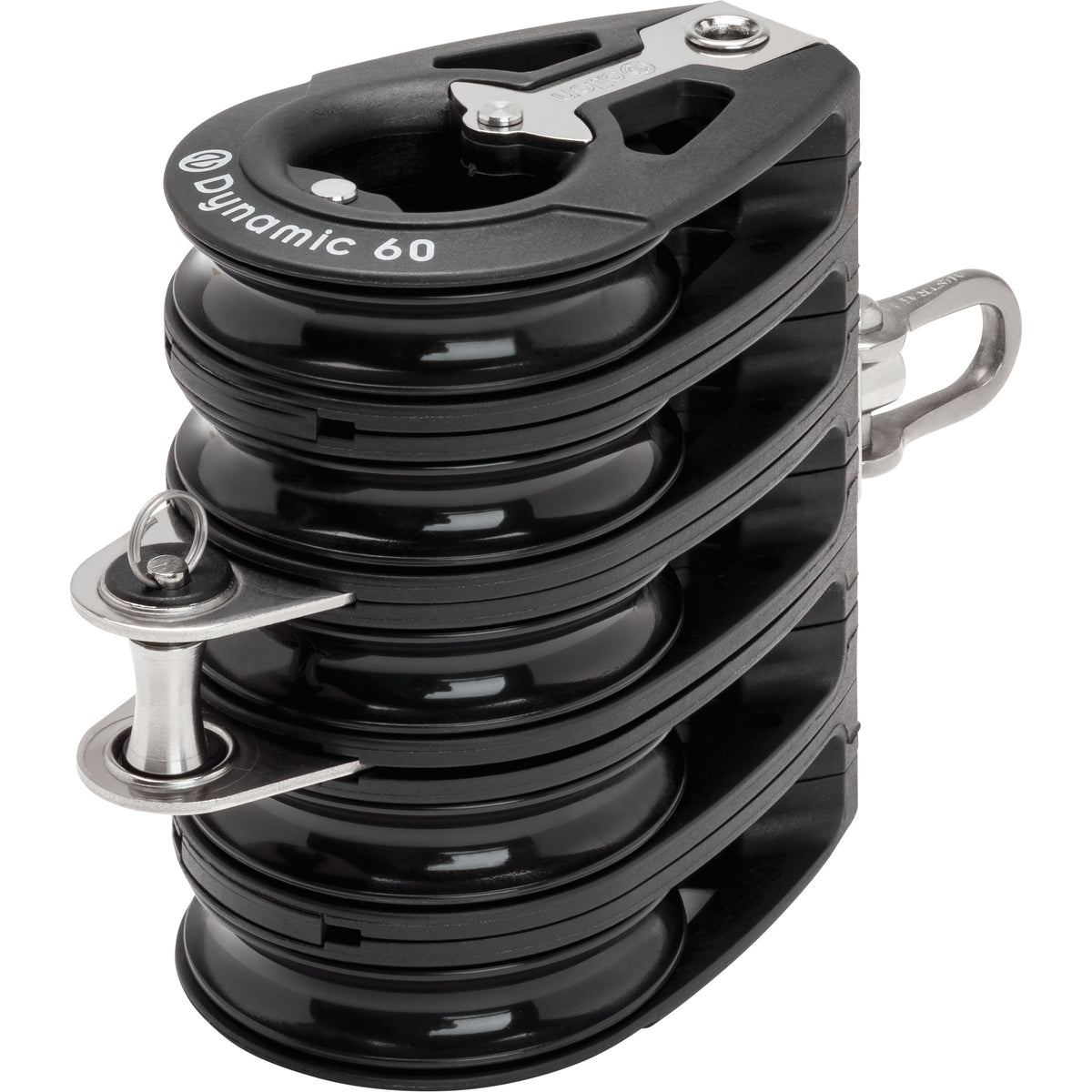

60mm Quint Dynamic Block with Becket.

Designed for use as a low-friction mainsheet system on sports catamarans, but suitable for many other applications, including backstay tensioning on keelboats.

For a complete 11:1 or 12:1 mainsheet system, you will need:

  • A2169 - Pro-Ratchet 60mm Quint Block.
  • A20401S - 40mm Dynamic Single Block With Strap.

Bearings: Dynamic Blocks feature our patented bearing system, which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.

Swivel Lock: The A2069B comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.

Becket: This pulley features a central becket between the sheaves. The becket can be removed by undoing the split ring. This allows for easy termination of a spliced rope or the addition of another block to increase the purchase system.

Bearing type Dynamic
Brand Allen
Breaking load kg 1250
Configuration Quint
Iges file link https://abassets.ams3.digitaloceanspaces.com/iges/a2069b.igs
Length mm 150
Maximum line diameter mm 12
Maximum working load kg 600
Pdf GenericFileDrop
Pdf ref link https://www.allenbrothers.co.uk/wp-content/uploads/2018/09/a2069b-ref-2.pdf
Pin size mm 6
Related collection CollectionDrop
Sheave diameter mm 60
Short description Designed for use as a low-friction mainsheet system on sports catamarans, but suitable for many other applications, including backstay tensioning on keelboats.
Youtube key 1 D1ZymgQ3Bj0
Youtube key 2 sf2xV5dNm7k
Swipe
SKU Title Breaking Load Kg Max Working Load Kg Hole Pitch mm Length mm Max Line Dia mm Pin Size mm Weight (g) Price
A2166

60mm Block Cheek Adaptor

 - - 60 115 - - -
£6.49 ex VAT £7.79 inc VAT
ex VAT £0.00 inc VAT £6.49 ex VAT £7.79 inc VAT
A2062

60mm Double Dynamic Block

 1250 600 - 130 12 5 254
£114.04 ex VAT £136.85 inc VAT
ex VAT £0.00 inc VAT £114.04 ex VAT £136.85 inc VAT
A2063

60mm Double Dynamic Block - Becket

 1250 600 - 148 12 5 272
£119.42 ex VAT £143.30 inc VAT
ex VAT £0.00 inc VAT £119.42 ex VAT £143.30 inc VAT
A2066

60mm Quad Dynamic Block

 1250 600 - 130 12 5 445
£200.99 ex VAT £241.19 inc VAT
ex VAT £0.00 inc VAT £200.99 ex VAT £241.19 inc VAT
A2067

60mm Quad Dynamic Block - Becket

 1250 600 - 148 12 5 458
£206.40 ex VAT £247.68 inc VAT
ex VAT £0.00 inc VAT £206.40 ex VAT £247.68 inc VAT
A2069

60mm Quint Dynamic Block

 1250 600 - 130 12 5 549
£231.68 ex VAT £278.02 inc VAT
ex VAT £0.00 inc VAT £231.68 ex VAT £278.02 inc VAT
A2069B

60mm Quint Dynamic Block - Becket

 1250 600 - 150 12 6 553
£236.98 ex VAT £284.38 inc VAT
ex VAT £0.00 inc VAT £236.98 ex VAT £284.38 inc VAT
A2060

60mm Single Dynamic Block

 1000 500 - 118 12 5 127
£55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT £55.10 ex VAT £66.12 inc VAT
A2060C

60mm Single Dynamic Block - Cheek

 1000 500 60 115 12 5 150
£61.60 ex VAT £73.92 inc VAT
ex VAT £0.00 inc VAT £61.60 ex VAT £73.92 inc VAT
A2060Tii

60mm Single Dynamic Block - Tii-On

 1400 700 - 84.1 10 - 91
From £55.10 ex VAT £66.12 inc VAT
ex VAT £0.00 inc VAT From £55.10 ex VAT £66.12 inc VAT
A2064

60mm Triple Dynamic Block

 1250 600 - 130 12 5 354
£154.97 ex VAT £185.96 inc VAT
ex VAT £0.00 inc VAT £154.97 ex VAT £185.96 inc VAT
A2065

60mm Triple Dynamic Block - Becket

 1250 600 - 148 12 5 399
£160.38 ex VAT £192.46 inc VAT
ex VAT £0.00 inc VAT £160.38 ex VAT £192.46 inc VAT
