Name: Single With Fiddle, Cleat and Hook
SKU: A2039-CAM-LDC
Price: 79.91 GBP
Availability: InStock

A2039-CAM-LDC

£95.89

35 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.

SKU: A2039-CAM-LDC Category: 30mm dynamic blocks

Description

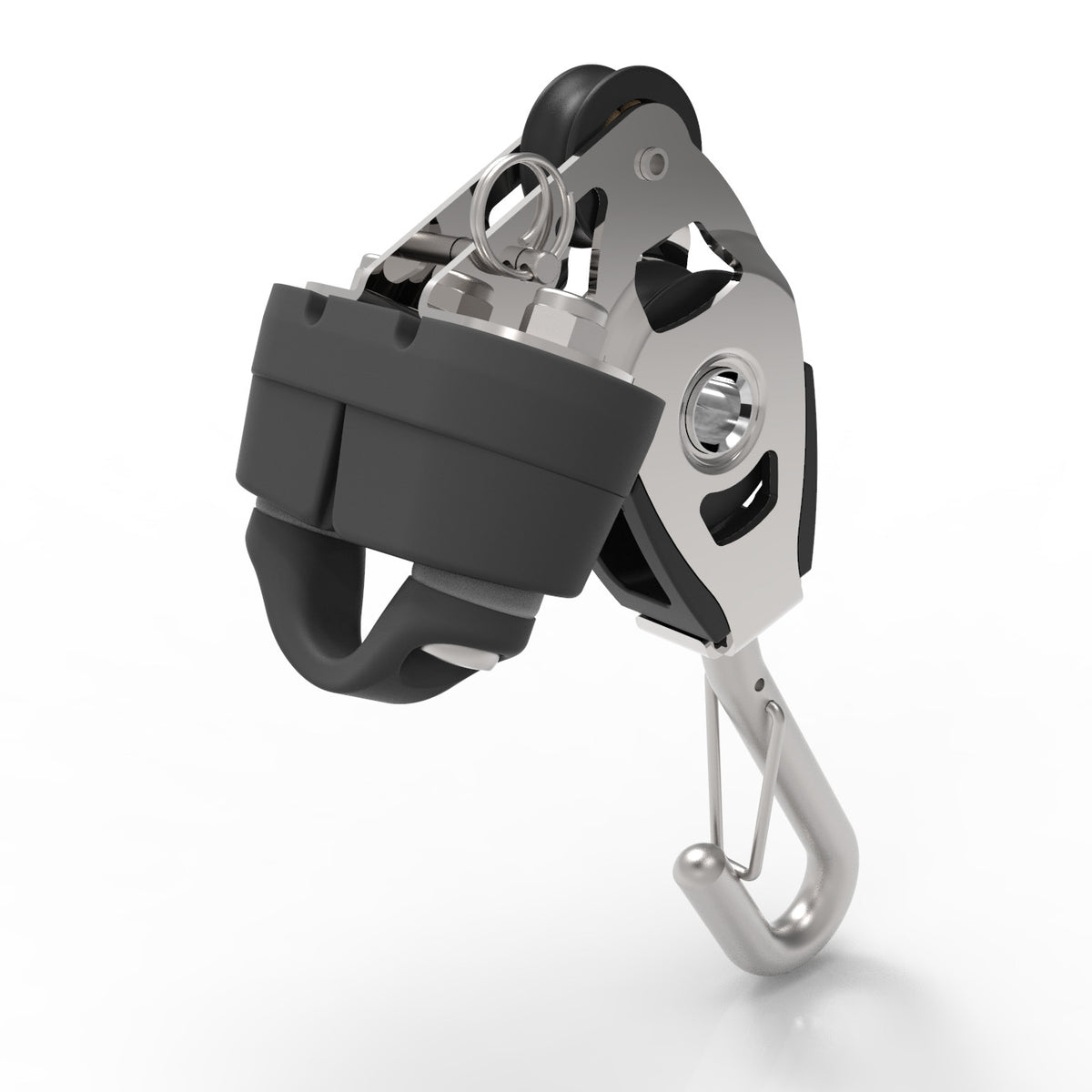

30mm Single Dynamic Block With Fiddle, Cleat, Hook And Becket.

This block is great for lightweight vang systems and was originally developed for the RS Feva lower vang system.

A.677 Cam Cleat – This block features an allenite cam cleat with over fairlead. Click here for cleat details .

Swivel Hook Head – A built-in hook and swivel allows this block to swivel once attached. ideal for applications where the pulling forces may change direction. The swivel cannot be locked.

Bearings – Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

Fiddle – The fiddle is a secondary smaller sheave which can be used to create an inline purchase system for a smaller lower loaded application. The fiddle features ball bearings.

Becket – This block features a removable clevis pin which can be utilised as a becket (tieing off point).

Reviews

There are no reviews yet.

Be the first to review “Single With Fiddle, Cleat and Hook”

You must be logged in to post a review.

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Single With Fiddle, Cleat and Hook

SKUx	Title	breaking load kg	fixing hole centres mm	maximum line diameter mm	maximum working load kg	shackle pin mm	Length mm	Weight g	Price
A2030	Single	750	-	8	140	-	49	26	£16.48
A2030F	Single Fork Head With Removable Pin	450	-	8	140	5	56	31	£21.79
A2030F-873	Single Fork Head With Kicker Key	450	-	8	140	5	77	40	£29.28
A2030HL	Single High Load - Stainless Steel Sheave	800	-	8	300	-	49	39	£38.65
A2030HLF	Single Fork Head With High Load Sheave	750	-	8	300	5	56	43	£43.98
A2030HLF-873	Single High Load Dynamic Fork Head With SA.873	750	-	8	300	5	77	52	£51.46
A2030LZ	Single Stand-Up Fixed	500	34	8	140	-	59	30.2	£25.10
A2030R2	Two Singles On Ring	750	-	8	140	-	0	82.5	£38.53
A2030R3	Three Singles On Ring	750	-	8	140	-	0	108.5	£57.55
A2030SC	30mm Block w/Swivel	450	-	8	140	4	67.97	36	£41.68
A2030SHK	Single With Swivel Hook	450	-	8	140	-	70	35	£40.79
A2030Tii-	Single Tii-On	750	-	8	140	-	42	24	£16.48
A2030TiiHL-	Single Tii-On With High Load Sheave	800	-	8	300	-	41	37	£38.65
A2030XHL	30mm Extreme High Load Block	1250	-	8	500	-	43	41	£150.55
A2031	Single Multi Function	500	-	8	140	4	47	28	£14.92
A2031F	Single With Fork	450	-	8	140	4	59	36	£21.79
A2031SC	Singe With Swivel Fork	400	-	8	140	4	63	37	£31.60
A2031XHL-873-	30mm Extreme High Load Block With SA.873	1000	-	8	500	-	48	55	£158.00
A2032	Double	1250	-	8	280	-	63	72	£45.40
A2032A	Articulating Double	1250	-	8	280	-	63	61.6	£47.89
A2032HL	Double High Load	1250	-	8	450	-	63	87	£89.72
A2032Tii-	Double Tii-on Block	1100	-	8	280	-	41.5	48	£46.60
A2032TiiHL	Double Tii-On Block With High Load Sheave	1100	-	8	300	-	41.5	60	£90.92
A2033	Double With Becket	1250	-	8	280	-	76	77	£47.15
A2034	Triple	1750	-	8	490	-	63	103	£59.39
A2034-676	Triple With Inverted Cleat	1750	-	8	490	-	65	193	£116.81
A2034A	Articulating Triple	1750	-	8	490	-	63	82.2	£61.90
A2034HL	Triple High Load	1750	-	8	650	-	63	132	£125.89
A2035	Triple With Becket	1750	-	8	420	-	83	114	£69.44
A2035-676	Triple With Becket And Inverted Cleat	1750	-	8	490	-	83	200	£126.83
A2036	Single Cheek Block	500	-	8	140	4	59	35	£23.87
A2036-PROFIX	Cheek Adaptor For A2031	-	-	-	3.8	-	0	6	£12.83
A2036M	Single Composite Cheek	400	30	8	140	-	50	24	£16.93
A2036MHL	Single Compostie Cheek Block With High Load Sheave	400	30	8	300	-	50	37	£31.69
A2037	Triple With Cleat & Becket	1750	-	8	490	-	83	208	£126.83
A2038	Back To Back	750	-	8	140	-	78	49	£50.18
A2038HL	High Load Back To Back	750	-	8	600	-	78	76	£94.60
A2039	Linked Singles	750	-	8	140	-	94	52	£34.91
A2039-CAM	Single With Fiddle And Cleat	600	-	8	140	4	89.31	86.2	£107.56
A2039-CAM-LDC	Single With Fiddle, Cleat and Hook	600	-	8	140	-	100	86	£95.89
A2039FIDDLE	Single With Fiddle	600	-	8	140	4	89.3	47	£85.49
A2131	Single Through Deck	500	60	8	140	-	47	25.6	£33.42
A2131HL	Single Through Deck Block With Steel Sheave	500	60	8	-	-	74	25.6	£55.61
A2132	Double Through Deck	500	90	8	140	-	77	45	£50.15
A2132HL	Double Through Deck Block	500	90	8	-	-	77	-	£94.50
A2134	Upstand Block	600	28.6	8	140	-	39	34.6	£37.45
A2136M	Double Composite Cheek	400	30	8	280	-	50	36.6	£37.25
A2136MHL	Double Composite Cheek Block With High Load Sheave	400	30	8	300	-	50	57.6	£66.78
A4101	Upstand Block	850	25	8	140	-	45	57	£37.45
A4111	Double Upstand Block	850	47 x 25	8	140	-	45	46	£66.47
A4978	Flip Flop	700	-	8	140	-	63	58	£38.45
A9030	TiiTAN Block	1250	-	8	500	-	40.64	28	£197.42
A9031-873	TiiTAN ILCA Vang Block	1000	-	8	500	5	68.8	43	£203.99
