Range / Blocks / 60mm dynamic blocks

Single Tii-On

A2060TII-

£60.90£73.67


By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists
SKU: A2060TII- Category:

Description

60mm Single Tii-On Block.

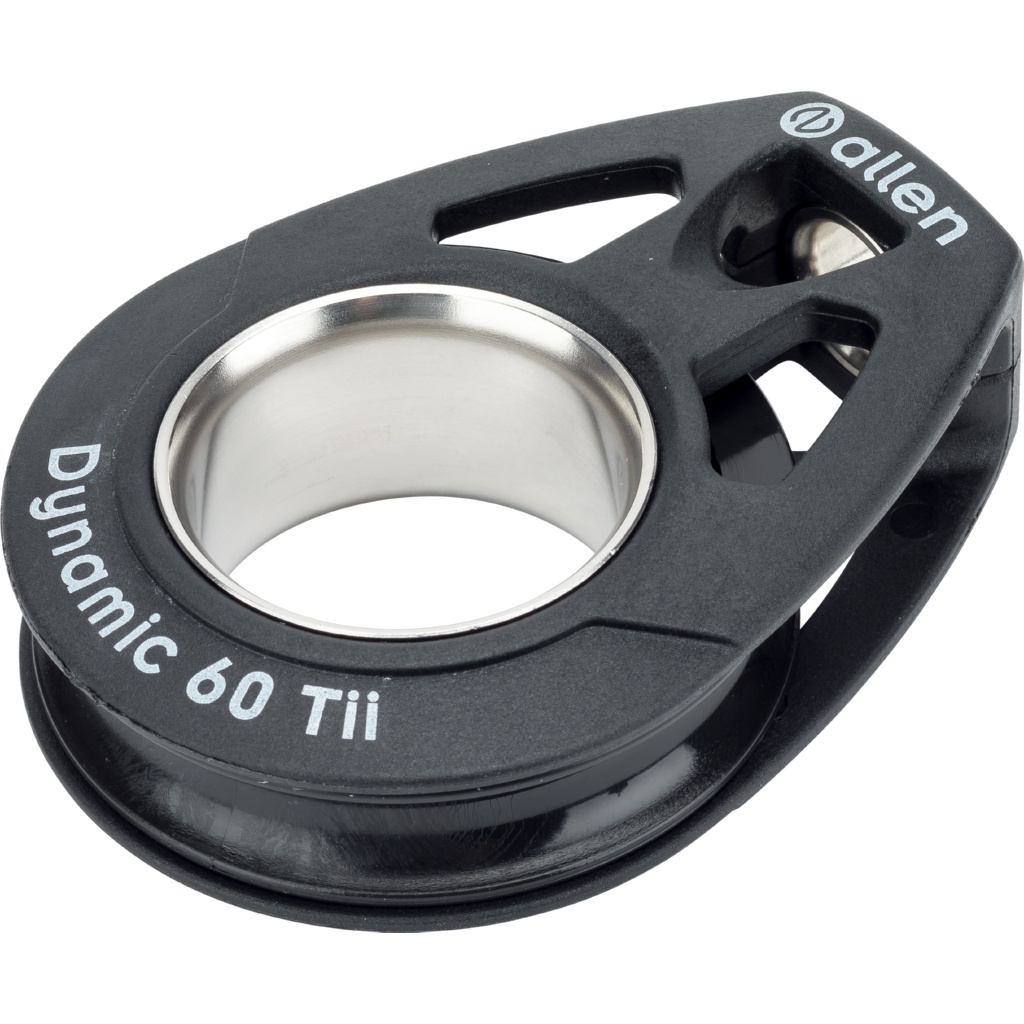

Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

Available with or without a soft shackle.

Becket â€“ The large central rivet not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.

Bearings â€“ Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.

Fitting Instructions – Tii-On blocks rely on the correct attachment method to give them maximum strength.



When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block.

When possible, Tii-on blocks should be attached with a crossed/ through threaded line. (see pictures for example).This is very important, as it keeps the line load pulling the side cheeks together.

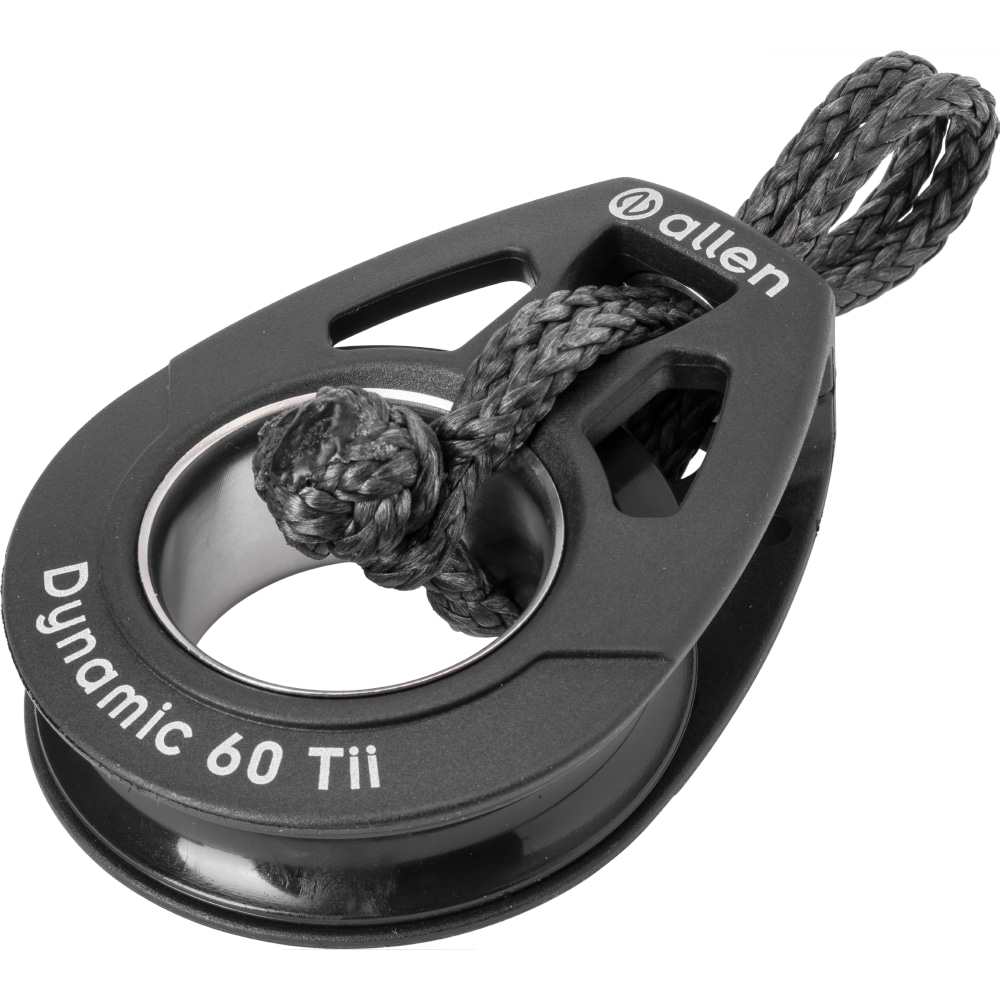

When using a Tii-Shackle, when possible cross the lines. Only use a non-crossed Tii-Shackle on low-load applications. See the picture above of the block attached to a lacing eye for example on how to cross the Tii-Shackle.

For further fitting advice please contact us.

Reviews

There are no reviews yet.

Be the first to review “Single Tii-On”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Single Tii-On

SKUxTitlebreaking load kgfixing hole centres mmmaximum line diameter mmmaximum working load kgshackle pin mmLength mmWeight gPrice
A2060Single1000-125005117.36113£60.90
A2060CSingle Cheek Block100060125005115149£68.09
A2060TII-Single Tii-On1400-10700-8491£60.90
A2062Double1250-126005130255£126.04
A2063Double With Becket1250-126005148271£131.99
A2064Triple1250-126005130353£171.28
A2065Triple With Becket1250-126005148397£177.25
A2066Quad1250-126005130443£222.14
A2067Quad With Becket1250-126005148456£228.12
A2069Quint1250-126005130549£256.06
A2069BQuint With Becket 1250-126006150555£261.91
A2166Cheek Adaptor For 60mm Block-60---115-£7.18
