£43.49
6 in stock (can be backordered)

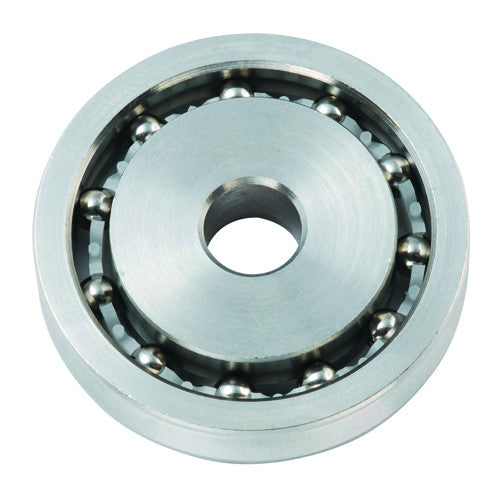

38mm High Load Stainless Steel Sheave.
The breaking load of this sheave very much depends on how it’s being used as well as how it’s fixed.
Bearings – This sheave features a single row of spaced stainless steel ball bearings that run around a stainless steel axle.
Sheave – The slight V profile to the sheave allows it to be paired with both rope and wire.
You must be logged in to post a review.
This site uses Akismet to reduce spam. Learn how your comment data is processed.
| SKUx | Title | bearing type | bore mm | breaking load kg | diameter mm | width mm | Length mm | Weight g | Price |
|---|---|---|---|---|---|---|---|---|---|
| A..45 | Acetal Sheave | - | 6 | - | 15 | 6 | 16 | 0.5 | £1.06 |
| A..46 | Brass Sheave | - | 6.3 | - | 15.5 | 6.2 | 16 | 6 | £3.17 |
| A..80A- | Acetal Sheave Wide | - | 10 | - | 27 | 18 | 0 | 4 | £2.28 |
| A..80B | Acetal Sheave Wide | - | 8 | - | 27 | 18 | 0 | 4 | £2.40 |
| A..83 | Aluminium Sheave | - | 8 | - | 38 | 8 | 0 | 20 | £9.82 |
| A..84 | Aluminium Sheave | - | 9 | - | 28 | 8 | 0 | 10 | £9.28 |
| A..85 | Acetal Sheave | - | 8 | - | 36 | 6 | 0 | 5 | £2.45 |
| A..86-6 | Acetal Sheave | - | 8 | - | 25 | 6 | 0 | 2 | £1.78 |
| A..86-8 | Acetal Sheave | - | 8 | - | 26 | 8 | 0 | 2.5 | £1.78 |
| A.119 | Acetal Sheave | - | 8 | - | 50 | 8 | 0 | 10 | £5.30 |
| A.150 | Acetal Sheave | - | 8 | - | 38 | 8 | 0 | 7 | £2.70 |
| A.150-6 | Acetal Sheave | - | 8 | - | 38 | 6 | 0 | 7 | £2.70 |
| A.185 | Aluminium Sheave | - | 8 | - | 38 | 6 | 0 | 14 | £9.58 |
| A.215 | Acetal Sheave | - | 8.3 | - | 39.8 | 11.7 | 0 | 9 | £3.01 |
| A.216 | Acetal Sheave | - | 8 | - | 50 | 13 | 0 | 14 | £3.90 |
| A.217 | Acetal Sheave | - | 9 | - | 74 | 13 | 0 | 26 | £7.75 |
| A.219 | Acetal Sheave | - | 7.8 | - | 62 | 13 | 0 | 20 | £5.23 |
| A.220 | Acetal Sheave | - | 9 | - | 27 | 6 | 0 | 2 | £1.78 |
| A.315 | Aluminium Sheave | - | 8 | - | 38 | 12 | 0 | 30 | £13.54 |
| A.386 | Nylon Cheek Block | - | 8 | - | 27 | 8 | 0 | 9 | £4.13 |
| A.612 | Acetal Sheave | - | 6 | - | 20 | 7 | 0 | 1 | £1.74 |
| A.613 | Acetal Sheave | - | 8 | - | 27 | 10 | 0 | 2 | £1.80 |
| A.614 | Acetal Sheave | - | 8 | - | 38 | 12 | 0 | 8 | £2.59 |
| A1086 | Acetal Sheave With Double Row Ball Bearing - Grey | - | 6 | 700 | 40 | 14 | 0 | 26 | £11.72 |
| A1086B | Acetal Sheave With Double Row Ball Bearing - Black | - | 6 | 700 | 40 | 14 | 0 | 26 | £11.72 |
| A1086SP-B | Acetal Sheave With Double Row Ball Bearing | - | 8 | 700 | 40 | 14 | 0 | 27 | £11.65 |
| A1886 | Acetal Sheave With Double Row Ball Bearing - Grey | - | 6.5 | 800 | 52 | 15 | 0 | 46 | £16.73 |
| A2086-3 | 20mm Dynamic Sheave | Dynamic | 3.2 | 540 | 20 | 8.50 | 0 | - | £10.08 |
| A2086-4 | 20mm Dynamic Sheave | Dynamic | 4.2 | 540 | 20 | 8 | 0 | 5.6 | £10.08 |
| A2086-5 | 20mm Dynamic Sheave | Dynamic | 5.2 | 540 | 20 | 8 | 0 | 5 | £10.08 |
| A2087-3 | 20mm Dynamic Sheave - Wide | Dynamic | 3.2 | 540 | 20 | 13 | 0 | - | £10.08 |
| A2087-4 | 20mm Dynamic Sheave - Wide | Dynamic | 4.20 | 540 | 20 | 13 | 0 | - | £10.08 |
| A2087-5 | 20mm Dynamic Sheave - Wide | Dynamic | 5.20 | 540 | 20 | 13 | 0 | - | £10.08 |
| A3086 | Acetal Sheave With Double Row Ball Bearing - Grey | - | 5 | 800 | 38 | 12 | 0 | 16 | £10.08 |
| A3342 | High Load SS Sheave With Double Row Ball Bearing | - | 4.5 | 540 | 20 | 11 | 0 | 12 | £27.07 |
| A3342-XHL | XHL Cassette | - | 4.5 | 900 | 20 | 11 | 0 | 11.2 | £48.41 |
| A3343 | High Load SS Sheave With Double Row Ball Bearing | - | 7.3 | 800 | 28.5 | 13 | 0 | 26 | £28.84 |
| A3343-XHL | XHL Cassette | - | 7.25 | 1250 | 28.35 | 13 | 0 | 26 | £50.18 |
| A4056 | Small Dynamic Sheave | Dynamic | 3.10 | 400 | 17.60 | 8.80 | 0 | - | £5.50 |
| A4086- | Acetal Sheave With Double Row Ball Bearing | Dynamic | 5.1 | 700 | 28.2 | 11 | 0 | 7 | £7.46 |
| A4567 | High Load SS Sheave With Single Row Ball Bearing | - | 3.5 | 400 | 16 | 5 | 0 | 5 | £15.00 |
| A4567R | 16mm Dynamic Bearing Sheave | Dyanamic | 3.20 | 400 | 16 | 6.10 | 0 | - | £15.00 |
| A4786-10 | High Load SS Sheave | - | 8 | 1000 | 38 | 10 | 0 | 59.3 | £43.49 |
| A4786-6 | High Load SS Sheave With Single Row Ball Bearing | - | 8 | 1000 | 38 | 6 | 0 | 51 | £41.52 |
| A4786-8 | High Load SS Sheave With Single Row Ball Bearing | - | 8 | 1000 | 38 | 8 | 0 | 55 | £41.52 |
| A4886 | Acetal Sheave With Double Row Ball Bearing - Grey | - | 3 | 540 | 20 | 7 | 0 | 3 | £10.08 |
| A4886-5 | Acetal Sheave With Double Rows Ball Bearing | - | 5.2 | 540 | 20 | 8.5 | 0 | 5 | £10.08 |
| A4886B | Acetal Sheave With Double Row Ball Bearing - Black | - | 3 | 540 | 20 | 7 | 0 | 3 | £5.50 |
| A4986-6 | High Load SS Sheave With Single Row Ball Bearing | - | 8 | 750 | 25 | 6 | 0 | 17 | £20.95 |
| A4986-8 | High Load SS Sheave With Single Row Ball Bearing | - | 8 | 750 | 25 | 8 | 0 | 19 | £20.95 |
